Motion-Robust Deep Reconstruction for Free-Breathing Cardiac Cine MRI

Mahmut Yurt , Kanghyun Ryu , Zhitao Li , Xucheng Zhu , Xianglun Mao , Martin Janich , Marcus Alley , Kawin Setsompop
show 3 more authors
John Pauly Shreyas Vasanawala Ali Syed
This is my paper

Pith reviewed 2026-05-21 02:24 UTC · model grok-4.3

classification 📡 eess.IV cs.LG
keywords free-breathing cardiac MRIdeep learning reconstructionradial samplingmotion robustnesscine MRIunrolled networkscoil compressionclinical deployment
0
0 comments X

The pith

Cine-DL reconstructs high-quality cardiac cine images from free-breathing radial data by combining targeted preprocessing with an unrolled deep network.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces Cine-DL to make cardiac cine MRI practical without breath-holds, which many patients including children cannot perform. Raw radial acquisitions are first binned into cardiac phases and gated to remove motion-corrupted data, then processed with a new Streak Optimized Coil Compression step that keeps heart signals while cutting peripheral interference causing streaks. The cleaned series is fed to an unrolled network that alternates a ResNet proximal operator with conjugate-gradient data consistency updates, trained in a memory-efficient way. On volunteer and hospital patient data, the approach yields higher quantitative scores and better visual quality than k-t SENSE and iGRASP, showing a workable path to routine free-breathing scans.

Core claim

Cine-DL couples retrospective cardiac binning and respiratory gating with Streak Optimized Coil Compression to suppress streak artifacts while preserving cardiac signal, followed by reconstruction via an unrolled network that alternates ResNet proximal operators with physics-based data consistency solved by conjugate gradient; this pipeline consistently improves metrics and visual fidelity over k-t SENSE and iGRASP on free-breathing volunteer data and translates directly to clinical patient scans via hospital deployment.

What carries the argument

Streak Optimized Coil Compression (SOC) that preserves cardiac signals while suppressing peripheral interference driving streaks, paired with the memory-efficient unrolled network alternating ResNet proximal operators and conjugate-gradient physics updates.

If this is right

  • Quantitative metrics and visual fidelity improve over k-t SENSE and iGRASP on free-breathing data.
  • The pipeline supports direct clinical translation through hospital deployment on patient scans.
  • Free-breathing acquisitions become viable for pediatric and noncompliant patients who cannot hold their breath.
  • Memory-efficient training lowers peak GPU usage while maintaining reconstruction speed.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same preprocessing and unrolling pattern could be tested on other dynamic MRI exams such as abdominal or fetal imaging where motion is also an issue.
  • If the method tolerates higher acceleration factors, total scan duration might be shortened further without sacrificing quality.
  • Adaptations that remove the need for retrospective binning could open the door to truly real-time free-breathing cine.

Load-bearing premise

Retrospective cardiac binning and respiratory gating can accurately resolve cardiac phases and discard motion-corrupted spokes without leaving substantial residual motion or signal loss that would degrade the later reconstruction.

What would settle it

New free-breathing patient scans in which Cine-DL shows no metric gains or visible residual motion artifacts compared with k-t SENSE and iGRASP would falsify the claim of consistent improvement.

Figures

Figures reproduced from arXiv: 2605.20687 by Ali Syed, John Pauly, Kanghyun Ryu, Kawin Setsompop, Mahmut Yurt, Marcus Alley, Martin Janich, Shreyas Vasanawala, Xianglun Mao, Xucheng Zhu, Zhitao Li.

Figure 1
Figure 1. Figure 1: Overview of the proposed k-space preprocessing and streak optimized coil compression (SOC). a) Raw golden-angle radial data are first noise-prewhitened to decorrelate coil noise, then retrospectively cardiac-binned using PPG/ECG into T=20 phases and respiratory-gated using the bellows signal to reject inspiratory spokes. The resulting prepared multi-coil, phase-binned data are passed to coil compression to… view at source ↗
Figure 2

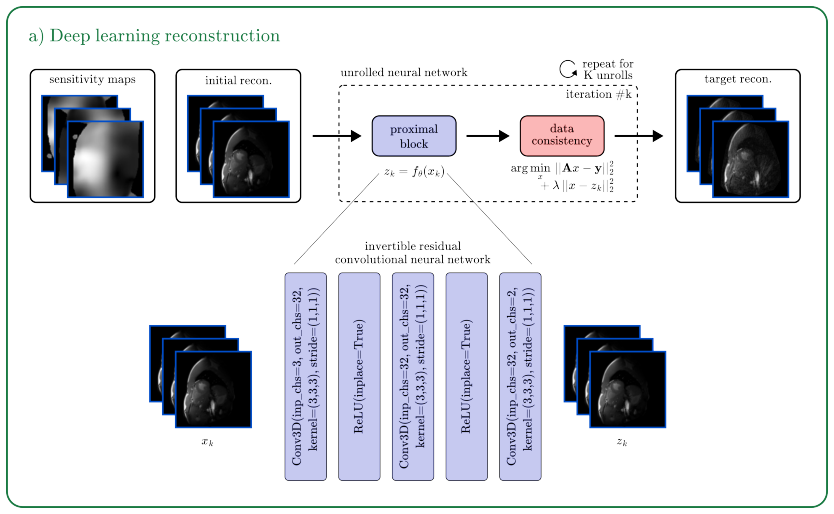

Figure 2. Figure 2: Deep learning reconstruction with an unrolled network. Given coil sensitivity maps and an initial reconstruction, we apply an unrolled neural network for K iterations. Each unroll alternates a learned proximal block with a physics-based data-consistency update that enforces agreement with the acquired non-Cartesian k-space data. The proximal block refines the current estimate xk to produce an intermediate … view at source ↗
Figure 4
Figure 4. Figure 4: Visual comparison of free-breathing radial cine MRI reconstructions. A high-quality reference acquisition (80 s/slice) is shown alongside reconstructions from k-t SENSE, iGRASP, and the proposed Cine-DL at an undersampling factor of R=6x (13 s/slice). Yellow boxes denote the cardiac regions with mag￾nified insets illustrating that k-t SENSE exhibits residual alias￾ing/streaking and loss of fine detail, iGR… view at source ↗
Figure 6
Figure 6. Figure 6: Clinical retrospective results. Representative free￾breathing radial cine MRI reconstructions from data collected in the clinic. A high-quality reference reconstruction is shown along￾side results from retrospectively undersampled data at R = 8×. Yellow boxes denote the cardiac region with magnified insets. The proposed Cine-DL produces cleaner images with reduced streak￾ing and fewer artifacts propagating… view at source ↗
Figure 5
Figure 5. Figure 5: x-t line-profile comparison of free-breathing radial cine MRI reconstructions. The reference acquisition (80 s/slice) is shown alongside k-t SENSE, iGRASP, and the proposed Cine￾DL at R=6x (13 s/slice). x-t profiles are generated by stacking signal intensity over time along the vertical (orange) and horizon￾tal (cyan) lines indicated in the top row. The corresponding x-t maps are shown in the middle (orang… view at source ↗
read the original abstract

Conventional cardiac cine MRI relies on breath-hold Cartesian acquisitions, which are vulnerable to motion artifacts and can be uncomfortable or infeasible, particularly for pediatric and other noncompliant patients who cannot reliably hold their breath. Free-breathing radial acquisitions can alleviate these limitations, but robust reconstruction at high acceleration remains challenging due to prominent streak artifacts. To address these limitations, we propose Cine-DL, a clinically oriented framework that couples targeted k-space preprocessing with fast, model-based deep reconstruction. In this pipeline, raw free-breathing radial data undergo retrospective cardiac binning and respiratory gating to resolve cardiac phases and discard motion-corrupted spokes. We then introduce Streak Optimized Coil Compression (SOC), which explicitly preserves cardiac signals while suppressing peripheral interference that typically drives the streak artifacts. The resulting 2D+t cine series is reconstructed with an unrolled network that alternates a ResNet proximal operator with physics-based data consistency updates solved via conjugate gradient. We further employ a memory-efficient training strategy that reduces peak memory usage. We evaluate Cine-DL on free-breathing volunteer data against established baselines (k-t SENSE and iGRASP) and demonstrate clinical translation via hospital deployment on newly acquired patient data. Our experiments show that Cine-DL consistently improves quantitative metrics and visual fidelity, supporting a practical route toward routine, time-sensitive clinical adoption of free-breathing cine MRI.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript describes Cine-DL, a clinically oriented framework for free-breathing cardiac cine MRI reconstruction. It preprocesses raw radial data with retrospective cardiac binning and respiratory gating, applies Streak Optimized Coil Compression (SOC) to preserve cardiac signals while suppressing streak-driving interference, and reconstructs using an unrolled network with ResNet proximal operators and conjugate gradient data consistency. Evaluations on volunteer data show improvements over k-t SENSE and iGRASP, with clinical deployment on patient data supporting practical adoption.

Significance. Should the central claims hold upon addressing the noted concerns, this could represent a meaningful step toward motion-robust, high-acceleration free-breathing cine MRI suitable for routine clinical use, especially benefiting populations unable to comply with breath-hold protocols.

major comments (2)
  1. [Methods section describing the preprocessing pipeline] The assumption that retrospective cardiac binning and respiratory gating can accurately resolve cardiac phases and discard motion-corrupted spokes without substantial residual motion or signal loss is load-bearing for the superiority claims. The manuscript does not provide quantitative validation such as residual motion estimates or spoke-retention statistics on the patient cohort, raising the risk that unaddressed motion artifacts propagate through SOC and the ResNet+CG unrolled network.
  2. [Results and Experiments] The reported consistent improvements in quantitative metrics lack accompanying specific values, error bars, or ablation studies in the abstract and summary description, which weakens the ability to assess the magnitude of gains and the contribution of each pipeline component (e.g., SOC vs. the unrolled network).
minor comments (1)
  1. [Abstract] The description of the memory-efficient training strategy is vague; providing details on memory reduction achieved would aid reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We address each major comment point by point below, indicating where revisions will be made to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Methods section describing the preprocessing pipeline] The assumption that retrospective cardiac binning and respiratory gating can accurately resolve cardiac phases and discard motion-corrupted spokes without substantial residual motion or signal loss is load-bearing for the superiority claims. The manuscript does not provide quantitative validation such as residual motion estimates or spoke-retention statistics on the patient cohort, raising the risk that unaddressed motion artifacts propagate through SOC and the ResNet+CG unrolled network.

    Authors: We agree that quantitative validation of the binning and gating pipeline strengthens the claims. Volunteer data include spoke-retention rates and motion analysis in the Methods and Results sections. For the patient cohort acquired during clinical deployment, the focus was on visual assessment and workflow integration. In the revised manuscript we will add spoke-retention statistics and any available residual-motion estimates for the patient data to address this concern directly. revision: yes

  2. Referee: [Results and Experiments] The reported consistent improvements in quantitative metrics lack accompanying specific values, error bars, or ablation studies in the abstract and summary description, which weakens the ability to assess the magnitude of gains and the contribution of each pipeline component (e.g., SOC vs. the unrolled network).

    Authors: We acknowledge that the abstract and high-level summary would benefit from explicit numerical values. The full Results section already reports metric improvements with comparisons to k-t SENSE and iGRASP, but we will expand the text to include representative values with error bars and add a dedicated ablation study clarifying the individual contributions of SOC and the unrolled network. The abstract will be updated with key quantitative gains where space permits. revision: partial

Circularity Check

0 steps flagged

No significant circularity in the Cine-DL pipeline

full rationale

The paper describes an empirical reconstruction framework that applies retrospective cardiac binning and respiratory gating to free-breathing radial data, followed by Streak Optimized Coil Compression and an unrolled ResNet+CG network. Quantitative improvements are demonstrated via direct comparison to k-t SENSE and iGRASP on volunteer and patient datasets. No load-bearing step reduces by the paper's own equations or self-citations to a quantity defined solely by fitted parameters or prior outputs; the central claims rest on external data evaluation rather than self-referential construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The approach rests on standard MRI physics assumptions for data consistency and on the effectiveness of retrospective gating to isolate clean cardiac phases; SOC is introduced as a new preprocessing entity without independent validation outside the pipeline.

axioms (1)
  • domain assumption Retrospective binning and respiratory gating from free-breathing radial spokes can isolate cardiac phases with minimal residual motion
    Invoked to resolve cardiac phases and discard corrupted spokes before reconstruction
invented entities (1)
  • Streak Optimized Coil Compression (SOC) no independent evidence
    purpose: Preserve cardiac signals while suppressing peripheral interference that drives streak artifacts
    New preprocessing step introduced to address streak artifacts in radial data
