A hyperbolic model for two-layer thin film flow with a perfectly soluble anti-surfactant

Pith reviewed 2026-05-23 02:27 UTC · model grok-4.3

classification 🧮 math.AP
keywords two-layer thin filmanti-surfactanthyperbolic systemMarangoni flowRiemann problementropy pairsTemple class system
0
0 comments X

The pith

Neglecting capillarity and diffusion yields a strictly hyperbolic system for two-layer anti-surfactant thin films that admits entropy pairs and explicit Riemann solutions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper begins with the motion of two immiscible viscous fluids in a two-layer thin film containing an anti-surfactant solute that induces Marangoni flow via surface tension changes. After deriving one-dimensional evolution equations via the lubrication limit, the authors impose negligible capillarity and diffusion together with perfect solute solubility. This produces a conservative first-order system in film heights and concentration gradients. The system is proved strictly hyperbolic on a certain set of states, equipped with an entire class of entropy pairs and a strictly convex entropy, and nearly Temple-class. These properties deliver well-posedness of the Cauchy problem and permit explicit Riemann problem solutions, which are then used in Godunov-type numerical experiments.

Core claim

Under the assumptions of negligible capillarity and diffusion and perfect solubility of the solute, the lubrication-derived equations reduce to a conservative first-order system in film heights and concentration gradients. This reduced system is strictly hyperbolic for a certain set of states and admits an entire class of entropy/entropy-flux pairs, including a strictly convex entropy, which implies well-posedness of the Cauchy problem. The system is almost Temple-class, enabling explicit computation of solutions to the Riemann problem.

What carries the argument

The conservative first-order hyperbolic system in film heights and concentration gradients obtained after the lubrication limit and the stated reductions.

If this is right

  • The Cauchy problem for the system is well-posed.
  • Explicit solutions to the Riemann problem can be computed from the near-Temple-class structure.
  • A Godunov-type finite volume scheme can be constructed using the exact Riemann solver.
  • The model admits multiple entropy/entropy-flux pairs.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same reduction steps could produce hyperbolic models for other thin-film problems that involve surface-active agents.
  • The explicit Riemann solutions offer a benchmark for testing numerical methods on related multi-layer conservation laws.
  • The identified hyperbolicity region may help select parameter ranges for laboratory validation of the reduced model.

Load-bearing premise

Capillarity and diffusion effects must be negligible and the solute must be perfectly soluble to reach the conservative first-order hyperbolic system.

What would settle it

A direct numerical simulation of the full lubrication equations or a physical experiment that produces flow behavior differing measurably from the hyperbolic model's predictions when capillarity remains small but nonzero.

Figures

Figures reproduced from arXiv: 2502.17205 by Christian Rohde, Rahul Barthwal.

Figure 1
Figure 1. Figure 1: Two-phase thin film flow under the influence of an anti-surfactant. by x ∗ and z ∗ , the horizontal and vertical directions, respectively. Moreover, we denote the two film heights by f ∗ and g ∗ such that the interface surface is located at z ∗ = f ∗ (x ∗ , t∗ ), and the free surface is located at z ∗ = (f ∗ + g ∗ )(x ∗ , t∗ ). The outward unit normal ˆn ∗ 1 and unit tangent vector ˆt ∗ 1 of the interface … view at source ↗
Figure 5

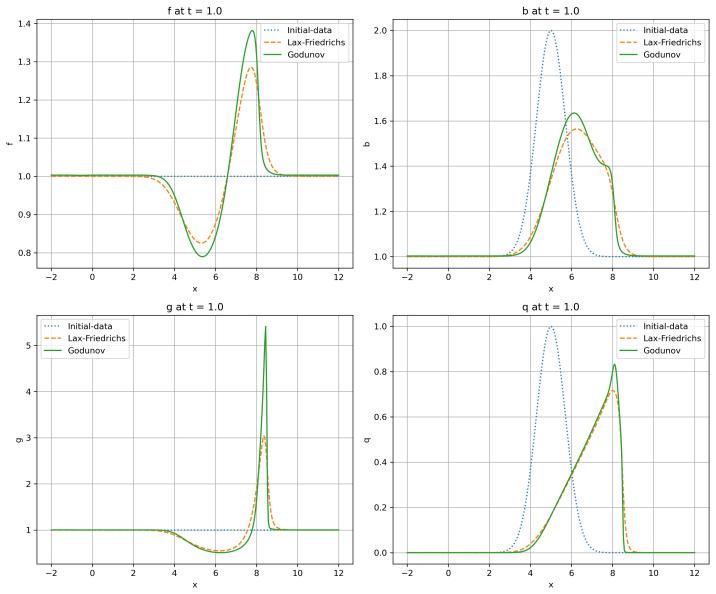

Figure 5. Figure 5: Evolution of primitive variables at t = 1.00 using Godunov solver and Lax￾Friedrichs scheme with ∆x = 4.37 × 10−2 . the domains where the film heights increase. This observation resonates with our discussion on the physical interpretation of the entropy E¯ in Remark 4.4. 7 Conclusions In this work, we derived a reduced system of hyperbolic conservation laws governing the evo￾lution of a two-phase thin film… view at source ↗
Figure 6

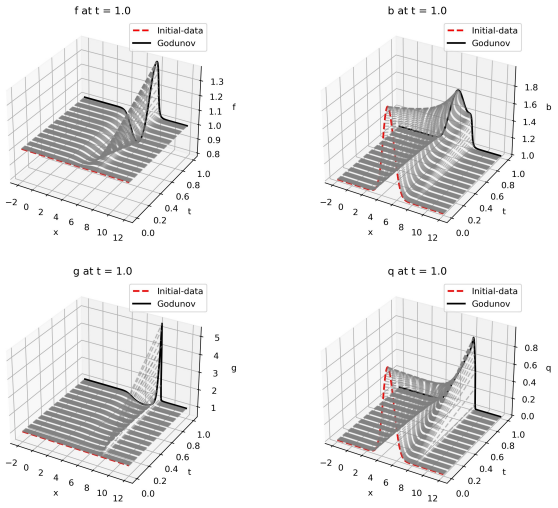

Figure 6. Figure 6: Evolution of primitive variables at t = 1.00 using the Godunov scheme with ∆x = 4.37 × 10−2 . approximations. Acknowledgements This work was financially supported by the German Research Foundation (DFG), within the Collaborative Research Center on Interface-Driven Multi￾Field Processes in Porous Media (SFB 1313, Project Number 327154368) and the Priority Programme - SPP 2410 Hyperbolic Balance Laws in Flui… view at source ↗
read the original abstract

We consider the motion of a two-layer thin film that consists of two immiscible viscous fluids and is endowed with an anti-surfactant solute. The presence of such solute particles induces variations of the surface tension and interfacial stress driving a Marangoni-type flow. We first analyze a lubrication limit and derive one-dimensional evolution equations for film heights and solute concentrations. Then, under the assumption that the capillarity and diffusion effects are negligible and the solute is perfectly soluble, we obtain a conservative first-order system in terms of film heights and concentration gradients. This reduced system is found to be strictly hyperbolic for a certain set of states and to admit an entire class of entropy/entropy-flux pairs. We also provide a strictly convex entropy for the hyperbolic system. Thus, the well-posedness for the Cauchy problem is given. Moreover, the system is almost a Temple-class system, which allows to compute explicit solutions of the Riemann problem. The paper concludes with numerical experiments using a Godunov-type finite volume method, which relies on the exact Riemann solver.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper derives one-dimensional lubrication equations for the heights and solute concentrations of a two-layer thin film with an anti-surfactant. Under the explicit assumptions that capillarity and diffusion are negligible and the solute is perfectly soluble, the system reduces to a conservative first-order hyperbolic system in film heights and concentration gradients. The reduced system is shown to be strictly hyperbolic on a nonempty open set of states, to admit an entire family of entropy/entropy-flux pairs together with a strictly convex entropy (hence well-posedness of the Cauchy problem), and to be almost Temple-class, permitting explicit Riemann solutions. The paper closes with Godunov-type finite-volume numerics that employ the exact Riemann solver.

Significance. If the reduction is justified, the work supplies a new, mathematically structured model for Marangoni-driven two-layer films whose almost-Temple property yields explicit Riemann solutions and whose strictly convex entropy directly implies local well-posedness. These analytic features are genuine strengths that distinguish the contribution from purely numerical thin-film studies.

major comments (2)
  1. [§3 (reduction step)] The passage from the lubrication equations to the claimed conservative first-order system (abstract and §3) rests on dropping capillarity, diffusion, and solubility-related terms without quantitative error estimates or a priori bounds on the neglected contributions. Because this reduction is the load-bearing step that produces the hyperbolic system whose hyperbolicity, entropy, and Temple properties are then proved, the absence of such estimates leaves the domain of validity of the subsequent analysis unclear.
  2. [§4 (hyperbolicity)] The statement that the system is “strictly hyperbolic for a certain set of states” (abstract) is central to all later claims. The manuscript must explicitly identify this open set in the (h1,h2,c) variables, compute the eigenvalues of the flux Jacobian, and verify that they remain real and distinct throughout the set; without these explicit expressions the hyperbolicity claim cannot be checked.
minor comments (2)
  1. [§2–3] Notation for the two film heights and the concentration gradient should be introduced once and used consistently; several passages mix dimensional and nondimensional variables without explicit warning.
  2. [§6] The numerical section would benefit from a brief statement of the CFL condition employed with the exact Riemann solver and from a short convergence table (L1 error versus mesh size) for at least one Riemann problem whose exact solution is known.

Simulated Author's Rebuttal

2 responses · 0 unresolved

Thank you for the referee's careful reading and constructive comments on our manuscript. We address each major comment point by point below, providing the strongest honest defense of the work while noting where revisions will strengthen the presentation.

read point-by-point responses
  1. Referee: [§3 (reduction step)] The passage from the lubrication equations to the claimed conservative first-order system (abstract and §3) rests on dropping capillarity, diffusion, and solubility-related terms without quantitative error estimates or a priori bounds on the neglected contributions. Because this reduction is the load-bearing step that produces the hyperbolic system whose hyperbolicity, entropy, and Temple properties are then proved, the absence of such estimates leaves the domain of validity of the subsequent analysis unclear.

    Authors: The reduction is a standard formal asymptotic step in lubrication theory, where capillarity, diffusion, and related terms are neglected to obtain the leading-order hyperbolic model under the assumptions of thin films and dominant Marangoni effects. The manuscript's primary contribution lies in analyzing the resulting conservative system rather than deriving rigorous approximation bounds. We will add a clarifying paragraph in §3 on the physical regime of validity (small capillary number, negligible diffusion) to better delineate applicability, but quantitative error estimates lie outside the paper's scope. revision: partial

  2. Referee: [§4 (hyperbolicity)] The statement that the system is “strictly hyperbolic for a certain set of states” (abstract) is central to all later claims. The manuscript must explicitly identify this open set in the (h1,h2,c) variables, compute the eigenvalues of the flux Jacobian, and verify that they remain real and distinct throughout the set; without these explicit expressions the hyperbolicity claim cannot be checked.

    Authors: We agree that explicit verification strengthens the claim. In the revised manuscript we will define the precise open set in (h1, h2, c) variables on which the system is strictly hyperbolic, compute the eigenvalues of the flux Jacobian explicitly, and state the conditions under which they are real and distinct. These details will be inserted into §4. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper begins from standard lubrication theory for two-layer films, applies explicit physical assumptions (negligible capillarity/diffusion, perfect solubility) to drop higher-order terms, and obtains a first-order conservative system. Hyperbolicity, existence of entropy pairs, strict convexity of an entropy, and almost-Temple structure are then proved directly from the resulting PDE system using standard techniques for hyperbolic conservation laws. No fitted parameters, self-definitional relations, or load-bearing self-citations appear in the derivation chain. The central claims rest on independent mathematical analysis of the reduced equations rather than on any input being renamed as output.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claims rest on the lubrication approximation plus two explicit modeling choices that are not derived inside the paper.

axioms (2)
  • domain assumption Lubrication approximation is valid for the two-layer thin film geometry
    Invoked to obtain the one-dimensional evolution equations before further reduction.
  • ad hoc to paper Capillarity and diffusion effects are negligible and the solute is perfectly soluble
    Explicitly stated as the assumption needed to reach the conservative first-order hyperbolic system.

pith-pipeline@v0.9.0 · 5714 in / 1529 out tokens · 34402 ms · 2026-05-23T02:27:18.430722+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

  1. Global Existence for a Class of Keyfitz--Kranzer Systems with Application to Thin-Film Flows

    math.AP 2026-04 unverdicted novelty 5.0

    Global weak entropy solutions exist for a class of non-symmetric Keyfitz-Kranzer systems that includes thin-film flow models.
