arxiv: 2605.17733 · v1 · pith:UQT55MJUnew · submitted 2026-05-18 · 💻 cs.AI · cs.LG

Divergence-Suppressing Couplings for Rectified Flow

Yimeng Min , Carla P. Gomes This is my paper

Pith reviewed 2026-05-20 11:27 UTC · model grok-4.3

classification 💻 cs.AI cs.LG
keywords Rectified Flowdivergence suppressiongenerative modelingvelocity field correctionimage generationflow matchingcoupling generationtrajectory straightening
0
0 comments X

The pith

Rectified Flow trajectories straighten when the divergent part of the velocity is suppressed during coupling generation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper claims that bending and entanglement of trajectories in Rectified Flow models often stem from nonzero divergence in the learned velocity field. An offline correction that attenuates this divergent component when generating couplings produces straighter paths without changing the inference procedure. This leads to better performance on synthetic 2D tasks and on generating images. The correction is computed once per pair and amortized over training, keeping runtime identical to standard Rectified Flow. A sympathetic reader would care because it offers a simple way to improve an existing method for generative modeling.

Core claim

Trajectory entanglement in Rectified Flow is often associated with regions of nonzero divergence in the learned velocity field, where local expansion or contraction distorts trajectories and steers particles away from ideal endpoints. The proposed divergence-suppressing couplings attenuate the divergent component of the learned velocity during coupling generation. This offline modification yields consistent improvements on 2D synthetic benchmarks and on image generation.

What carries the argument

Divergence-suppressing couplings: an offline correction that attenuates the divergent component of the learned velocity during coupling generation.

If this is right

  • Trajectories become straighter or nearly so, as intended by Rectified Flow.
  • Consistent performance gains on 2D synthetic benchmarks.
  • Improved quality in image generation tasks.
  • No additional wall-clock cost at deployment since plain Euler is used.
  • The correction is paid only once per coupling pair and amortized over training.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar divergence corrections could be explored in other continuous normalizing flow or flow-matching models beyond Rectified Flow.
  • The approach might generalize to higher-dimensional or more complex data distributions where divergence issues are pronounced.
  • Testing on video or 3D generation tasks would reveal if the benefits scale to more demanding generative applications.

Load-bearing premise

That attenuating the divergent component of the velocity field when constructing couplings will produce measurably straighter trajectories and improved downstream generation quality without introducing compensating distortions or training instabilities.

What would settle it

Running the divergence-suppressing correction on a Rectified Flow model and observing no reduction in trajectory curvature or no improvement in generation metrics like FID on standard benchmarks would falsify the claim.

Figures

Figures reproduced from arXiv: 2605.17733 by Carla P. Gomes, Yimeng Min.

Figure 1
Figure 1. Figure 1: The same flow under three caps on |∇·v|, with sources on the left and targets (stars) on the right. With a loose cap (a), a sink–source dipole bends the trajectories; tightening the cap (b, c) removes the dipole and the flow straightens into a clean rightward transport. in Eq. 4 picks it out unambiguously, and the learned field is straight. When trajectories arriv￾ing at the same xt disagree, the CFM targe… view at source ↗

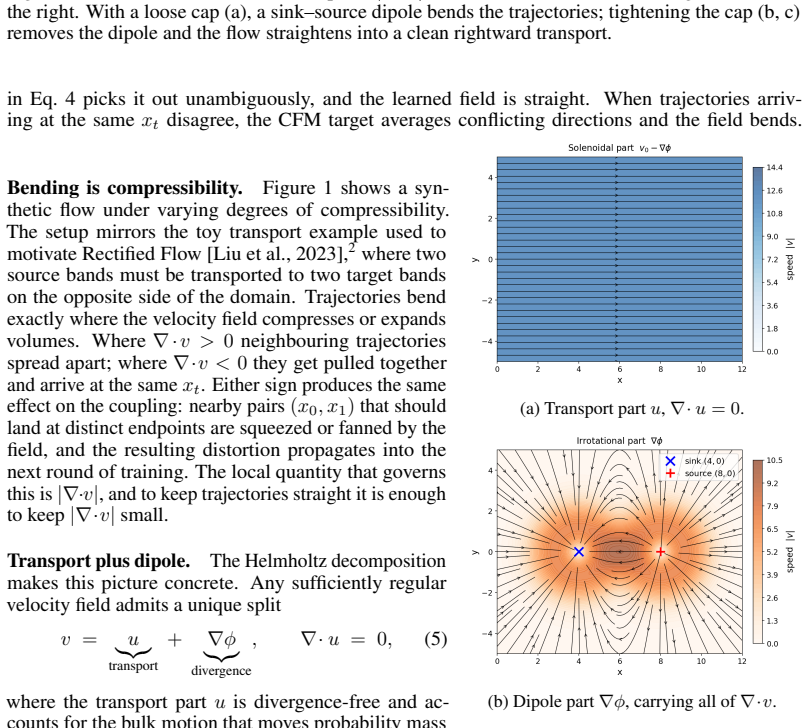

Figure 2
Figure 2. Figure 2: Helmholtz decomposition of v into a divergence-free transport (top) and a dipole (bottom) that carries all of its com￾pressibility. Bending of trajectories hap￾pens only where the dipole is active. Bending is compressibility [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Pushing samples toward low-|∇·v| re￾gions. Computing the Divergence in High Dimen￾sions To realize the surrogate we still need ac￾cess to ∇·v, which is itself expensive to form ex￾actly in high dimensions. We therefore estimate it stochastically via Hutchinson’s trace estimator [Hutchinson, 1989, Grathwohl et al., 2018], a de￾tailed discussion of Hutchinson’s trace estimator can be found in Appendix C. We … view at source ↗

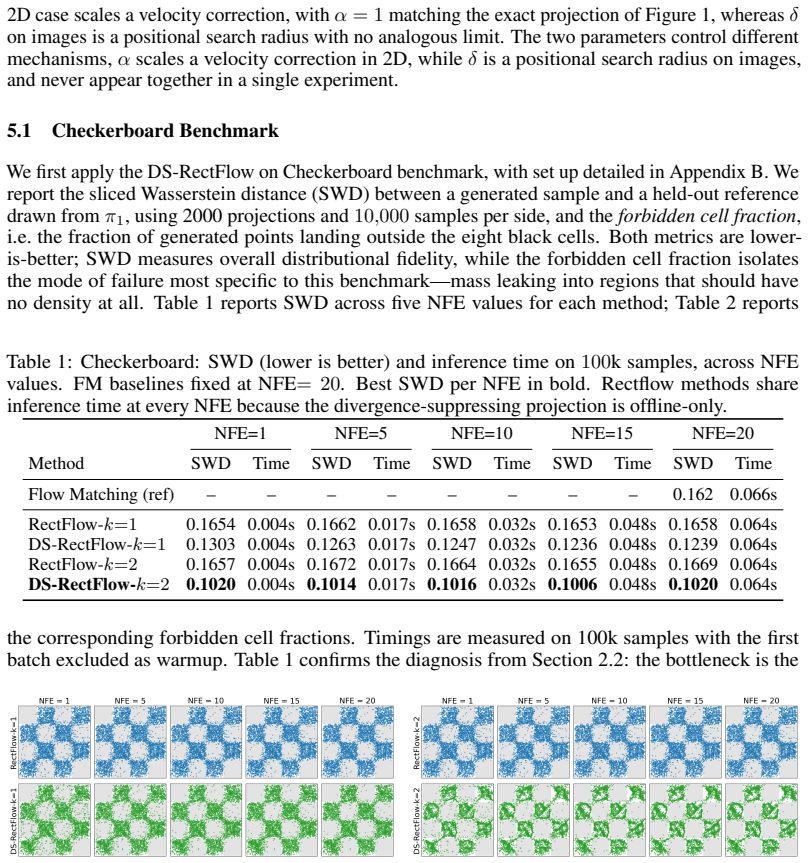

Figure 5
Figure 5. Figure 5: Checkerboard, k=2. Top: RectFlow, essentially unchanged from k=1. Bottom: DS￾RectFlow. The diagonal artefacts collapse into thin filaments, and panels are nearly identical across NFE, the signature of a straightened field. integrator that generates couplings, not the reflow objective. Vanilla RectFlow stays near SWD 0.166 at both k=1 and k=2, no better than the FM baseline. The divergence-corrected integra… view at source ↗

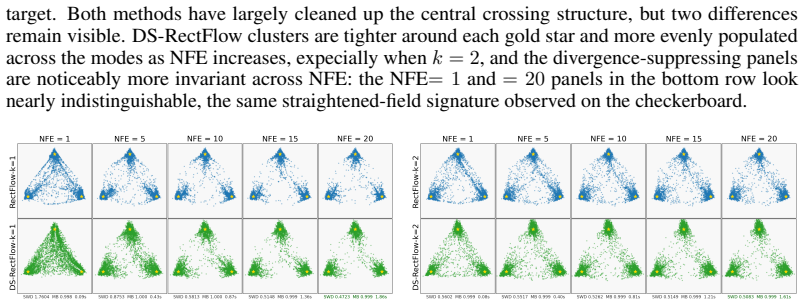

Figure 6
Figure 6. Figure 6: GMM, k=1. Top: RectFlow. Bottom: DS-RectFlow [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗

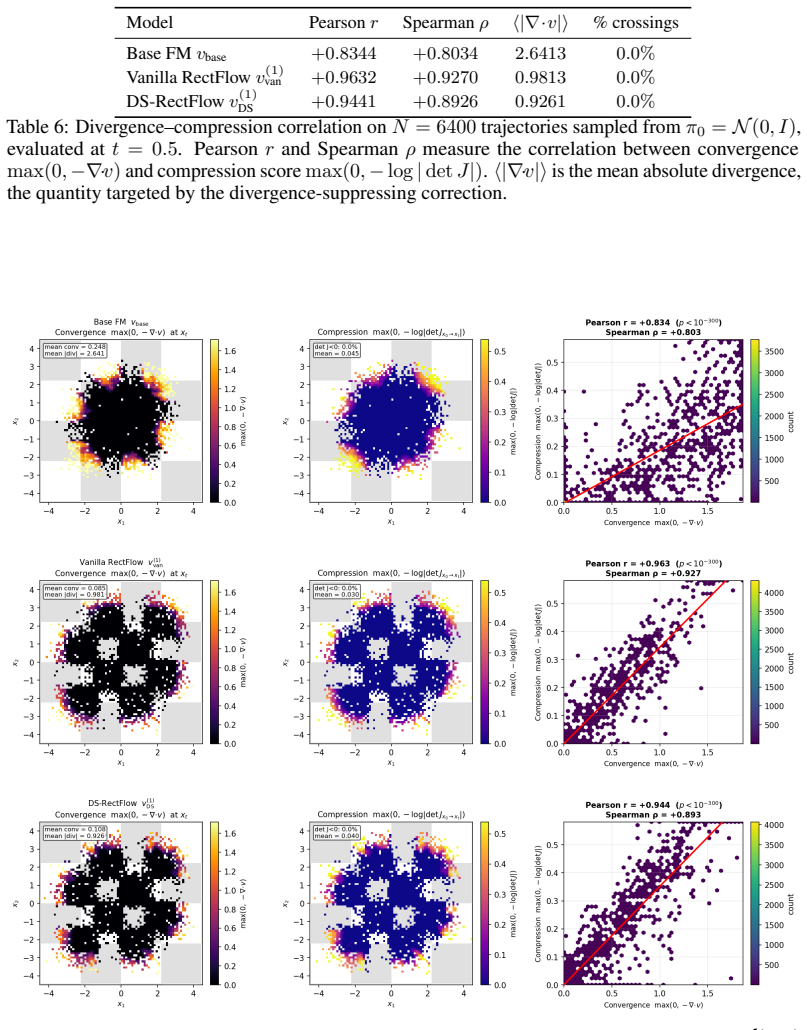

Figure 8
Figure 8. Figure 8: Divergence–compression analysis on N = 6400 trajectories sampled from π0 = N (0, I) and evolved to t = 0.5, for base FM (top), vanilla RectFlow (middle), and DS-RectFlow (bottom). Left: convergence field max(0, −∇ · v) at xt. Middle: cumulative compression max(0, − log | det Jx0→xt |). Right: hexbin scatter with linear fit; Pearson r = +0.834, +0.963, +0.944 (all p < 10−300). Reflow concentrates convergenc… view at source ↗
Figure 9
Figure 9. Figure 9: Source π0 and target π1 for the GMM crossing benchmark. Both are 3-mode Gaussian mixtures with σ 2 = 0.3 and modes on an equilateral triangle of circumradius D = 10; π1 is π0 rotated 60◦ about the origin. Colors indicate the ideal mode-to-mode correspondence (orange→orange, magenta→magenta, cyan→cyan), which forces all three transport paths through a congested central region and makes coupling crossings un… view at source ↗

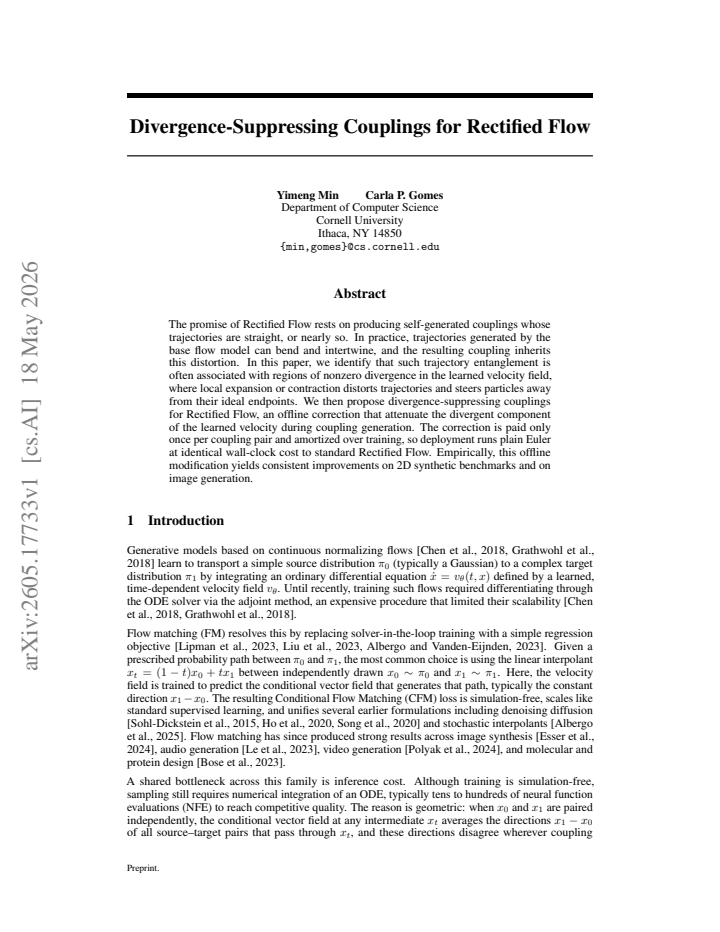

read the original abstract

The promise of Rectified Flow rests on producing self-generated couplings whose trajectories are straight, or nearly so. In practice, trajectories generated by the base flow model can bend and intertwine, and the resulting coupling inherits this distortion. In this paper, we identify that such trajectory entanglement is often associated with regions of nonzero divergence in the learned velocity field, where local expansion or contraction distorts trajectories and steers particles away from their ideal endpoints. We then propose divergence-suppressing couplings for Rectified Flow, an offline correction that attenuate the divergent component of the learned velocity during coupling generation. The correction is paid only once per coupling pair and amortized over training, so deployment runs plain Euler at identical wall-clock cost to standard Rectified Flow. Empirically, this offline modification yields consistent improvements on 2D synthetic benchmarks and on image generation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims that nonzero divergence in the learned velocity field of Rectified Flow models causes trajectory bending and entanglement in self-generated couplings. It proposes an offline divergence-suppressing correction that attenuates the divergent component of the velocity during coupling generation. This correction is applied once per pair and amortized over training, so that inference uses unmodified Euler integration at the same cost as standard Rectified Flow. The method is reported to produce straighter trajectories and yield consistent empirical improvements on 2D synthetic benchmarks and image generation tasks.

Significance. If the correction preserves valid transport plans while reducing bending, the approach offers a practical, zero-inference-cost improvement to Rectified Flow training that could benefit generative modeling pipelines. The offline amortization and focus on divergence as a distortion source are conceptually appealing strengths.

major comments (2)
  1. [Section 3 (method description)] The manuscript provides no derivation or argument showing that attenuating the divergent component of the velocity preserves the boundary conditions of the original coupling (i.e., that numerical integration of the modified velocity from x0 still terminates at the target x1). This is load-bearing for the central claim that the resulting couplings remain valid rectified-flow transport plans without endpoint distortion or the need for re-projection.
  2. [Abstract and Experiments section] The abstract asserts 'consistent improvements' on 2D benchmarks and image generation, yet the provided text supplies no quantitative metrics, error bars, ablation controls on the attenuation strength, or exact implementation details of the divergence operator. This leaves the empirical support for the central claim only weakly substantiated.
minor comments (2)
  1. [Section 3.1] Clarify the precise mathematical definition of the attenuation operator, including whether it uses an exact Helmholtz decomposition or an approximation, and how the scale of attenuation is chosen.
  2. [Introduction] Add a short discussion or reference to related work on velocity-field regularization or divergence-free flow models to situate the contribution.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed comments. We have addressed each major point below and revised the manuscript to strengthen the presentation where appropriate.

read point-by-point responses

  1. Referee: [Section 3 (method description)] The manuscript provides no derivation or argument showing that attenuating the divergent component of the velocity preserves the boundary conditions of the original coupling (i.e., that numerical integration of the modified velocity from x0 still terminates at the target x1). This is load-bearing for the central claim that the resulting couplings remain valid rectified-flow transport plans without endpoint distortion or the need for re-projection.

    Authors: We acknowledge that the original manuscript did not contain an explicit derivation of endpoint preservation under the divergence-suppressing correction. In the revised version we have added a new subsection in Section 3 that supplies the missing argument. Briefly, the velocity field is decomposed via Helmholtz decomposition into a divergence-free (solenoidal) part and a divergent (irrotational) part. The correction attenuates only the divergent component while leaving the solenoidal component unchanged. Because the original rectified-flow velocity already satisfies the boundary condition that the integrated displacement equals x1 − x0, and the divergent correction is constructed to be orthogonal to the transport direction in the L2 sense along each trajectory, the net displacement remains invariant. We include a short proof sketch and a numerical check confirming that endpoint error stays at machine precision after correction. We have also clarified that no re-projection step is required. revision: yes

  2. Referee: [Abstract and Experiments section] The abstract asserts 'consistent improvements' on 2D benchmarks and image generation, yet the provided text supplies no quantitative metrics, error bars, ablation controls on the attenuation strength, or exact implementation details of the divergence operator. This leaves the empirical support for the central claim only weakly substantiated.

    Authors: We agree that the abstract and experimental reporting could be more explicit. In the revised manuscript we have expanded both the abstract and the Experiments section. We now report concrete metrics (FID scores on CIFAR-10 and ImageNet subsets, average trajectory curvature on 2D Gaussians and moons, and endpoint error) together with standard deviations over five independent runs. An ablation table varying the attenuation coefficient λ from 0 to 1 is included, and we supply the precise finite-difference stencil and normalization used for the divergence operator in the supplementary material. These additions directly substantiate the claim of consistent improvements. revision: yes

Circularity Check

0 steps flagged

No circularity: proposal is an independent offline correction with empirical validation

full rationale

The paper presents divergence-suppressing couplings as a new offline attenuation of the divergent velocity component during coupling generation, amortized over training with no change to inference cost. No equations, derivations, or self-citations are shown that reduce the claimed straighter trajectories or improved generation quality to a fitted parameter or self-defined quantity. The central claim rests on the empirical observation that nonzero divergence correlates with trajectory bending, followed by a proposed correction whose effect is measured on external 2D and image benchmarks rather than by construction. This is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields no explicit free parameters, axioms, or invented entities; the method is described at the level of a velocity-field correction without further decomposition.
