Browsing Large Graphs with Tile Pyramids and Sleeve Routing in the Browser

Lev Nachmanson , Xiaoji Chen This is my paper

Pith reviewed 2026-05-19 22:30 UTC · model grok-4.3

classification 💻 cs.CG
keywords graph visualizationsemantic zoomtile pyramidsleeve routingconstrained Delaunay triangulationedge routingweb browser rendering
0
0 comments X

The pith

Tile pyramids for semantic zoom combined with sleeve routing let large graphs be browsed interactively in the browser like online maps.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a visualization technique that constructs a tile pyramid so that at every zoom level the labels of the highest-ranked nodes stay readable, mirroring how major features remain legible on geographic maps. Edges are routed by sleeve routing, which traverses the dual graph of a constrained Delaunay triangulation to pick a sequence of triangles and then applies the funnel algorithm with heuristics to compute a path inside that sleeve. The complete pipeline of layout, routing, and tile construction runs entirely client-side in a WebGL renderer, and the work reports benchmarks on graphs containing up to 32,768 nodes. A reader would care because the method removes any need for a dedicated server while preserving clarity during zoom and pan operations on sizable networks.

Core claim

The paper establishes that a hierarchy of tiles at successive zoom resolutions, populated with rank-selected node labels and with edges drawn via sleeve routing through free space in a constrained Delaunay triangulation, supports smooth interactive navigation of graphs with tens of thousands of elements while keeping the entire computation inside the browser.

What carries the argument

Sleeve routing, which searches the dual graph of a Constrained Delaunay Triangulation to select a corridor of triangles and then computes a shortest path inside that sleeve using the funnel algorithm together with speed-up heuristics.

Load-bearing premise

Sleeve routing must stay efficient and produce usable non-crossing paths for graphs up to 32,000 nodes when executed entirely in the browser.

What would settle it

A direct browser timing test on one of the 32k-node benchmark graphs in which sleeve routing either exceeds a few seconds or generates paths that cross node labels would show the client-side approach does not deliver the claimed usability.

Figures

Figures reproduced from arXiv: 2605.17498 by Lev Nachmanson, Xiaoji Chen.

Figure 1
Figure 1. Figure 1: The entities rendered on each level are shown without scaling as the user zooms in. [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

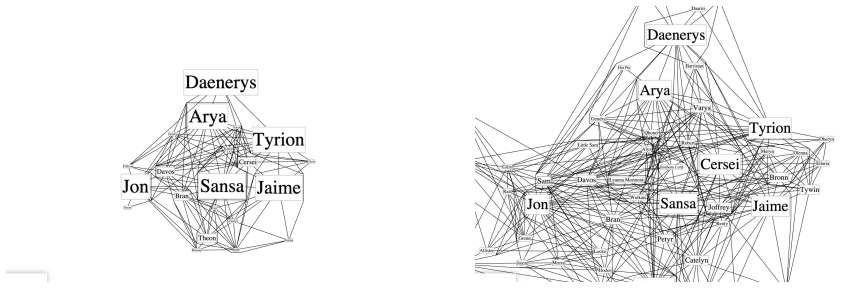

Figure 2. Figure 2: Two adjacent pyramid levels of the Game of Thrones graph rendered by the WebGL [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: An edge clip, drawn as a polyline, from start to end inside a tile. The two red midlines split the tile into four sub-tiles and meet the polyline at the four points a, b, c, d; at d the polyline touches the horizontal midline without crossing it. Cutting the polyline at these points yields five sub-clips [start, a], [a, b], [b, c], [c, d], [d, end], each contained in one sub-tile and meeting that sub-tile’… view at source ↗
Figure 4
Figure 4. Figure 4: Effect of vertex collapse on the LORAS–RENLY edge of the Game of Thrones graph. [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
read the original abstract

We present a new way to visualize a large graph in the style of online geographic maps. The method builds a tile pyramid for semantic zoom: at every zoom level the labels of the highest-ranked nodes remain readable, just as the names of major geographical features stay readable on those maps. The edges are routed by a method we call sleeve routing, which searches the dual graph of a Constrained Delaunay Triangulation to select a sequence of triangles through the free space, then applies the funnel algorithm to compute a shortest path inside the selected sleeve. We apply several heuristics to speed up the routing. We implemented our approach in the WebGL renderer of MSAGLJS, an open-source TypeScript library for graph visualization in web browsers, with the entire pipeline running client-side, without a dedicated server. Our benchmark suite contains nine graphs with up to 32,768 nodes and 236,978 edges, and measures browser-side parsing, layout, routing, and tile-pyramid construction. The renderer's demo can be seen at https://microsoft.github.io/msagljs/renderer-webgl-sleeve/index.html. MSAGLJS is available on GitHub (https://github.com/microsoft/msagljs) and as NPM packages (@msagl/core, @msagl/drawing, @msagl/parser, @msagl/renderer-svg, @msagl/renderer-webgl -- all on https://www.npmjs.com/).

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper claims a new browser-based visualization method for large graphs that emulates online geographic maps via tile pyramids for semantic zoom, keeping highest-ranked node labels readable at every zoom level. Edges are routed by sleeve routing: searching the dual graph of a Constrained Delaunay Triangulation to select a sequence of triangles, then applying the funnel algorithm inside the sleeve, augmented by several heuristics. The full pipeline (parsing, layout, routing, tile-pyramid construction) is implemented client-side in the WebGL renderer of the open-source MSAGLJS library and evaluated on nine benchmark graphs with up to 32,768 nodes and 236,978 edges; a live demo is provided.

Significance. If the performance claims hold, the work enables practical, server-free interactive visualization of graphs with tens of thousands of nodes directly in web browsers, which is a useful engineering contribution for web-based graph tools. Credit is due for the fully open-source implementation (GitHub and NPM packages), the live demo, and the explicit measurement of the entire client-side pipeline.

major comments (1)
  1. [Benchmark description] Benchmark description (abstract and evaluation section): the manuscript states that the suite 'measures browser-side parsing, layout, routing, and tile-pyramid construction' on graphs up to 32,768 nodes, yet reports no quantitative timings, per-component breakdowns, complexity analysis of sleeve routing, or description of the heuristics. Without these data the central claim that the full pipeline remains interactive client-side cannot be verified.
minor comments (2)
  1. [Abstract] The phrase 'several heuristics' is used without even a high-level list; a one-sentence enumeration or pointer to the relevant subsection would improve clarity.
  2. [Implementation and availability] The live demo URL and GitHub links are helpful; ensure they remain stable and that the repository contains the exact benchmark scripts used.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the thoughtful review and for highlighting the need for more detailed benchmark reporting. We address the major comment below.

read point-by-point responses

  1. Referee: [Benchmark description] Benchmark description (abstract and evaluation section): the manuscript states that the suite 'measures browser-side parsing, layout, routing, and tile-pyramid construction' on graphs up to 32,768 nodes, yet reports no quantitative timings, per-component breakdowns, complexity analysis of sleeve routing, or description of the heuristics. Without these data the central claim that the full pipeline remains interactive client-side cannot be verified.

    Authors: We agree that the current manuscript does not include the quantitative timings, per-component breakdowns, complexity analysis, or heuristic descriptions referenced in the abstract and evaluation section. In the revised version we will add tables and figures reporting wall-clock times (in milliseconds) for parsing, layout, routing, and tile-pyramid construction on each of the nine benchmark graphs; we will also include a per-component breakdown, an asymptotic complexity discussion of the sleeve-routing procedure (dual-graph search plus funnel algorithm), and explicit pseudocode or textual descriptions of the speed-up heuristics. These additions will directly support the claim that the full client-side pipeline remains interactive. revision: yes

Circularity Check

0 steps flagged

No significant circularity: algorithmic pipeline is self-contained

full rationale

The paper describes a visualization system that constructs tile pyramids for semantic zoom and routes edges via sleeve routing on the dual of a Constrained Delaunay Triangulation followed by the funnel algorithm plus heuristics. Sleeve routing is explicitly introduced as a named procedure rather than derived from any fitted parameter or self-referential definition. No equations, uniqueness theorems, or predictions appear that reduce by construction to the paper's own inputs or prior self-citations. Benchmarks consist of direct empirical timings on nine concrete graphs; these measurements do not constitute a derived claim that loops back to the method itself. The entire pipeline is presented as a standard application of known computational-geometry primitives implemented client-side, with no load-bearing self-citation chains or ansatzes smuggled via prior work.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The approach depends on standard computational geometry results for Constrained Delaunay Triangulation and the funnel algorithm, plus the practical assumption that heuristics suffice for browser performance on the tested graph sizes. No new physical entities or fitted constants are introduced.

axioms (2)
  • domain assumption Constrained Delaunay Triangulation produces a valid partition of free space around graph nodes for routing purposes
    Invoked when describing sleeve construction from the dual graph.
  • standard math The funnel algorithm computes a shortest path inside a selected sleeve of triangles
    Standard result from computational geometry used without re-derivation.
invented entities (1)
  • Sleeve routing no independent evidence
    purpose: To select and route edges through free space using triangle sequences and funnel paths
    New named procedure introduced to combine dual-graph search with funnel algorithm for graph visualization
