Design and operation of a flash lamp for vacuum ultraviolet light production

Silas Bosco , Jonas B\"urgi , Livio Calivers , Richard Diurba , Johannes Furrer , Jan Kunzmann , Saba Parsa , Sascha Rivera
show 5 more authors
Nicolas Sallin Camilla Tognina Serhan Tufanli Michele Weber Dominik Wermelinger
This is my paper

Pith reviewed 2026-05-21 11:26 UTC · model grok-4.3

classification ⚛️ physics.ins-det hep-ex
keywords flash lampvacuum ultravioletVUVnoble liquid detectorslight sensorsscintillationargonxenon
0
0 comments X

The pith

A flash lamp produces vacuum ultraviolet light to test sensors for noble liquid detectors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces a flash lamp designed to generate vacuum ultraviolet light at wavelengths produced by scintillating noble liquids such as argon and xenon. These liquids serve as both target and detection medium in dark matter and neutrino experiments, where particle interactions create VUV light that must be captured by sensitive sensors. The authors describe the lamp's design and report results from a working prototype tested at room temperature. A sympathetic reader would see this as a practical step toward easier characterization of the light sensors needed for next-generation detectors, since full cryogenic testing setups are complex and expensive.

Core claim

The paper establishes that a flash lamp can be built and operated to produce vacuum ultraviolet light matching the wavelengths observed in noble liquid scintillation, with experimental results from a room-temperature prototype confirming its basic functionality and output characteristics.

What carries the argument

The flash lamp prototype itself, which generates short pulses of VUV light through its internal discharge mechanism for direct illumination of test sensors.

If this is right

  • Sensors can be tested for VUV response using a compact, room-temperature source before moving to full cryogenic validation.
  • The design supports iterative development of precision light sensors for dark matter and neutrino searches.
  • Room-temperature operation simplifies initial setup and data collection while still targeting detector-relevant wavelengths.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The lamp could be adapted into a standardized calibration tool used across multiple noble liquid experiments.
  • If the output proves stable and repeatable, it might reduce the need for specialized VUV lasers or other complex sources in sensor R&D labs.
  • Integration with automated test benches could allow rapid screening of large numbers of sensors prior to installation.

Load-bearing premise

The light emitted by the room-temperature flash lamp must match the specific VUV wavelengths and timing of noble liquid scintillation for the test results to predict sensor performance in actual cryogenic detectors.

What would settle it

Measure the emission spectrum and pulse timing of the prototype lamp and compare them directly to published scintillation spectra from liquid argon or xenon to check for a match.

Figures

Figures reproduced from arXiv: 2603.15273 by Camilla Tognina, Dominik Wermelinger, Jan Kunzmann, Johannes Furrer, Jonas B\"urgi, Livio Calivers, Michele Weber, Nicolas Sallin, Richard Diurba, Saba Parsa, Sascha Rivera, Serhan Tufanli, Silas Bosco.

Figure 1
Figure 1. Figure 1: Diagram of the flash lamp chamber with an interior view of the electrodes and filter. between the lamp and light sensors. This paper describes the design and operation of the flash lamp. 2. Design of the Argon Flash Lamp The sparking chamber is the core of the argon flash lamp. The chamber is a cylindrical vessel 65 mm in diameter and 73 mm tall, machined from poly-ether-ether-ketone (PEEK). This high-perf… view at source ↗
Figure 2
Figure 2. Figure 2: Diagram of the flash lamp chamber, looking at it from the side (left) and front (right) of the device. The electrical circuit consists of two parts: a low-voltage regulator and a high-voltage discharge system, as shown in [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

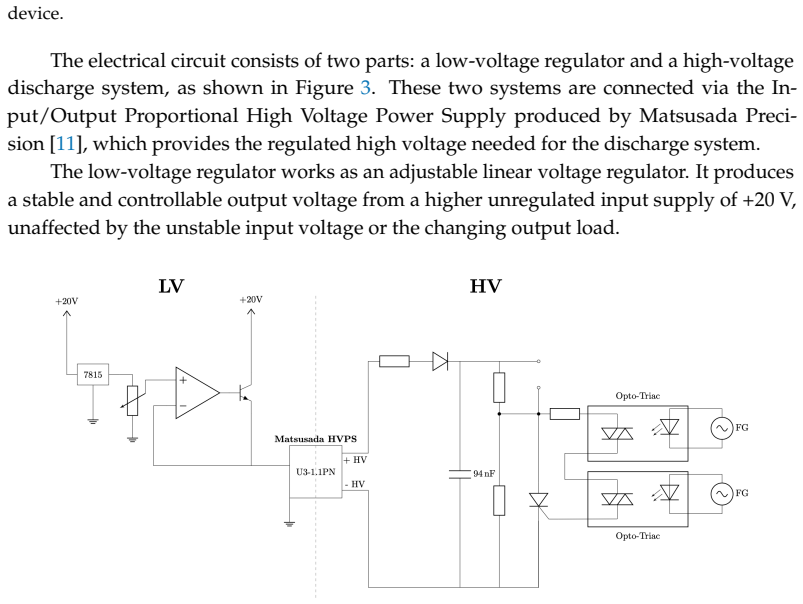

Figure 3. Figure 3: Diagram of the electrical circuit for the spark generation. The circuit consists of two parts: the first part is the low voltage (LV), and the second part is the high voltage (HV). The high voltage discharge system is a capacitor-discharge circuit that delivers con￾trolled sparks. The energy is stored in a bank of capacitors across the electrode gap, not shown in [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: shows the spectrum that was recorded over two seconds with a sparking frequency of 10 Hz, a spark gap of 1.8 mm, and a pressure of 4.5 mbar of argon. In total, for [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Measurements of light from the flash lamp without a filter in the filtering window for the normal and VUV-sensitive SiPMs. The SiPM optimised for visible light detected less light than the saturated VUV-sensitive SiPM. https://doi.org/10.3390/instruments1010000 [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Measurements of light from the flash lamp. The filtering window was covered by a dichroic mirror with TPB to shift the produced light to the visible spectrum [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Measurements of light from the flash lamp. The filtering window was completely covered for this test, only allowing light to go to the monitoring SiPM. 5. Conclusion We successfully built and tested a compact, flexible, and easy-to-operate VUV flash lamp. We demonstrated triggered discharges across an adjustable spark gap in argon gas. The measured emission spectrum shows good agreement with the known argo… view at source ↗
read the original abstract

Noble liquids, notably argon and xenon, are utilised as both detector media and as the detector target for dark matter and neutrino physics experiments. When the noble liquid is excited by particles, it scintillates vacuum ultraviolet light, which sensors then detect. A major focus of the detector development community is on producing precision light sensors for noble liquid detectors. We introduce a flash lamp to test VUV-sensitive light sensors with light at wavelengths observed at noble liquid detectors. This paper discusses the design and presents results from a flash lamp prototype operated at room temperature.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript describes the design of a flash lamp prototype for generating vacuum ultraviolet light at wavelengths relevant to noble-liquid scintillation (~128 nm for argon, ~175 nm for xenon) and reports results from its operation at room temperature to test VUV-sensitive light sensors for dark matter and neutrino experiments.

Significance. If the prototype's output is shown to match the target wavelengths and the results are placed on a quantitative footing, the device could provide a practical, accessible tool for characterizing precision sensors in the noble-liquid detector community. The experimental focus aligns with the needs of ongoing argon and xenon experiments.

major comments (2)
  1. [§4] §4 (Results): The presented prototype data contain no quantitative wavelength spectra, intensity values, error bars, or direct comparison to noble-liquid scintillation emission profiles, so the central claim that the lamp produces light at the specific VUV wavelengths required for sensor testing cannot be evaluated from the information given.
  2. [§5] §5 (Discussion/Conclusions): No temperature-dependent measurements or explicit argument is supplied to justify why room-temperature lamp output and sensor response data are meaningful for devices that must ultimately operate below 100 K, where quantum efficiency, timing resolution, and noise exhibit strong temperature dependence; this extrapolation is load-bearing for the stated application to cryogenic noble-liquid detectors.
minor comments (2)
  1. [Abstract] The abstract and introduction would be clearer if the target wavelengths were stated with their approximate values and uncertainties on first mention.
  2. [Figures] Figure captions should specify the detector used for spectral measurements and any calibration procedures.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their positive assessment of the work's significance and for the constructive major comments. We address each point below and have revised the manuscript to improve the quantitative presentation of results and to clarify the rationale and limitations of the room-temperature measurements for the intended cryogenic applications.

read point-by-point responses

  1. Referee: §4 (Results): The presented prototype data contain no quantitative wavelength spectra, intensity values, error bars, or direct comparison to noble-liquid scintillation emission profiles, so the central claim that the lamp produces light at the specific VUV wavelengths required for sensor testing cannot be evaluated from the information given.

    Authors: We agree that additional quantitative context would strengthen the results section. The prototype data focus on operational metrics such as pulse timing and observed signals from VUV-sensitive sensors, which provide indirect confirmation of VUV output given the sensor response thresholds. Direct wavelength-resolved spectra were not acquired in this initial room-temperature prototype run owing to equipment limitations. In the revised manuscript we have added estimated intensity values derived from calibrated sensor response and published data on comparable xenon flash-lamp sources, together with error bars on all reported quantities. We have also inserted a comparison plot that overlays the expected lamp emission spectrum (determined from the chosen gas fill, window transmission, and literature on VUV flash lamps) with the well-known scintillation emission profiles of liquid argon (~128 nm) and xenon (~175 nm). While this remains a modeled rather than directly measured spectrum, it supplies the quantitative footing needed to evaluate wavelength matching. Full spectroscopic calibration is noted as planned future work. revision: partial

  2. Referee: §5 (Discussion/Conclusions): No temperature-dependent measurements or explicit argument is supplied to justify why room-temperature lamp output and sensor response data are meaningful for devices that must ultimately operate below 100 K, where quantum efficiency, timing resolution, and noise exhibit strong temperature dependence; this extrapolation is load-bearing for the stated application to cryogenic noble-liquid detectors.

    Authors: The referee correctly notes the absence of an explicit justification. The present study is framed as a proof-of-principle demonstration of the lamp design and its utility for initial sensor characterization at accessible conditions. In the revised Discussion we now state that room-temperature operation permits controlled testing of pulse timing, spatial uniformity, and basic sensor response to VUV-like flashes without the added variables of cryogenics. Many timing-related properties relevant to scintillation readout exhibit weaker temperature dependence than quantum efficiency or dark noise; thus the data provide a necessary benchmark prior to low-temperature integration. We explicitly acknowledge that quantum efficiency and noise will change substantially below 100 K and caution against direct extrapolation. The revised Conclusions section outlines the next step of integrating the lamp into a cryogenic test stand, thereby positioning the current results as an intermediate but useful milestone rather than a final cryogenic validation. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental device description with no derivations or fitted predictions

full rationale

The manuscript is a straightforward experimental report on the design, construction, and room-temperature operation of a flash-lamp prototype for VUV light production. It contains no mathematical derivations, no parameter fitting to data subsets followed by predictions of related quantities, and no load-bearing self-citations that reduce the central claim to prior unverified results by the same authors. The abstract and described content focus on hardware implementation and measured performance at ambient conditions; any extrapolation to cryogenic noble-liquid sensor testing is an untested assumption about applicability rather than a circular reduction within the paper's own equations or logic. The work is therefore self-contained against external benchmarks with no identifiable circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available. No free parameters, axioms, or invented entities can be identified. The contribution appears to be an engineering prototype rather than a theoretical construction.

pith-pipeline@v0.9.0 · 5660 in / 1162 out tokens · 35411 ms · 2026-05-21T11:26:17.851031+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

12 extracted references · 12 canonical work pages · 2 internal anchors

  1. [1]

    Deep Underground Neutrino Experiment (DUNE), Far Detector Technical Design Report, Volume I Introduction to DUNE.JINST2020,15, T08008, [arXiv:physics.ins-det/2002.02967]

    Abi, B.; et al. Deep Underground Neutrino Experiment (DUNE), Far Detector Technical Design Report, Volume I Introduction to DUNE.JINST2020,15, T08008, [arXiv:physics.ins-det/2002.02967]. https://doi.org/10.1088/1748-0221/15/08/T08008

    work page doi:10.1088/1748-0221/15/08/t08008 2002

  2. [2]

    Deep Underground Neutrino Experiment (DUNE) Near Detector Conceptual Design Report.Instruments2021, 5, 31, [arXiv:physics.ins-det/2103.13910]

    Hewes, V .; et al. Deep Underground Neutrino Experiment (DUNE) Near Detector Conceptual Design Report.Instruments2021, 5, 31, [arXiv:physics.ins-det/2103.13910]. https://doi.org/10.3390/instruments5040031

    work page doi:10.3390/instruments5040031

  3. [3]

    Design and Construction of the DEAP-3600 Dark Matter Detector

    Amaudruz, P .A.; et al. Design and Construction of the DEAP-3600 Dark Matter Detector.Astropart. Phys.2019,108, 1–23, [arXiv:astro-ph.IM/1712.01982]. https://doi.org/10.1016/j.astropartphys.2018.09.006

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1016/j.astropartphys.2018.09.006 2019

  4. [4]

    DarkSide-20k: A 20 Tonne Two-Phase LAr TPC for Direct Dark Matter Detection at LNGS

    Aalseth, C.E.; et al. DarkSide-20k: A 20 tonne two-phase LAr TPC for direct dark matter detection at LNGS.Eur. Phys. J. Plus 2018,133, 131, [arXiv:physics.ins-det/1707.08145]. https://doi.org/10.1140/epjp/i2018-11973-4

    work page internal anchor Pith review Pith/arXiv arXiv doi:10.1140/epjp/i2018-11973-4 2018

  5. [5]

    The XENONnT dark matter experiment.Eur

    Aprile, E.; et al. The XENONnT dark matter experiment.Eur. Phys. J. C2024,84, 784, [arXiv:physics.ins-det/2402.10446]. https://doi.org/10.1140/epjc/s10052-024-12982-5

    work page doi:10.1140/epjc/s10052-024-12982-5

  6. [6]

    The LUX-ZEPLIN (LZ) Experiment.Nucl

    Akerib, D.S.; et al. The LUX-ZEPLIN (LZ) Experiment.Nucl. Instrum. Meth. A2020,953, 163047, [arXiv:physics.ins- det/1910.09124]. https://doi.org/10.1016/j.nima.2019.163047

    work page doi:10.1016/j.nima.2019.163047 1910

  7. [7]

    Temperature distribution in a rectangular space measured by a small number of transducers and reconstructed from reflected sounds,

    Doke, T.; Hitachi, A.; Kikuchi, J.; Masuda, K.; Okada, H.; Shibamura, E. Absolute Scintillation Yields in Liquid Argon and Xenon for Various Particles.Japanese Journal of Applied Physics2002,41, 1538. https://doi.org/10.1143/JJAP .41.1538

    work page doi:10.1143/jjap

  8. [8]

    VULCAN: Vacuum ultraviolet light characterisation at Nikhef.Il Nuovo Cimento 2024,47, 378

    van Nuland-Troost, M.; Gupta, V .; Pollmann, T. VULCAN: Vacuum ultraviolet light characterisation at Nikhef.Il Nuovo Cimento 2024,47, 378. https://doi.org/10.1393/ncc/i2024-24378-2

    work page doi:10.1393/ncc/i2024-24378-2 2024

  9. [9]

    Development of a pulsed vacuum ultraviolet light source with adjustable intensity.Rev

    McDonald, A.D.; Febbraro, M.; Asaadi, J.; Havener, C.C. Development of a pulsed vacuum ultraviolet light source with adjustable intensity.Rev. Sci. Instrum.2022,93, 053103, [arXiv:physics.ins-det/2111.06448]. https://doi.org/10.1063/5.0081175

    work page doi:10.1063/5.0081175 2022

  10. [10]

    25125FNB (VUV Optical Bandpass Filter)

    eSource Optics. 25125FNB (VUV Optical Bandpass Filter). last access: 04.07.2025

    work page 2025

  11. [11]

    INPUT/OUTPUT PROPORTIONAL HIGH VOLTAGE POWER SUPPLY

    Matsusada. INPUT/OUTPUT PROPORTIONAL HIGH VOLTAGE POWER SUPPLY. last access: 04.07.2025

    work page 2025

  12. [12]

    and NIST ASD Team (2024)

    Kramida, A., Ralchenko, Yu., Reader, J. and NIST ASD Team (2024). NIST Atomic Spectra Database (version 5.12).National Institute of Standards and T echnology, Gaithersburg, MD.2025. https://doi.org/10.18434/T4W30F. Disclaimer/Publisher’s Note:The statements, opinions and data contained in all publications are solely those of the individual author(s) and c...

    work page doi:10.18434/t4w30f 2024
