Proving Properties of φ-Representations with the Walnut Theorem-Prover

Jeffrey Shallit This is my paper

Pith reviewed 2026-05-24 08:35 UTC · model grok-4.3

classification 🧮 math.NT cs.DMcs.FL
keywords φ-representationsWalnut theorem-provergolden ratioautomatanumeration systemsFrougny-Sakarovitch theoremautomatic sequencesinduction-free proofs
0
0 comments X

The pith

Walnut theorem-prover derives the Frougny-Sakarovitch automata theorem for φ-representations computationally and yields induction-free proofs of their properties.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper revisits the classic result that automata recognize valid φ-representations of integers, where φ is the golden ratio, and obtains the same theorem by direct computation inside the Walnut prover. This encoding turns statements about the representations into first-order logic sentences that Walnut decides automatically. The approach supplies uniform proofs for many known facts about these representations and produces additional new facts, all without manual induction. A reader cares because the method replaces case-by-case reasoning with a single mechanical procedure that scales across related claims.

Core claim

Encoding questions about φ-representations as first-order statements in the language decided by Walnut recovers the Frougny-Sakarovitch theorem on the corresponding automata in a computationally direct way; the same encoding then supplies simple, induction-free proofs of existing results on these representations, automatically recovers many results from Dekking and Van Loon, and generates new results on φ-representations.

What carries the argument

Walnut theorem-prover deciding first-order statements about φ-representations and their automata.

If this is right

  • Existing results on φ-representations receive simple induction-free proofs in a uniform manner.
  • Results from recent papers of Dekking and Van Loon are recovered automatically.
  • New results on φ-representations are obtained through the same encoding technique.
  • The Frougny-Sakarovitch automata theorem itself is obtained by direct computation rather than traditional proof.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same encoding strategy could be tested on representations in other quadratic integer bases.
  • Walnut might discover further automatic identities among φ-representations that have not yet been conjectured by hand.
  • The technique suggests a route for automating proofs in related numeration systems whose validity conditions are expressible in the same logic.

Load-bearing premise

Properties of φ-representations can be faithfully encoded as first-order logical statements that the Walnut decision procedure handles without modeling error.

What would settle it

Walnut proving a known false statement about φ-representations or failing to prove a known true one.

Figures

Figures reproduced from arXiv: 2305.02672 by Jeffrey Shallit.

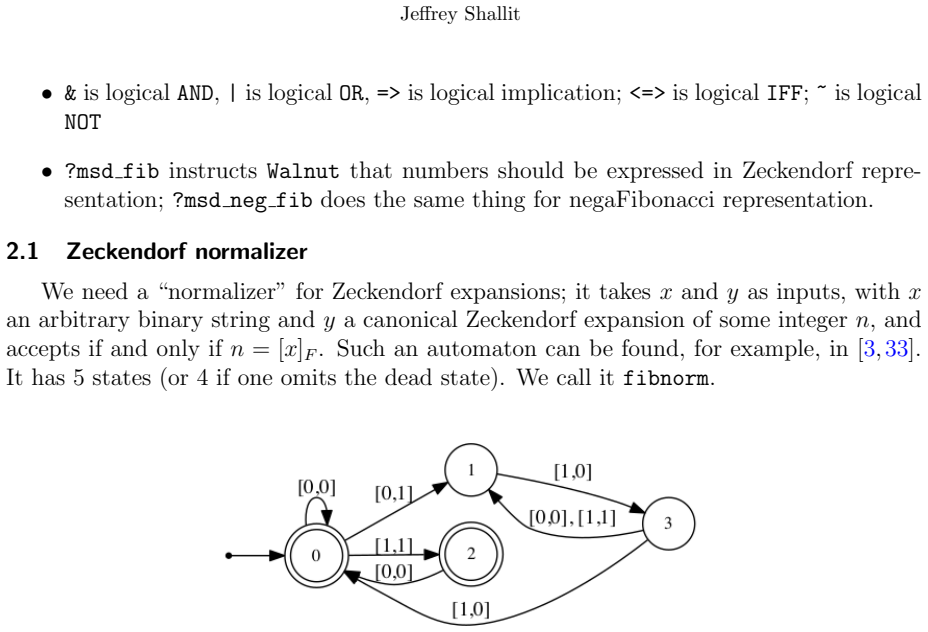

Figure 1
Figure 1. Figure 1: The automaton fibnorm. 2.2 NegaFibonacci normalizer We also need the analogous “normalizer” for negaFibonacci expansions; it takes x and y as inputs, with x an arbitrary binary string and y a canonical negaFibonacci expansion of some integer n, and accepts if and only if n = [x]−F . Such an automaton has 5 states (or 4 if one omits the dead state). We call it negfibnorm. Correctness is left to the reader … view at source ↗

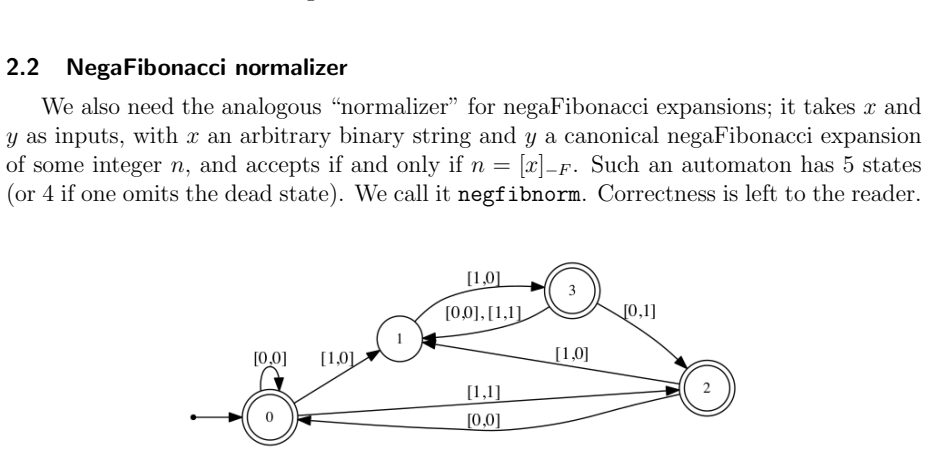

Figure 2
Figure 2. Figure 2: The automaton negfibnorm. 6 [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗

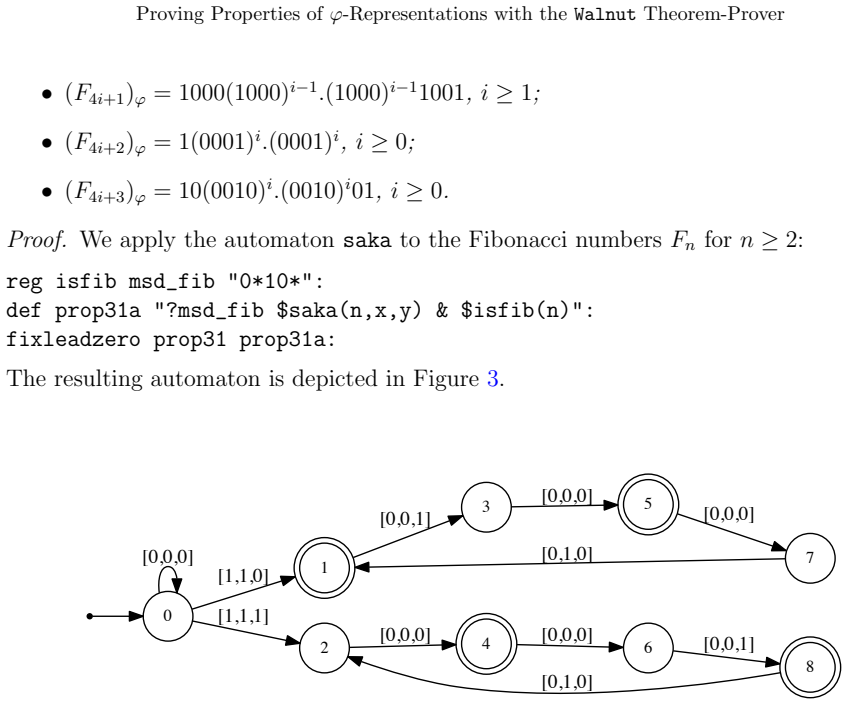

Figure 3
Figure 3. Figure 3: Canonical φ-representation of Fn. Inspection of the automaton shows that, ignoring leading zeros, there are essentially four different acceptance paths: • [1, 1, 0][0, 0, 1][0, 0, 0]([0, 0, 0][0, 1, 0][0, 0, 1][0, 0, 0])∗ . • [1, 1, 1][0, 0, 0][0, 0, 0][0, 0, 1]([0, 1, 0][0, 0, 0][0, 0, 0][0, 0, 1])∗ ; • [1, 1, 0]([0, 0, 1][0, 0, 0][0, 0, 0][0, 1, 0])∗ ; • [1, 1, 1][0, 0, 0]([0, 0, 0][0, 0, 1][0, 1, 0][0, … view at source ↗

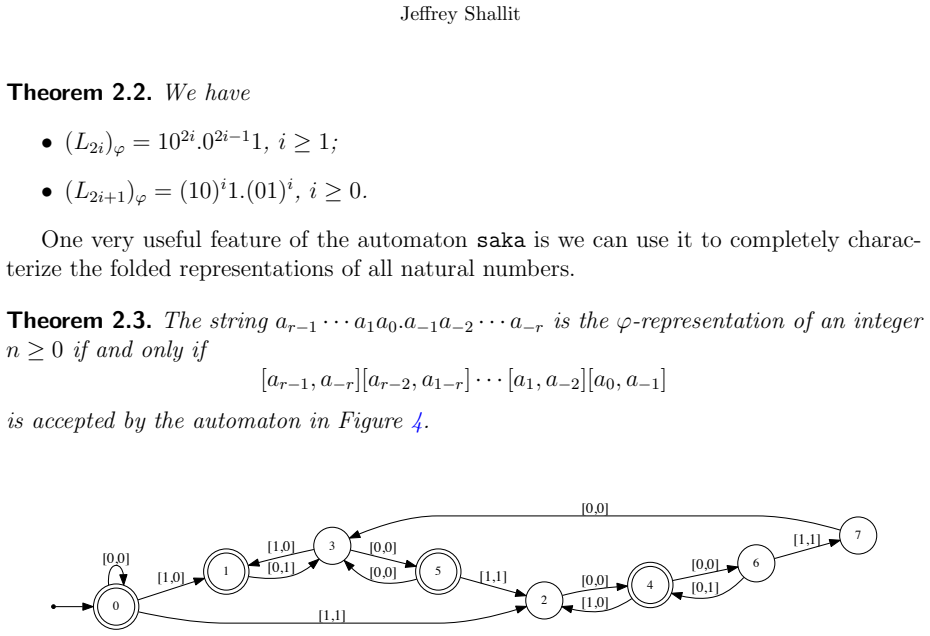

Figure 4
Figure 4. Figure 4: Automaton accepting the folded representations of all [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗

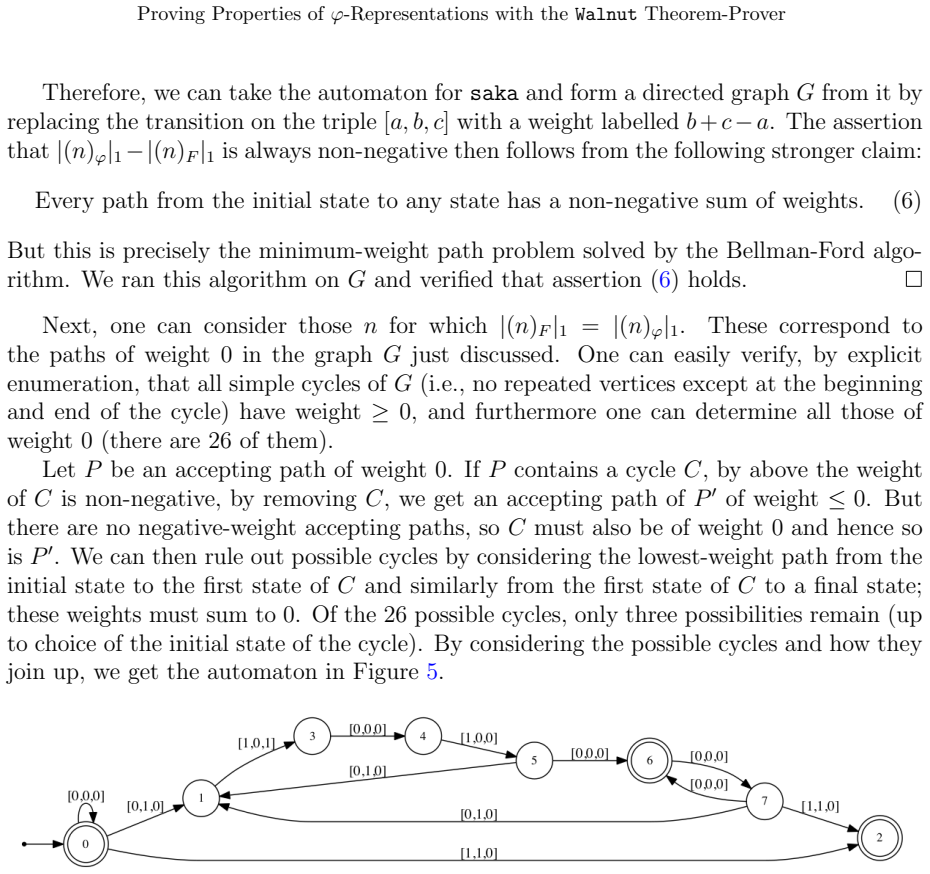

Figure 5
Figure 5. Figure 5: Automaton for weight-0 paths. To get the accepted set of n, we project to the first coordinate and determinize the resulting automaton. Thus we have proved the following result [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗

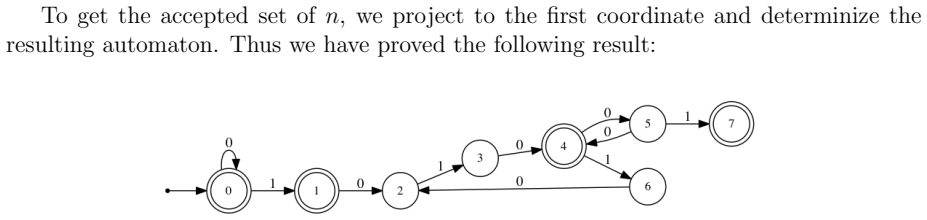

Figure 6
Figure 6. Figure 6: Automaton for weight-0 paths. 13 [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗

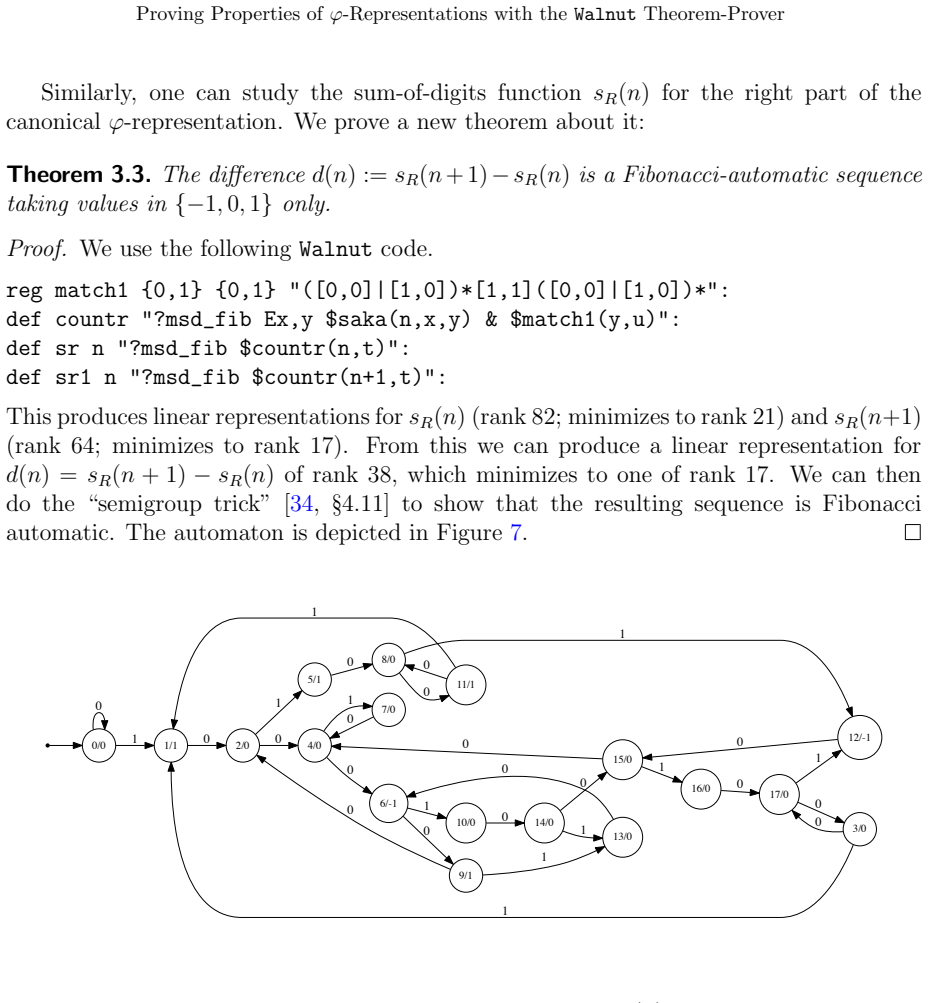

Figure 7
Figure 7. Figure 7: Fibonacci automaton for d(n). 4 Length of base-φ representations Similarly, one can study the length ℓ(n) of the left part of (n)φ (or, alternatively, one more than the exponent of the highest power of φ appearing in (n)φ). This is sequence A362692 in the OEIS. Here the idea is to create a simple automaton, onepos, that accepts binary strings x and t if and only if t contains a single 1 and it occurs at or… view at source ↗

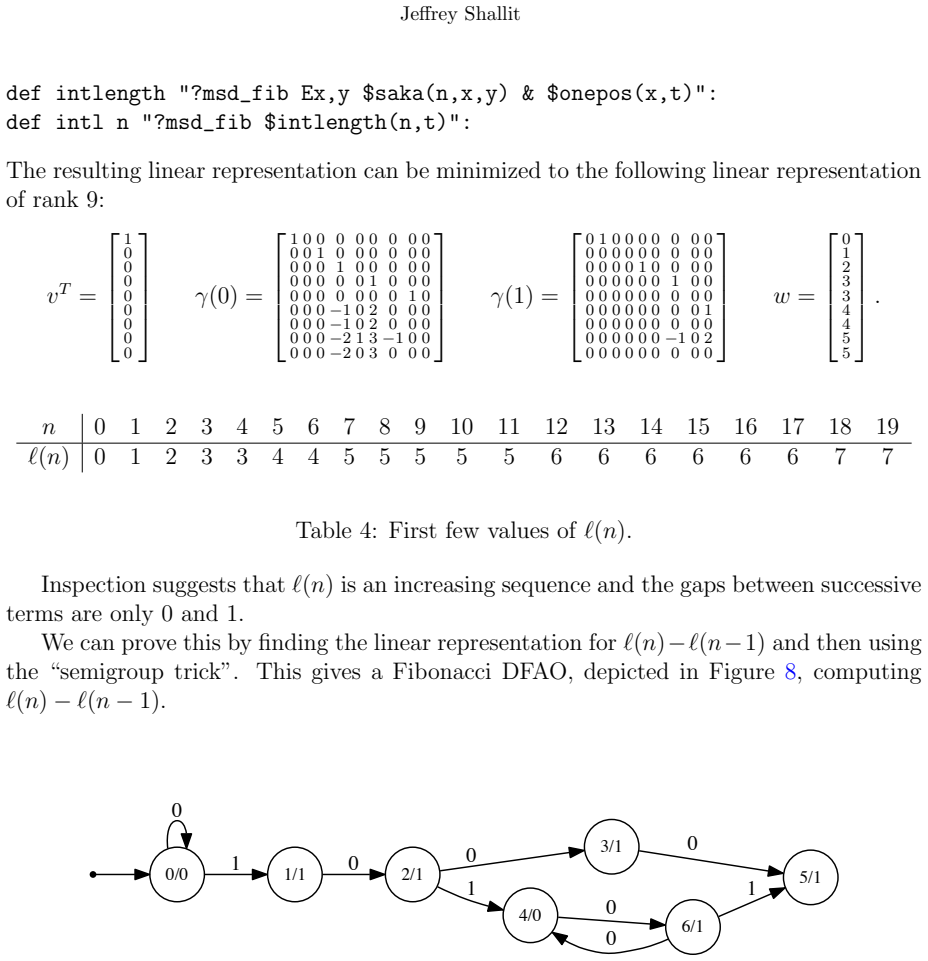

Figure 8
Figure 8. Figure 8: Fibonacci DFAO for first difference of ℓ(n). Inspection of this automaton and observing that the Fibonacci representation of the Lucas numbers are of the form 1010∗, gives the following result: Theorem 4.1. We have ℓ(n)−ℓ(n−1) = 1 if and only if n = 1 or n = L2i or n = L2i−1+1 for i ≥ 1. This is implied by a result of Sanchis and Sanchis [32, Thm. 2.1]. 16 [PITH_FULL_IMAGE:figures/full_fig_p016_8.png] view at source ↗

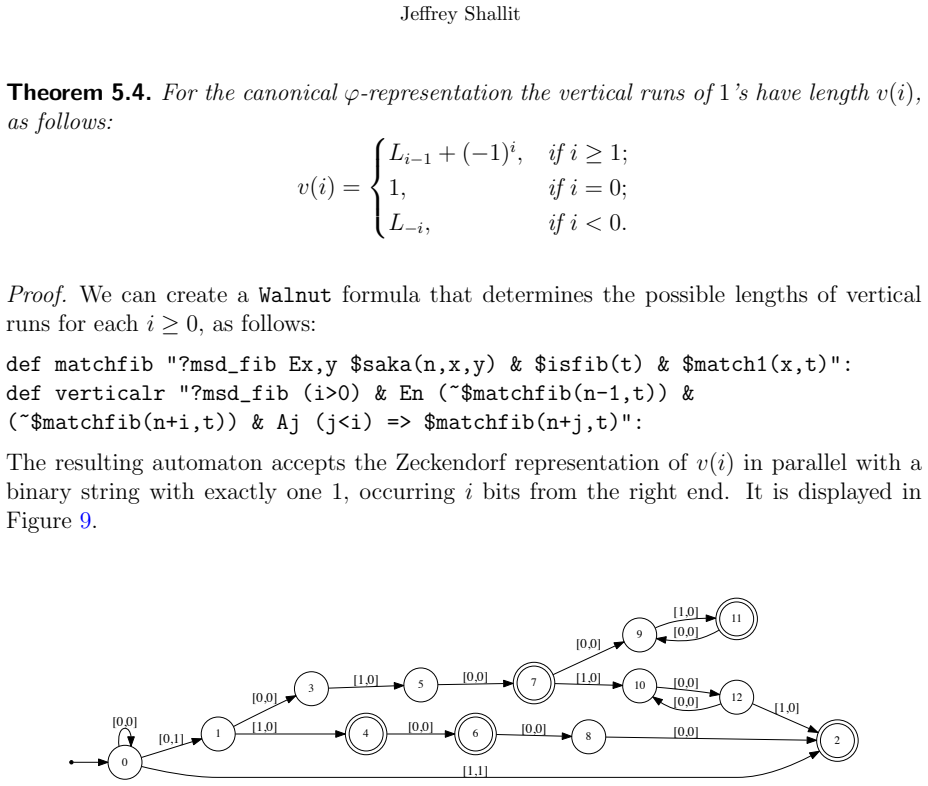

Figure 9
Figure 9. Figure 9: 0 [0,0] 1 [0,1] 2 [1,1] 3 [0,0] 4 [1,0] 5 [1,0] 6 [0,0] 7 [0,0] 8 [0,0] 9 [0,0] 10 [1,0] [0,0] 11 [1,0] 12 [0,0] [0,0] [1,0] [0,0] [PITH_FULL_IMAGE:figures/full_fig_p020_9.png] view at source ↗

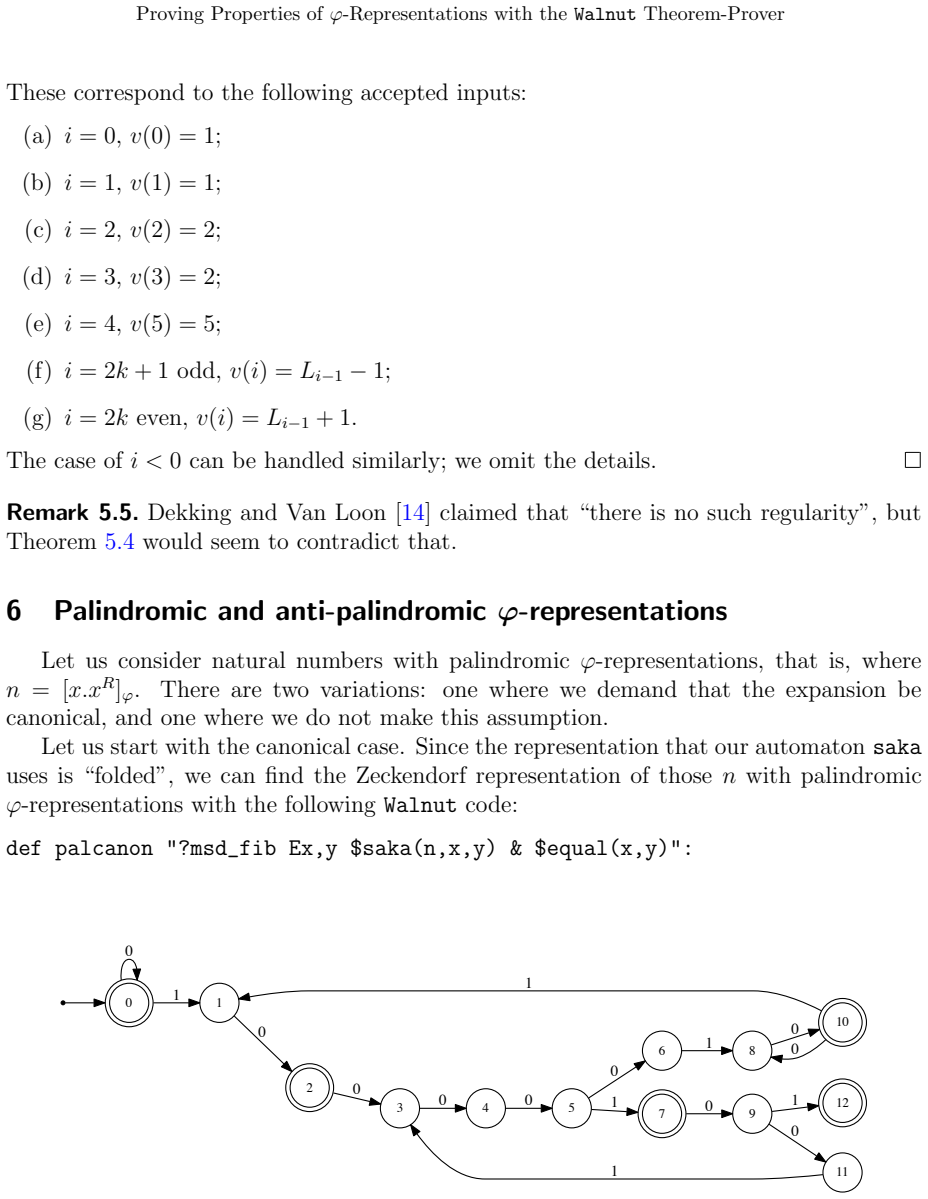

Figure 10
Figure 10. Figure 10: Fibonacci automaton for those n with palindromic φ-representations. 21 [PITH_FULL_IMAGE:figures/full_fig_p021_10.png] view at source ↗

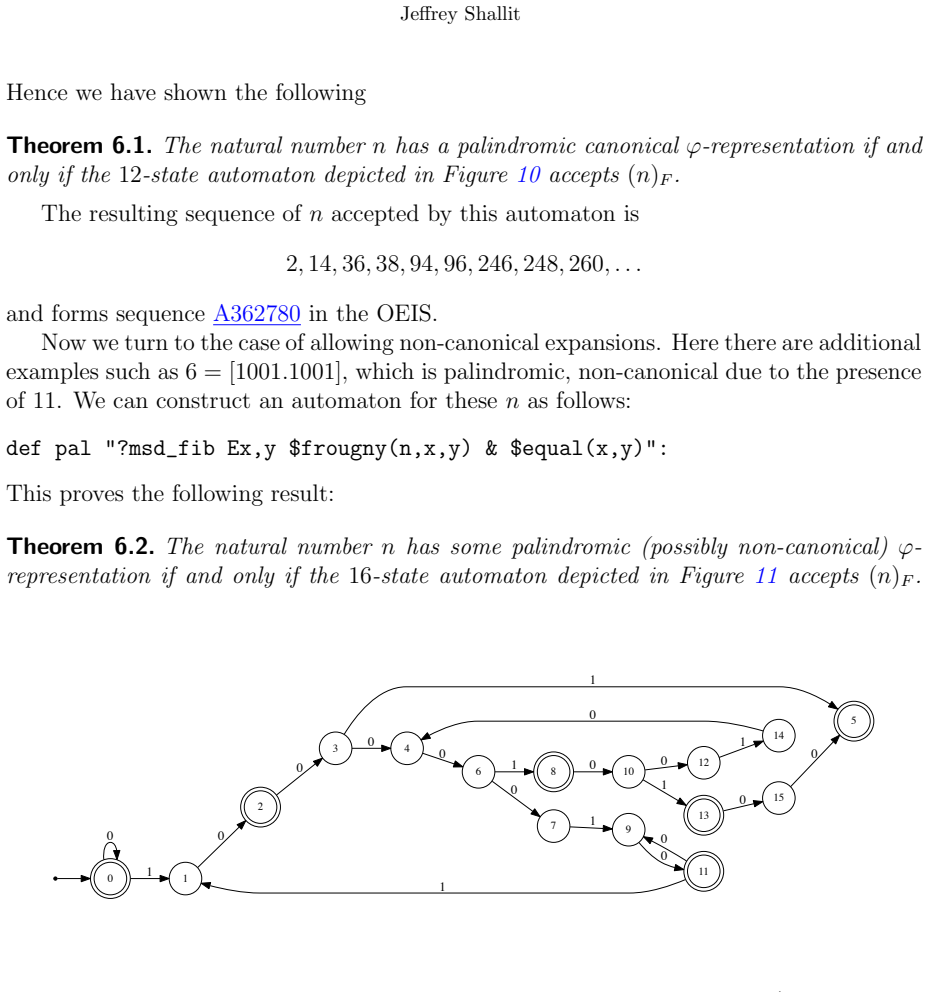

Figure 11
Figure 11. Figure 11: Fibonacci automaton for those n having some palindromic (possibly non￾canonical) φ-representations. The resulting sequence of n accepted by this automaton is 2, 6, 14, 36, 38, 94, 96, 100, 246, 248, 252, 260, . . . and forms sequence A330672 in the OEIS. We remark that the only new examples are those where the only 11 occurs as the 1 at the end of x (and hence at the beginning of x R), as can be verified … view at source ↗
Figure 12
Figure 12. Figure 12: Fibonacci automaton accepting Shevelev’s [PITH_FULL_IMAGE:figures/full_fig_p023_12.png] view at source ↗

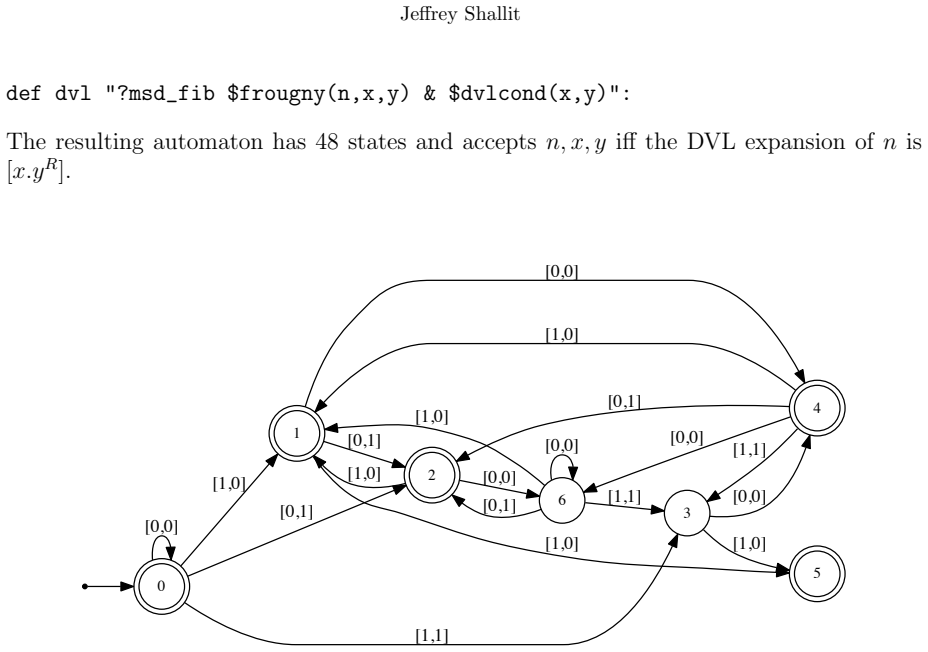

Figure 13
Figure 13. Figure 13: Automaton checking the DVL condition. We can then use this automaton to “automatically” obtain many of the results in [14]; for example, their Proposition 3.3: Proposition 10.1. The canonical φ-representation of an integer n differs from the DVL expansion of n if and only if there exists m ≥ 1 such that n = ⌊(φ + 2)m⌋. Proof. We use the Walnut code reg equal {0,1} {0,1} "([0,0]|[1,1])*": def differ "?msd_… view at source ↗
read the original abstract

We revisit a classic theorem of Frougny and Sakarovitch concerning automata for $\varphi$-representations, and show how to obtain it in a different and more computationally direct way. Using it, we can find simple, induction-free proofs of existing results in the literature about these representations, in a uniform and straightforward manner. In particular, we can easily and "automatically'' recover many of the results of recent papers of Dekking and Van Loon. We also obtain a number of new results on $\varphi$-representations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper revisits the Frougny-Sakarovitch theorem on automata for φ-representations and shows how the Walnut theorem-prover yields this result in a computationally direct manner. It then uses the approach to obtain simple, induction-free proofs of existing results (including those of Dekking and Van Loon) together with several new results on φ-representations, all expressed as first-order statements decided by Walnut.

Significance. If the encodings are faithful, the work supplies a uniform, automated route to proofs about φ-representations that avoids manual induction. The explicit use of machine-checked proofs via Walnut is a clear strength, offering reproducibility and a template for similar problems in automatic sequences and numeration systems.

minor comments (2)
  1. Abstract: the claim that results of Dekking and Van Loon are recovered would be strengthened by naming the specific theorems or propositions that are re-proved.
  2. The paper would benefit from a short appendix or subsection listing the exact Walnut predicates and automata constructions used for the central Frougny-Sakarovitch encoding.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary, assessment of significance, and recommendation to accept the paper. There are no major comments requiring a response.

Circularity Check

0 steps flagged

No circularity: external prover on independent encodings

full rationale

The paper encodes properties of φ-representations as first-order statements in the language decided by the external Walnut prover and obtains proofs via its decision procedure. This modeling step is the sole prerequisite; the prover itself is not defined inside the paper, and the target results (Frougny–Sakarovitch automata theorem and consequences) are recovered by computation rather than by fitting parameters or by any self-referential definition. Citations to prior literature are to independent external sources. No equation or claim reduces to its own input by construction, and no load-bearing step collapses to a self-citation chain.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The proof method depends on the soundness of the Walnut prover and the accurate modeling of φ-representations as automatic sequences; no free parameters or new entities are introduced.

axioms (2)
  • domain assumption The decision procedure implemented in Walnut is correct for the first-order theory of automatic sequences.
    The paper relies on Walnut's ability to prove the properties automatically.
  • domain assumption φ-representations can be modeled using morphisms and automata in a way compatible with Walnut's input language.
    Central to translating the theorem into a form Walnut can handle.
