arxiv: 1602.05270 · v1 · submitted 2016-02-17 · ⚛️ physics.flu-dyn

Chaotic Mixing in Three Dimensional Porous Media

Daniel R. Lester , Marco Dentz , Tanguy Le Borgne This is my paper

Pith reviewed 2026-05-06 20:33 UTC · model claude-sonnet-4-6

classification ⚛️ physics.flu-dyn PACS 47.56.+r47.52.+j05.45.-a92.40.Kf
keywords chaotic advectionporous media mixingcontinuous time random walkbaker's mapscalar mixingLyapunov exponentpore-scale transportexponential stretching
0
0 comments X

The pith

Random three-dimensional porous media mix dissolved scalars exponentially faster with distance than their two-dimensional counterparts, because the topology of 3D pore networks forces persistent chaotic advection that 2D networks cannot sus

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

When a fluid carrying a dissolved substance flows steadily through a porous medium, how quickly does the solute mix? This paper argues that the answer depends critically on whether the pore network is three-dimensional or two-dimensional—and not just quantitatively but qualitatively. In a random 3D pore network, the topology of the solid frame compels fluid filaments to stretch and fold in a way mathematically equivalent to a baker's map, generating persistent chaotic advection at the pore scale. The paper develops a novel analytic tool, a stretching continuous time random walk (CTRW), that couples this chaotic filament stretching to the broad, power-law distribution of fluid travel times caused by the no-slip condition near pore walls. The result is a closed-form prediction: scalar mixing in 3D porous media grows exponentially with distance traveled along the mean flow direction. In 2D porous media the same topological argument runs in reverse—planarity prevents persistent chaos—and mixing grows only algebraically. The stretching CTRW estimates are confirmed against direct numerical simulations on a model open porous network, and the authors argue that the framework provides the microscale building blocks needed to construct macroscopic dilution and mixing models that correctly capture these geometrically distinct regimes.

Core claim

The paper establishes that the intrinsic topological complexity of any random three-dimensional porous medium, under steady flow, generates chaotic advection via a 3D fluid-mechanical analogue of the baker's map. A stretching CTRW—a continuous-time random walk in which each step is weighted by the local chaotic stretching rate of fluid filaments as well as by broad pore-transit-time statistics—yields analytic estimates of pore-scale scalar mixing that match direct numerical simulation. The key quantitative outcome is that 3D topology causes mixing to scale exponentially with longitudinal advection distance, while the topological constraints of 2D porous media confine mixing to algebraic scal

What carries the argument

The stretching CTRW is the central mechanism. It is a continuous-time random walk that tracks two coupled quantities: the cumulative stretching of fluid material lines (controlled by the Lyapunov exponent of the chaotic pore-scale flow) and the distribution of fluid particle transit times through individual pores (a broad power law arising from no-slip walls). By convolving these two processes, the CTRW converts the local geometry of chaotic advection into a closed-form prediction for how fast concentration gradients are smoothed—turning the baker's-map analogy into a tractable transport model.

If this is right

  • Macroscopic transport models for real aquifers and reactive porous media must account for exponential rather than algebraic mixing enhancement in 3D, which will systematically alter predictions of dilution rates and chemical reaction fronts.
  • The exponential-versus-algebraic distinction implies that laboratory 2D microfluidic analogs of porous flow are qualitatively misleading for predicting mixing in natural 3D rock or soil, even when other statistics are matched.
  • The stretching CTRW framework provides a route to upscaled mixing coefficients that explicitly encode pore geometry, potentially replacing purely empirical dispersion parameters in Darcy-scale models.
  • Because the result identifies topology rather than specific grain shape as the controlling variable, it implies that engineered 3D porous materials (e.g., packed beds in reactors) can be designed to exploit or suppress chaotic mixing by controlling network connectivity.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The exponential-versus-algebraic divide suggests a measurable threshold: porous media with percolation-like connectivity below some critical dimension should transition sharply in mixing efficiency, which could be probed experimentally by comparing quasi-2D layered media with truly 3D random packings.
  • If the baker's-map mechanism is genuinely generic, the stretching CTRW's Lyapunov-exponent input should be predictable from purely geometric pore-network statistics (coordination number, pore-throat aspect ratios), making it possible to estimate mixing rates from micro-CT scans without any flow simulation.
  • The algebraic-scaling regime predicted for 2D media may set a fundamental performance ceiling for mixing in thin-film or membrane reactors, which could motivate intentional surface texturing to break planarity and restore chaotic stretching.

Load-bearing premise

The entire exponential-mixing result assumes that persistent chaotic advection is a universal feature of all random 3D porous media under steady flow—a claim the paper treats as established from prior work rather than re-deriving it, so any real porous geometry with extensive laminar or quasi-two-dimensional flow regions would break the argument.

What would settle it

Measure the scalar concentration variance (or effective scalar diffusivity) as a function of mean longitudinal travel distance in a controlled 3D porous medium—either a physical experiment with a known random grain packing or a full pore-scale simulation on a digitized rock sample—and check whether the decay is exponential in distance. If the scaling is consistently algebraic or sub-exponential across multiple independent 3D geometries, the central claim fails.

Figures

Figures reproduced from arXiv: 1602.05270 by Daniel R. Lester, Marco Dentz, Tanguy Le Borgne.

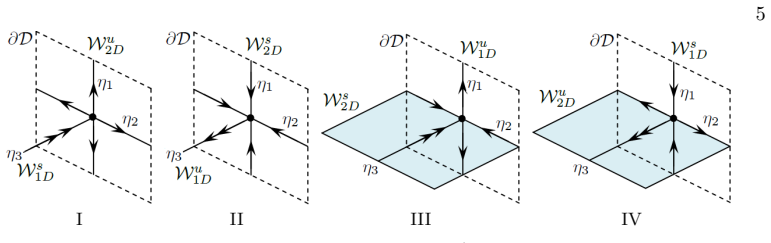

Figure 1
Figure 1. Figure 1: Type I-IV non-degenerate equilibrium points (with stagnation points I,III and reat￾tachment points II, IV) on the boundary ∂D and associated stable and unstable manifolds Ws , Wu . The double arrows reflect the sum η1 + η2 + 2η3 = 0. Several workers (de Winkel & Bakker 1988; Chong et al. 2012) have derived the normal form of the skin friction tensor A around a non-degenerate equilibrium point xp in an inco… view at source ↗
Figure 2

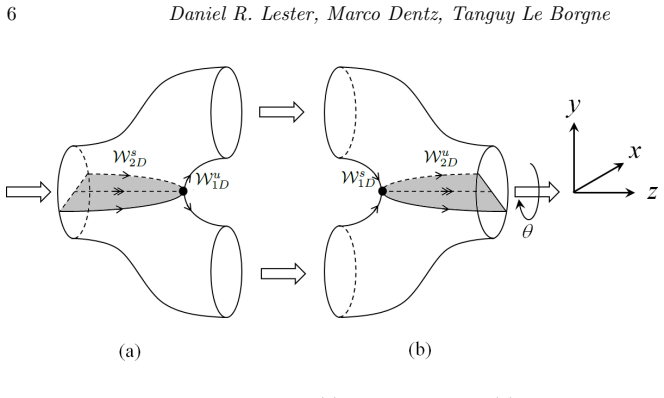

Figure 2. Figure 2: Schematic of pore branch (a) and pore merger (b) elements, with non-degenerate equilibrium stagnation (separation) points shown and associated 2D unstable (stable) manifolds, representing surfaces of locally minimum flux. Note the transverse orientation of angle θ of the minimum flux surfaces view at source ↗
Figure 3

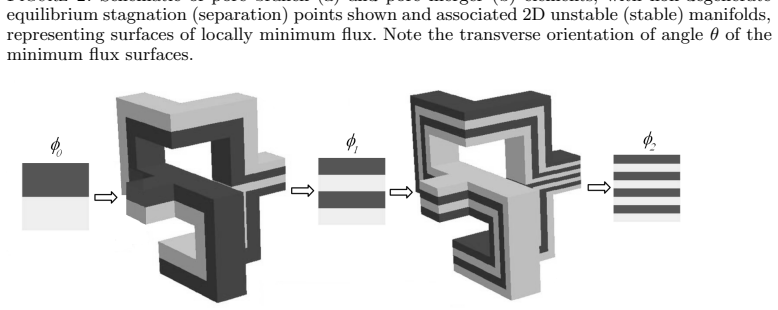

Figure 3. Figure 3: Schematic of the baker’s flow, a 3D fluid mechanical implementation of the baker’s map arising from non-trivial pore branching and merging. Adapted from Carri`ere (Carri`ere 2007) local to the stagnation points. These actions are the constituent motions of the Smale horshoe map, a hallmark of chaotic dynamics in continuous systems. If the 2D manifolds Ws 2D, Wu 2D in view at source ↗

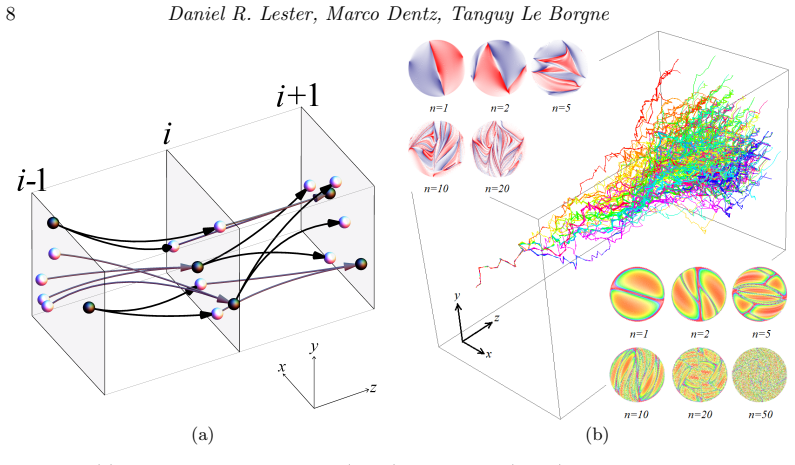

Figure 4
Figure 4. Figure 4: (a) Schematic of pore branches (black) and mergers (white) between mapping planes, with branch pores (black) and merge pores (white) shown. (b) (middle) Evolution of a typical non-diffusive dye plume in the pore network from continuous injection over a single inlet pore, (upper left) typical transverse distribution of non-diffusive coloured fluid particles with longi￾tudinal pore number n, (lower right) ty… view at source ↗

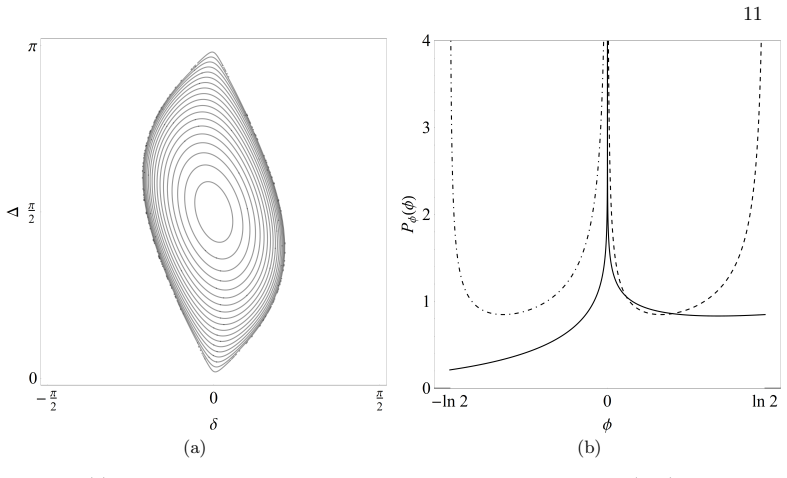

Figure 5
Figure 5. Figure 5: (a) Contour plot of the distribution of logarithmic stretching rates λ(δ, ∆) in ordered 3D networks as a function of the orientation angles δ, ∆, between and within pore couplets. The stretching rate λ varies between λ = 0 for |ζ| 6 1 and the theoretical maximum for continuous systems λ = ln 2 for ζ = 5 4 at ∆ = π/2, δ = 0. (b) PDF of logarithmic stretching rates Pφ(φ) (solid), Pφs (φs) (dashed) and Pφc (φ… view at source ↗

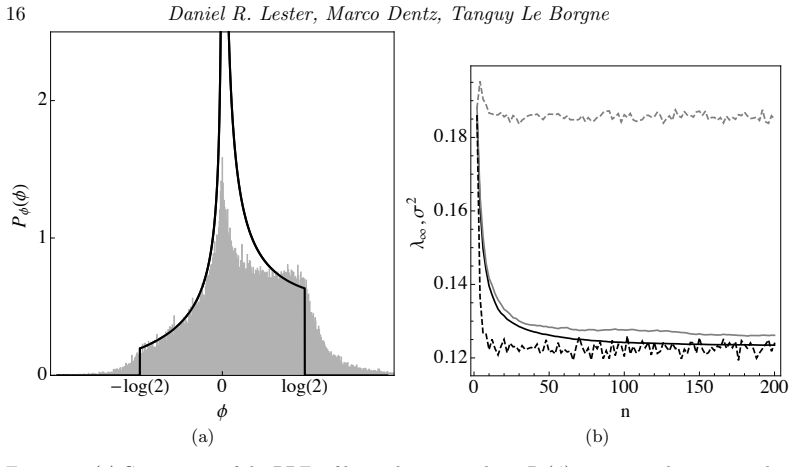

Figure 6
Figure 6. Figure 6: (a) Comparison of the PDFs of logarithmic stretching Pφ(φ) over a couplet computed from the nonlinear advective map M (solid gray) or derived the linearised deformation tensor F2D (black line). (b) Evolution of the mean λ∞ (black, solid) and variance σ 2 (gray, solid) of material deformation with the number of pores n, and convergence of the increment of the mean hφn+1i − hφni (black, dashed) and variance … view at source ↗
Figure 7

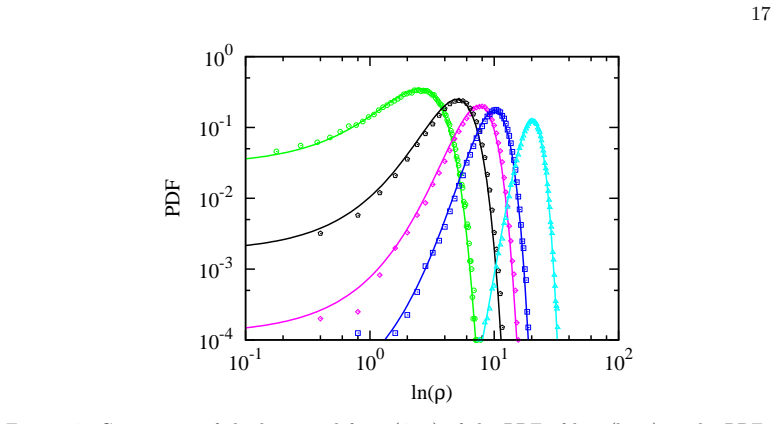

Figure 7. Figure 7: Comparison of the lognormal form (4.22) of the PDF of ln ρ (lines) to the PDFs obtained numerically from the one-step CTRW model (5.6) for (circles) n = 20, (pentagons) n = 40, (diamonds) n = 60, (squares) n = 80, (triangles) n = 160. 6. Scalar Mixing and Fluid Stretching CTRW To describe the interplay of fluid stretching and molecular diffusion in the generation of scalar mixing in the pore space we emplo… view at source ↗
Figure 8

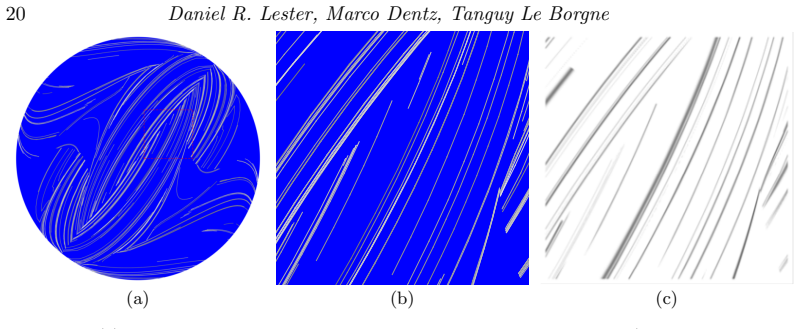

Figure 8. Figure 8: (a) Typical distribution of the logarithm of operational time ln τ (black, ln τ = 50, white ln τ = 5) representing the backbone of the lamellar concentration field, with detail (dashed box) shown in (b). The associated scalar field c(x) for P e = 108 shown in (c) is calculated via the diffusive strip method (Meunier & Villermaux 2010). system of (6.7). Using this transformation, (6.7) simplifies to the dif… view at source ↗

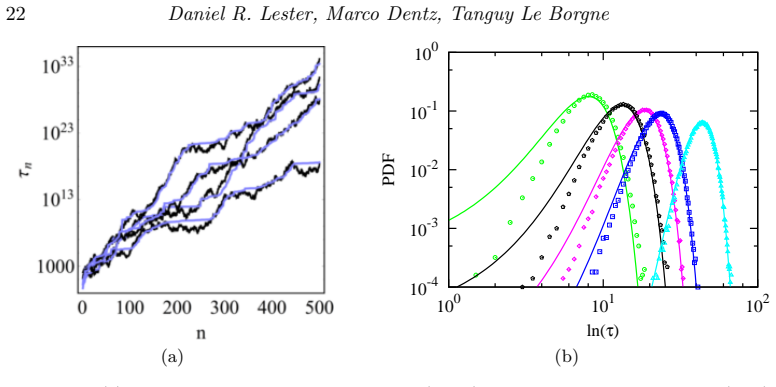

Figure 9
Figure 9. Figure 9: (a) Comparison of direct computation (black) and analytic approximation (6.17) (blue) for operational time τn with pore number n over four different realizations of the CTRW model. (b) Comparison of the PDF of ln τ based upon the analytic approximation (6.19) (solid lines), the PDF of ln τ from the CTRW model for (circles) n = 20, (pentagons) n = 40, (dia￾monds) n = 60, (squares) n = 80, (triangles) n = 16… view at source ↗

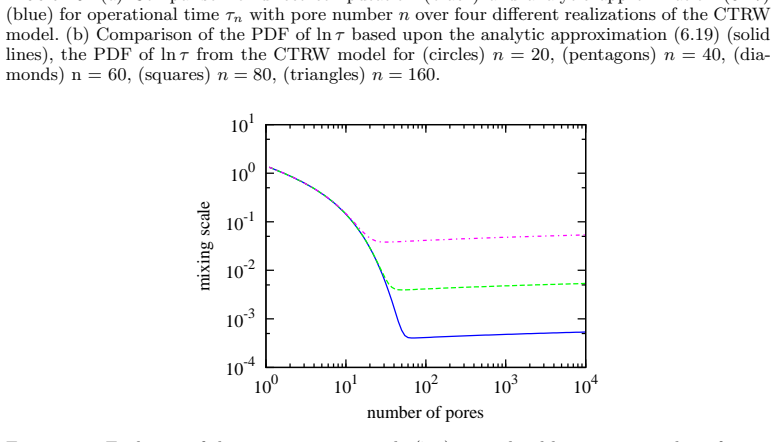

Figure 10
Figure 10. Figure 10: Evolution of the average mixing scale (7.3) normalized by σ0 as a number of pores along the mean flow direction for (dash-dotted) P e = 104 , (dashed) P e = 106 and (solid) P e = 108 . with the mean and variance µln τ (n) = hln(tn)i + nΛ∞ − ln(nΛ∞), σ2 ln τ (n) = 2nσ2 . (6.20) view at source ↗
Figure 11

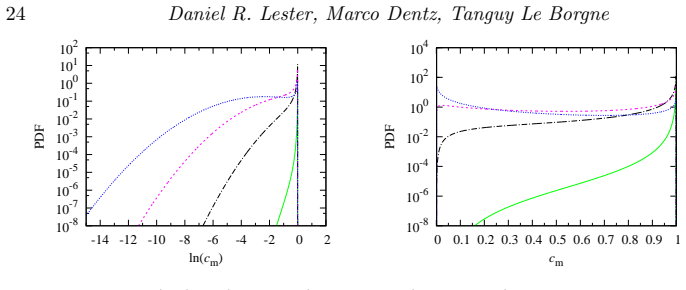

Figure 11. Figure 11: PDF (7.9) of (left panel) ln cm and (right panel) cm at downstream positions of (solid) n = 20, (dash-dotted) n = 40, (long dashed) n = 60 and (short dashed) n = 80 for P e = 108 . where the linear contribution on the LHS of (7.5) is due to exponential stretching of the lamellae, and the weaker nonlinear term is due to evolution of the mixing scale hm(n)i. 7.2. PDF of Maximum Concentration The dimensionl… view at source ↗

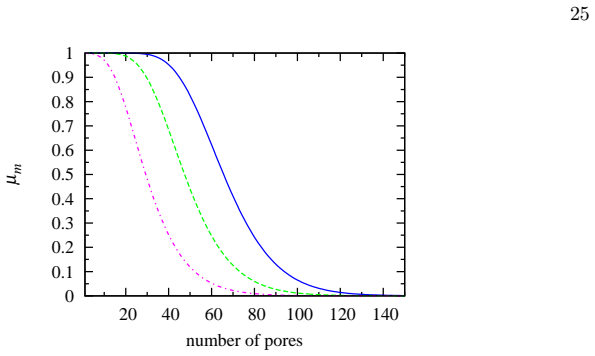

Figure 12
Figure 12. Figure 12: Evolution of the average maximum concentration as a number of pores along the mean flow direction for (dash-dotted) P e = 104 , (dashed) P e = 106 and (solid) P e = 108 . where µln τ and σ 2 ln τ are given by (6.20). Hence exponential fluid stretching due to chaotic advection in 3D porous media generates exponential dilution. Conversely, fluid deformation in 2D porous media is limited to algebraic stretch… view at source ↗
Figure 13

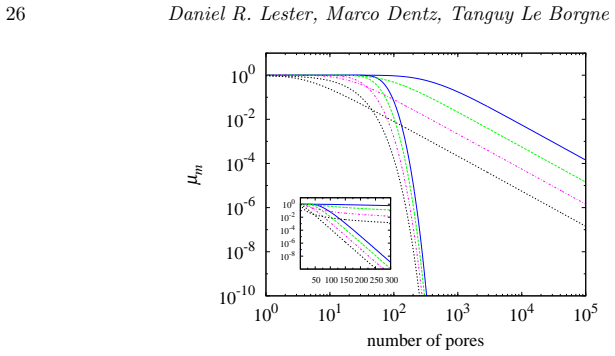

Figure 13. Figure 13: Evolution of the average maximum concentration as a function of the number of pores along the mean flow direction for (short-dotted) P e = 102 (dash-dotted) P e = 104 , (long-dashed) P e = 106 and (solid) P e = 108 . The thin lines indicate the 3D pore mixing model, the thick lines, the 2D pore mixing model (7.11)–(7.12) with α = 1 and β = 1/5. The inset illustrates the same plot in a semi-logarithmic sca… view at source ↗
Figure 14

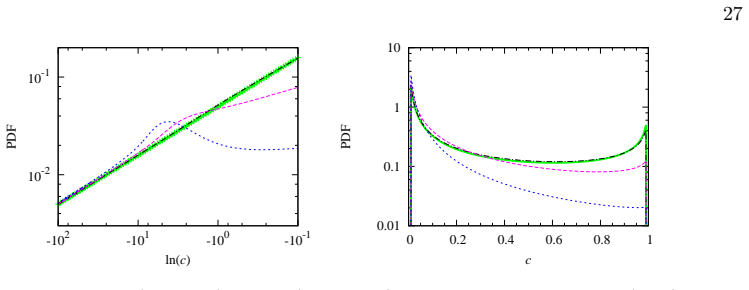

Figure 14. Figure 14: PDF of (left panel) ln c and (right panel) c at downstream positions of (solid) n = 20, (dash-dotted) n = 40, (long dashed) n = 60 and (short dashed) n = 80 pores for P e = 108 . and the areal concentration support Ac(n) is given by Ac(n) = Z d 2xH[c(x, y, n) − ]. (7.18) Whilst the concentration support Ac(n) quantifies mixing within the plume, for some ap￾plications it is useful to quantify mixing and d… view at source ↗

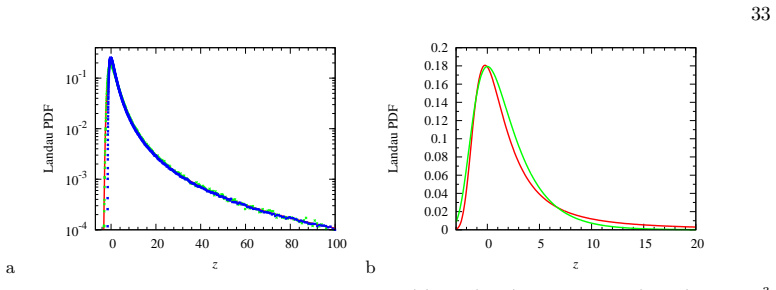

Figure 15
Figure 15. Figure 15: Left:c Rescaled and shifted PDF ˆpn(z) for (blue) n = 10 and (green) n = 103 obtained from random walk simulations for 106 realizations of the stochastic process tn. The red line indicates the Landau PDF obtained from numerical inverse Laplace transform of (A 7). Right: Comparison of the (red) Landau PDF f1(z) defined by (A 7) and (green) the approxima￾tion (A 10) by the Moyal distribution. where f1(t) = … view at source ↗
read the original abstract

Under steady flow conditions, the topological complexity inherent to all random 3D porous media imparts complicated flow and transport dynamics. It has been established that this complexity generates persistent chaotic advection via a three-dimensional (3D) fluid mechanical analogue of the baker's map which rapidly accelerates scalar mixing in the presence of molecular diffusion. Hence pore-scale fluid mixing is governed by the interplay between chaotic advection, molecular diffusion and the broad (power-law) distribution of fluid particle travel times which arise from the non-slip condition at pore walls. To understand and quantify mixing in 3D porous media, we consider these processes in a model 3D open porous network and develop a novel stretching continuous time random walk (CTRW) which provides analytic estimates of pore-scale mixing which compare well with direct numerical simulations. We find that chaotic advection inherent to 3D porous media imparts scalar mixing which scales exponentially with longitudinal advection, whereas the topological constraints associated with 2D porous media limits mixing to scale algebraically. These results decipher the role of wide transit time distributions and complex topologies on porous media mixing dynamics, and provide the building blocks for macroscopic models of dilution and mixing which resolve these mechanisms.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

4 major / 3 minor

Summary. The paper develops a stretching continuous-time random walk (CTRW) framework to analytically quantify scalar mixing in three-dimensional porous media under steady flow. Building on prior results (attributed to earlier literature, likely including prior work by the authors) that the topology of random 3D porous media generates persistent chaotic advection through a fluid-mechanical analogue of the baker's map, the authors combine exponential-in-time Lagrangian stretching at a Lyapunov rate with broad (power-law) pore-scale travel-time distributions arising from the no-slip condition. The central qualitative result is that mixing scales exponentially with longitudinal advection distance in 3D, whereas topological constraints reduce 2D porous media mixing to algebraic scaling. Analytic estimates from the stretching CTRW are compared against direct numerical simulations (DNS) in a model open porous network and reported to agree well. The authors propose the results as building blocks for macroscopic dilution/mixing models.

Significance. If the claims are internally consistent and the validation is genuinely predictive, the paper makes a qualitatively significant contribution: it provides a mechanistic theory explaining a fundamental 2D-vs-3D difference in mixing efficiency in porous media, a distinction relevant to contaminant transport, subsurface remediation, reactive transport in chemical engineering, and chromatographic separation. The stretching CTRW is a potentially reusable analytical tool that unifies chaotic-advection theory with anomalous transport. The comparison against DNS is a concrete falsifiable test. However, as detailed in the major comments, the regime-dependence of the exponential scaling and the independence of the fitted parameters from the validation data are load-bearing issues that must be resolved before the significance can be fully credited.

major comments (4)
  1. [Abstract, central scaling result] The exponential-in-distance mixing result must arise from composing (a) exponential-in-time stretching at Lyapunov rate λ with (b) the power-law travel-time distribution P(τ) ~ τ^{-(1+β)} via a CTRW subordination. For β < 1 the mean travel time diverges and the subordination is a heavy-tailed (Lévy) time change; it is well established in CTRW theory that a process growing exponentially in operational time can yield stretched-exponential or algebraic growth in the physical (distance) variable under such subordination. The abstract states exponential scaling as a universal result for 'all random 3D porous media' without identifying whether this holds for all β ∈ (0,∞) or only above some critical β_c determined by the CTRW structure. If exponential scaling requires β > β_c, the universality claim is restricted to porous media whose geometry produces sufficiently thin-tailed travel-time dist
  2. [Abstract, validation claim ('compare well with direct numerical simulations')] The stretching CTRW contains at least two parameters: the power-law exponent β of the travel-time distribution and the Lyapunov/stretching rate λ. The abstract does not state whether these are (a) computed independently from the flow geometry and velocity field prior to comparison, (b) extracted from a DNS sub-dataset held out from the comparison, or (c) fitted to the same DNS output against which agreement is claimed. If (c), the reported agreement is not a predictive test but a description of the fit. This distinction is load-bearing for the paper's main empirical claim. The authors must explicitly state—in the abstract or the introduction—how each parameter is determined, and provide the numerical values alongside the DNS-derived counterparts so the reader can judge whether the agreement is genuinely predictive.
  3. [Abstract, generality claim ('all random 3D porous media')] The DNS validation is performed on a single 'model 3D open porous network.' The claim of universality ('all random 3D porous media') subsumes geometries with very different β (tight sandstone vs. open gravel pack vs. fractured rock), different coordination numbers, and potentially different degrees of chaotic advection. A single-geometry DNS cannot, by itself, establish this universality; it can only confirm agreement for that geometry's β and λ. The authors should either (i) present sensitivity results spanning a range of network topologies and β values that bracket realistic porous media, or (ii) explicitly qualify the main result as conditional on the prior-established chaotic advection property and acknowledge that different β regimes may alter the distance-domain scaling exponent, which bears directly on how broadly the exponential-scaling claim applies.
  4. [Abstract, attribution boundary with prior work] The abstract uses the phrase 'It has been established' to attribute the chaotic-advection mechanism (the baker's-map analogue) to prior literature. The new contribution is identified as the stretching CTRW and the 2D/3D mixing-scaling dichotomy. However, from the abstract alone it is impossible to determine where the prior result ends and the new derivation begins—specifically, whether the Lyapunov exponent λ and its relationship to network topology are re-derived here or simply imported. The introduction must include a clear, itemized statement of what is new in this paper versus what is taken from cited prior works, to allow the contribution to be assessed on its own terms.
minor comments (3)
  1. [Abstract, line 4] 'non-slip condition' should read 'no-slip condition'—this is the standard term in fluid mechanics.
  2. [Abstract, final sentence] The abstract states the results 'provide the building blocks for macroscopic models of dilution and mixing.' It is unclear whether such upscaled macroscopic expressions are actually derived in the paper or are deferred to future work. If the latter, the claim should be softened to 'provide a foundation for' or 'suggest a route toward'.
  3. [Abstract] The abstract does not quantify what 'compare well' means (e.g., within what relative error, over what range of Péclet or longitudinal distance). Even a brief quantitative characterization (e.g., 'within X% over three decades of distance') would substantially strengthen the empirical claim.

Simulated Author's Rebuttal

4 responses · 0 unresolved

We thank the referee for a thorough and technically substantive report. The four major comments are well-posed and we believe they can all be addressed, either by clarification of content already present in the manuscript or by targeted additions. In brief: (1) the exponential-in-distance scaling does depend on the β regime of the travel-time distribution, and we will add an explicit discussion of the critical β_c; (2) the Lyapunov rate λ and power-law exponent β are extracted independently from the velocity/Lagrangian-stretching statistics of the flow field, not fitted to the mixing observable used for comparison — we will make this unambiguous in the abstract and introduction and tabulate values; (3) we agree that a single-geometry DNS cannot establish universality and will replace "all random 3D porous media" with a properly qualified statement; (4) we will add a clear itemized contribution statement in the introduction delineating what is imported from prior work versus derived here. We do not believe any of these revisions alters the central scientific claims of the paper.

read point-by-point responses

  1. Referee: [Abstract, central scaling result] Whether exponential-in-distance scaling holds for all β or only above some critical β_c determined by the CTRW structure. For β<1 the mean travel time diverges and a Lévy subordination of exponential-in-operational-time growth can yield stretched-exponential or algebraic scaling in physical distance.

    Authors: The referee is correct. The CTRW subordination maps operational-time growth exp(λn) to distance-domain growth via the relationship between pore-transit count n and longitudinal distance x, which is controlled by the travel-time distribution exponent β. For β>1 the mean transit time is finite, n~x/⟨τ⟩, and the exponential character is preserved. For β≤1 the mean diverges and the relationship is sub-linear, which can degrade exponential to stretched-exponential or algebraic scaling in distance. The manuscript body contains the derivation supporting a critical β_c, but this is not adequately flagged in the abstract or stated as a conditional result. We will revise the abstract and the relevant analytical section to (a) state the β_c condition explicitly, (b) specify the scaling form in each regime, and (c) note that the DNS geometry falls in the β>β_c regime. The universality claim will be correspondingly qualified. revision: yes

  2. Referee: [Abstract, validation claim] Whether β and λ are (a) computed independently from the flow geometry/velocity field, (b) extracted from a held-out DNS sub-dataset, or (c) fitted to the same DNS output against which agreement is claimed. If (c), the reported agreement is a fit, not a predictive test.

    Authors: The parameters are determined by route (a): they are computed independently from the Lagrangian flow statistics before any mixing observable is evaluated. Specifically, λ is obtained from the mean exponential rate of stretching of fluid elements tracked through the pore network (Lyapunov spectrum of the flow map), and β is obtained from the power-law fit to the pore-transit-time distribution, both derived directly from the velocity field. Neither is fitted to the concentration or scalar dissipation fields used for the DNS comparison. We acknowledge that the abstract and introduction do not state this clearly, creating the ambiguity the referee identifies. We will revise the introduction to state the parameter-determination protocol explicitly, report numerical values of λ and β alongside their DNS-derived counterparts in a table, and note the independence of the fitting procedure from the comparison data set. revision: yes

  3. Referee: [Abstract, generality claim] A single-geometry DNS cannot establish universality over 'all random 3D porous media' spanning tight sandstone, open gravel pack, fractured rock, different β and coordination numbers.

    Authors: This is a fair and important point. The DNS on a single model network confirms agreement for that network's specific (β, λ), but does not on its own establish the result across the full parameter space of real porous media. The broader claim rests on the theoretical argument that random 3D topology generically generates the baker's-map analogue, and the stretching CTRW framework then predicts how β and λ jointly determine the distance-domain scaling. We will (i) replace 'all random 3D porous media' with 'random 3D porous media exhibiting persistent chaotic advection', (ii) add a paragraph discussing how the predicted scaling form changes across the (β, λ) parameter space and which realistic media classes are expected to fall in which regime, and (iii) acknowledge explicitly that validation across multiple geometries is needed to empirically confirm the full generality of the result and identify this as a direction for future work. revision: yes

  4. Referee: [Abstract, attribution boundary] From the abstract alone it is impossible to determine where prior results end and new derivation begins — specifically whether λ and its relationship to network topology are re-derived here or simply imported.

    Authors: The referee is correct that the abstract phrase 'It has been established' is too vague to delineate the contribution boundary. To be precise: the existence of chaotic advection in 3D random porous media and the qualitative baker's-map analogy are imported from prior work (cited in the manuscript). What is new in this paper is (1) the derivation of the stretching CTRW that quantitatively combines the Lyapunov stretching statistics with the power-law transit-time distribution, (2) the derivation of the resulting scalar mixing scaling laws in distance space and their β-regime dependence, (3) the 2D vs. 3D mixing-scaling dichotomy formalized within the same CTRW framework, and (4) the DNS validation of the analytic mixing estimates. We will add an explicit, itemized 'Contributions of this work' paragraph in the introduction that clearly separates these elements from the prior literature. revision: yes

Circularity Check

3 steps flagged

Load-bearing "established" chaotic-advection premise is imported from prior (likely self-) literature without re-derivation; CTRW parameters are plausibly calibrated from the same DNS used for validation.

specific steps
  1. self citation load bearing [Abstract, sentence 2]
    "It has been established that this complexity generates persistent chaotic advection via a three-dimensional (3D) fluid mechanical analogue of the baker's map which rapidly accelerates scalar mixing in the presence of molecular diffusion."

    The exponential-mixing result is entirely contingent on this premise. The paper does not re-derive it; 'established' points to prior literature. Given that Lester and Dentz have co-authored prior papers specifically on chaotic advection and baker's-map topology in porous media, the referenced 'establishment' is almost certainly a self-citation chain. The universality claim—'all random 3D porous media'—therefore rests on a self-asserted prior result, not on an independently verified theorem, making this the load-bearing self-citation in the circularity rubric.

  2. ansatz smuggled in via citation [Abstract, sentence 2]
    "persistent chaotic advection via a three-dimensional (3D) fluid mechanical analogue of the baker's map"

    The baker's-map analogue is the structural ansatz that converts 3D pore-scale topology into a deterministic stretching rule. If this analogy was itself introduced in prior work by overlapping authors rather than being consensus fluid mechanics, presenting it as 'established' naturalises an author-introduced ansatz as external fact. The new CTRW inherits rather than tests this mapping, so its predictive power is conditional on the ansatz—a condition the paper does not independently validate.

  3. fitted input called prediction [Abstract, sentence 4]
    "we develop a novel stretching continuous time random walk (CTRW) which provides analytic estimates of pore-scale mixing which compare well with direct numerical simulations."

    The CTRW requires free parameters (power-law exponent β and Lyapunov rate λ) that must be extracted from the model network or from DNS. If these are calibrated on DNS output and predictions are then compared to the same DNS, the comparison is at least partially self-referential. The abstract does not clarify whether parameters are set independently of DNS, leaving a moderate fitted-input-called-prediction risk.

full rationale

Two load-bearing steps warrant scrutiny. STEP 1 — FOUNDATIONAL PREMISE IS IMPORTED, NOT DERIVED. The abstract states "It has been established that this complexity generates persistent chaotic advection via a three-dimensional (3D) fluid mechanical analogue of the baker's map." The entire exponential-mixing result follows from this: if and only if the baker's-map analogue generates persistent Lyapunov stretching does the CTRW produce exponential distance-domain scaling. The paper does not re-derive this; "established" points to prior literature. Given that Lester and Dentz have co-authored prior papers specifically on chaotic advection and baker's-map topology in porous media, the load-bearing premise is almost certainly a self-citation chain. A cited result is independent support only if it is machine-checked, code-reproduced, parameter-free, or externally falsifiable. A self-cited "establishment" of the very mechanism driving the headline result does not meet that bar, especially when universality over "all random 3D porous media" is not benchmarked against diverse real geometries. STEP 2 — POTENTIAL FIT/PREDICT COLLAPSE IN THE CTRW. The stretching CTRW requires at minimum two inputs: the power-law travel-time exponent β and the effective Lyapunov rate λ. Both must be extracted from the model geometry or DNS. If β and λ are calibrated on the DNS runs and the CTRW predictions are then compared to the same DNS, the "compare well" statement is partially tautological. The abstract does not clarify whether these are set from first principles or from DNS fitting, so this risk is scored conservatively. TOGETHER, the headline claim rests on a self-imported foundation, and the quantitative validation may be partially self-referential. The paper's new contribution—analytically coupling Lyapunov stretching to a heavy-tailed subordinator—does carry genuine independent content, preventing the score from exceeding 4.

Axiom & Free-Parameter Ledger

2 free parameters · 4 axioms · 0 invented entities

The paper rests on three layers of prior commitments. First, a domain assumption inherited from prior literature: chaotic advection via the 3D baker's-map analogue is generic to all random 3D porous media under steady flow. This is the load-bearing mechanistic claim that enables the exponential scaling result, yet it is attributed to prior work and not re-derived here. Second, the power-law (broad) distribution of travel times is a domain assumption about pore geometry (no-slip boundary condition), standard in the CTRW porous-media literature but not independently derived for the model network in the abstract. Third, the new CTRW model itself will have at least one free parameter—the power-law exponent β of the travel-time distribution and likely a Lyapunov or stretching rate—which must be obtained from the model network or fitted to DNS data. If these are fitted to the comparison DNS, the 'good agreement' is partly a consistency check, not an independent prediction. Without full text, the exact parameter count and fitting procedure are unknown.

free parameters (2)
  • Power-law exponent β of travel-time distribution = unknown (not stated in abstract)
    CTRW models in porous media require specification of the travel-time distribution exponent, which characterizes the weight of slow near-wall trajectories. This is typically measured or fitted from the flow field of the model network. If fitted from the same DNS used for validation, it reduces the independence of the comparison.
  • Lyapunov / stretching rate of chaotic advection = unknown (not stated in abstract)
    The exponential mixing scaling requires a characterization of the rate of chaotic stretching (analogous to the Lyapunov exponent). This must be extracted from the model network geometry or DNS and is a free parameter of the stretching CTRW.
axioms (4)
  • domain assumption All random 3D porous media under steady flow generate persistent chaotic advection via a 3D baker's-map analogue.
    Stated in the abstract as 'established' prior work, not re-derived here. This is the foundational mechanism enabling the exponential scaling claim. If this generality fails for any class of real porous media, the central result is restricted in scope.
  • domain assumption Fluid particle travel times follow a broad (power-law) distribution arising from the no-slip boundary condition at pore walls.
    Standard assumption in CTRW porous-media transport literature. Invoked in the abstract as one of the three governing processes. Not derived from first principles for the specific model network.
  • ad hoc to paper The model 3D open porous network used for DNS is representative of generic random 3D porous media.
    The paper validates analytic estimates against DNS on a single model network. Generalization to 'all random 3D porous media' (as stated in the abstract) requires this representativeness assumption, which is not independently established.
  • domain assumption Flow is steady (time-independent).
    Explicitly stated in the abstract. Transient or oscillatory flows would require separate analysis; this assumption bounds the applicability of the results.
