Delta interferometer: A polarization sensitive interferometer

Chaoqi Wei , Jianbin Liu , Yunong Sun , Rui Zhuang , Yu Zhou , Huaibin Zheng , Yanyan Liu , Xiusheng Yan
show 2 more authors
Fuli Li Zhuo Xu
This is my paper

Pith reviewed 2026-05-24 11:23 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords Delta interferometerpolarization sensitiveinterference visibilityasymmetrical pathsoptical coherence theoryfirst-order interference
0
0 comments X

The pith

The Delta interferometer's asymmetrical paths make its first-order interference visibility depend on incident light polarization.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a Delta-shaped interferometer whose two light paths are geometrically asymmetrical, unlike the symmetric paths in Michelson or Mach-Zehnder designs. This asymmetry causes the visibility of the observed interference fringes to vary according to the polarization state of the incoming light. Optical coherence theory accounts for the effect, and experiments using a single-mode continuous-wave laser produce results that match the predictions. The configuration is presented as a means to examine how electric-field reflections differ across polarization states.

Core claim

In the Delta interferometer the two interfering paths are asymmetrical, so the visibility of the first-order interference pattern depends on the polarization of the incidental light; optical coherence theory explains the dependence and measurements with a single-mode continuous-wave laser confirm the predictions.

What carries the argument

Geometrical asymmetry of the two interfering paths, which produces polarization-dependent visibility through differing reflection of the electric-field components.

If this is right

  • Visibility of the interference pattern changes when the polarization of the incident light is altered.
  • The device can be used to study polarization-dependent reflection of the electric field.
  • The interferometer is suitable for polarization-sensitive measurement scenarios.
  • Theoretical predictions based on optical coherence theory agree with experimental data.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The design may allow polarization analysis with fewer auxiliary components than conventional setups.
  • It could be tested with partially coherent sources to check whether the visibility dependence persists beyond the continuous-wave laser case.

Load-bearing premise

The polarization dependence is caused only by the geometrical asymmetry of the paths, with no other path-length or amplitude effects present.

What would settle it

Rotating the polarization of the incident light while holding all other parameters fixed and observing no change in fringe visibility would falsify the claim.

Figures

Figures reproduced from arXiv: 2208.11961 by Chaoqi Wei, Fuli Li, Huaibin Zheng, Jianbin Liu, Rui Zhuang, Xiusheng Yan, Yanyan Liu, Yunong Sun, Yu Zhou, Zhuo Xu.

Figure 1
Figure 1. Figure 1: FIG. 1: Mach-Zehnder interferometer (a) and modified [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

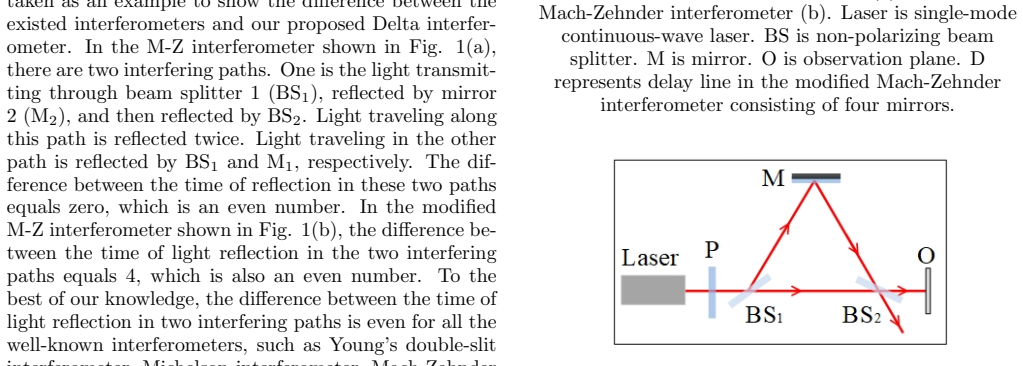

Figure 2. Figure 2: FIG. 2: Delta interferometer. Laser is single-mode [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

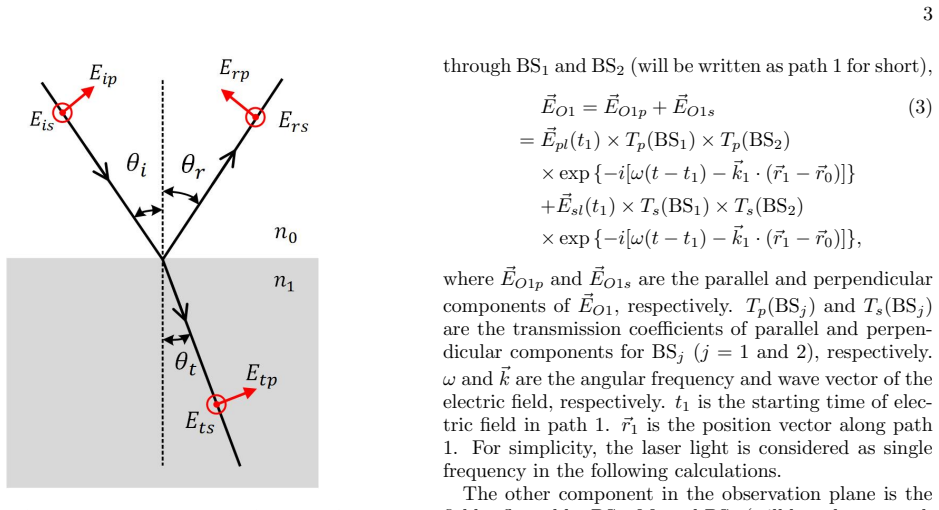

Figure 3. Figure 3: FIG. 3: Refection and transmission of electric field on [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5: Typical first-order spatial interference pattern [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4: Experimental setup of Delta interferometer. [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7: (Color online) Visibility of the interference [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8: Modified Delta interferometer. Comparing with [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
read the original abstract

A new type of polarization sensitive interferometer is proposed, which is named as Delta interferometer due to the geometry of the simplest interferometer looks like Greek letter, Delta. To the best of our knowledge, it is the first time that this type of interferometer is proposed. The main difference between Delta interferometer and other existed interferometer, such as Michelson interferometer, Mach-Zehnder interferometer, Young\rq{}s double-slit interferometer, is that the two interfering paths are asymmetrical in Delta interferometer, which makes it polarization sensitive. The visibility of the first-order interference pattern observed in Delta interferometer is dependent on the polarization of the incidental light. Optical coherence theory is employed to interpret the phenomenon and a single-mode continuous-wave laser is employed to verify the theoretical predictions. The theoretical and experimental results are consistent. Delta interferometer provides a perfect tool to study the reflection of electric field in different polarizations and may find applications in polarization sensitive scenarios.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript proposes a Delta interferometer whose triangular geometry produces geometrically asymmetric interfering paths, rendering the visibility of the first-order interference pattern dependent on the polarization of the incident light. Optical coherence theory is used to derive this dependence, and a single-mode continuous-wave laser experiment is reported to confirm that the observed visibility matches the theoretical prediction. The device is presented as a new tool for polarization-sensitive reflection studies.

Significance. If the central claim is correct, the work supplies a geometrically simple route to polarization-dependent interferometry that does not require auxiliary polarizing elements. The direct application of established optical coherence theory to the asymmetric paths, together with an experimental test on a standard CW laser, constitutes a clear, falsifiable prediction that can be checked by other groups. Potential applications in polarization metrology are plausible but would benefit from quantitative benchmarking against existing polarization-sensitive interferometers.

minor comments (3)
  1. Abstract: 'other existed interferometer' should read 'other existing interferometers'; the encoding 'Young rq{}s' should be rendered as 'Young's'.
  2. The manuscript states that 'the theoretical and experimental results are consistent' but does not supply the explicit visibility formula, the measured visibility values with uncertainties, or the precise path-length difference used in the comparison; adding these in a dedicated results section would allow direct verification.
  3. Figure captions and axis labels should explicitly state the polarization states (horizontal, vertical, or 45°) and the measured visibility values so that the polarization dependence can be read off without reference to the main text.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive evaluation of our manuscript on the Delta interferometer and for recommending minor revision. No specific major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity; derivation applies standard optical coherence theory to asymmetric geometry and tests via independent experiment

full rationale

The paper proposes the Delta interferometer geometry, notes its path asymmetry, invokes established optical coherence theory to derive polarization-dependent visibility, and reports consistency with a separate single-mode CW laser experiment. No equations reduce a prediction to a fitted input by construction, no self-citation chain supports the central claim, and the coherence formalism is applied directly without smuggling ansatzes or renaming known results. The experimental verification is external to the model, satisfying the criteria for a self-contained derivation.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Review performed on abstract only; no explicit free parameters, invented entities, or additional axioms beyond standard optical coherence theory are identifiable from the given text.

axioms (1)
  • domain assumption Optical coherence theory is sufficient to model the polarization dependence arising from path asymmetry
    Invoked to interpret the observed visibility variation
