Canards in a bottleneck

Annalisa Iuorio , Gaspard Jankowiak , Peter Szmolyan , Marie-Therese Wolfram This is my paper

Pith reviewed 2026-05-24 10:26 UTC · model grok-4.3

classification 🧮 math.DS math.AP
keywords canardsbottleneckFokker-Planck equationstationary profilesbifurcation diagramsingular perturbationdensity transitionnonlinear boundary conditions
0
0 comments X

The pith

Canard solutions generate density transitions exactly at the minimum width of a corridor bottleneck in the small-diffusion limit.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper constructs the stationary profiles of a nonlinear Fokker-Planck equation on corridors whose width reaches a global minimum inside the domain. In the small-diffusion limit three families appear: high-density states with a boundary layer only at the entrance, low-density states with a layer only at the exit, and mixed states whose high-to-low jump occurs inside the bottleneck. The mixed states are realized by canard solutions that are born at the narrowest cross-section; a bifurcation diagram in the plane of inflow and outflow rates determines which family is selected. The constructions are verified by direct numerical solution on corridors of varying shape.

Core claim

In the small diffusion limit the profiles are obtained constructively by using methods from geometric singular perturbation theory. Three main types appear: high density with an entrance boundary layer, low density with an exit boundary layer, and transitions from high to low density inside the bottleneck. The last family uses canard solutions generated at the narrowest point; their occurrence is organized by a detailed bifurcation diagram in the in- and outflow rates. The analytic picture is confirmed by computational experiments on corridors with variable width.

What carries the argument

Canard solutions generated at the narrowest point of the bottleneck, which carry the high-to-low density transition in the singular limit.

If this is right

  • High-density profiles with an entrance layer exist when inflow exceeds a critical threshold set by the bottleneck geometry.
  • Low-density profiles with an exit layer exist when outflow is sufficiently strong relative to inflow.
  • Mixed profiles with an interior canard transition exist in an open region of the inflow-outflow parameter plane.
  • The bifurcation diagram partitions the rate plane into regions corresponding to each of the three profile families.
  • The same constructions hold for any corridor whose width function satisfies the nondegenerate-minimum condition.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same canard mechanism is likely to organize time-dependent or stochastic versions of the same equation when diffusion remains small.
  • The organizing role of the width minimum suggests analogous interior transitions may appear in other transport models on domains with a single narrowest cross-section.
  • Numerical continuation in the diffusion parameter could be used to track how the canard persists for finite diffusion values.

Load-bearing premise

The corridor width has a single global nondegenerate minimum inside the domain.

What would settle it

Direct numerical solution of the stationary equation for successively smaller diffusion coefficients showing the density jump displaced from the width minimum would falsify the location of the canard.

Figures

Figures reproduced from arXiv: 2211.16652 by Annalisa Iuorio, Gaspard Jankowiak, Marie-Therese Wolfram, Peter Szmolyan.

Figure 1

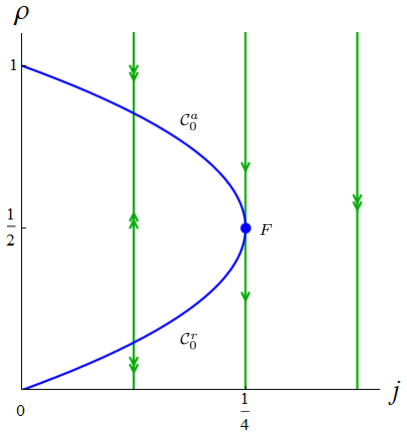

Figure 1. Figure 1: Fast dynamics in (j, ρ)-space for a fixed value of ξ. The blue curve represents C0 consisting of the two branches C a 0 (attracting), C r 0 (repelling), and the fold line F. The green lines indicate orbits of the layer problem (11), while the blue dot represents the line of fold points F. The phase space for the reduced problem is [0, 1/4] × [0, 1], where j = 1/4 corresponds to the fold line. It follows fr… view at source ↗
Figure 2

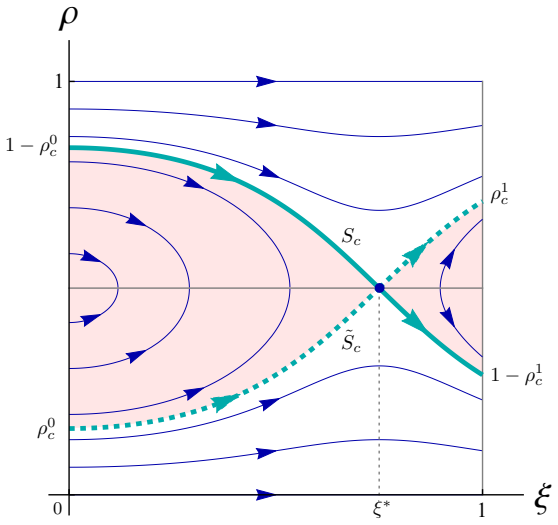

Figure 2. Figure 2: Illustration of the reduced flow associated to Equations (8)-(9) described in Lemma 1 for [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3

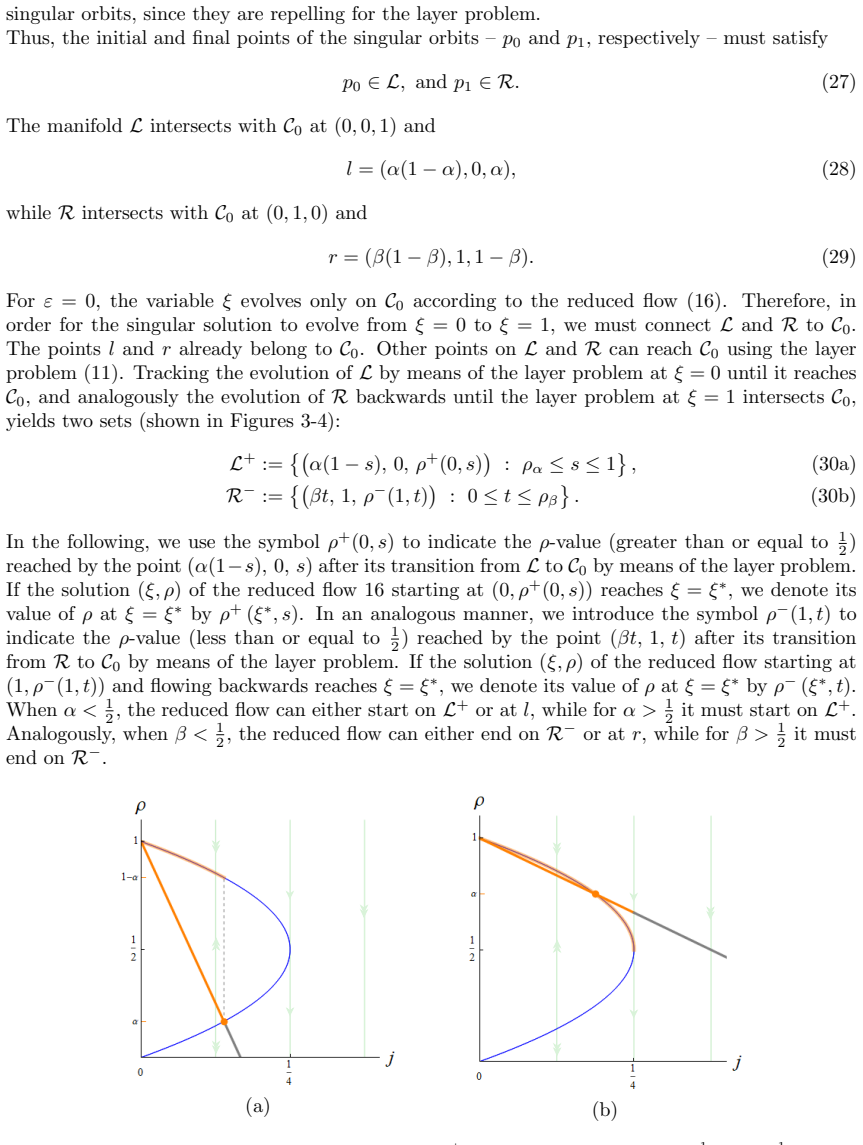

Figure 3. Figure 3: Schematic representation of L (orange line) and L+ (orange curve) for (a) 0 < α < 1 2 and (b) 1 2 < α < 1. The orange dot corresponds to l, the blue curve represents C0, and the green lines correspond to the orbits of the layer problem. 10 [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figure 4

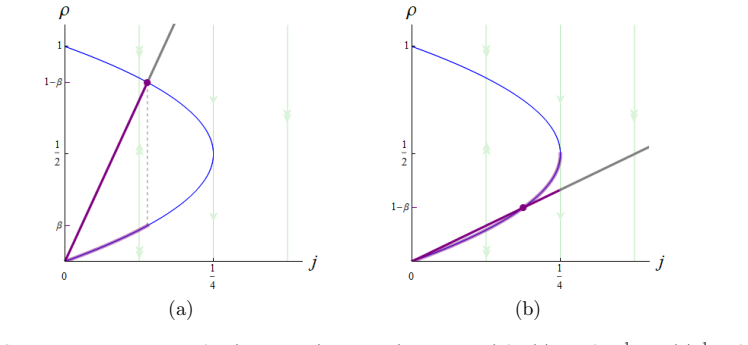

Figure 4. Figure 4: Schematic representation of R (purple line) and R− (purple curve) for (a) 0 < β < 1 2 and (b) 1 2 < β < 1. The purple dot corresponds to r, the blue curve represents C0, and the green lines correspond to the orbits of the layer problem. Based on this geometric interpretation of the boundary conditions, we proceed with the con￾struction of the singular orbits by connecting L + ∪l and R− ∪r by means of the r… view at source ↗
Figure 5

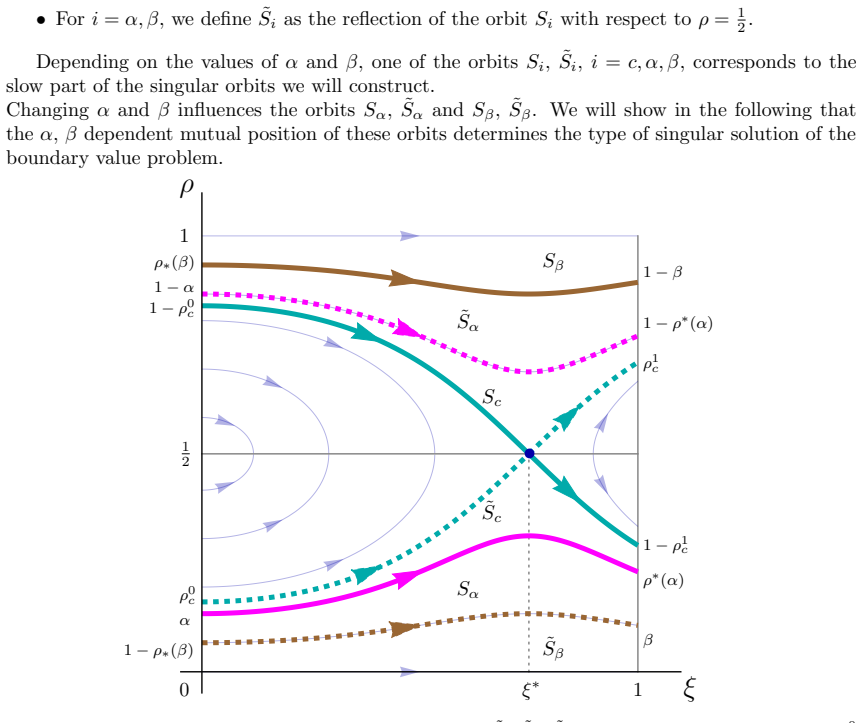

Figure 5. Figure 5: Schematic illustration of the special orbits [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6

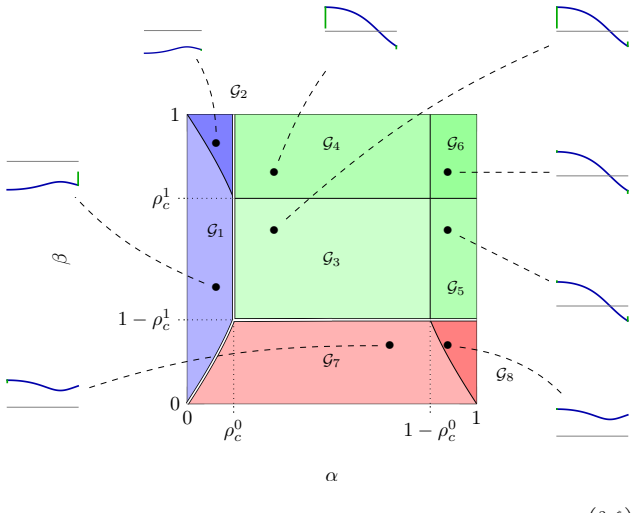

Figure 6. Figure 6: Representation of the (α, β) bifurcation diagram for ε = 0. Here k(ξ) = 1 + a cos  2πξ b  with a = 0.3, b = 1.5. Red regions correspond to high density, blue regions to low density, and green regions to transitions from high to low density regimes. In the insets, the density ρ is shown as a function of ξ. The blue parts correspond to solutions of the reduced problem (16), whereas the green parts indicate… view at source ↗
Figure 7

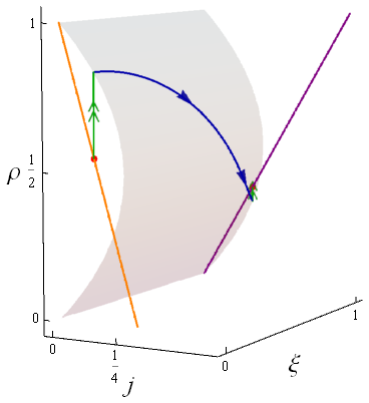

Figure 7. Figure 7: Schematic representation of a singular solution of (8)-(9) with [PITH_FULL_IMAGE:figures/full_fig_p017_7.png] view at source ↗
Figure 8

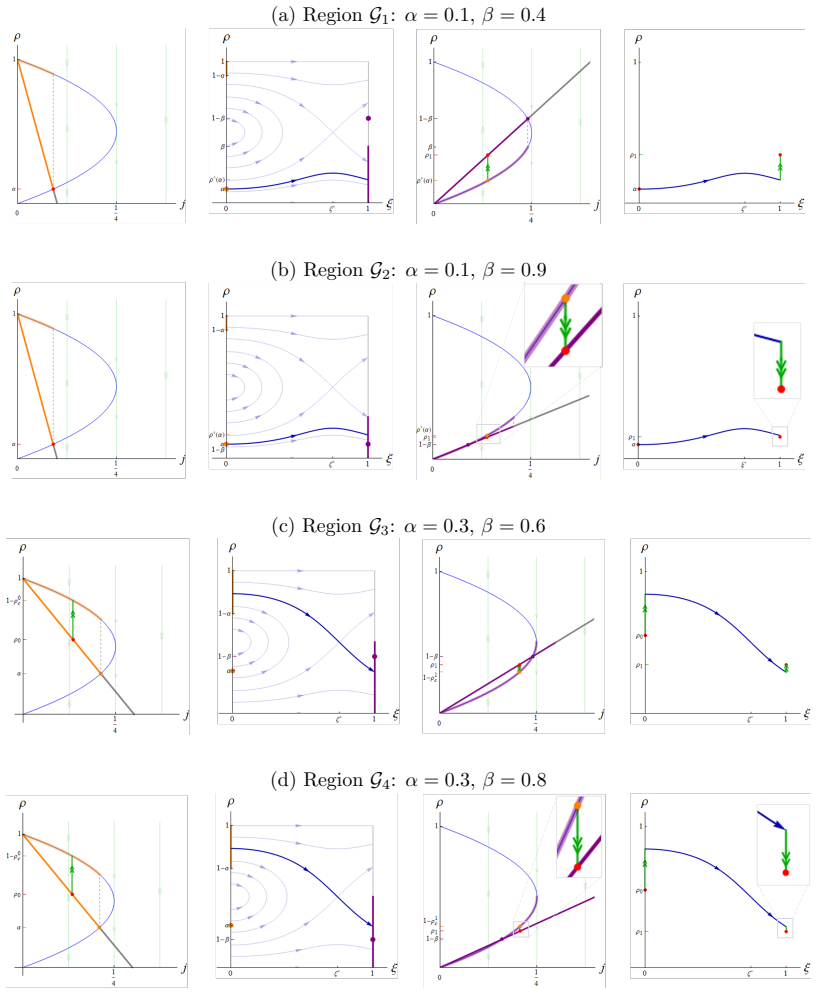

Figure 8. Figure 8: Schematic representation of singular solutions of type 1-4 (rows 1-4, respectively). [PITH_FULL_IMAGE:figures/full_fig_p018_8.png] view at source ↗
Figure 9

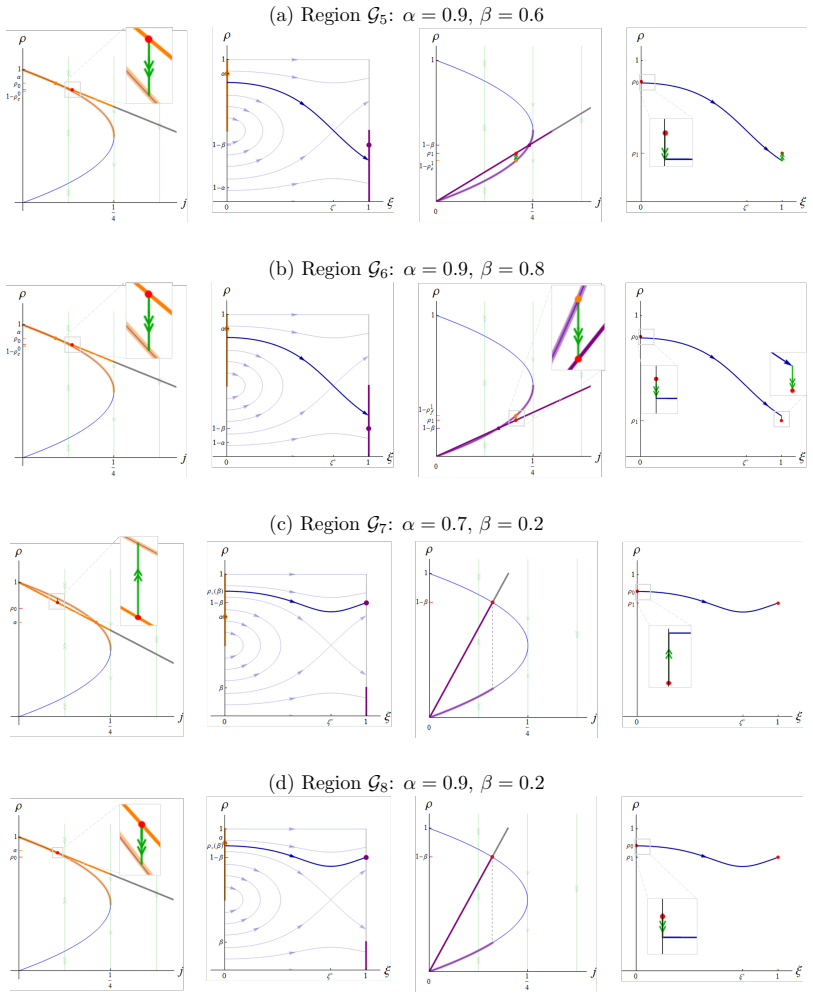

Figure 9. Figure 9: Schematic representation of singular solutions of type 5-8 (rows 1-4, respectively). [PITH_FULL_IMAGE:figures/full_fig_p019_9.png] view at source ↗
Figure 10

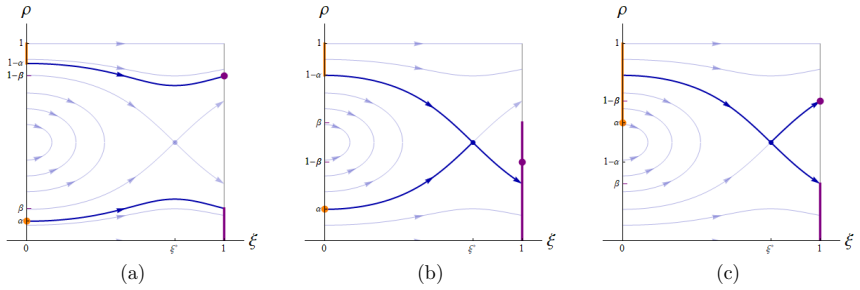

Figure 10. Figure 10: Schematic representation in (ξ, ρ)-space of the slow portions (blue curves) of the possible singular orbits for (a) (α, β) ∈ γ17, (b) (α, β) ∈ γ13 ∪ γ24, and (c) (α, β) ∈ γ37 ∪ γ58. The orange and purple curves correspond to the projection of L+ and R−, respectively, on the (ξ, ρ)-space. Fast jumps from the slow solution in C r 0 to the slow solution in C a 0 are possible (a) at each ξ ∈ [0, 1], (b) for ξ… view at source ↗
Figure 11

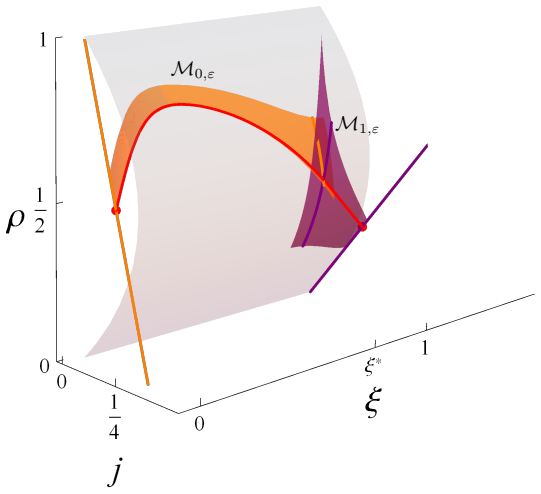

Figure 11. Figure 11: Schematic representation of a solution (continuous red curve) to the full problem (5a)-(5b) obtained [PITH_FULL_IMAGE:figures/full_fig_p021_11.png] view at source ↗
Figure 12

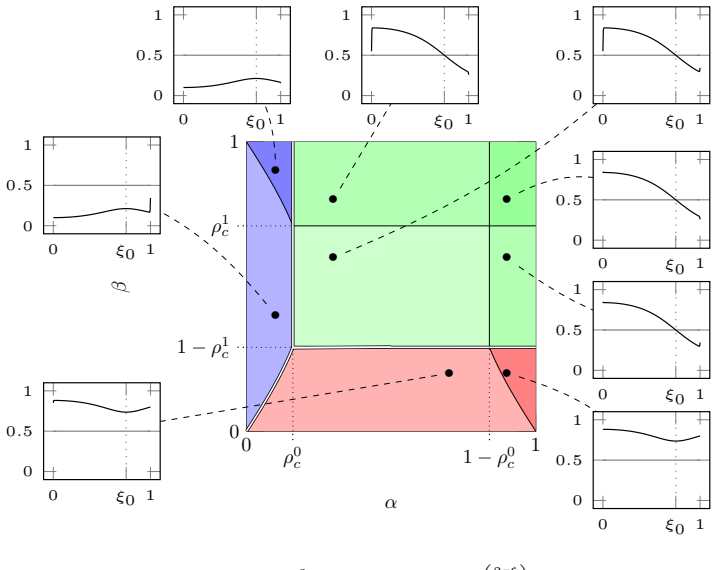

Figure 12. Figure 12: (α, β) bifurcation diagram for ε = 10−3 . Here k(ξ) = 1 + a cos  2πξ b  with a = 0.3, b = 1.5. The insets show the density ρ as a function of ξ. low density stationary states with ρ < 1 2 and a boundary layer on the right boundary. • Small β (which corresponds to low outflow as in the red regions G7 and G8), which leads to high density stationary states with ρ > 1 2 and a boundary layer on the left boun… view at source ↗
Figure 13

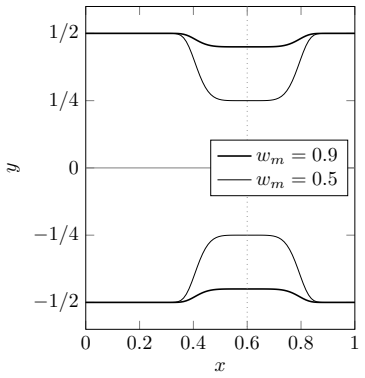

Figure 13. Figure 13: Representation of the 2D domain associated with a supergaussian [PITH_FULL_IMAGE:figures/full_fig_p023_13.png] view at source ↗
Figure 14

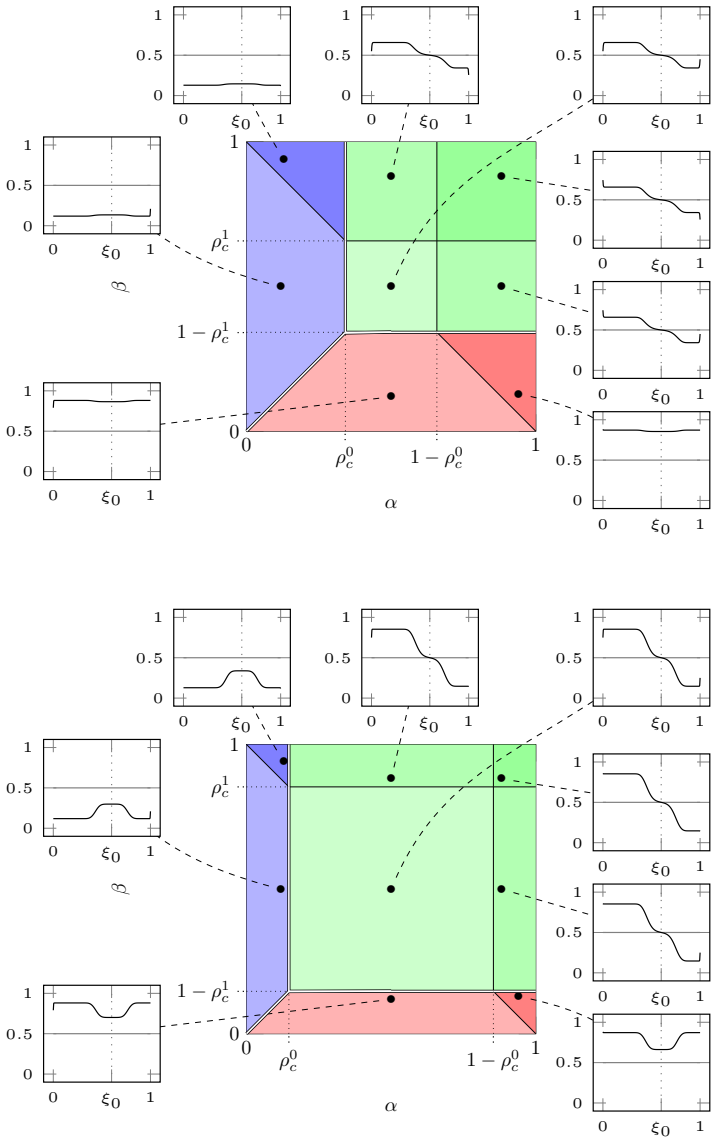

Figure 14. Figure 14: Phase diagrams in the (α, β) parameter space from the GSPT analysis for the supergaussian k along with some typical non-singular solutions for wm = 0.9 (top) and wm = 0.5 (bottom). faster as α and β increase. The maximum of Jk will also decrease linearly with minξ k(ξ). Nu￾merical experiments with two narrow sections of varying width suggest that this applies also for functions k with several (nondegenera… view at source ↗
Figure 15

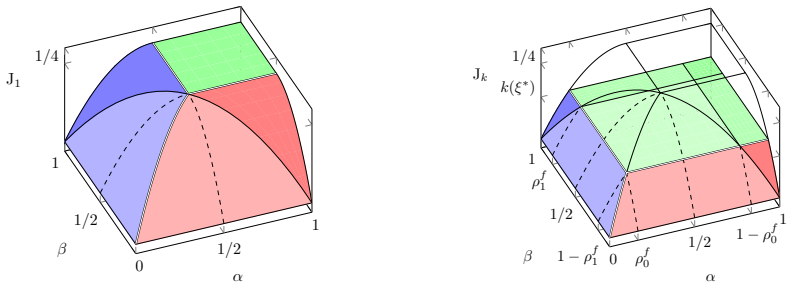

Figure 15. Figure 15: Illustration of the flow J1 (solid colors on the left, wireframe on the right) and Jk (solid colors on the right) as a function of α and β. Recall that ρ 0,1 c → 1 2 as k(ξ ∗) → 1, so that from the green rectangles, only the darker one (top right) remains in the limit. Conclusion In this work, we investigate the steady-states of a 1D area averaged model describing pedes￾trian dynamics for unidirectional f… view at source ↗
read the original abstract

In this paper we investigate the stationary profiles of a nonlinear Fokker-Planck equation with small diffusion and nonlinear in- and outflow boundary conditions. We consider corridors with a bottleneck whose width has a global nondegenerate minimum in the interior. In the small diffusion limit the profiles are obtained constructively by using methods from geometric singular perturbation theory (GSPT). We identify three main types of profiles corresponding to: (i) high density in the domain and a boundary layer at the entrance, (ii) low density in the domain and a boundary layer at the exit, and (iii) transitions from high density to low density inside the bottleneck with boundary layers at the entrance and exit. Interestingly, solutions of the last type involve canard solutions generated at the narrowest point of the bottleneck. We obtain a detailed bifurcation diagram of these solutions in terms of the in- and outflow rates. The analytic results based on GSPT are further corroborated by computational experiments investigating corridors with bottlenecks of variable width.
