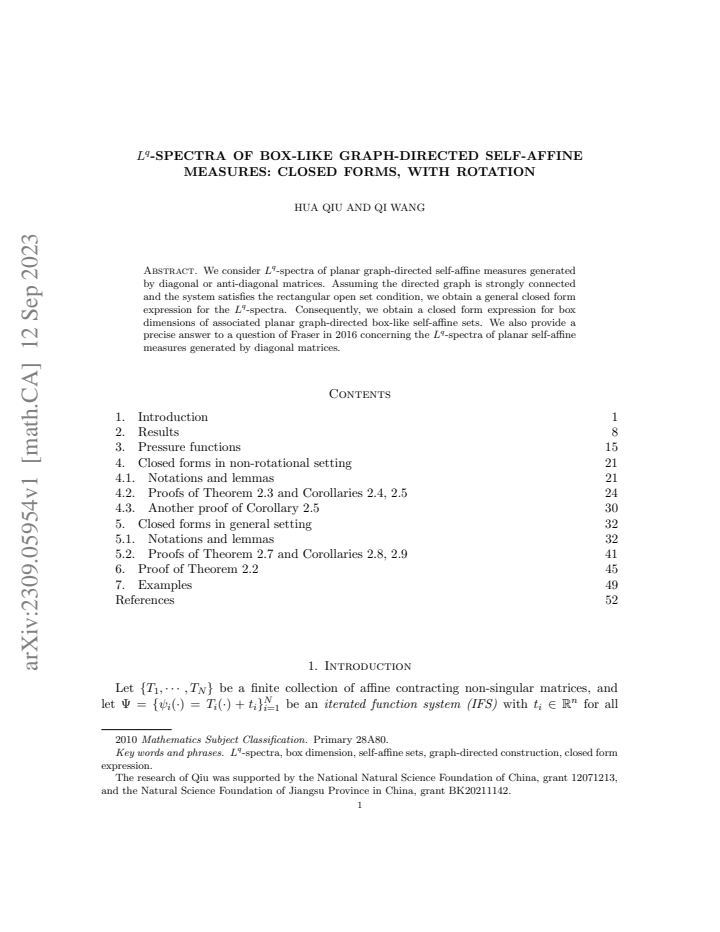

arxiv: 2309.05954 · v1 · submitted 2023-09-12 · 🧮 math.CA

L^q-spectra of box-like graph-directed self-affine measures: closed forms, with rotation

Hua Qiu , Qi Wang This is my paper

Pith reviewed 2026-05-24 07:11 UTC · model grok-4.3

classification 🧮 math.CA
keywords L^q-spectragraph-directed self-affine measuresrectangular open set conditionbox dimensionsself-affine setsplanar measuresdiagonal matrices
0
0 comments X

The pith

Planar graph-directed self-affine measures from diagonal or anti-diagonal matrices have closed-form L^q-spectra under strong connectivity and the rectangular open set condition.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper derives a general closed-form expression for the L^q-spectra of these measures when the directed graph is strongly connected and the rectangular open set condition holds. The same conditions also produce closed forms for the box dimensions of the associated self-affine sets. The work supplies an explicit answer to a 2016 question of Fraser on the L^q-spectra of planar self-affine measures generated by diagonal matrices. A sympathetic reader would care because these formulas replace numerical approximation or bounds with exact computation for a class of planar fractal measures.

Core claim

Assuming the directed graph is strongly connected and the system satisfies the rectangular open set condition, a general closed form expression exists for the L^q-spectra of planar graph-directed self-affine measures generated by diagonal or anti-diagonal matrices; the same expression yields closed forms for the box dimensions of the associated box-like self-affine sets.

What carries the argument

The rectangular open set condition, which controls overlaps so that the L^q-spectrum reduces to an explicit formula determined by the matrices and the graph structure.

If this is right

  • Box dimensions of the associated planar graph-directed box-like self-affine sets admit closed-form expressions.
  • The L^q-spectra of planar self-affine measures generated by diagonal matrices receive a precise answer to the question posed by Fraser in 2016.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The closed forms could be used to test conjectures about equality of different dimension spectra in the same systems.
  • Similar derivations might apply to other graph-directed constructions if an analogue of the rectangular open set condition can be verified.

Load-bearing premise

The rectangular open set condition holds for the planar graph-directed system.

What would settle it

For a concrete strongly connected planar graph-directed system known to satisfy the rectangular open set condition, compute the L^q-spectrum by direct summation or approximation and check whether the values match the closed-form expression given in the paper.

Figures

Figures reproduced from arXiv: 2309.05954 by Hua Qiu, Qi Wang.

Figure 1
Figure 1. Figure 1: An example of graph-directed self-affine carpet families [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗

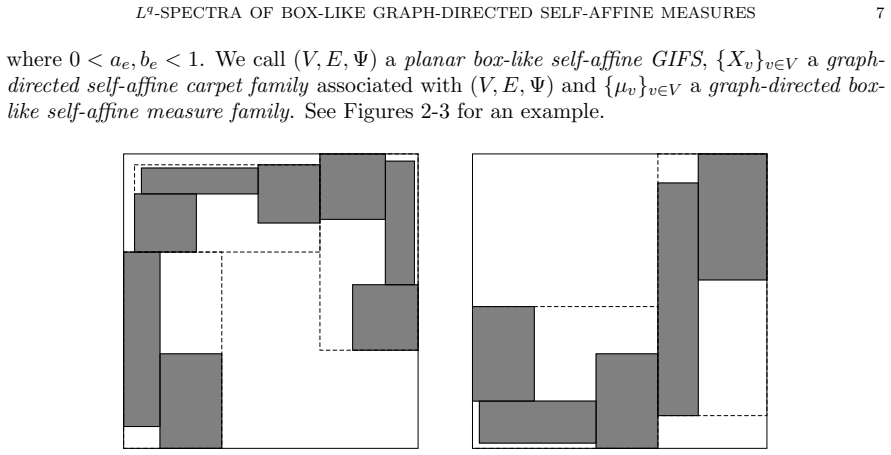

Figure 2
Figure 2. Figure 2: A planar box-like self-affine GIFS with #V = 2, #E = 5. Images of [0, 1]2 under the first and second level iterations of maps in the GIFS [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗

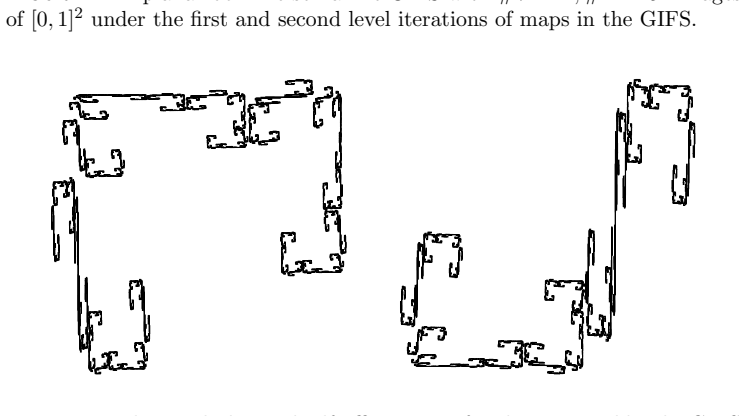

Figure 3
Figure 3. Figure 3: The graph-directed self-affine carpet family generated by the GIFS in [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

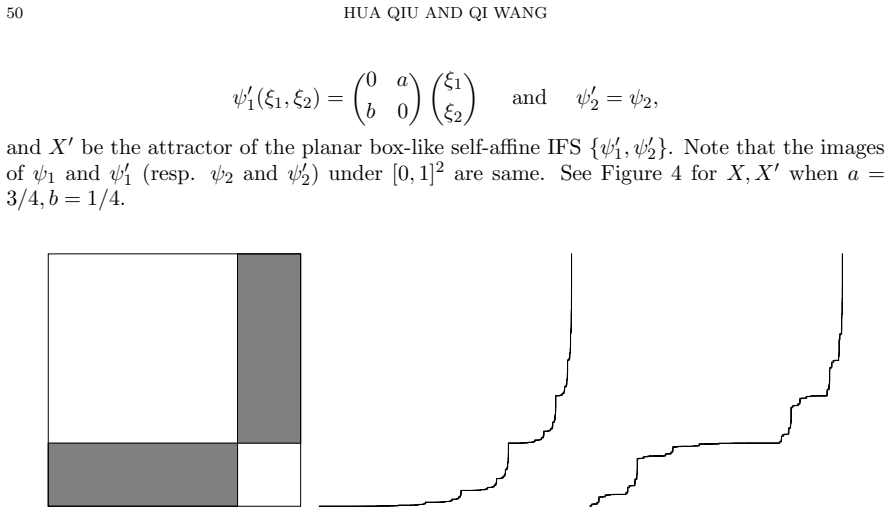

Figure 4
Figure 4. Figure 4: Left: the shaded rectangles are images of the iterated function ψ1 (resp. ψ ′ 1 ) and ψ2 (resp. ψ ′ 2 ). Middle: the attractor X. Right: the attractor X′ . Let µ (resp. µ ′ ) be the self-affine measure associated with {ψ1, ψ2} (resp. {ψ ′ 1 , ψ′ 2 }) and a probability vector P = (1/2, 1/2). We compute the closed form expression for L q -spectra of µ, µ′ respectively. For IFS {ψ1, ψ2}: For q ≥ 0, τµx(q) = τ… view at source ↗
read the original abstract

We consider $L^q$-spectra of planar graph-directed self-affine measures generated by diagonal or anti-diagonal matrices. Assuming the directed graph is strongly connected and the system satisfies the rectangular open set condition, we obtain a general closed form expression for the $L^q$-spectra. Consequently, we obtain a closed form expression for box dimensions of associated planar graph-directed box-like self-affine sets. We also provide a precise answer to a question of Fraser in 2016 concerning the $L^q$-spectra of planar self-affine measures generated by diagonal matrices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript claims that, assuming strong connectivity of the directed graph and the rectangular open set condition, a general closed-form expression exists for the L^q-spectra of planar graph-directed self-affine measures generated by diagonal or anti-diagonal matrices; it further derives closed forms for the box dimensions of the associated box-like self-affine sets and resolves Fraser's 2016 question on the L^q-spectra of planar self-affine measures generated by diagonal matrices.

Significance. If the algebraic derivations hold under the stated hypotheses, the work supplies explicit formulas in a setting where closed forms for L^q-spectra of self-affine measures have been elusive, thereby advancing multifractal analysis of graph-directed systems. The resolution of the 2016 question is a concrete contribution, and the use of the rectangular open set condition to obtain parameter-free expressions is a strength.

minor comments (2)
  1. The abstract and introduction should include a brief statement of the explicit form of the closed-form expression (e.g., the functional equation or matrix product involved) rather than only asserting its existence.
  2. Notation for the rectangular open set condition and the strong-connectivity hypothesis should be introduced with a short reminder of their definitions in §2 to aid readers unfamiliar with graph-directed IFS literature.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary of the manuscript, recognition of its significance in providing closed-form expressions for L^q-spectra under the rectangular open set condition, and recommendation for minor revision. We are pleased that the resolution of Fraser's 2016 question is viewed as a concrete contribution.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The derivation of the closed-form L^q-spectra is explicitly conditional on the directed graph being strongly connected and the rectangular open set condition holding. No load-bearing steps reduce by definition, by fitted-parameter renaming, or by self-citation chains to the target result itself. The central claim is an algebraic consequence under those hypotheses rather than a self-referential construction, consistent with standard techniques for graph-directed self-affine measures.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The closed form rests on two domain assumptions standard in the literature on self-affine sets; no free parameters or invented entities are indicated in the abstract.

axioms (2)
  • domain assumption The directed graph is strongly connected
    Invoked to obtain the general closed form for the L^q-spectra.
  • domain assumption The system satisfies the rectangular open set condition
    Key separation condition required for the closed-form expression to hold.
