The paper refines the reduced diagram concept associated with lattice diagrams by introducing dotted diagrams. A lattice diagram is presented by an admissible dotted diagram. The work investigates deformations of dotted diagrams and establishes the relation between deformations of admissible dotted diagrams and transformations of lattice diagrams. These results refine and correct earlier statements on the same relation.

Core claim

A lattice diagram is presented by an admissible dotted diagram. Deformations of dotted diagrams are investigated, and the relation between deformations of admissible dotted diagrams and transformations of lattice diagrams is established, giving refined and corrected versions of previous results on this correspondence.

What carries the argument

The admissible dotted diagram, which presents a lattice diagram and carries the correspondence between its deformations and the transformations of the lattice diagram.

If this is right

  • Deformations of admissible dotted diagrams map directly to transformations of the associated lattice diagrams.
  • The refined definition of the dotted diagram yields a more precise version of the earlier correspondence.
  • Corrections to the previous lemma and theorem ensure the relation holds under the admissibility condition.
  • Transformations of lattice diagrams can be studied by examining deformations of their presenting dotted diagrams.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The admissibility condition may be the minimal requirement needed for the correspondence to hold without exceptions.
  • The approach could extend to studying sequences of multiple deformations and their cumulative effect on lattice diagrams.
  • Non-admissible dotted diagrams might require separate treatment to determine if they admit any similar relations.

Load-bearing premise

A lattice diagram can be presented by an admissible dotted diagram such that deformations of the dotted diagram correspond exactly to transformations of the lattice diagram.

What would settle it

An explicit example of an admissible dotted diagram and a deformation that produces a change with no corresponding transformation of the presented lattice diagram.

Figures

Figures reproduced from arXiv: 2310.00218 by Inasa Nakamura.

Figure 1

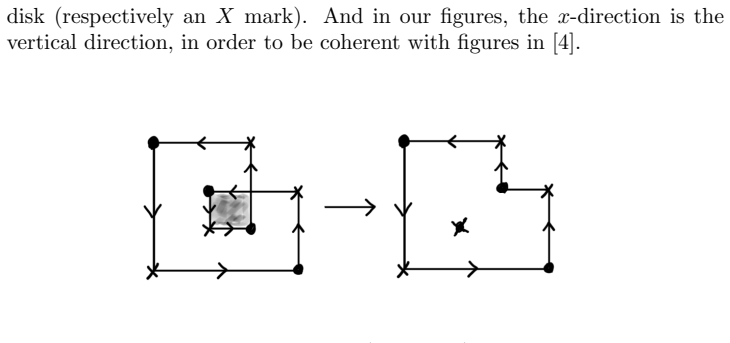

Figure 1. Figure 1: A lattice diagram (left figure) and the result of a transformation along a rectangle (right figure). The rectangle is denoted by the shadowed area. We remark that the x￾direction is the vertical direction, and we denote an initial vertex (respectively a terminal vertex) by a small black disk (respectively an X mark). See the left figure in [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

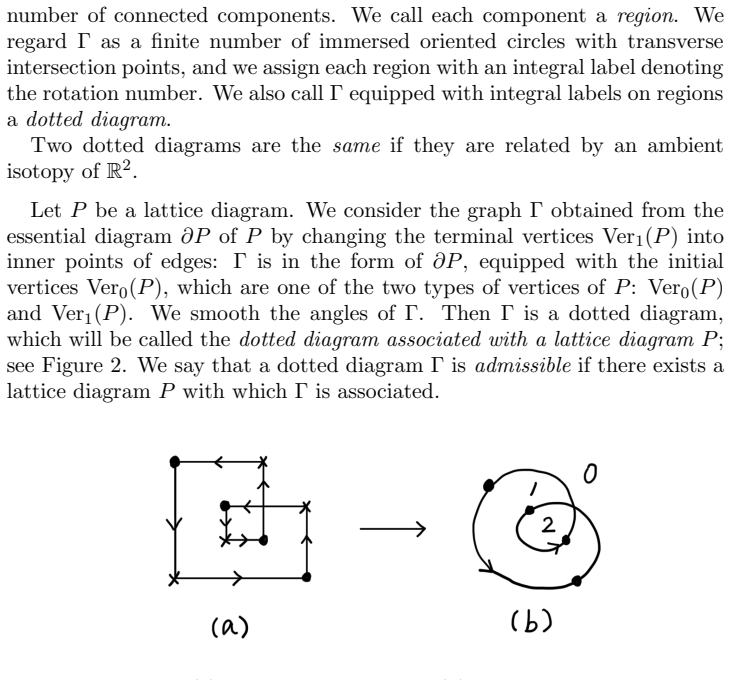

Figure 2. Figure 2: (a) A lattice diagram and (b) the associated dot￾ted diagram. Let Γ be a dotted diagram. We call a set of arcs with dots and connecting crossings a circle component if it is the boundary of a smoothly embedded disk and any pair of arcs connected by a crossing is a pair of diagonal arcs. And we call a set of arcs with dots and connecting crossings a loop component if it is the boundary of an embedded disk D… view at source ↗
Figure 3

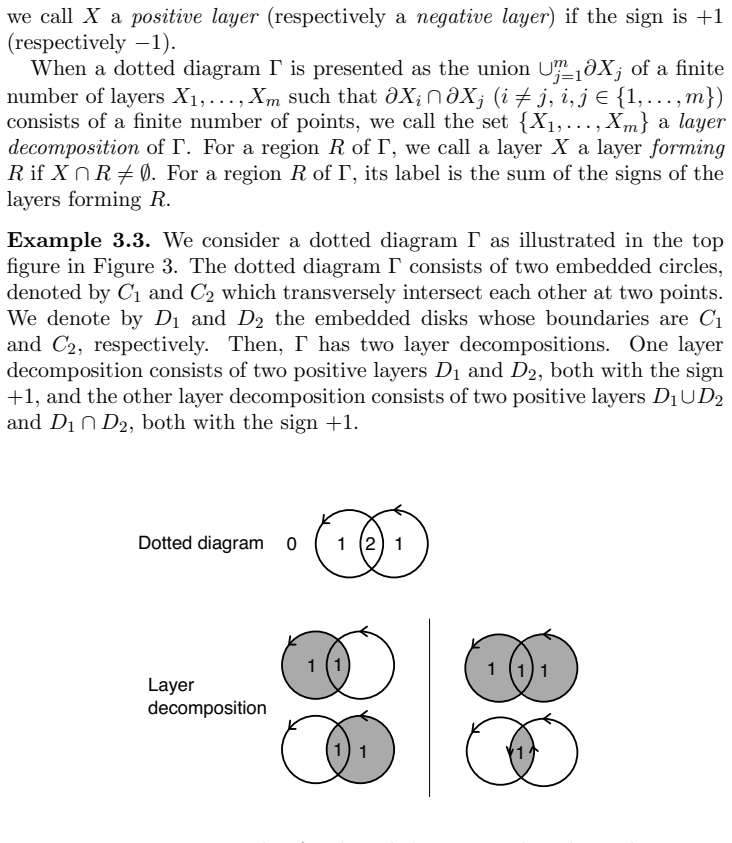

Figure 3. Figure 3: Example of a dotted diagram and its layer de￾compositions, where each layer is the shadowed embedded disk. We have two choices of layer decompositions [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

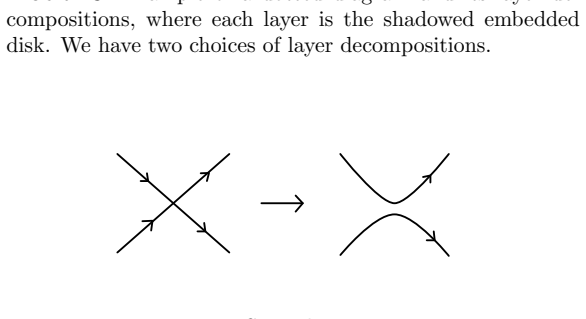

Figure 4. Figure 4: Smoothing a crossing. Proposition 3.4. Any dotted diagram Γ has a layer decomposition. 7 [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

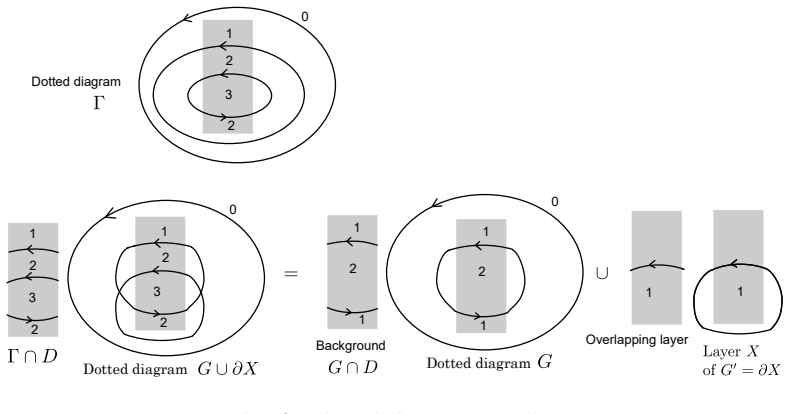

Figure 5. Figure 5: Example of a dotted diagram Γ and its inter￾section with a disk D. By taking a dotted diagram G such that the intersection with D of G and its overlapping layer is Γ ∩ D, we decompose Γ ∩ D into a background and an overlapping layer. (I) Reduce several dots on an arc to one dot on the arc; see [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Local deformations I–IV, where the figures il￾lustrate backgrounds for deformations II, III, IV. Here, ϵ ∈ {+1, −1} and i is a positive integer, and we omit the orienta￾tions of the arcs and some of the labels of the regions/blocks. A deformation IV is applicable when the arcs admit induced orientations. Deformations II, III, IV can be applied includ￾ing the case when the blocks are overlapped by several l… view at source ↗
Figure 7

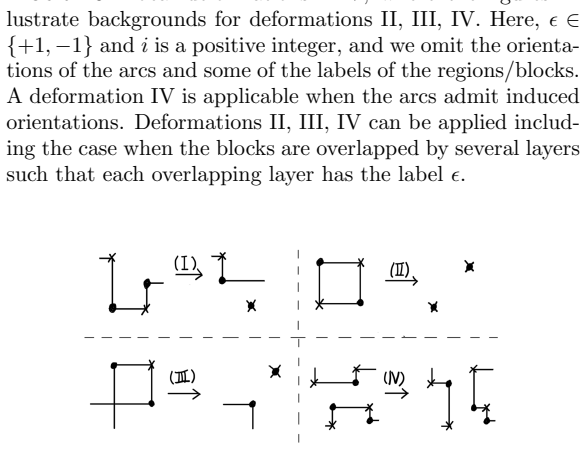

Figure 7. Figure 7: Transformations of a lattice diagram along a rec￾tangle corresponding to deformations I–IV, where we omit orientations of edges and labels of regions. (a1) The arcs involved in R are adjacent arcs of a crossing, where we ignore overlapping layers, such that R creates a loop component applicable of a deformation III. (a2) The deformation R creates a circle component C from two concentric circle components s… view at source ↗
Figure 8

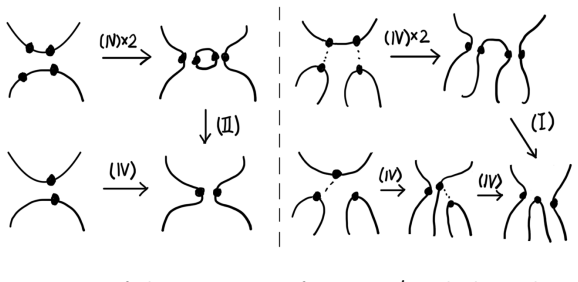

Figure 8. Figure 8: If there is a pair of arcs α, α′ with dots where deformations IV are applicable, then, no matter what times we apply deformations IV, the resulting dotted diagrams can be deformed to the same dotted diagram as when we consider α, α′ with one dot on each arc (left figure). If there is an arc α with dots and several arcs where deformations IV are applicable between α and the other arcs, then, no matter what … view at source ↗
Figure 9

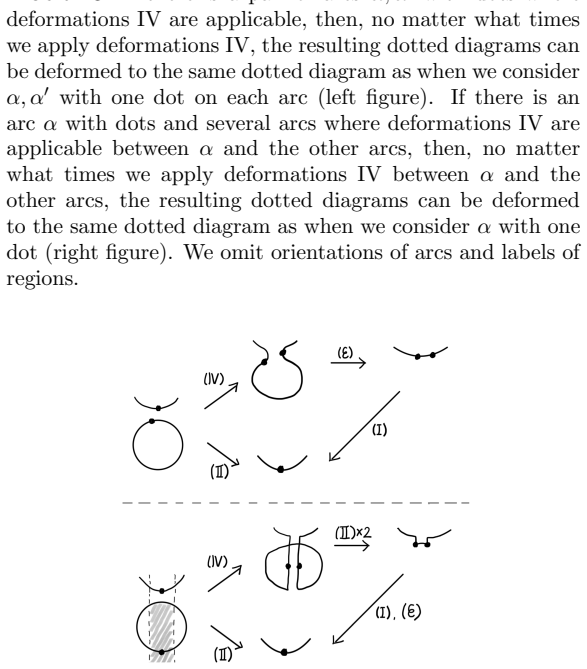

Figure 9. Figure 9: If we have arcs where both deformations II and IV are applicable, then the resulting dotted diagrams can be deformed to the same dotted diagram, where we omit the orientations of arcs and labels of regions; we remark that in the lower figure, the shadowed area is the overlapping layer. We also remark that the upper figure is [4, [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
Figure 10

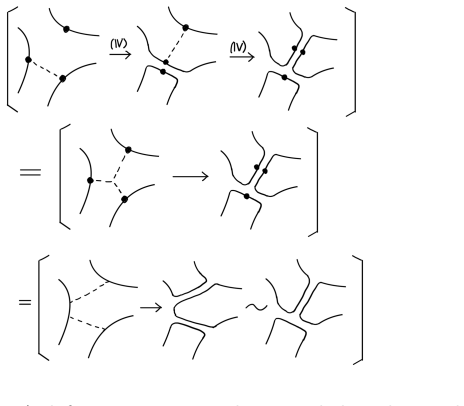

Figure 10. Figure 10: A deformation IV can be regarded as the result of band surgery along an untwisted band. In the top and the bottom rows of figures, we denote by dotted arcs cores of bands. We assume that each appearing dotted diagram satisfies the condition (A) (see Theorem 3.10). If there are n dots between which there are several possible sequences of n − 1 deformations IV, then the result is independent of the choice o… view at source ↗
Figure 11
Figure 11. Figure 11: Transformations of a lattice diagram along a rectangle and the corresponding sequence of deformations IVa and III in good order, where we omit orientations of edges and labels of regions. A dotted diagram is admissible when it has “many” dots. Proposition 5.3. Let Γ be a dotted diagram such that each arc has at least two dots. Then, Γ is admissible. Proof. For a lattice diagram P, we call the part of P co… view at source ↗
Figure 12

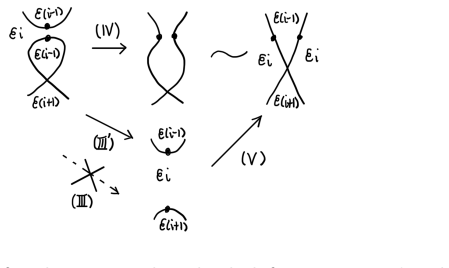

Figure 12. Figure 12: If we have arcs where both deformations III’ and IV are applicable, then the resulting dotted diagrams need a deformation V to be deformed locally to the same dotted diagram, where we omit the orientations of arcs. We remark that by the condition for labels of regions, a deformation III is not applicable [PITH_FULL_IMAGE:figures/full_fig_p021_12.png] view at source ↗
Figure 13

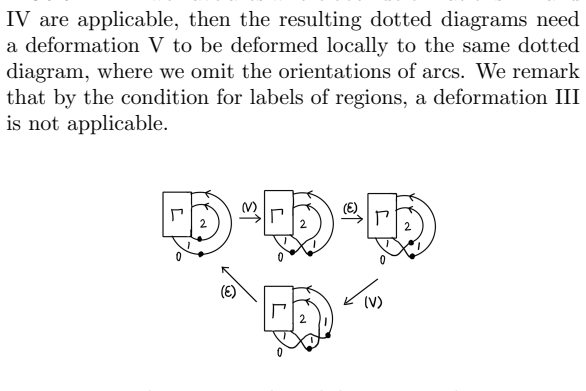

Figure 13. Figure 13: There exist a dotted diagram Γ admitting a se￾quence of deformations V and E whose result is Γ itself. Proof. It suffices to show that the possibilities of application of deformations II–IV are the same before and after the application of a local move E, where we do not apply deformations IV between the arc used in the local move E and an arc of its overlapping layer. Let Γ be a dotted diagram and let Γ ′… view at source ↗
Figure 12
Figure 12. Figure 12: □ Lemma 6.4. When we have a circle/loop component C applicable a defor￾mation II/III such that the interior of the disk with the boundary C contains another circle/loop component C ′ applicable of a deformation II/III, the re￾sult of the deformations II/III to C and then C ′ is the same with that of the deformations II/III to C ′ and then C, up to local moves E. Proof. Let D and D′ be the disks whose boun… view at source ↗

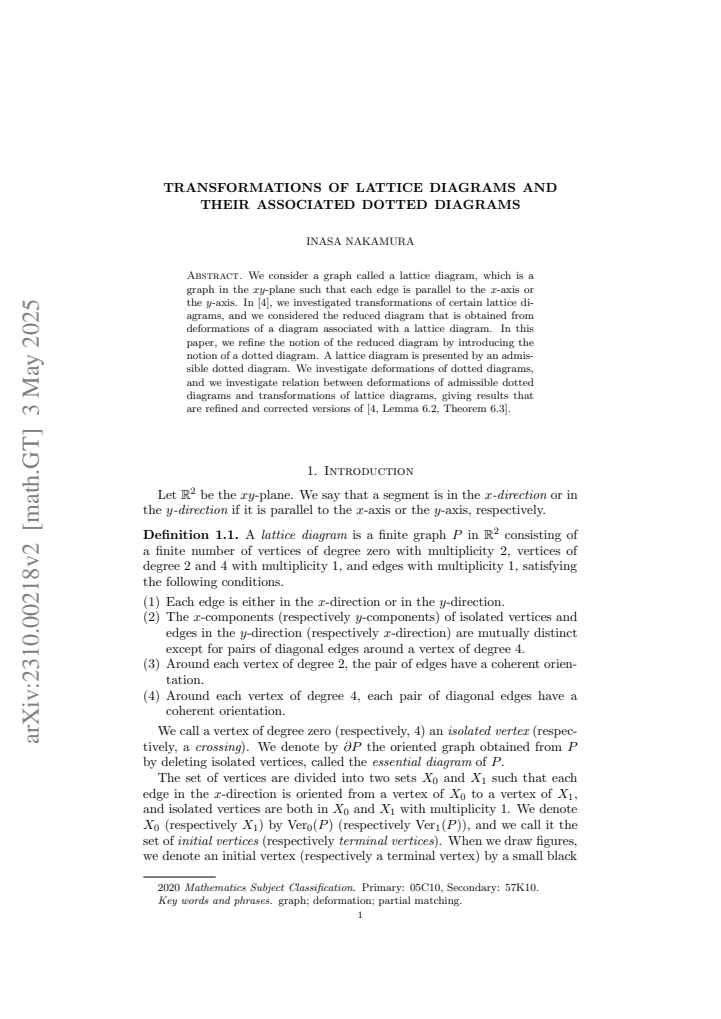

read the original abstract

We consider a graph called a lattice diagram, which is a graph in the $xy$-plane such that each edge is parallel to the $x$-axis or the $y$-axis. In [4], we investigated transformations of certain lattice diagrams, and we considered the reduced diagram that is obtained from deformations of a diagram associated with a lattice diagram. In this paper, we refine the notion of the reduced diagram by introducing the notion of a dotted diagram. A lattice diagram is presented by an admissible dotted diagram. We investigate deformations of dotted diagrams, and we investigate relation between deformations of admissible dotted diagrams and transformations of lattice diagrams, giving results that are refined and corrected versions of [4, Lemma 6.2, Theorem 6.3].
