arxiv: 2311.09643 · v5 · submitted 2023-11-16 · 🧮 math.DS · math.MG

Aperiodic points for outer billiards

Anton Belyi , Alexei Kanel-Belov , Philipp Rukhovich , Vladlen Timorin This is my paper

Pith reviewed 2026-05-24 06:12 UTC · model grok-4.3

classification 🧮 math.DS math.MG
keywords outer billiardsaperiodic pointsregular polygonsdynamical systemsEuclidean planebilliard mapsperiodic orbitssingular set
0
0 comments X

The pith

Regular polygons except triangles, squares and hexagons have aperiodic points under outer billiards.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proves that the Euclidean outer billiard map around a regular n-gon, for n not equal to 3, 4 or 6, admits points whose entire forward orbit consists of distinct, well-defined images. These aperiodic points lie outside the polygon and never hit the lines extending its sides under iteration. The result directly resolves a question posed by R. Schwartz at the 2022 ICM by exhibiting infinite non-repeating orbits in the exterior dynamics. A reader would care because it shows that the map fails to be periodic on an open set of starting positions, separating the behavior of these polygons from the fully periodic cases of triangles, squares and hexagons.

Core claim

Euclidean outer billiard on a regular polygon (that is not a triangle, square or a hexagon) has aperiodic points, i.e., points where all iterates of the outer billiard map are defined and yield pairwise distinct images. This result answers a question of R. Schwartz posed at ICM 2022.

What carries the argument

The outer billiard map, which sends an exterior point x to the unique point T(x) such that the segment xT(x) is tangent to the polygon at its midpoint.

If this is right

  • Aperiodic points exist for every regular pentagon.
  • The outer billiard map is not everywhere periodic outside these polygons.
  • The singular set does not capture every orbit that begins outside the polygon.
  • The distinction between periodic and aperiodic exterior dynamics depends on the number of sides.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same conclusion may extend to certain irregular polygons whose rotational symmetry is preserved.
  • Aperiodic points could serve as starting locations for studying whether some orbits are dense in annular regions around the polygon.
  • The result separates the dynamical classification of regular polygons into the three periodic cases and all remaining n.

Load-bearing premise

There exist points outside the polygon whose entire forward orbit under the outer billiard map avoids the singular set of lines extending the sides.

What would settle it

An explicit orbit computation for the regular pentagon in which every starting point either eventually hits a singular line or enters a periodic cycle.

Figures

Figures reproduced from arXiv: 2311.09643 by Alexei Kanel-Belov, Anton Belyi, Philipp Rukhovich, Vladlen Timorin.

Figure 1

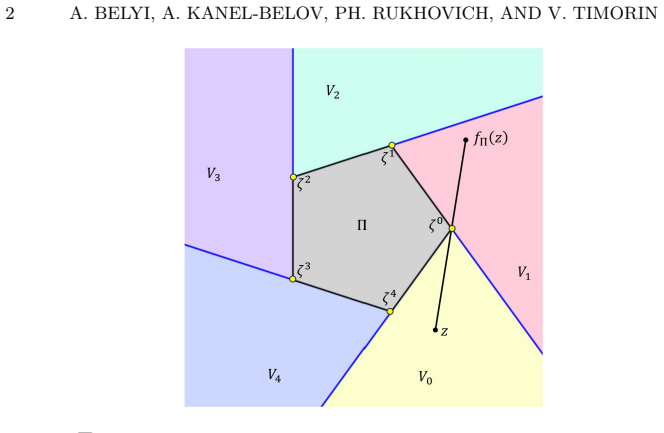

Figure 1. Figure 1: Outer billiard map on a regular pentagon Π. Here, the vertices of Π are the roots of unity ζ k , where ζ = exp(2πi/5). The domain dom(f) is the union of the 5 sectors Vk, and the map fΠ acts on Vk as the half-turn about ζ k . Theorem 1.1. Outer billiard on any regular N-gon with N > 4 and N ̸= 6 has aperiodic points. Theorem 1.1 is proved by rather general methods, which may be applicable to wider classes … view at source ↗
Figure 2

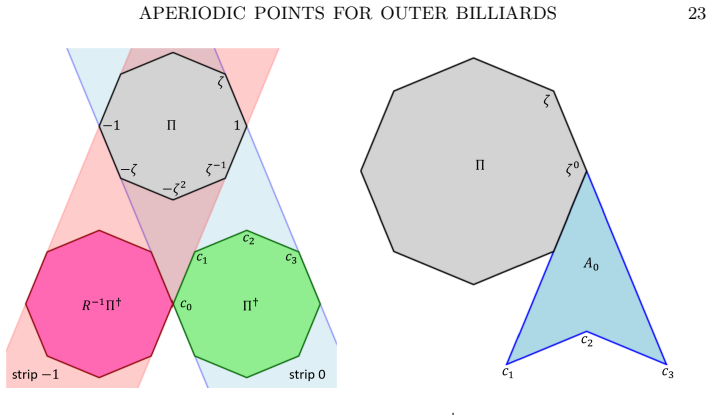

Figure 2. Figure 2: Left: the vassal polygon Π† , strip 0 and strip −1. Right: the polygon Π and the piece A0 for N = 8. the numbering of the vertices follows their cyclic order in the boundary of A0, see [PITH_FULL_IMAGE:figures/full_fig_p023_2.png] view at source ↗
Figure 3

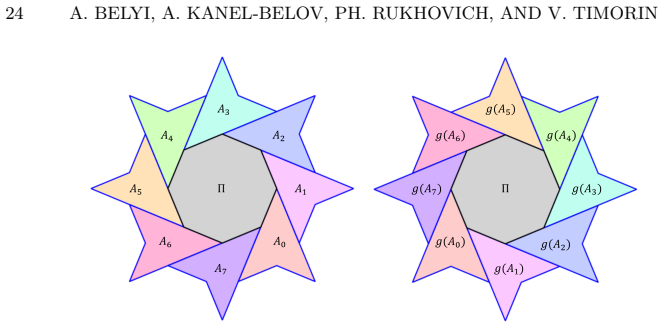

Figure 3. Figure 3: The action of the map g = gX on X. Left: components of dom(g). Right: their g-images. length λ0 + λ ′ = 1 sin θ 2 = 2 λ0 , which gives an expression for λ ′ in terms of λ0. In the sequel, we will need an expression for λ ′ in terms of λ0 and ζ. One can use the relation ζ + ζ −1 = 2 − λ 2 0 , in which the left-hand side is equal to 2 cos θ, and the right-hand side follows from the well-known expression for … view at source ↗
Figure 4

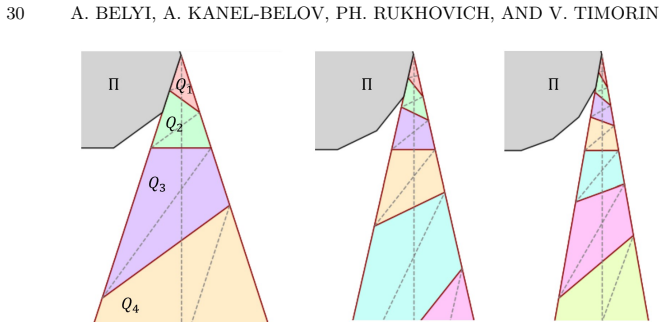

Figure 4. Figure 4: The domain of find. Left: N = 10, middle: N = 14, right: N = 18 (the corresponding values of m are 4, 6, and 8, respectively). Dashed lines are the axes of the reflections v0 and vk with k = 1, . . . , m + 1. Proof. First, we make several observations. The intersection V0∩S−kV−k is nonempty if and only if k < N+1 2 , that is, if k ⩽ m + 1. It follows that V0 ∩ S−kV−k, for k = 1, . . . , m + 1, tile the sec… view at source ↗
Figure 5

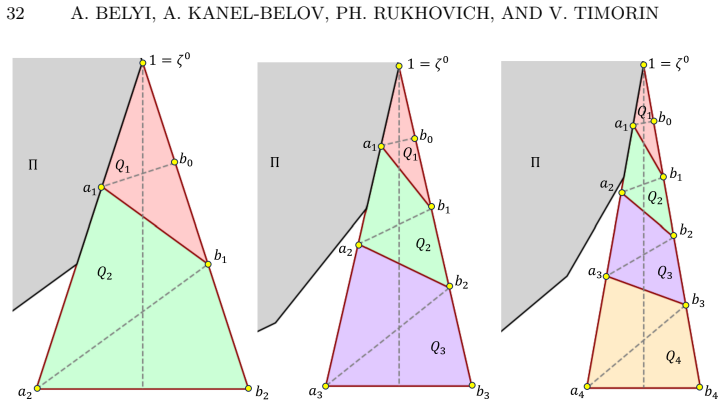

Figure 5. Figure 5: Pieces Qk of U. Symmetry axes of U and of all Qk are shown as dashed lines. This figure is simply a zoom-in of [PITH_FULL_IMAGE:figures/full_fig_p032_5.png] view at source ↗
read the original abstract

Euclidean outer billiard on a regular polygon (that is not a triangle, square or a hexagon) has aperiodic points, i.e., points where all iterates of the outer billiard map are defined and yield pairwise distinct images. This result answers a question of R. Schwartz posed at ICM 2022.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript proves that the Euclidean outer billiard map on a regular n-gon (n ≠ 3,4,6) admits aperiodic points: points whose forward orbits under the map are everywhere defined and consist of pairwise distinct points. The construction uses symmetry of the polygon together with the irrationality of the rotation angle 2π/n to produce an invariant curve whose entire forward orbit remains in the complement of the singular set (the lines extending the sides and all their images). This resolves a question posed by R. Schwartz at ICM 2022.

Significance. If the result holds, it supplies a concrete, symmetry-based construction of aperiodic orbits for outer billiards on most regular polygons, thereby answering an open question in piecewise-isometric dynamics. The argument gives explicit credit to the irrational rotation and the avoidance of the singular set via an open invariant set, providing a falsifiable example rather than an existence proof by contradiction.

minor comments (2)
  1. The statement of the main theorem (presumably Theorem 1.1 or equivalent) could explicitly record that the constructed points lie in an open set whose forward orbit under the piecewise-isometric map stays in the regular domain; this would make the avoidance argument easier to locate.
  2. A short remark comparing the n=5 case with the known periodic behavior for n=4 would help readers situate the result.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of the manuscript and the recommendation to accept.

Circularity Check

0 steps flagged

No significant circularity; proof is self-contained

full rationale

The manuscript proves existence of aperiodic points for outer billiards on regular n-gons (n≠3,4,6) by explicit construction of an open set of initial points whose forward orbits under the piecewise-isometric map remain in the regular domain, using symmetry of the polygon and irrationality of the rotation angle 2π/n to guarantee avoidance of the singular set (extensions of sides and their images). No parameters are fitted to data, no quantities are defined in terms of the target result, and no load-bearing step reduces to a self-citation or ansatz imported from the authors' prior work. The argument is a direct dynamical-systems construction that stands independently of the claim itself.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract provides no indication of free parameters or invented entities; relies on standard math.

axioms (1)
  • standard math Standard properties of Euclidean geometry and regular polygons
    The result is based on standard mathematical assumptions about the plane and symmetry.
