arxiv: 2311.09893 · v3 · submitted 2023-11-16 · 🧮 math.PR

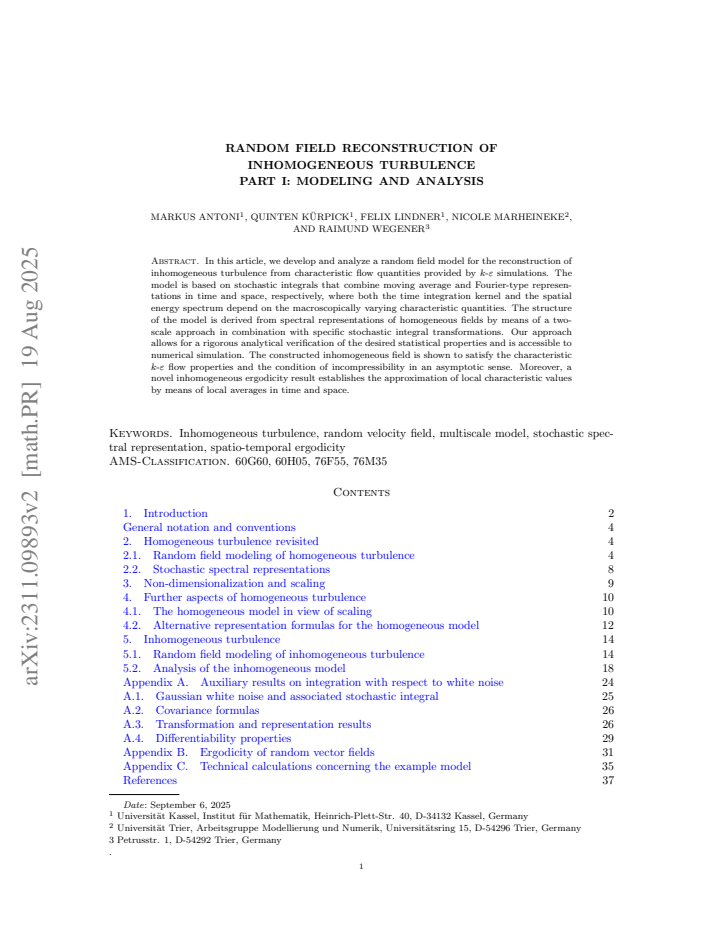

Random field reconstruction of inhomogeneous turbulence. Part I: Modeling and analysis

Markus Antoni , Quinten K\"urpick , Felix Lindner , Nicole Marheineke , Raimund Wegener This is my paper

Pith reviewed 2026-05-24 06:10 UTC · model grok-4.3

classification 🧮 math.PR
keywords random field modelinhomogeneous turbulencestochastic integralsergodicityRANS simulationstwo-scale approachvelocity fluctuationsspectral representation
0
0 comments X

The pith

A continuous random field model reconstructs inhomogeneous turbulent fluctuations from RANS data via stochastic integrals and proves recovery of flow quantities by local averages of one sample path.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds a fully continuous random field model for turbulent velocity fluctuations in flows whose mean characteristics vary in space and time. The model starts from spectral representations of homogeneous turbulence and applies stochastic integral transformations to reach the inhomogeneous case while keeping key consistency properties intact. A two-scale separation isolates slow variations of the mean flow from the faster turbulence scale, which permits asymptotic checks of the model as the scale ratio grows. The central new result is an inhomogeneous ergodicity theorem showing that the varying mean quantities can be recovered exactly from local averages taken along a single realization in both space and time.

Core claim

The model supplies an explicit representation formula in terms of stochastic integrals that combine moving-average and Fourier-type terms. These integrals are obtained from homogeneous spectral representations by means of transformations that preserve consistency when the characteristic quantities become position- and time-dependent. Under a two-scale separation the model admits an asymptotic analysis with respect to the scale ratio, and a novel inhomogeneous ergodicity result establishes that the inhomogeneous characteristic flow quantities are recovered by local averages of a single sample path in time and space.

What carries the argument

Stochastic integral transformations that convert spectral representations of homogeneous fields into inhomogeneous flow characteristics while preserving consistency properties, together with the two-scale separation between macro flow variations and turbulence fluctuations.

If this is right

  • The model remains fully continuous and therefore accessible to both rigorous analysis and direct numerical simulation.
  • The two-scale structure permits systematic asymptotic validation as the ratio between mean-flow and turbulence scales tends to infinity.
  • Single-realization local averaging recovers the inhomogeneous statistics, removing the need for ensemble averages.
  • Consistency with homogeneous spectral models is retained by construction through the integral transformations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same transformation technique could be applied to other inhomogeneous random fields that begin from homogeneous spectral data.
  • The ergodicity result suggests that statistical estimation from sparse single-path measurements may be feasible in related transport or diffusion problems.
  • Numerical implementations could test whether the explicit integral form yields stable large-scale simulations when fed realistic RANS input fields.

Load-bearing premise

Suitable stochastic integral transformations exist that preserve consistency properties when moving from spectral representations of homogeneous fields to the inhomogeneous case.

What would settle it

A direct numerical check showing that local space-time averages along one sample path fail to recover the prescribed inhomogeneous mean flow quantities under the model's scaling assumptions would falsify the ergodicity claim.

Figures

Figures reproduced from arXiv: 2311.09893 by Felix Lindner, Markus Antoni, Nicole Marheineke, Quinten K\"urpick, Raimund Wegener.

Figure 2.1

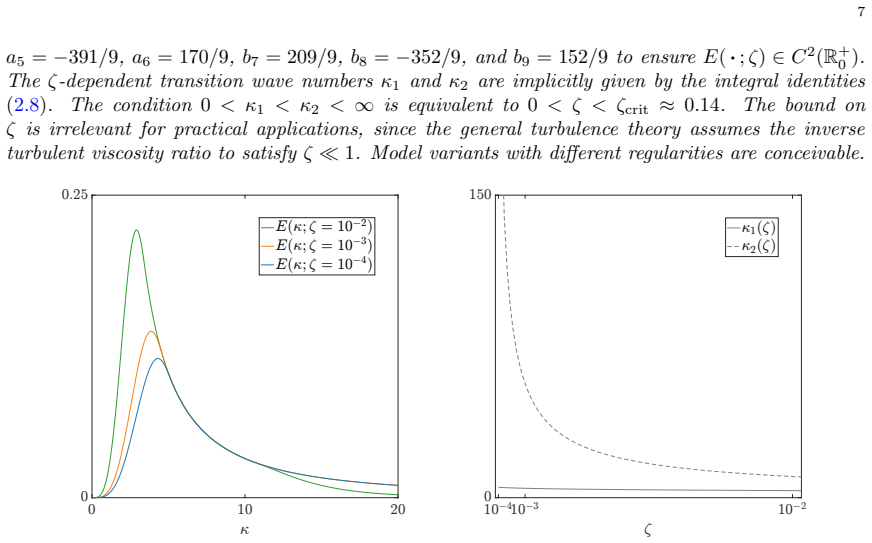

Figure 2.1. Figure 2.1: Model spectrum from Example 2.3 for three different values of the inverse turbulent viscosity ratio ζ (left) and implicitly determined transition wave numbers in dependence on ζ (right). Alternative models for the energy spectrum can be found in, e.g., [Pope00, Section 6.5.3], where the limit behavior for κ → ∞ satisfies an exponential decay. The limit behavior – indicating the dissipation of the turbule… view at source ↗
Figure 2.2

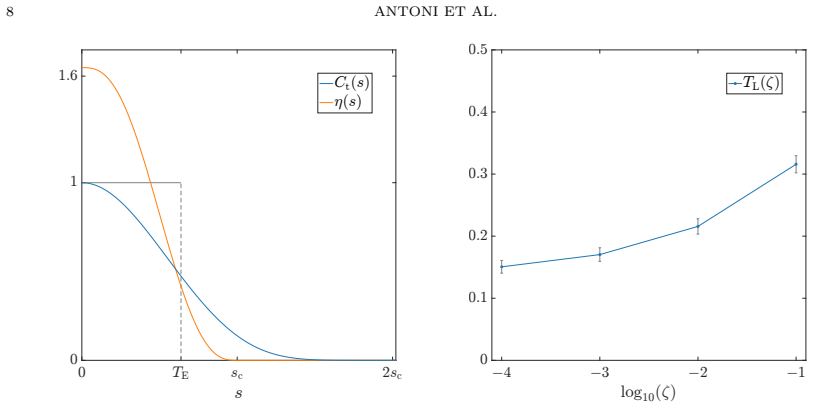

Figure 2.2. Figure 2.2: Temporal correlation function Ct and time integration kernel η from Example 2.4 (left) together with associated Monte Carlo estimates and 95% confidence intervals for the Langrangian time scale TL in dependence on the inverse turbulent viscosity ratio ζ based on 20 000 simulations of a fluid particle (right). Alternative models for the temporal correlations have been employed in, e.g., [CSS93; MW11]. The… view at source ↗
Figure 5.1
Figure 5.1. Figure 5.1: Illustration of the advection of a plane wave of type x 7→ exp{i 1 δ κ·x} (blue curve at t = s) by the mean flow (green) for a fixed value of the time integra￾tion variable s appearing in (5.2), (5.8): Transport along the pathlines of the mean flow results in the transformed wave x 7→ exp{i 1 δ κ·φ(s; x, t)}, where x 7→ φ(s; x, t) represents the inverse of the mean flow transformation x 7→ φ(t; x, s), an… view at source ↗
read the original abstract

We develop and analyze a random field model for the reconstruction of turbulent velocity fluctuations from inhomogeneous characteristic flow quantities provided by RANS simulations that is accessible to both a rigorous analytical validation of the model properties and efficient numerical simulation. The model is fully continuous and based on an explicit representation formula in terms of stochastic integrals combining moving average and Fourier-type representations in time and space, respectively. The structure of the model is systematically derived from spectral representations of homogeneous fields by means of suitable stochastic integral transformations that ensure the preservation of consistency properties when progressing to the case of inhomogeneous flow characteristics. Moreover, we employ a two-scale approach that separates a macro scale related to the variations of the characteristic flow quantities from a representative turbulence scale on which the fluctuations are modeled, allowing to assess the model properties by asymptotic analysis w.r.t. the scale ratio. In particular, a novel inhomogeneous ergodicity result establishes the recovery of the inhomogeneous characteristic flow quantities by means of local averages of a single sample path in time and space.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper develops a continuous random field model for reconstructing turbulent velocity fluctuations from inhomogeneous RANS characteristic quantities. The model uses explicit stochastic integral representations combining moving averages and Fourier-type terms, derived from homogeneous spectral representations via transformations that preserve consistency properties. A two-scale separation (macro-scale flow variations vs. turbulence scale) enables asymptotic analysis w.r.t. the scale ratio; in particular, a novel inhomogeneous ergodicity result is claimed to establish recovery of the inhomogeneous quantities via local averages of a single sample path in time and space.

Significance. If the model construction, preservation of properties, and ergodicity result are rigorously established, the work supplies a mathematically validated framework for generating inhomogeneous turbulence fields that is both analytically tractable and numerically efficient. The two-scale asymptotic approach and the inhomogeneous ergodicity statement would constitute a substantive advance over existing homogeneous or ad-hoc inhomogeneous reconstructions.

major comments (1)
  1. [Abstract] Abstract (paragraph on two-scale approach and ergodicity): the ergodicity result is presented immediately after the clause on asymptotic analysis w.r.t. the scale ratio. It is therefore necessary to clarify whether the recovery of inhomogeneous characteristic quantities holds exactly for any fixed finite scale separation or only in the limit as the ratio ε → 0. If the latter, the headline claim of 'recovery' requires an accompanying error bound or convergence rate; otherwise the statement risks overstating the result.
minor comments (1)
  1. The abstract refers to 'suitable stochastic integral transformations' that preserve consistency properties; the full manuscript should supply the explicit transformation rules and verify the preservation step-by-step (e.g., via a dedicated lemma or proposition).

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the detailed reading and the constructive comment on the abstract. We address the point below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract (paragraph on two-scale approach and ergodicity): the ergodicity result is presented immediately after the clause on asymptotic analysis w.r.t. the scale ratio. It is therefore necessary to clarify whether the recovery of inhomogeneous characteristic quantities holds exactly for any fixed finite scale separation or only in the limit as the ratio ε → 0. If the latter, the headline claim of 'recovery' requires an accompanying error bound or convergence rate; otherwise the statement risks overstating the result.

    Authors: The ergodicity theorem is proved within the two-scale asymptotic framework and holds in the limit as the scale-separation parameter ε → 0; it does not claim exact recovery for any fixed finite ε. We will revise the abstract to make this explicit (e.g., by inserting “in the limit ε → 0” after “establishes the recovery”). The present analysis establishes convergence of the local averages to the inhomogeneous statistics but does not supply explicit rates or error bounds; we can add a brief remark to this effect if the referee considers it useful. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation from homogeneous spectral representations is independent.

full rationale

The paper derives its inhomogeneous model explicitly from spectral representations of homogeneous fields using stochastic integral transformations that preserve consistency properties. The two-scale separation and asymptotic analysis w.r.t. scale ratio are used to assess properties, with the ergodicity result presented as a novel result establishing recovery via local averages. No quoted steps reduce by construction to fitted inputs, self-definitions, or load-bearing self-citations; the central claims remain independent of the target result and are assessed against external homogeneous turbulence benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central construction rests on standard properties of stochastic integrals and spectral representations of homogeneous random fields; the abstract introduces no fitted parameters, new physical entities, or ad-hoc axioms beyond the two-scale separation and transformation preservation assumptions.

axioms (2)
  • domain assumption Spectral representations of homogeneous random fields can be transformed via stochastic integrals while preserving consistency properties for inhomogeneous extensions.
    Invoked in the systematic derivation step described in the abstract.
  • domain assumption A two-scale separation between macro flow variations and turbulence fluctuations is valid and permits asymptotic analysis.
    Used to assess model properties with respect to the scale ratio.
