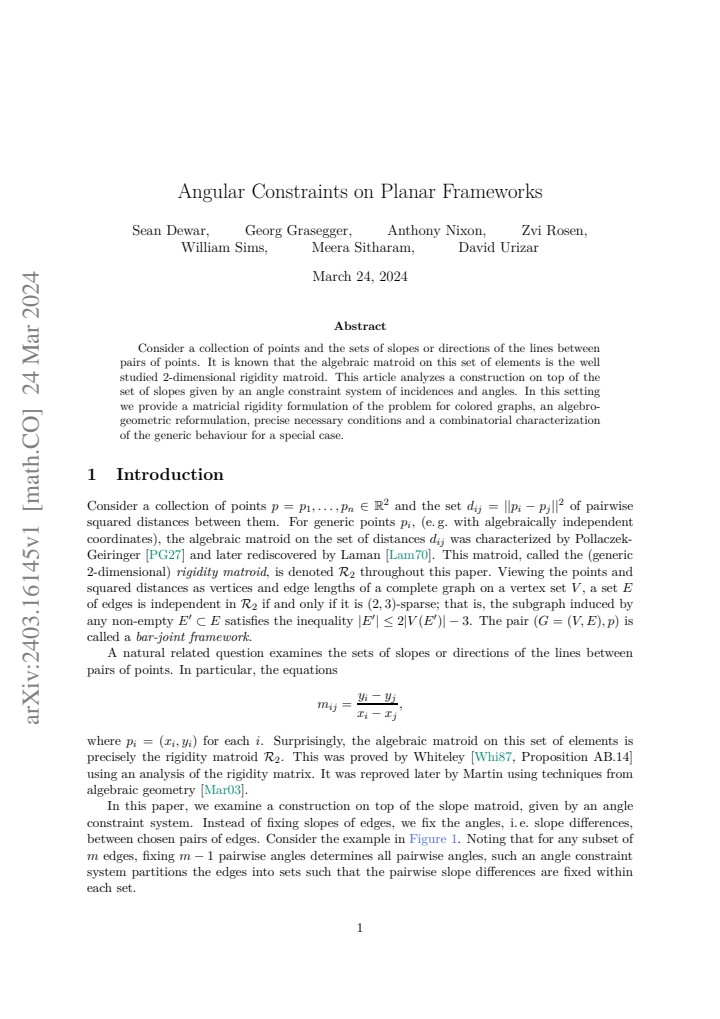

Angular constraints on planar frameworks
Pith reviewed 2026-05-24 02:21 UTC · model grok-4.3
The pith
An angle constraint system on points in the plane is rigid precisely when every nontrivial motion changes one of the fixed angles.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
An angle constraint system is rigid precisely when every nontrivial motion alters one of the fixed angles. This property is captured by edge-colored graphs in which colors encode the pairs of slopes whose angle is constrained. The authors obtain precise necessary conditions on such graphs for rigidity, a combinatorial characterization of generic rigidity in a special case, and a proof that the angle matroid coincides with the algebraic matroid of a field extension generated from the slopes.
What carries the argument
Edge-colored graphs whose colors represent constrained pairs of slopes, together with the angle matroid that encodes the linear dependence of the resulting angle constraints.
If this is right
- Precise necessary conditions hold for rigidity of the edge-colored graphs that encode the angle constraints.
- Generic rigidity of the angle system admits a combinatorial characterization in a special case.
- The angle matroid is identical to the algebraic matroid arising from a field extension on the slopes.
- The direction-to-distance equivalence lifts directly to the setting of angle relations between pairs of directions.
Where Pith is reading between the lines
- The same lifting technique could be tested on other pairwise geometric relations such as ratios of lengths or signed areas.
- The field-extension formulation may allow direct computation of the angle matroid rank via Gröbner bases or other algebraic algorithms.
- The edge-colored graph conditions might specialize to known Laman-type theorems when the coloring is restricted to two colors.
Load-bearing premise
The known equivalence between the algebraic matroid of direction constraints and the generic 2D rigidity matroid of distances continues to hold when the constraints are lifted to relations between pairs of directions.
What would settle it
An explicit edge-colored graph that satisfies all stated necessary conditions yet admits a continuous motion of the points that preserves every prescribed angle without being a rigid motion of the plane.
read the original abstract
Consider a collection of points in the plane and the sets of slopes or directions of the lines between pairs of points. It is known that the algebraic matroid on the set of direction constraints between the points is equivalent to the algebraic matroid on the set of distances between the points. This is the well-studied generic 2-dimensional rigidity matroid of a graph. This article studies a higher-level construction built on the slope data: an angle constraint system obtained by prescribing relationships between pairs of slopes. The central question we analyze is: when is an angle system rigid, in the sense that every nontrivial motion alters one of the fixed angles? We formulate the problem in matricial terms for certain edge-colored graphs, finding precise necessary conditions for when such edge-colored graphs are rigid, and a combinatorial characterization of generic rigidity for a special case. We also prove the validity of an equivalent formulation of the angle matroid as the algebraic matroid of a field extension.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper considers collections of points in the plane together with prescribed relationships (angles) between pairs of slopes or directions. Building on the known equivalence of the algebraic matroid of direction constraints with the generic 2-dimensional rigidity matroid of distances, it formulates angle-constraint problems in matricial terms for certain edge-colored graphs. It states precise necessary conditions for rigidity of such graphs, gives a combinatorial characterization of generic rigidity in a special case, and proves that the angle matroid is equivalent to the algebraic matroid arising from a field extension. Rigidity is defined to mean that every nontrivial motion changes at least one of the prescribed angles.
Significance. If the stated characterizations and matroid equivalence hold, the work supplies new combinatorial and algebraic tools for analyzing rigidity under angular constraints, extending classical distance and direction rigidity theory. The field-extension formulation is a concrete technical contribution that could enable algebraic methods in this setting.
Simulated Author's Rebuttal
We thank the referee for their summary of the manuscript. The report provides no specific major comments to address point by point, and the recommendation is listed as uncertain without further elaboration. We would welcome any concrete concerns the referee may have.
Circularity Check
No circularity detectable; relies on external known result
full rationale
Only the abstract is available. It states that the direction-distance matroid equivalence 'is known' and then defines angle constraints as a higher-level object on pairs of slopes, with new necessary conditions, a combinatorial characterization in a special case, and an equivalence to an algebraic matroid of a field extension. No equations, self-citations, fitted parameters, or derivation steps appear in the provided text, so none of the enumerated circularity patterns can be exhibited by direct quote and reduction. The central claims are presented as independent results built on the external known equivalence.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption The algebraic matroid on the set of direction constraints between the points is equivalent to the algebraic matroid on the set of distances between the points (the generic 2-dimensional rigidity matroid).
