Aperiodic clustered and periodic hexagonal vegetation spot arrays explained by inhomogeneous environments and climate trends in arid ecosystems

D. Pinto-Ramos , M. G. Clerc , A. Makhoute , M. Tlidi This is my paper

Pith reviewed 2026-05-24 00:15 UTC · model grok-4.3

classification 🧬 q-bio.PE nlin.AOnlin.PS
keywords vegetation patternsarid ecosystemshysteresisenvironmental inhomogeneitiesmathematical modeldesertificationclimate changeremote sensing
0
0 comments X

The pith

A model with spatial inhomogeneities produces a hysteresis loop in arid vegetation: hexagonal patterns under rising mortality and aperiodic clusters when mortality falls.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper incorporates spatial environmental inhomogeneities into a unified mathematical model of vegetation dynamics in arid regions. This produces two distinct equilibrium branches connected by hysteresis as mortality varies. Rising mortality yields a high-biomass branch with self-organized hexagonal-like patterns, while reversing the mortality trend yields a low-biomass branch with disordered, non-periodic clusters. The behavior aligns with remote sensing and field data and is tied to climate-driven changes in arid ecosystems.

Core claim

Incorporating environmental inhomogeneities in space into the unified model yields two branches of vegetation patterns that form a hysteresis loop with changing mortality: an increasing-mortality branch of high-biomass hexagonal-like patterns and a reversed-mortality branch of low-biomass aperiodic clusters.

What carries the argument

Unified mathematical model with added spatial environmental inhomogeneities that selects between periodic hexagonal and aperiodic clustered pattern branches depending on the direction of mortality change.

If this is right

  • Rising mortality trends produce organized high-biomass hexagonal vegetation arrangements.
  • Falling mortality trends produce disordered low-biomass vegetation clusters without periodicity.
  • The direction of mortality change determines which pattern branch the system occupies.
  • Remote sensing observations of pattern type can indicate the recent history of mortality trends.
  • The hysteresis loop provides a mechanism for vegetation response before full desertification.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Restoration strategies in arid zones may need to account for whether mortality has been rising or falling rather than its absolute level alone.
  • The model could be extended by calibrating inhomogeneity profiles directly from topographic or soil data of specific field sites.
  • Similar hysteresis might appear in other self-organized systems when spatial inhomogeneities interact with a directional parameter sweep.

Load-bearing premise

The specific form and amplitude of the spatial environmental inhomogeneities suffice to select the observed pattern branches, with the direction of the mortality trend acting as the dominant control parameter.

What would settle it

Field monitoring of an arid site that records whether hexagonal patterns remain or switch to aperiodic clusters after a documented reversal in mortality trend would confirm or refute the hysteresis branches.

Figures

Figures reproduced from arXiv: 2406.12581 by A. Makhoute, D. Pinto-Ramos, M. G. Clerc, M. Tlidi.

Figure 1

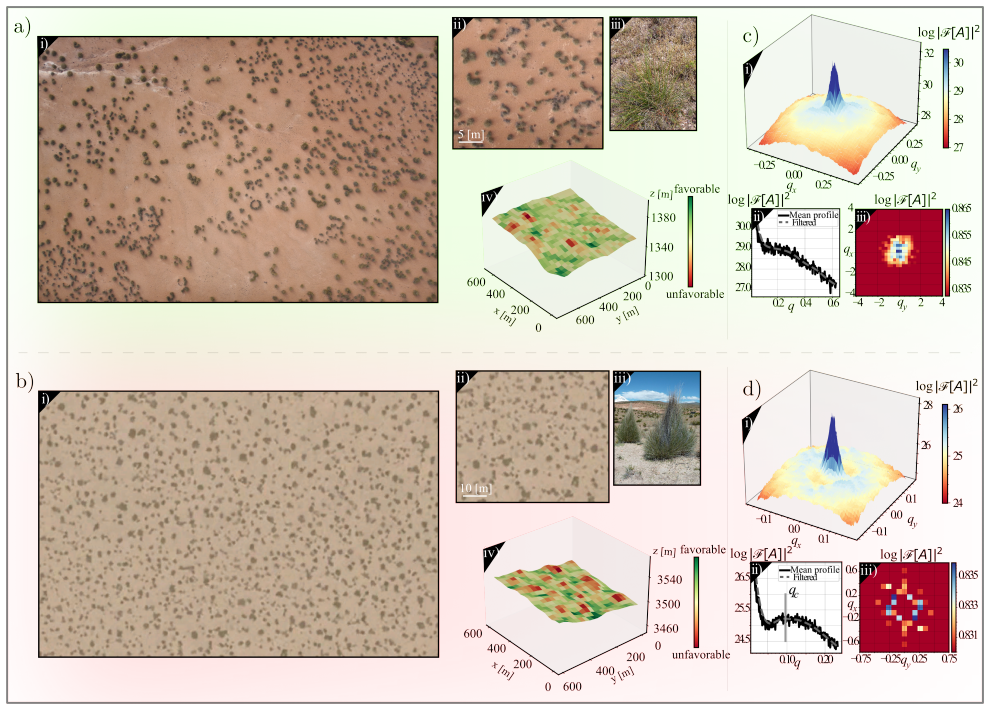

Figure 1. Figure 1: Clustered and self-organized vegetation patches. a) Morocco, Enjil region (Boulmane Province) 18 [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

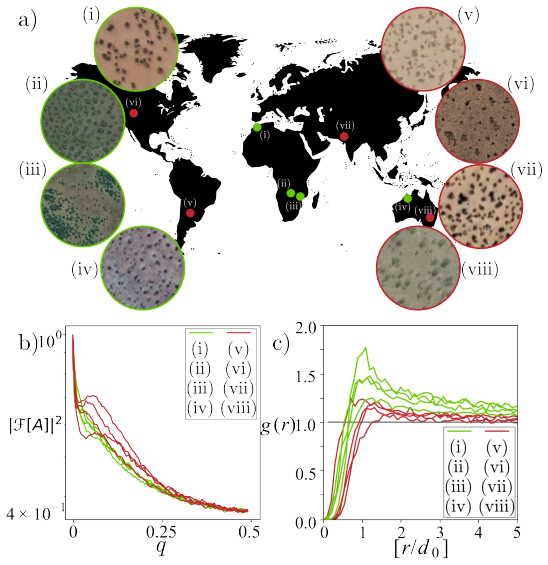

Figure 2. Figure 2: Vegetation patchy landscape classification in different locations of the world employing remote sensing [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

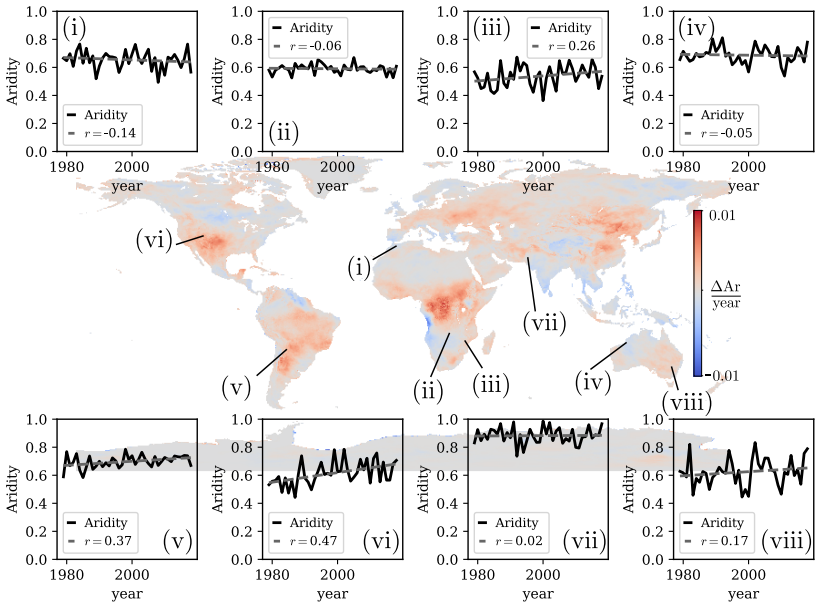

Figure 3. Figure 3: Change rate in the aridity worldwide extracted from linear regression. Blue (red) regions show the land [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

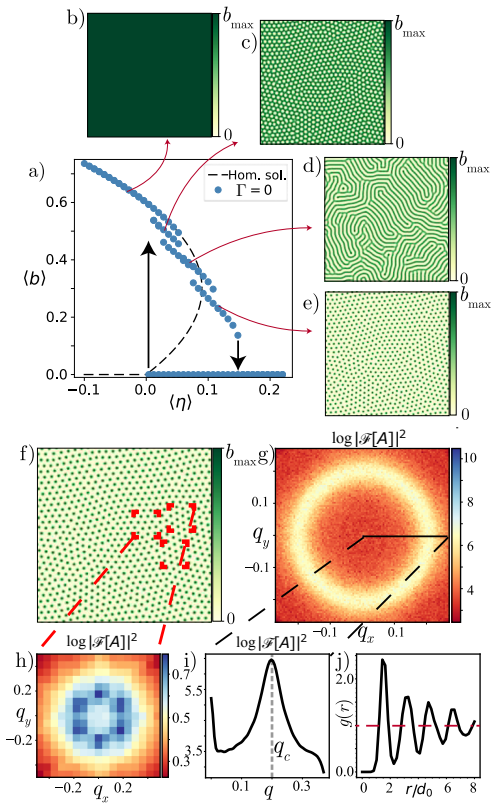

Figure 4. Figure 4: Bifurcation diagram of Eq. [1] for homogeneous aridity parameter obtained from numerical simulations. [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5

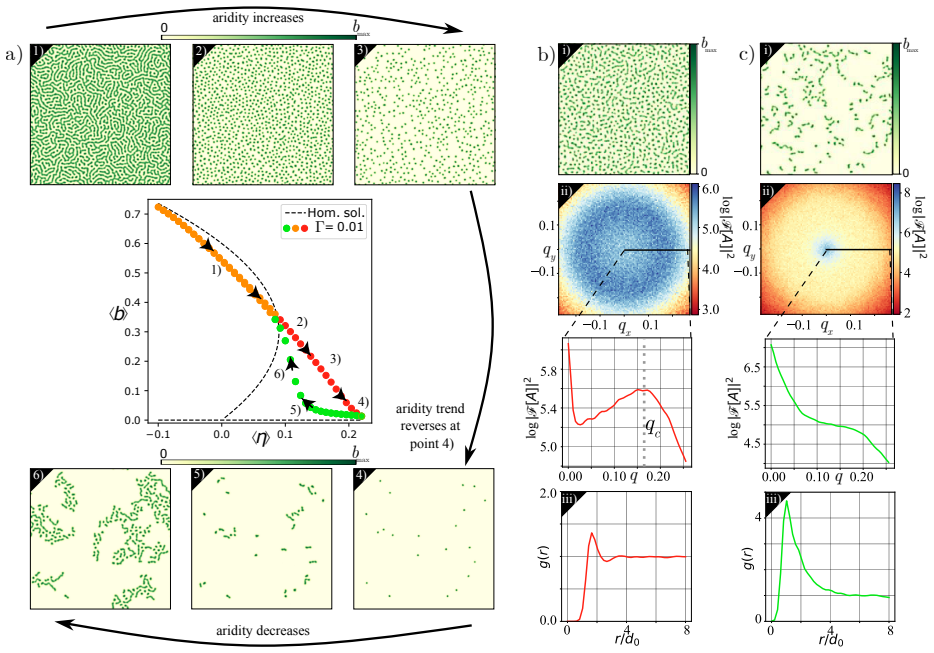

Figure 5. Figure 5: Numerical characterization of solution branches with heterogeneous parameters. Panel a) illustrates the [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
read the original abstract

Due to climate change, overgrazing, and deforestation, arid ecosystems are vulnerable to desertification and land degradation. As aridity increases, vegetation cover loses spatial homogeneity and self-organizes into heterogeneous vegetation patterns, a step before a catastrophic shift to bare soil. Several studies suggest that environmental inhomogeneities in time or space are crucial to understand these phenomena. Using a unified mathematical model and incorporating environmental inhomogeneities in space, we show how two branches of vegetation patterns create a hysteresis loop as the mortality level changes. In an increasing mortality scenario, one observes an equilibrium branch of high vegetation biomass that forms self-organized hexagonal-like patterns. However, when the mortality trend is reversed, one observes a branch with low biomass and no periodicity, where vegetation spots form disordered clusters instead of a hexagonal lattice. This behavior is supported by remote sensing and field observations and can be linked to climate change in arid ecosystems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a unified mathematical model for vegetation patterns in arid ecosystems that incorporates spatial environmental inhomogeneities. It claims that varying mortality levels produces two equilibrium branches forming a hysteresis loop: high-biomass hexagonal-like patterns under increasing mortality and low-biomass aperiodic clustered spots under reversed mortality. The behavior is asserted to match remote-sensing and field observations and is linked to climate trends.

Significance. If the central numerical results prove robust, the work offers a mechanistic account of how spatial inhomogeneities and the direction of environmental change can select between periodic and aperiodic vegetation states, providing a potential explanation for observed pattern transitions before desertification. The hysteresis prediction is falsifiable in principle and could inform monitoring of arid ecosystems under climate change.

major comments (2)
  1. [Model description and numerical results (implied methods and results sections)] The central claim that spatial inhomogeneities produce distinct branches (high-biomass hexagons vs. low-biomass aperiodic clusters) and a direction-dependent hysteresis loop rests on numerical integration of the PDEs. The specific functional form, amplitude, and wavelength of the inhomogeneity term are not derived from first principles and no sensitivity analysis over these choices is reported; it is therefore unclear whether the reported pattern dichotomy is robust or an artifact of the particular inhomogeneity selected to match the data.
  2. [Abstract and results] Abstract and results state that observations support the two-branch behavior, yet no quantitative match metrics (e.g., pattern wavelength statistics, biomass values, or goodness-of-fit measures) or parameter values are supplied, preventing assessment of how well the simulated branches align with the remote-sensing and field data.
minor comments (2)
  1. [Model equations] Notation for the mortality rate and its time derivative should be defined explicitly when first introduced to avoid ambiguity between the control parameter and its rate of change.
  2. [Figures] Figure captions should state the exact inhomogeneity parameters used for each panel so that the reader can reproduce the branch selection.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and constructive feedback on our manuscript. We address each of the major comments below and indicate the revisions we will make to strengthen the paper.

read point-by-point responses

  1. Referee: The central claim that spatial inhomogeneities produce distinct branches (high-biomass hexagons vs. low-biomass aperiodic clusters) and a direction-dependent hysteresis loop rests on numerical integration of the PDEs. The specific functional form, amplitude, and wavelength of the inhomogeneity term are not derived from first principles and no sensitivity analysis over these choices is reported; it is therefore unclear whether the reported pattern dichotomy is robust or an artifact of the particular inhomogeneity selected to match the data.

    Authors: We acknowledge that the inhomogeneity is introduced phenomenologically to capture spatial environmental variations observed in arid ecosystems, rather than derived from first principles. The form is chosen based on typical spatial scales from field studies. To demonstrate robustness, in the revised manuscript we will add a sensitivity analysis varying the amplitude and wavelength of the inhomogeneity term over a range of values consistent with observations. We will show that the hysteresis loop and the distinction between hexagonal and clustered patterns persist, indicating that the results are not an artifact of the specific choice. revision: yes

  2. Referee: Abstract and results state that observations support the two-branch behavior, yet no quantitative match metrics (e.g., pattern wavelength statistics, biomass values, or goodness-of-fit measures) or parameter values are supplied, preventing assessment of how well the simulated branches align with the remote-sensing and field data.

    Authors: The alignment with observations is presented qualitatively in the manuscript, as the model captures the key features of pattern transitions reported in remote-sensing and field studies. We will include the specific parameter values used for the simulations in a revised table or section. Quantitative metrics like goodness-of-fit are limited by the available data, which often lack precise biomass measurements at the required scales; however, we will add comparisons of pattern wavelengths and biomass ranges where possible to provide a more quantitative assessment. revision: partial

Circularity Check

0 steps flagged

No significant circularity; model incorporates inhomogeneities as explicit input to numerically generate observed pattern branches

full rationale

The paper presents a unified PDE model to which spatial environmental inhomogeneities are added as an explicit modeling choice. Numerical integration then produces two mortality-dependent equilibrium branches (high-biomass hexagonal-like vs. low-biomass aperiodic clusters) that form a hysteresis loop. This outcome is a computed result of the PDE dynamics under the chosen inhomogeneity, not a definitional identity or a fitted parameter renamed as a prediction. No self-citation chain is invoked to forbid alternatives, no uniqueness theorem is smuggled in, and no known empirical pattern is merely relabeled. The derivation chain therefore remains self-contained against external benchmarks (remote-sensing and field data) once the inhomogeneity form is accepted as an assumption.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The model rests on a standard reaction-diffusion vegetation model augmented by an ad-hoc spatial inhomogeneity term whose functional form and amplitude are chosen to produce the reported branches; no independent evidence for the inhomogeneity statistics is supplied in the abstract.

free parameters (2)
  • spatial inhomogeneity amplitude and wavelength
    Chosen to generate the observed transition between periodic and aperiodic states; not derived from external data.
  • mortality rate sweep direction and speed
    The direction of the mortality trend is the control parameter that selects which branch is observed.
axioms (1)
  • domain assumption Vegetation dynamics are adequately captured by a two-component reaction-diffusion system with local growth, death, and diffusion terms.
    Standard modeling choice invoked to justify the unified mathematical model.
