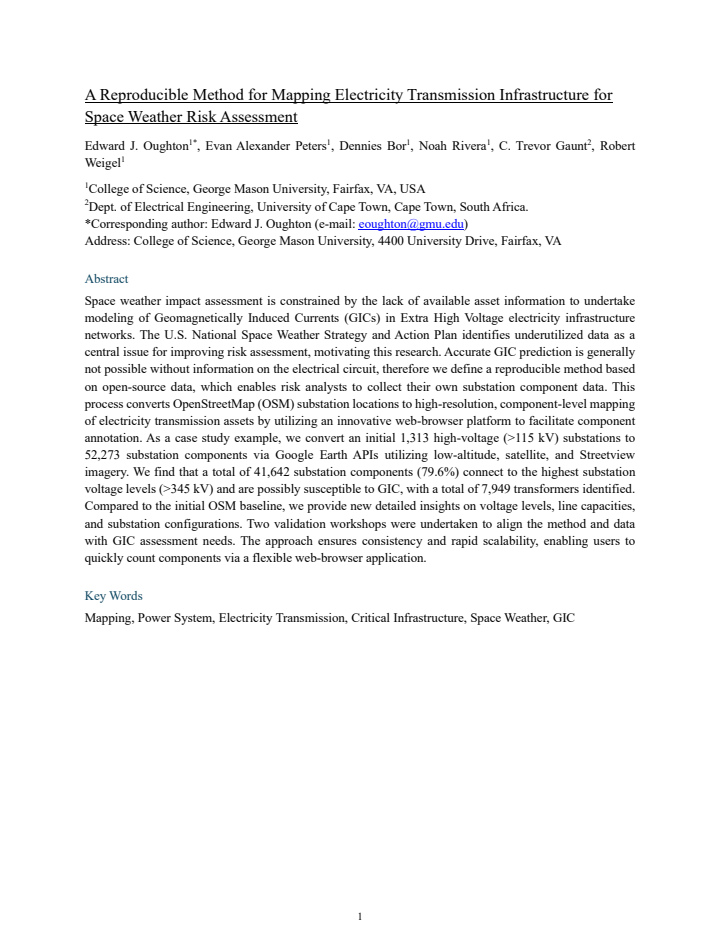

A Reproducible Method for Mapping Electricity Transmission Infrastructure for Space Weather Risk Assessment

C. Trevor Gaunt; Dennies Bor; Edward J. Oughton; Evan Alexander Peters; Noah Rivera; Robert Weigel

arxiv: 2412.17685 · v2 · submitted 2024-12-23 · ⚛️ physics.geo-ph · cs.SY· eess.SY

A Reproducible Method for Mapping Electricity Transmission Infrastructure for Space Weather Risk Assessment

Edward J. Oughton , Evan Alexander Peters , Dennies Bor , Noah Rivera , C. Trevor Gaunt , Robert Weigel This is my paper

Pith reviewed 2026-05-23 06:51 UTC · model grok-4.3

classification ⚛️ physics.geo-ph cs.SYeess.SY

keywords space weathergeomagnetically induced currentselectricity transmissionopen-source mappingrisk assessmentsubstation componentsGIC modelingTennessee Valley Authority

0 comments

The pith

Open-source mapping of substations produces GIC risk models within 4% of synthetic networks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a method that turns basic OpenStreetMap substation locations into detailed maps of individual components such as transformers and line connections using satellite and street-level imagery. This supplies the asset data needed to model Geomagnetically Induced Currents during space weather events without relying on confidential utility records. When applied to the Tennessee Valley Authority region, the resulting network produces peak GIC values that agree closely with those from an existing synthetic network and follows the observed time pattern at ground monitoring sites. The approach therefore supports regional risk screening and nowcasting using only public data sources.

Core claim

We convert 1,313 high-voltage substations into 52,273 component-level mappings that include voltage levels, line capacities, and 7,949 transformers, then build a geospatial GIC network whose 95th-percentile peak ground GIC values lie within 4% of the UIUC150 synthetic network while the modeled time series capture the temporal morphology recorded at 13 monitoring devices during the May 2024 storm.

What carries the argument

The web-browser annotation platform that uses Google Earth APIs and low-altitude, satellite, and streetview imagery to expand OpenStreetMap substation points into high-resolution component inventories.

If this is right

The detailed voltage and configuration data enable spatially explicit GIC susceptibility screening that basic OpenStreetMap locations cannot provide.
The same pipeline can be applied to other regions to generate open GIC networks for nowcasting.
Modeled time series that track measured ground GICs support validation of risk assessments without operator data access.
Approximately 80% of the mapped components sit at voltages above 345 kV and are therefore the most GIC-susceptible elements.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the method scales nationally, public agencies could maintain independent GIC risk layers instead of depending on private operator disclosures.
The same imagery-based annotation workflow could be adapted to map other linear infrastructures such as pipelines or rail for related geomagnetic hazards.
Combining these open networks with real-time geomagnetic field data could produce operational nowcasts that utilities could cross-check against their internal models.

Load-bearing premise

Low-altitude, satellite, and streetview imagery plus manual annotation accurately identifies voltage levels, line capacities, and the presence of transformers without systematic misclassification or omission.

What would settle it

A comparison of the mapped components against utility operator records that reveals voltage misclassifications or transformer count errors large enough to push the 95th-percentile GIC difference above 4%.

read the original abstract

Space weather risk assessment is constrained by the lack of available asset information needed to model Geomagnetically Induced Currents (GICs) in electricity transmission infrastructure. We propose a reproducible method that enables risk analysts to collect their own open-source substation data. Utilizing an innovative web-browser platform for annotation, we convert OpenStreetMap substation locations to high-resolution, component-level mappings of electricity transmission assets. For example, we convert an initial 1,313 high-voltage (>115 kV) substations to 52,273 substation components via Google Earth APIs utilizing low-altitude, satellite, and streetview imagery. Approximately 41,642 substation components (79.6%) connect to the highest substation voltage levels (>345 kV) and are potentially susceptible to GICs, with 7,949 identified transformers. Compared to the OpenStreetMap baseline, this approach provides detailed insights on voltage levels, line capacities, and substation configurations. We then construct a geospatial GIC network for the Tennessee Valley Authority region, comparing May 2024 results with the UIUC150 synthetic network and with measured ground GICs at 13 monitoring devices. Importantly, the two open-source networks produce 95th-percentile peak ground GIC values within 4% of each other, and the modeled time series broadly capture the temporal morphology of the storm at the monitoring sites. This method shows promise for spatially explicit GIC screening and regional nowcasting without requiring access to operator data.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper supplies a concrete, open workflow that turns OSM substation points into voltage-classified GIC networks and matches an existing synthetic benchmark within 4% on peak values.

read the letter

The main takeaway is that this work removes a practical data barrier for regional GIC screening by giving anyone a documented way to build component-level transmission maps from public sources. They start with 1,313 OSM high-voltage substations in the TVA area, then use a browser annotation tool pulling low-altitude, satellite, and street-view imagery to label 52,273 components including 7,949 transformers, with 80% tied to the highest voltage classes. That level of detail is new relative to the cited baselines. They next build a geospatial GIC network and run a May 2024 storm case, showing the 95th-percentile peak ground GIC differs by only 4% from the UIUC150 synthetic network and that the time series track the shape seen at 13 real monitoring sites. Those direct numerical checks are the strongest part of the evidence. The annotation step still depends on human judgment of imagery for voltage and configuration, which is a standard limitation rather than a hidden flaw, and the paper treats it as such. No post-hoc fitting or circular comparisons appear. The result is a methods paper that will be useful to space-weather modelers and regional risk analysts who cannot access utility data. It is not a theoretical advance, but the reproducibility and the reported agreement make it worth a referee's time. I would send it to peer review.

Referee Report

0 major / 3 minor

Summary. The manuscript presents a reproducible workflow that converts OpenStreetMap high-voltage (>115 kV) substation locations into component-level transmission asset maps by combining Google Earth low-altitude, satellite, and streetview imagery with manual annotation. For the TVA region this produces 52,273 components (including 7,949 transformers) from an initial 1,313 substations; a geospatial GIC network is then built and compared with the UIUC150 synthetic network (4 % difference in 95th-percentile peak ground GIC) and with measured GIC time series at 13 sites during the May 2024 storm.

Significance. If the annotation pipeline correctly identifies voltage classes, line capacities, and transformer locations, the method supplies an open-source, operator-independent route to spatially explicit GIC screening and regional nowcasting. The direct numerical agreement with both an external synthetic benchmark and ground measurements supplies concrete, falsifiable support for the workflow's utility.

minor comments (3)

[Abstract] The abstract states that 41,642 components (79.6 %) connect to voltages >345 kV; a brief table or sentence confirming the exact arithmetic (41,642 / 52,273) would remove any ambiguity.
[Methods] The description of the annotation protocol would be strengthened by an explicit statement of inter-annotator agreement or a small blinded re-annotation test on a subset of substations.
[Figures] Figure captions should indicate the coordinate reference system and the exact date range of the Google Earth imagery used for each example substation.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary, significance assessment, and recommendation to accept. No major comments were raised in the report.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper presents a data annotation pipeline converting OpenStreetMap locations into component-level substation mappings via external imagery APIs, then constructs a GIC network for the TVA region. Central results (95th-percentile GIC agreement within 4% to UIUC150 and morphological match to 13 measured time series) rest on direct comparison to independent external data sources rather than any internal equations, fitted parameters, or self-citations. No derivation step reduces by construction to a self-defined input, and the method is explicitly positioned as reproducible against outside benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The method rests on the domain assumption that publicly available imagery and manual annotation can reliably extract substation topology and voltage levels; no free parameters are fitted inside the mapping step itself, and no new physical entities are postulated.

axioms (1)

domain assumption OpenStreetMap substation locations and Google Earth imagery are sufficiently complete and accurate to identify voltage levels and transformer counts for GIC modeling.
Invoked when converting 1,313 substations to 52,273 components and when claiming 79.6% connect to >345 kV.
