Construction of exact refinements for the two-dimensional hierarchical B-spline de Rham complex

Diogo C. Cabanas , Kendrick M. Shepherd , Deepesh Toshniwal , Rafael V\'azquez This is my paper

Pith reviewed 2026-05-23 01:50 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords hierarchical B-splinesde Rham complexadaptive refinementisogeometric analysisfinite elementsMaxwell eigenvaluesvector Laplace problem
0
0 comments X

The pith

A refinement algorithm for hierarchical B-splines preserves the exactness of the two-dimensional de Rham complex by enforcing L-chain refinements on conflicting functions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops theoretical guarantees and a practical algorithm for refining hierarchical B-spline spaces while keeping the de Rham complex structure intact. In two dimensions, when refinement of one function conflicts with another, the method requires refining an entire L-shaped chain of additional functions to maintain the necessary relations between spaces. This prevents the appearance of spurious harmonic fields that would otherwise degrade solution accuracy in problems from electromagnetism and fluid mechanics. Under a standard admissibility restriction, the property holds uniformly across all spaces in the complex, allowing integration with adaptive refinement procedures that deliver optimal convergence rates.

Core claim

The central discovery is a constructive procedure that, upon detecting a conflict between a pair of hierarchical B-spline functions during refinement, adds all functions in the L-chain connecting them; this ensures the discrete de Rham sequence remains exact on the unit square, and the same admissibility class is inherited by subsequent spaces under the common restriction.

What carries the argument

The L-chain, which is the minimal set of additional basis functions that must be refined to resolve a conflict between two functions while preserving the commutation properties of the de Rham complex.

If this is right

  • Spurious harmonic fields are avoided in the discrete spaces.
  • Admissible hierarchical meshes can be constructed that also satisfy the de Rham structure.
  • The algorithm fits directly into existing adaptive mesh refinement loops.
  • Numerical tests on vector Laplace and Maxwell eigenvalue problems confirm improved stability and accuracy.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This approach may generalize to three-dimensional de Rham complexes or other spline types.
  • Combining it with isogeometric analysis could yield more reliable solvers for Maxwell's equations without extra stabilization.
  • Implementation in existing codes would require tracking L-chains during the refinement decision step.

Load-bearing premise

The admissibility restriction is assumed to hold so that the class of the first space carries over to the others in the complex.

What would settle it

A concrete falsifier would be the appearance of a non-zero harmonic field in a mesh produced by the algorithm, or the failure to preserve exactness after applying the L-chain rule to a known conflicting pair.

Figures

Figures reproduced from arXiv: 2502.19542 by Deepesh Toshniwal, Diogo C. Cabanas, Kendrick M. Shepherd, Rafael V\'azquez.

Figure 1
Figure 1. Figure 1: Illustration of three different scenarios, all using [PITH_FULL_IMAGE:figures/full_fig_p010_1.png] view at source ↗
Figure 2

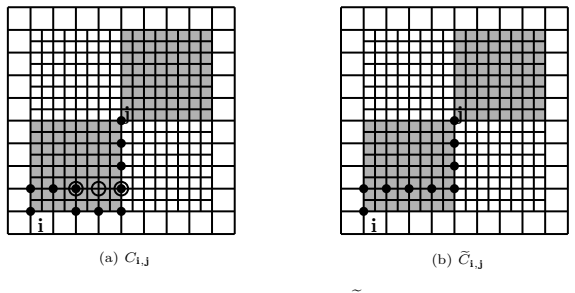

Figure 2. Figure 2: Example of a chain, Ci,j , with a “kink”, and its counterpart, Cei,j , with the “kink” removed. Shaded regions represent the supports of the bicubic B-splines βi and βj , filled dots the indices of functions in each chain, and hollow dots the indices of functions in □i,j that can be used to remove the “kink”. Proof. We will prove the result directly, by showing that there is a shortest chain between any pa… view at source ↗
Figure 3
Figure 3. Figure 3: Two hierarchical meshes for Test 1. Both meshes were created from the same set of marked elements, the difference [PITH_FULL_IMAGE:figures/full_fig_p017_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: Magnitude of the analytical solution eq. (10). [PITH_FULL_IMAGE:figures/full_fig_p018_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Adaptive refinement without Algorithm 1 for the vector Laplace problem with analytical solution (10). After the [PITH_FULL_IMAGE:figures/full_fig_p019_6.png] view at source ↗
Figure 7

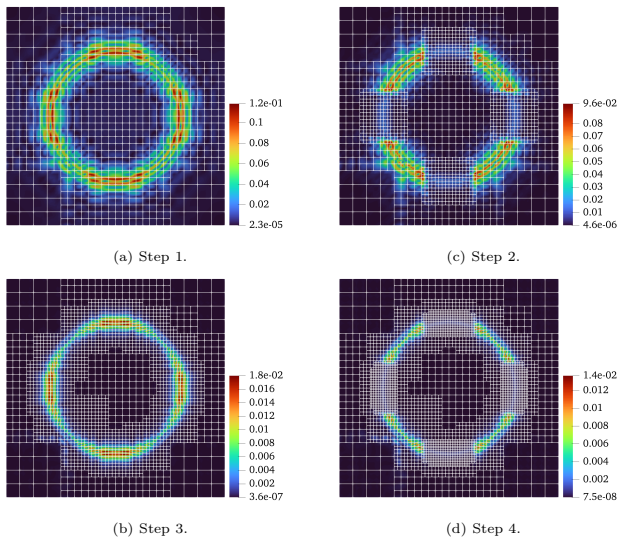

Figure 7. Figure 7: Adaptive refinement using Algorithm 1 for the vector Laplace problem with analytical solution (10). By adding [PITH_FULL_IMAGE:figures/full_fig_p020_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Two hierarchical meshes for the test of Maxwell eigenvalue problem. Both meshes were created from the same set of [PITH_FULL_IMAGE:figures/full_fig_p020_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Comparison of the first 50 non-null eigenvalues computed using the two meshes of Fig. 8. We are now accounting for [PITH_FULL_IMAGE:figures/full_fig_p021_9.png] view at source ↗
read the original abstract

The de Rham complex arises naturally when studying problems in electromagnetism and fluid mechanics. Stable numerical methods to solve these problems can be obtained by using a discrete de Rham complex that preserves the structure of the continuous one. This property is not necessarily guaranteed when the discrete function spaces are hierarchical B-splines, and research shows that an arbitrary choice of refinement domains may give rise to spurious harmonic fields that ruin the accuracy of the solution. We will focus on the two-dimensional de Rham complex over the unit square $\Omega \subseteq \mathbb{R}^2$, and provide theoretical results and a constructive algorithm to ensure that the structure of the complex is preserved: when a pair of functions are in conflict some additional functions, forming an L-chain between the pair, are also refined. Another crucial aspect to consider in the hierarchical setting is the notion of admissibility, as it is possible to obtain optimal convergence rates of numerical solutions and improved stability by limiting the multi-level interaction of basis functions. We show that, under a common restriction, the admissibility class of the first space of the discrete complex persists throughout the remaining spaces. As such, admissible refinement can be combined with our new algorithm to obtain admissible meshes that also respect the structure of the de Rham complex. Moreover, we detail how our algorithm can be easily included in standard adaptive mesh refinement schemes. Finally, we include numerical results that motivate the importance of the previous concerns for the vector Laplace and Maxwell eigenvalue problems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper presents theoretical results and a constructive algorithm to preserve the exact sequence of the two-dimensional hierarchical B-spline de Rham complex by refining additional functions in L-chains when conflicts arise between pairs of functions. It further shows that, under a common restriction, the admissibility of the first space persists to the remaining spaces, enabling combination with admissible refinement strategies. The algorithm is designed to integrate into standard adaptive mesh refinement schemes, and numerical results are included for the vector Laplace and Maxwell eigenvalue problems.

Significance. If the central claims hold, the work enables stable, structure-preserving discretizations using hierarchical B-splines for problems in electromagnetism and fluid mechanics, while maintaining admissibility for optimal convergence. The provision of an explicit constructive algorithm together with numerical tests on the vector Laplace and Maxwell problems supplies a direct route to verification and practical application.

major comments (1)
  1. [Abstract, admissibility paragraph] Abstract, admissibility paragraph: the persistence of admissibility is asserted only under an unspecified 'common restriction'; this is load-bearing for the claim that admissible refinement can be combined with the algorithm to obtain meshes respecting the de Rham structure, and the restriction must be stated explicitly (with its precise scope) to allow verification of the result.
minor comments (1)
  1. The abstract states that 'research shows that an arbitrary choice of refinement domains may give rise to spurious harmonic fields' but provides no citation; adding a reference to the relevant prior work would improve context and traceability.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive assessment and the recommendation of minor revision. We address the major comment below.

read point-by-point responses

  1. Referee: [Abstract, admissibility paragraph] Abstract, admissibility paragraph: the persistence of admissibility is asserted only under an unspecified 'common restriction'; this is load-bearing for the claim that admissible refinement can be combined with the algorithm to obtain meshes respecting the de Rham structure, and the restriction must be stated explicitly (with its precise scope) to allow verification of the result.

    Authors: We agree that the abstract should state the common restriction explicitly, as this is necessary for readers to verify the claim that admissibility persists and can be combined with the algorithm. The restriction in question is the standard admissibility condition on the hierarchical mesh (detailed in the body of the paper). We will revise the abstract to replace the phrase 'under a common restriction' with an explicit reference to this condition and its scope. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper presents a direct constructive algorithm for adding L-chain refinements to resolve conflicts in hierarchical B-spline spaces while preserving the exact de Rham sequence property, together with a proof that admissibility of the first space carries over to the others under a stated restriction. These results are derived from the definitions of the spline spaces, the notion of conflicts between basis functions, and the hierarchical refinement rules themselves; no step reduces by construction to a fitted parameter, a self-referential definition, or a load-bearing self-citation. The argument is self-contained against the external mathematical structure of the de Rham complex and is supplemented by explicit numerical tests, yielding an independent verification path.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper relies on standard properties of B-splines, hierarchical spaces, and the de Rham complex drawn from prior literature; no free parameters, new entities, or ad-hoc axioms are introduced in the abstract.

axioms (1)
  • standard math Standard properties of hierarchical B-splines and the continuous de Rham complex
    Invoked throughout to define the discrete spaces and exactness requirement.
