arxiv: 2502.20336 · v4 · submitted 2025-02-27 · 🧮 math.NA · cs.NA

A posteriori certification for neural network approximations to PDEs

Pith reviewed 2026-05-23 01:53 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords neural networksPDE approximationa posteriori error boundsRiesz representationvariational methodselliptic problemsparabolic problemserror certification
0
0 comments X

The pith

Neural network approximations to PDEs can be equipped with rigorous lower and upper error bounds computed from residual extensions to simpler domains.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a method to certify the accuracy of neural network solutions to partial differential equations without relying on high regularity of the solution. It does this by taking the residual of the neural network approximation and extending or restricting it to domains with simpler geometry where fast solvers can compute Riesz representations. These representations then provide computable bounds on the error in the variational norm. The approach works for both elliptic and parabolic problems and applies to complex geometries because it only needs minimal regularity. This matters because neural networks are increasingly used for PDEs but lack traditional error control, and this provides a way to verify their reliability in practice.

Core claim

The central claim is that rigorous a posteriori error bounds for NN approximations to PDEs can be obtained by efficiently computing the Riesz representations of suitable extensions and restrictions of the NN residual to geometrically simpler domains that are embedded or enveloping the original domain, allowing the use of fast numerical solvers while controlling the error in the natural norm of a well-posed variational formulation.

What carries the argument

Riesz representations of extensions and restrictions of the neural network residual to simpler domains, which enable fast computation of error bounds.

If this is right

  • The bounds control the error in the natural norm induced by the variational formulation.
  • The method requires only minimal regularity assumptions and applies to complex geometries.
  • The framework covers both elliptic and parabolic problems.
  • Numerical experiments show good quantitative behavior of the upper and lower bounds.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the method scales well, it could be integrated into training loops to guide adaptive refinement of neural networks for PDEs.
  • Similar residual extension techniques might apply to other approximation methods beyond neural networks, such as finite element or spectral methods on irregular domains.
  • The approach could extend to time-dependent or nonlinear PDEs if suitable variational formulations exist.
  • By providing both lower and upper bounds, it enables reliable stopping criteria for neural network training on PDE tasks.

Load-bearing premise

The variational formulation must be well-posed and the extensions or restrictions of the residual to simpler domains must be computable efficiently using fast numerical solvers.

What would settle it

A counterexample where the computed upper or lower bounds fail to enclose the actual error for a known exact solution to an elliptic PDE on a complex domain would disprove the method.

Figures

Figures reproduced from arXiv: 2502.20336 by Karsten Urban, Lewin Ernst, Nikolaos Rekatsinas.

Figure 1

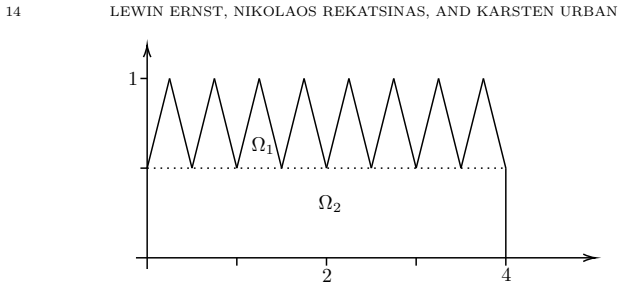

Figure 1. Figure 1: Saw-blade domain Ω = Ω1 ∪ Ω2 with the partition for the diffusion coefficients. The saw teeth are made of different material than the saw blade. where the parameter-dependent diffusion matrix is given by A(x; µ) := [µ1χΩ1 (x) + µ2χΩ2 (x)]  1 0 0 2 , The diffusion is parameterized ranging in P := [1/10, 1]×[5/100, 1/10] ⊂ R 2 , P = 2. The training set SP ⊂ P consists of 7×7 equidistant distributed paramet… view at source ↗
Figure 2

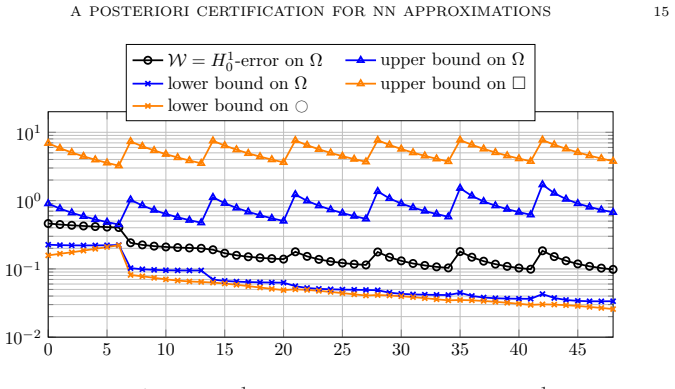

Figure 2. Figure 2: Absolute H1 0 -error as well as the estimated H1 0 -error on Ω, □ and #. The horizontal axis corresponds to the number N(i, j) ∈ N of data points (µi , µj ) ∈ SP . The upper bound follows the line of the Riesz-bound on Ω and is too pessimistic by another multiplicative factor of 10. A better fine-tuning of the involved constants might improve this upper bound. 5.2. A parametric domain. Our next numerical e… view at source ↗
Figure 3

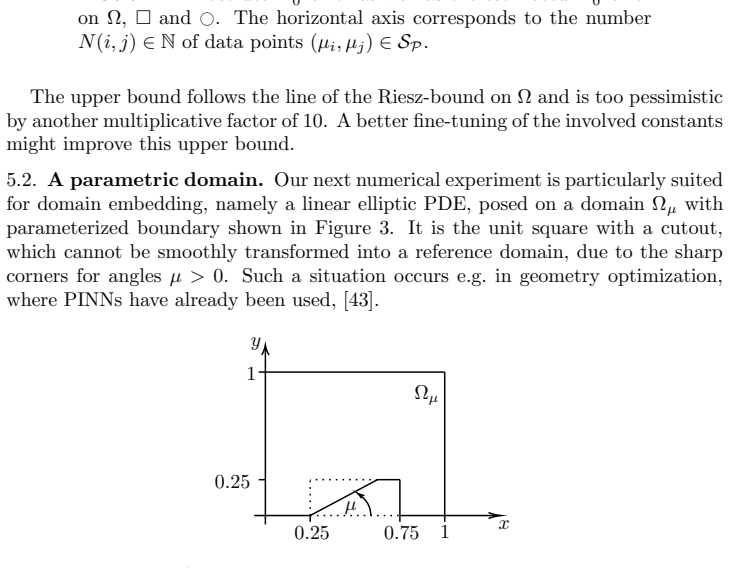

Figure 3. Figure 3: A parameterized square, where the parameter µ is the angle of a recess. When solving a PDE on Ωµ with the finite element method, re-meshing might be necessary for different µ. On the other hand, the training of a NN, particularly with PINNs, is straightforward by excluding all points outside of the domain. This shows why PINNs might be an attractive method for a PDE on Ωµ. Since the underlying domain is pa… view at source ↗
Figure 4

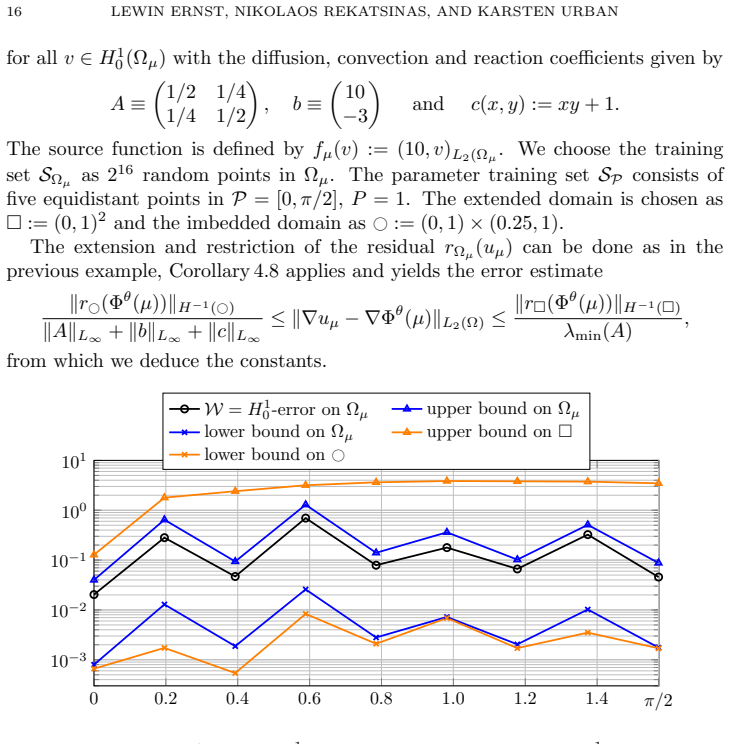

Figure 4. Figure 4: Absolute H1 0 -error as well as the estimated H1 0 -error on Ω, □ and #. The horizontal axis corresponds to the angle µ. The results for a set of nine parameters, which serve as the test set for the NN solution, are depicted in [PITH_FULL_IMAGE:figures/full_fig_p016_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: The space-time domain Q = I × Ω, where the green axis refers to the time. lower left-hand side. The parametric elliptic operators Aµ ∈ L(H1 0 (Ω), H−1 (Ω)) are defined by the variational form ⟨Aµφ, ψ⟩H1 0 (Ω) := (K∇φ, ∇ψ)L2(Ω) + (bµ∇φ + cφ, ψ)L2(Ω), ∀ φ, ψ ∈ H1 0 (Ω), where the time-independent coefficient functions are chosen as K ≡  1 0 0 0.1  , bµ(x, y) := (31 − µ)  sin2 (2y) cos((x + 1)µ/4 )  and c… view at source ↗
Figure 6
Figure 6. Figure 6: Absolute W-error as well as the estimated W-error on I × Ω, I × □ and I × #. The horizontal axis corresponds to the parameter value µ ∈ P. times for (i) the NN training, (ii) the evaluation of the NN at the points {µ} × SΩ for one µ ∈ SP and (iii) solving the Riesz representation problems on # and □ also for one µ ∈ SP . The times with respect to all µ ∈ SP scale linearly. The time measurement has been car… view at source ↗
read the original abstract

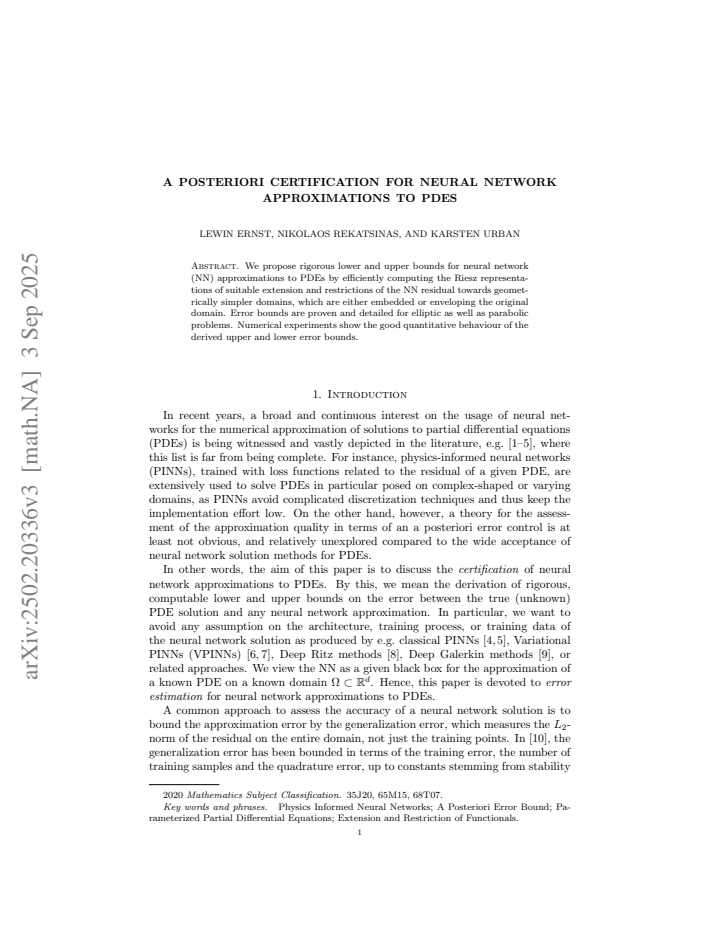

We propose rigorous lower and upper error bounds for neural network (NN) approximations to PDEs by efficiently computing the Riesz representations of suitable extension and restrictions of the NN residual towards geometrically simpler domains, which are either embedded or enveloping the original domain, enabling the use of fast numerical solvers. The resulting bounds control the error in the natural norm induced by a well-posed variational formulation, require only minimal regularity assumptions, and thus remain applicable on complex geometries. The framework is detailed for elliptic as well as parabolic problems. Numerical experiments demonstrate the good quantitative behaviour of the derived upper and lower error bounds.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes rigorous a posteriori lower and upper error bounds for neural network approximations to elliptic and parabolic PDEs. The bounds are obtained by computing Riesz representations of suitable extensions or restrictions of the NN residual onto geometrically simpler (embedded or enveloping) domains, thereby permitting the use of fast numerical solvers while controlling the error in the natural norm induced by a well-posed variational formulation. The construction is claimed to require only minimal regularity assumptions and to remain applicable on complex geometries; numerical experiments are presented to illustrate quantitative performance.

Significance. If the claimed two-sided bounds are indeed rigorous and the extension/restriction operators preserve the necessary continuity without introducing hidden regularity requirements, the work would provide a practical route to certified NN solutions of PDEs on complex domains by reducing the certification step to standard variational problems on simpler geometries. The explicit use of Riesz representatives and the extension to parabolic problems constitute a clear technical contribution over existing residual-based a-posteriori estimators for NN approximations.

major comments (2)
  1. [§3] §3 (elliptic case): the proof that the upper bound remains rigorous after restriction to the enveloping domain requires an explicit continuity constant for the restriction operator with respect to the natural norm; without a quantitative bound on this constant the claimed parameter-free character of the estimator is not established.
  2. [§4] §4 (parabolic case): the time-discretization step in the Riesz-representation computation must preserve the two-sided character of the bound; the manuscript does not indicate whether the discrete-in-time residual is controlled uniformly in the time-step size or whether an additional consistency term appears.
minor comments (2)
  1. Notation for the extension and restriction operators is introduced without a dedicated table or diagram; a schematic would improve readability.
  2. The numerical experiments section would benefit from a direct comparison of the computed bounds against a reference solution obtained by a standard FEM solver on the same meshes.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thorough review and the recommendation for minor revision. We address each major comment below and have updated the manuscript accordingly to strengthen the rigor of the presented bounds.

read point-by-point responses
  1. Referee: [§3] §3 (elliptic case): the proof that the upper bound remains rigorous after restriction to the enveloping domain requires an explicit continuity constant for the restriction operator with respect to the natural norm; without a quantitative bound on this constant the claimed parameter-free character of the estimator is not established.

    Authors: We appreciate this observation. In the original manuscript, the continuity of the restriction operator was implicitly assumed based on the embedding properties, but we agree that an explicit constant is needed for full rigor. In the revised version, we have added a lemma in §3 showing that the restriction operator from the enveloping domain to the original domain has a continuity constant of 1 in the natural energy norm, as the norm is defined via the bilinear form which is local. This preserves the parameter-free character of the estimator. We have also included a brief discussion on how this extends to the lower bound. revision: yes

  2. Referee: [§4] §4 (parabolic case): the time-discretization step in the Riesz-representation computation must preserve the two-sided character of the bound; the manuscript does not indicate whether the discrete-in-time residual is controlled uniformly in the time-step size or whether an additional consistency term appears.

    Authors: Thank you for highlighting this aspect. The manuscript uses a continuous-time formulation for the parabolic problem, with the Riesz representation computed on the space-time residual. The time-discretization is only for numerical computation of the Riesz representative, and we can show that the two-sided bounds hold uniformly with respect to the time-step size because any discretization error in time can be bounded by the residual itself without introducing extra terms, due to the variational structure. We have added a new subsection in §4 detailing this uniformity and confirming no additional consistency term is required. revision: yes

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The derivation relies on standard variational a posteriori error analysis: the NN residual is bounded in the dual norm via its Riesz representative, then transferred via continuous extension/restriction operators to an embedded or enveloping simpler domain where fast solvers apply. These steps invoke well-posedness of the variational problem, continuity of the operators, and computability of the Riesz map on the simpler domain—none of which are defined in terms of the target bounds or obtained by fitting to the NN output itself. The abstract and described framework contain no self-definitional reductions, fitted inputs renamed as predictions, or load-bearing self-citations that collapse the central claim to its own inputs. The method is self-contained against external benchmarks of functional analysis and numerical PDE theory.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Based solely on the abstract, the approach rests on the existence of a well-posed variational formulation and the computability of Riesz representations on simpler domains; no free parameters, ad-hoc axioms, or invented entities are mentioned.

axioms (2)
  • domain assumption The variational formulation of the PDE is well-posed
    Stated in abstract as enabling control of the error in the natural norm
  • domain assumption Extensions and restrictions of the residual to simpler domains preserve the necessary properties for Riesz representation
    Central to the proposed computation of bounds
