arxiv: 2505.07648 · v2 · submitted 2025-05-12 · 🧮 math.PR

Markov Modelling Approach for Queues with Correlated Service Times -- the M/M_D/2 Model

Suman Thapa , Yiqiang Q. Zhao This is my paper

Pith reviewed 2026-05-22 16:14 UTC · model grok-4.3

classification 🧮 math.PR
keywords queueing theoryMarkov chainscorrelated service timesstationary distributionM/M/2 queueperformance analysisdependence in queues
0
0 comments X

The pith

The number of customers in a two-server queue with correlated exponential service times forms a Markov chain whose stationary distribution can be found exactly.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that a queueing system with Poisson arrivals and two servers whose exponential service times are positively correlated can still be modeled so that the total number of customers in the system evolves as a Markov chain. It then derives a closed-form solution for the long-run probabilities of each possible number of customers. A reader cares because this removes the usual need for simulation or approximation when dependence is present, making the effect of correlation on congestion, waiting time, and server utilization directly visible by comparing to the classic independent case.

Core claim

In the M/M_D/2 model the queue-length process is a Markov chain even though the two service times are correlated. The stationary distribution is obtained by solving the global balance equations for the chain, and the resulting probabilities are expressed in terms of the arrival rate, the two service rates, and the correlation parameter between the servers.

What carries the argument

The M/M_D/2 model, in which the correlation between the two exponential service times is embedded directly in the transition rates of a one-dimensional Markov chain on the total number of customers.

If this is right

  • Steady-state probabilities for every number of customers become available in closed form.
  • Mean queue length, probability that both servers are busy, and other performance measures can be written explicitly as functions of the correlation parameter.
  • Direct numerical comparison with the independent M/M/2 queue shows the precise change in congestion caused by positive dependence.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same embedding technique may let analysts treat other forms of dependence, such as between arrival and service processes, while retaining a Markov description on queue length alone.
  • Service correlations could be treated as a design variable whose value is chosen to minimize a performance cost.
  • The approach supplies a benchmark against which approximate methods for larger numbers of correlated servers can be tested.

Load-bearing premise

The correlation between the two servers' service times can be built into the transition rates of the queue-length process without destroying its Markov property.

What would settle it

Long-run simulation of the two-server queue with a chosen positive correlation between service times produces empirical frequencies for each customer count that match the analytic stationary probabilities derived from the balance equations.

Figures

Figures reproduced from arXiv: 2505.07648 by Suman Thapa, Yiqiang Q. Zhao.

Figure 1
Figure 1. Figure 1: Failure patterns (×) under different orderings of T1, T2, T12 in the Marshall–Olkin shock model. Solid segments show original lifetimes; dashed segments show lifetimes after replacement. Common-shock times are regeneration epochs. 9 [PITH_FULL_IMAGE:figures/full_fig_p009_1.png] view at source ↗
Figure 2

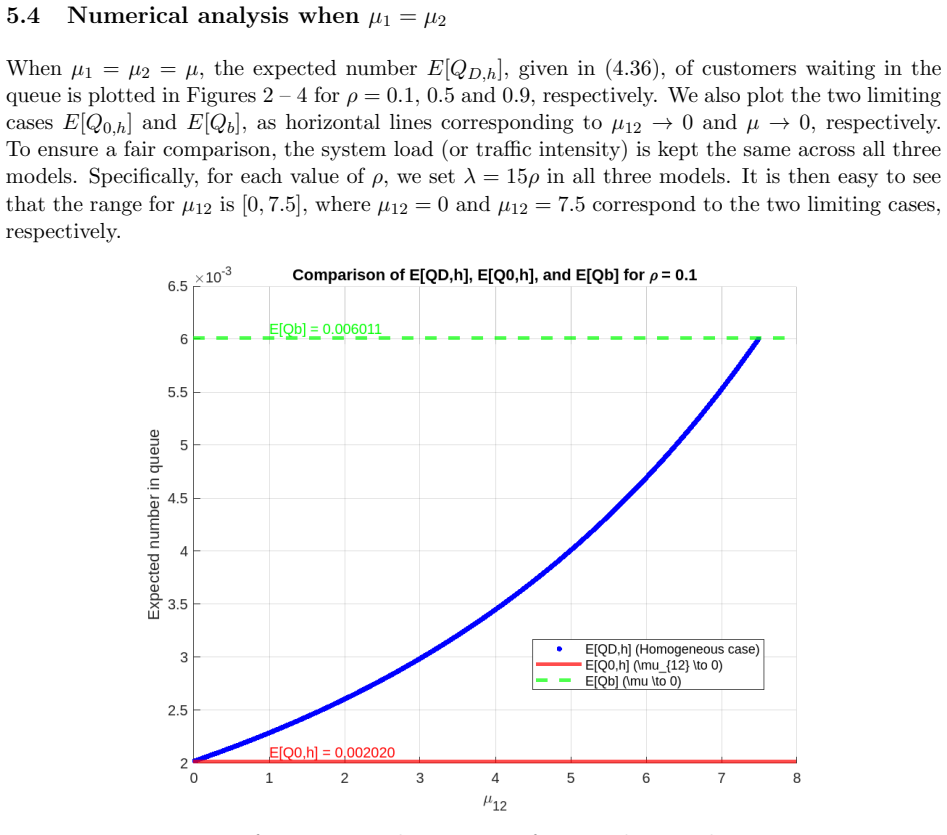

Figure 2. Figure 2: ρ = 0.1 for impact on the system performance by µ12 when µ1 = µ2 = µ It is evident that the dependence between service times has a significant impact on system performance. This impact becomes increasingly pronounced as µ goes to 0. For a small value of ρ (say ρ = 0.1), the increase in E[QD,h] is initially slower than linear, specifically, it grows more slowly than the slope of the straight line connecting… view at source ↗
Figure 3
Figure 3. Figure 3: ρ = 0.5 for impact on the system performance by µ12 when µ1 = µ2 = µ [PITH_FULL_IMAGE:figures/full_fig_p027_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: ρ = 0.9 for impact on the system performance by µ12 when µ1 = µ2 = µ 27 [PITH_FULL_IMAGE:figures/full_fig_p027_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: ρ = 0.1 for impact on the system performance by µ12 when µ1 ̸= µ2 with θ = 1.5 However, It is interesting to observe that, when the dependence parameter θ is large (for ex￾ample, θ = 15 in Figures 14 and 15) while the joint service rate µ12 remains relatively small, the expected queue length in the dependent system can be smaller than that in the independent system, which is not intuitively obvious. This p… view at source ↗
Figure 6
Figure 6. Figure 6: ρ = 0.5 for impact on the system performance by µ12 when µ1 ̸= µ2 with θ = 1.5 [PITH_FULL_IMAGE:figures/full_fig_p029_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: ρ = 0.9 for impact on the system performance by µ12 when µ1 ̸= µ2 with θ = 1.5 29 [PITH_FULL_IMAGE:figures/full_fig_p029_7.png] view at source ↗
Figure 8

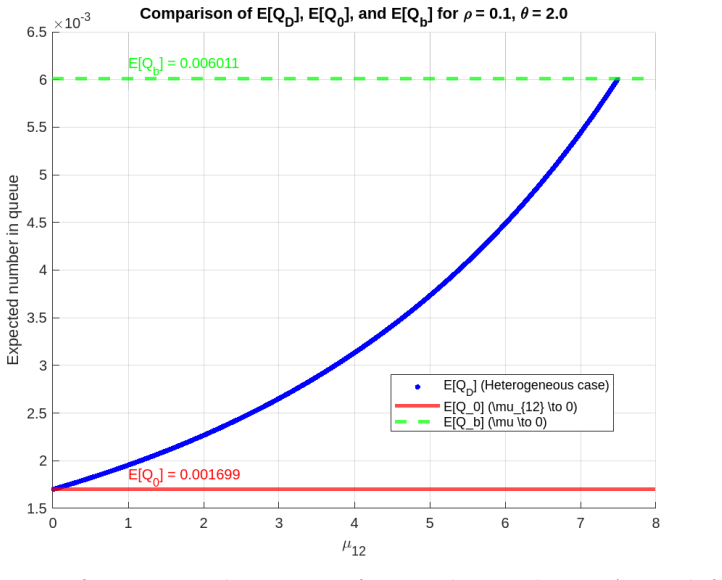

Figure 8. Figure 8: ρ = 0.1 for impact on the system performance by µ12 when µ1 ̸= µ2 with θ = 2 [PITH_FULL_IMAGE:figures/full_fig_p030_8.png] view at source ↗
Figure 9

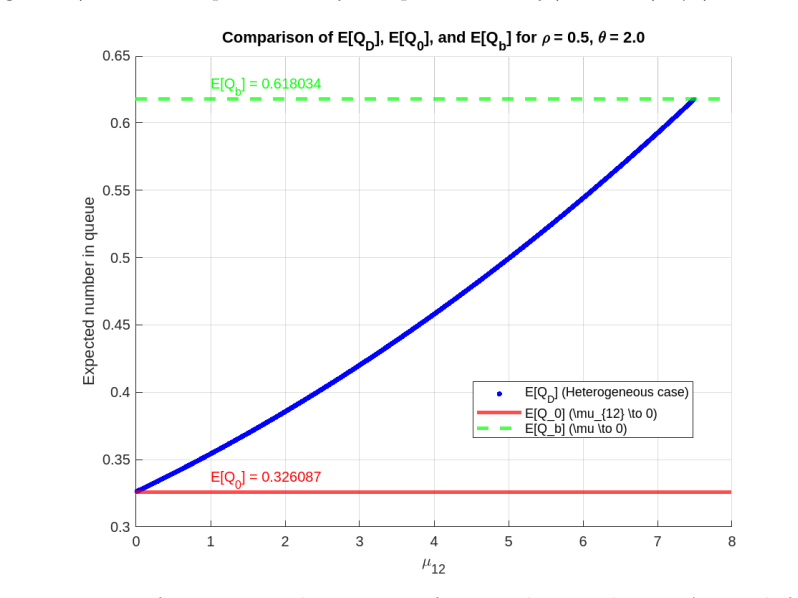

Figure 9. Figure 9: ρ = 0.5 for impact on the system performance by µ12 when µ1 ̸= µ2 with θ = 2 30 [PITH_FULL_IMAGE:figures/full_fig_p030_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: ρ = 0.9 for impact on the system performance by µ12 when µ1 ̸= µ2 with θ = 2 [PITH_FULL_IMAGE:figures/full_fig_p031_10.png] view at source ↗
Figure 11

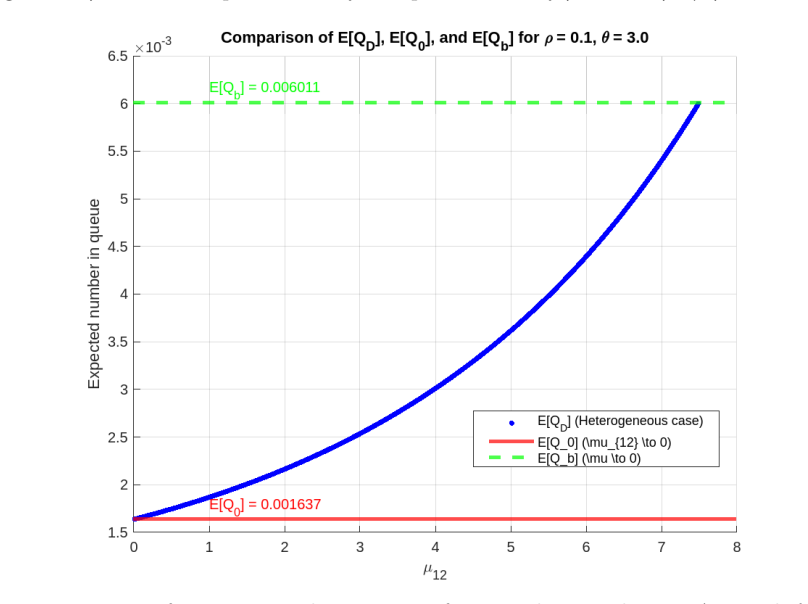

Figure 11. Figure 11: ρ = 0.1 for impact on the system performance by µ12 when µ1 ̸= µ2 with θ = 3 31 [PITH_FULL_IMAGE:figures/full_fig_p031_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: ρ = 0.5 for impact on the system performance by µ12 when µ1 ̸= µ2 with θ = 3 [PITH_FULL_IMAGE:figures/full_fig_p032_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: ρ = 0.9 for impact on the system performance by µ12 when µ1 ̸= µ2 with θ = 3 32 [PITH_FULL_IMAGE:figures/full_fig_p032_13.png] view at source ↗
Figure 14

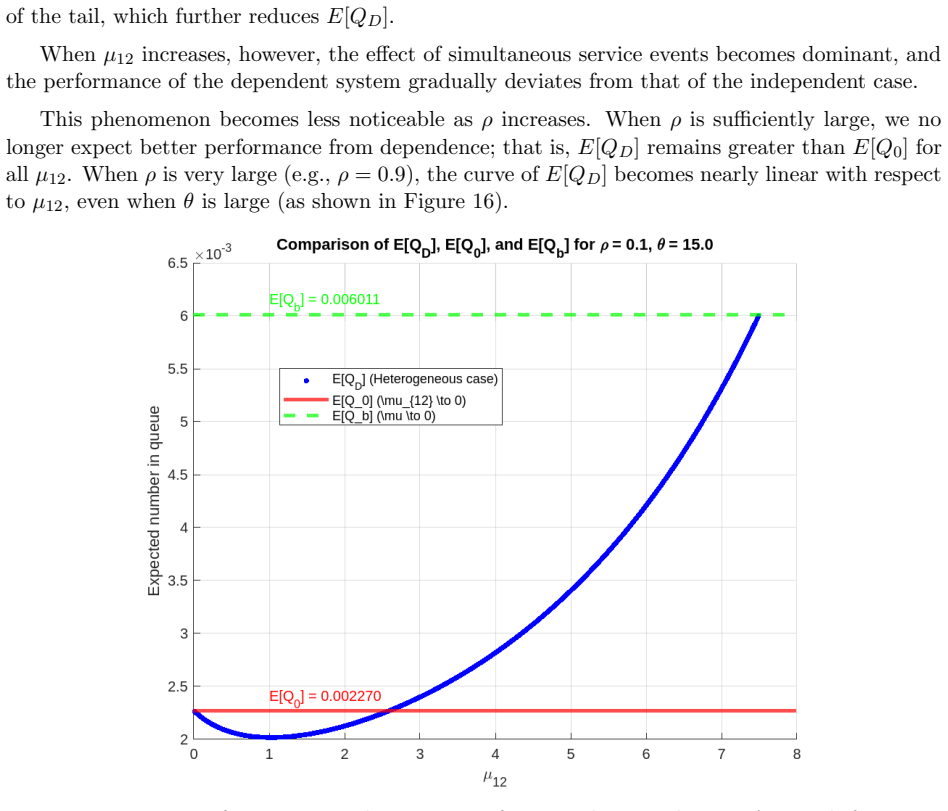

Figure 14. Figure 14: ρ = 0.1 for impact on the system performance by µ12 when µ1 ̸= µ2 with θ = 15 6 Concluding remarks In this paper, we proposed a new approach that leads to a Markovian queueing model for systems with positively correlated servers. This approach successfully addresses the concerns raised by Mitchell et al. [20], who wrote: “It is not clear that the birth–death equation approach can be modified to incorpo￾ra… view at source ↗
Figure 15

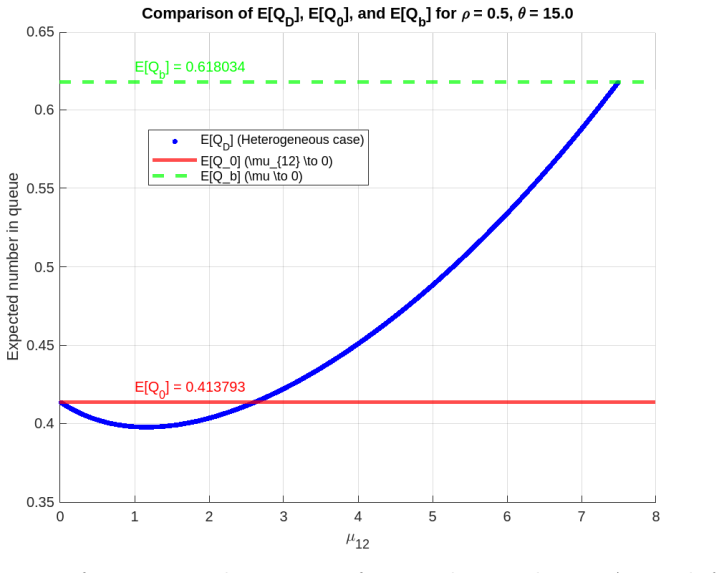

Figure 15. Figure 15: ρ = 0.5 for impact on the system performance by µ12 when µ1 ̸= µ2 with θ = 15 [PITH_FULL_IMAGE:figures/full_fig_p034_15.png] view at source ↗
Figure 16

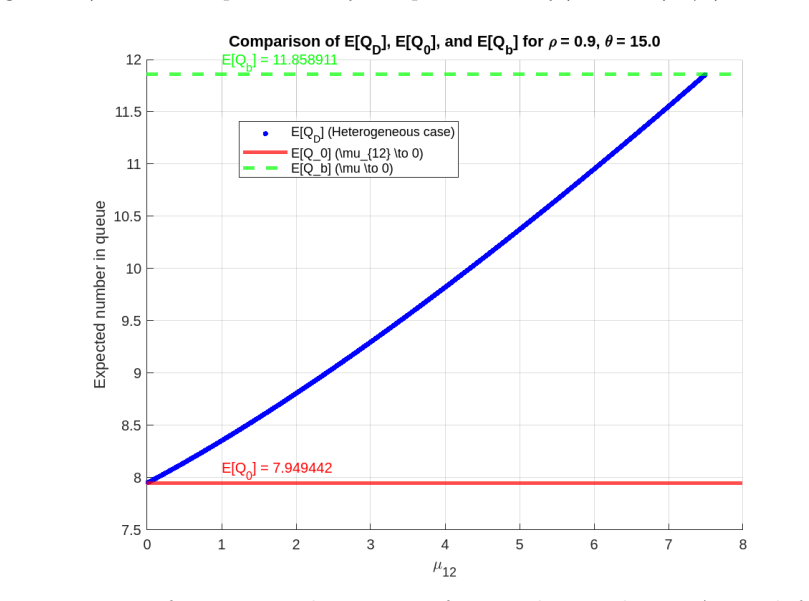

Figure 16. Figure 16: ρ = 0.9 for impact on the system performance by µ12 when µ1 ̸= µ2 with θ = 15 34 [PITH_FULL_IMAGE:figures/full_fig_p034_16.png] view at source ↗
read the original abstract

Demand for studying queueing systems with multiple servers providing correlated services was created about 60 years ago, motivated by various applications. In recent years, the importance of such studies has been significantly increased, supported by new applications of greater significance to much larger scaled industry, and the whole society. Such studies have been considered very challenging. In this paper, a new Markov modelling approach for queueing systems with servers providing correlated services is proposed. We apply this new proposed approach to a queueing system with arrivals according to a Poisson process and two positive correlated exponential servers, referred to as the $M/M_D/2$ queue. We first prove that the queueing process (the number of customers in the system) is a Markov chain, and then provide an analytic solution for the stationary distribution of the process, based on which it becomes much easier to see the impact of the dependence on system performance compared to the performance with independent services.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes a new Markov modelling approach for queueing systems with correlated service times. It applies this to the M/M_D/2 model with Poisson arrivals and two positively correlated exponential servers, claiming to prove that the queue-length process N(t) is a Markov chain and to derive an analytic solution for its stationary distribution, which is then used to assess the impact of service dependence on performance relative to the independent case.

Significance. If the Markov property holds and the stationary distribution is correctly obtained, the work would provide a useful analytic framework for a class of dependent-service multi-server queues that has been studied for decades but remains challenging. The explicit closed-form stationary distribution would be a strength, enabling direct performance comparisons and clearer visibility of correlation effects without simulation.

major comments (2)
  1. [Model description and Markov property proof] § describing the M/M_D/2 model and the Markov-property proof: the claim that correlation between the two exponential service times can be incorporated so that N(t) alone is Markovian is load-bearing. Standard constructions (Marshall-Olkin shocks, copulas on service times) generally make the joint law of residual service times history-dependent, so the instantaneous departure rate when both servers are busy is not necessarily a fixed function of N alone. The paper must exhibit the explicit state space, the generator, and the derivation showing time-homogeneous rates that depend on N only.
  2. [Stationary distribution derivation] Stationary-distribution section (balance equations and solution): the analytic solution is derived under the assumed Markov property. If the transition rates are not rigorously shown to be state-dependent solely through N and independent of history, the global balance equations and their closed-form solution do not follow. Please display the rate matrix or the system of equations and verify they incorporate the correlation parameter without hidden auxiliary variables.
minor comments (2)
  1. [Abstract] Abstract: the phrase 'positive correlated' should be replaced by a precise statement of the correlation parameter range or distribution used.
  2. [Notation and model definition] Notation: define the subscript D in M/M_D/2 at first use and ensure consistent spelling of 'correlated' throughout.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and insightful comments. We address the two major comments below, clarifying our construction of the correlated service times and indicating where we will strengthen the exposition in revision.

read point-by-point responses

  1. Referee: [Model description and Markov property proof] § describing the M/M_D/2 model and the Markov-property proof: the claim that correlation between the two exponential service times can be incorporated so that N(t) alone is Markovian is load-bearing. Standard constructions (Marshall-Olkin shocks, copulas on service times) generally make the joint law of residual service times history-dependent, so the instantaneous departure rate when both servers are busy is not necessarily a fixed function of N alone. The paper must exhibit the explicit state space, the generator, and the derivation showing time-homogeneous rates that depend on N only.

    Authors: We agree that an explicit display of the generator is necessary for full rigor. In the M/M_D/2 construction the positive correlation is introduced by defining a joint service mechanism whose instantaneous completion rate, when both servers are busy, equals 2μ(1+ρ) where ρ ∈ (0,1] is the dependence parameter; because the marginals remain exponential, the memoryless property is preserved and the future evolution depends only on the current value of N(t). The state space is the non-negative integers, the generator is a birth-death matrix with birth rate λ everywhere and state-dependent death rates μ (for N=1) and 2μ(1+ρ) (for N≥2). We will add the full infinitesimal generator and the short derivation establishing time-homogeneity in the revised manuscript. revision: yes

  2. Referee: [Stationary distribution derivation] Stationary-distribution section (balance equations and solution): the analytic solution is derived under the assumed Markov property. If the transition rates are not rigorously shown to be state-dependent solely through N and independent of history, the global balance equations and their closed-form solution do not follow. Please display the rate matrix or the system of equations and verify they incorporate the correlation parameter without hidden auxiliary variables.

    Authors: We accept the request for explicit equations. The global balance equations are written directly from the generator above: λπ_0 = μπ_1, (λ+μ)π_1 = λπ_0 + 2μ(1+ρ)π_2, and for n≥2 the usual birth-death relation with the correlated death rate 2μ(1+ρ). The correlation parameter ρ appears only in the death rates for n≥2; no auxiliary variables are required. The resulting linear system admits the closed-form solution given in the paper. In revision we will display the complete set of balance equations together with the generator to make this transparent. revision: yes

Circularity Check

0 steps flagged

No significant circularity: proof of Markov property and analytic stationary distribution is self-contained.

full rationale

The paper proposes a new Markov modelling approach, proves that the queue-length process N(t) is a Markov chain for the M/M_D/2 model, and derives an analytic solution for its stationary distribution. No quoted step reduces a claimed result to its inputs by construction (e.g., no fitted parameter renamed as prediction, no self-definitional loop where the Markov property is assumed to prove itself, and no load-bearing self-citation chain). The derivation relies on an explicit proof of the Markov property and standard balance equations for the stationary distribution, which are externally verifiable against Markov chain theory and do not presuppose the final performance measures. This is the normal case of a self-contained mathematical argument.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

Review performed from abstract only; ledger entries are inferred from stated model components and standard queueing assumptions.

free parameters (1)
  • correlation parameter
    A parameter quantifying positive dependence between the two exponential service times must be introduced to define the M/M_D/2 model.
axioms (2)
  • domain assumption Customer arrivals follow a Poisson process
    Explicitly stated in the abstract for the M/M_D/2 queue.
  • domain assumption Service times are exponentially distributed and positively correlated
    Core modeling choice defining the M/M_D/2 system in the abstract.
