arxiv: 2507.07827 · v2 · submitted 2025-07-10 · ⚛️ physics.acc-ph · physics.plasm-ph

Milestone toward an ECRIPAC accelerator demonstrator

Andrea Cernuschi (1) , Thomas Thuillier (1) , Laurent Garrigues (2) ((1) Universite Grenoble Alpes , CNRS , Grenoble INP , LPSC-IN2P3 , Grenoble , France
show 5 more authors
(2) Universite de Toulouse Toulouse INP LAPLACE Toulouse France)
This is my paper

Pith reviewed 2026-05-19 05:29 UTC · model grok-4.3

classification ⚛️ physics.acc-ph physics.plasm-ph
keywords ECRIPACion acceleratorelectron cyclotron resonanceMonte Carlo simulationcompact acceleratorHe2+ ion beampulsed ion beamsaccelerator demonstrator
0
0 comments X

The pith

Monte Carlo simulations validate the corrected theory for the ECRIPAC ion accelerator concept

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper corrects an early calculation error in the ECRIPAC accelerator concept from the 1990s and presents updated theory along with designs for compact demonstrator devices. These devices use radio frequency and magnetic fields to accelerate ions such as He2+ to energies up to 100 MeV inside a cavity as short as 1.8 meters. A Monte Carlo code models the electron dynamics and acceleration inside this system. The simulation results match the updated theory closely, which supports the framework for generating high-energy pulsed ion beams in a simple and compact setup.

Core claim

The Monte Carlo code developed to model the electron dynamics inside the ECRIPAC cavity produces results in excellent agreement with the updated theory, thereby validating the new theoretical framework of ECRIPAC for a He2+ accelerator capable of generating 9.5 MeV per nucleon ions inside a 1.8 m long accelerating cavity.

What carries the argument

Monte Carlo modeling of electron dynamics and acceleration physics inside the ECRIPAC cavity, checked against the corrected theory

If this is right

  • Compact demonstrator devices can accelerate various ion species to energies up to 100 MeV using standard radio frequency and magnetic field methods.
  • A specific 1.8 m He2+ design reaches 9.5 MeV per nucleon inside the accelerating cavity.
  • Beam parameters for the extracted ion bunch can be estimated directly from the validated model.
  • The approach relies on well-mastered techniques and device compactness for further development.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the framework holds under real conditions, ECRIPAC designs could serve as a compact option for applications needing energetic pulsed ion beams.
  • The correction of the original calculation mistake resolves inconsistencies in earlier literature on the concept.
  • Further experimental testing of the demonstrator would provide direct checks on ion beam production and energy.

Load-bearing premise

The Monte Carlo code accurately captures the electron dynamics and acceleration physics inside the ECRIPAC cavity without significant modeling approximations or omissions that would affect the reported agreement.

What would settle it

A clear mismatch between the Monte Carlo simulation outputs and the predictions of the updated theory for the simulated He2+ accelerator would show that the validation of the new framework does not hold.

Figures

Figures reproduced from arXiv: 2507.07827 by (2) Universite de Toulouse, Andrea Cernuschi (1), CNRS, France, France), Grenoble, Grenoble INP, LAPLACE, Laurent Garrigues (2) ((1) Universite Grenoble Alpes, LPSC-IN2P3, Thomas Thuillier (1), Toulouse, Toulouse INP.

Figure 1

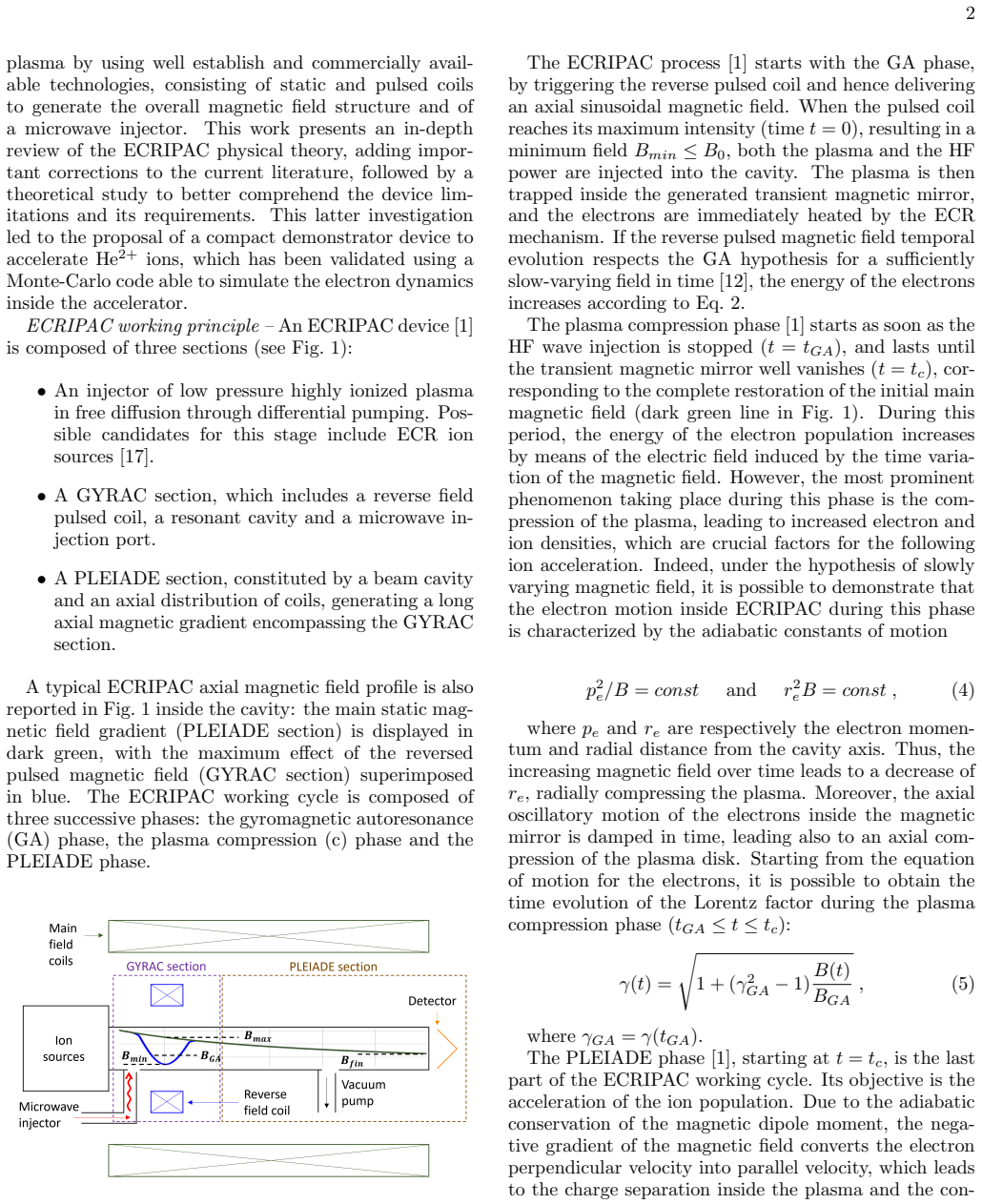

Figure 1. Figure 1: FIG. 1: Schematic representation of ECRIPAC and its [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2: Representation of stability condition for [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3: Stability maps of ECRIPAC for a) the mass over charge ratio of the accelerated ion A/Z ( [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4: Comparison of the temporal evolution during the [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
read the original abstract

The Electron Cyclotron Resonance Ion Plasma ACcelerator (ECRIPAC) is an original accelerator concept proposed in the nineties for the generation of highly energetic pulsed ion beams, suitable for a wide array of applications. The initial studies on the subject were characterized by an important calculation mistake, leading to an incomplete and erroneous literature on the topic. Nevertheless, the simple and well mastered techniques involved in the system (radio frequency and magnetic field), together with the device compactness, are strong motivations for further studies on ECRIPAC. This work proposes a comprehensive introduction to the ECRIPAC accelerator physics, including a summary of its corrected theory. The designs of several compact demonstrator devices, able to accelerate different ion species to energies up to 100 MeV, are presented. A particular focus is devoted to a He2+ accelerator, capable of generating 9.5 MeV/nucleon ions inside a 1.8 m long accelerating cavity. This device has been simulated using a Monte-Carlo (MC) code, developed to model the electron dynamics inside this system. The MC results show an excellent agreement with the updated theory, which validates the new theoretical framework of ECRIPAC. Finally, some estimations for the beam parameters of the ion bunch extracted from the accelerator are provided.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript corrects a historical calculation error in the ECRIPAC literature, summarizes the updated accelerator physics, presents compact demonstrator designs for accelerating various ions to energies up to 100 MeV (with a specific He2+ design reaching 9.5 MeV/nucleon in a 1.8 m cavity), and reports Monte Carlo simulations of electron dynamics inside the He2+ device that show excellent agreement with the corrected theory, thereby validating the framework. Beam parameter estimates for the extracted ion bunch are also provided.

Significance. If the Monte Carlo results constitute an independent validation of the corrected theory, the work could revive interest in a compact ion accelerator concept based on established RF and magnetic field techniques. The designs and parameter estimates provide concrete targets for future experimental efforts, and addressing the prior literature error strengthens the foundation for the field.

major comments (2)
  1. [Abstract] Abstract: The claim that 'The MC results show an excellent agreement with the updated theory, which validates the new theoretical framework of ECRIPAC' for the He2+ case provides no error bars, quantitative metrics of agreement, simulation parameters, or exclusion criteria. This leaves the central validation claim only partially supported and prevents assessment of whether the agreement is robust or coincidental.
  2. [Monte Carlo simulation section] Monte Carlo simulation description: No quantitative benchmarks of the custom MC code are reported against analytic limits such as single-particle cyclotron motion in a uniform B-field or established ECR heating rates. Without these or a sensitivity analysis on time step, particle count, or omitted processes (e.g., space charge or wall collisions), the physical fidelity of the model cannot be confirmed, undermining the assertion that the MC serves as an independent check on the corrected theory.
minor comments (1)
  1. [Abstract] The abstract refers to 'an important calculation mistake' in the initial studies but does not briefly identify the nature of the error or the key correction, which would improve accessibility for readers unfamiliar with the prior literature.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments on our manuscript. We agree that the validation claims would benefit from greater quantitative rigor and transparency in both the abstract and the Monte Carlo section. We outline below the specific revisions we will implement to address each point.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The claim that 'The MC results show an excellent agreement with the updated theory, which validates the new theoretical framework of ECRIPAC' for the He2+ case provides no error bars, quantitative metrics of agreement, simulation parameters, or exclusion criteria. This leaves the central validation claim only partially supported and prevents assessment of whether the agreement is robust or coincidental.

    Authors: We acknowledge that the abstract statement is currently qualitative and lacks supporting quantitative information. In the revised manuscript we will replace the sentence with a more precise formulation that includes the mean relative deviation between simulated and theoretical electron energies, the standard deviation across the ensemble, the number of simulated particles, the integration time step, and the criteria used to exclude non-resonant trajectories. These additions will allow readers to evaluate the robustness of the reported agreement directly from the abstract. revision: yes

  2. Referee: [Monte Carlo simulation section] Monte Carlo simulation description: No quantitative benchmarks of the custom MC code are reported against analytic limits such as single-particle cyclotron motion in a uniform B-field or established ECR heating rates. Without these or a sensitivity analysis on time step, particle count, or omitted processes (e.g., space charge or wall collisions), the physical fidelity of the model cannot be confirmed, undermining the assertion that the MC serves as an independent check on the corrected theory.

    Authors: We agree that explicit benchmarks and sensitivity tests are necessary to substantiate the physical fidelity of the Monte Carlo model. We will add a dedicated subsection (or appendix) that reports: (i) comparison of simulated cyclotron frequencies against the analytic value for single-particle motion in a uniform magnetic field, (ii) comparison of simulated ECR heating rates with established analytic expressions, (iii) results of a sensitivity study varying time step and particle number, and (iv) a brief discussion of the neglected processes (space charge and wall collisions) together with an estimate of their relative importance in the He2+ demonstrator parameter regime. These additions will strengthen the claim that the Monte Carlo results provide an independent validation of the corrected theory. revision: yes

Circularity Check

0 steps flagged

No significant circularity in ECRIPAC theory-MC validation chain

full rationale

The paper corrects an earlier calculation error in the ECRIPAC concept, summarizes the updated analytic theory, designs compact demonstrator cavities, and reports that a custom Monte Carlo code for electron dynamics yields excellent agreement with that theory, thereby validating the framework. No load-bearing derivation step is shown to reduce by construction to a self-definition, a fitted parameter renamed as prediction, or a self-citation chain whose content is itself unverified. The Monte Carlo implementation is presented as a separate modeling tool rather than an input that defines the theory; absent explicit equations or parameter-tuning statements that would force the reported agreement, the validation chain remains self-contained against the paper's own stated assumptions.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available; no explicit free parameters, axioms, or invented entities are identifiable from the provided text. The work appears to rest on standard plasma and accelerator physics assumptions.
