arxiv: 2509.23599 · v1 · submitted 2025-09-28 · ⚛️ physics.optics

Ultracompact Wide-FOV Near-infrared Camera with Wafer-level Manufactured Meta-Aspheric Lens

Pith reviewed 2026-05-18 13:16 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords meta-aspheric lensnear-infrared imagingwafer-level manufacturingwide field of viewcompact opticsmetalensaspheric lenscomputational imaging
0
0 comments X

The pith

A single integrated meta-aspheric lens achieves 101.5° FOV NIR imaging at 3.39 mm total track length.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a wafer-level manufactured meta-aspheric lens that merges refractive aspheric surfaces with a diffractive metalens into one component. This integrated structure reaches a 101.5 degree field of view, 3.39 mm total track length, and F/1.64 aperture inside a 0.02 cubic centimeter volume. The design accounts for manufacturability and metalens dispersion so that measured performance aligns with simulations. Validation includes direct imaging and computational tasks such as blood vessel visualization and eye tracking.

Core claim

The meta-aspheric lens is a fully integrated optic fabricated by micrometer-precision alignment and bonding on a single wafer followed by one dicing step, without separate refractive and diffractive parts or additional mechanical fixtures. It delivers 101.5° FOV, 3.39 mm TTL, and F/1.64 aperture in 0.02 cm³ volume while experimental results match simulations that explicitly model metalens dispersion.

What carries the argument

The meta-aspheric lens (MAL), a single wafer-bonded component that combines an aspheric refractive surface with a metalens diffractive layer to correct aberrations across a wide field.

If this is right

  • Portable NIR cameras can fit inside smartphones and AR glasses without exceeding 5 mm thickness.
  • High-volume production becomes feasible using existing wafer-scale alignment and bonding processes.
  • NIR imaging tasks such as blood-vessel mapping and eye tracking become practical in compact devices.
  • Computational imaging methods gain an ultracompact front-end optic for super-resolution reconstruction.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar integration could extend to visible or short-wave infrared bands if dispersion modeling is adjusted for those wavelengths.
  • The same wafer-level process might reduce the size of other hybrid optics that currently rely on separate lenses and diffractive elements.
  • Device designers could test whether removing the refractive aspheric layer and relying solely on the metalens still maintains the reported field and aperture.

Load-bearing premise

The optical design accurately models metalens dispersion so that fabricated devices perform as simulated without major errors from alignment or manufacturing tolerances.

What would settle it

Direct measurement showing that the actual point-spread function or modulation-transfer function deviates substantially from the simulated values at the edges of the 101.5° field.

Figures

Figures reproduced from arXiv: 2509.23599 by Chaoping Chen, Chuirong Chi, Guangyuan Zhao, Huigao Duan, Mengjie Qin, Qiang Song, Qichao Hou, Shengyuan Xu, Weiwei Cai, Xin Yuan, Yanan Hu, Yanling Piao, Yuan Chen.

Figure 1
Figure 1. Figure 1: Schematic of MAL. a Illustration of the MAL imaging system. b MAL mass-produced on an 8-inch wafer. c The size comparison of MAL. d The exploded view of MAL. e The MAL is integrated into the AR glasses. Results Schematic of integrated MAL system The schematic of our integrated imaging system is shown in Fig. 1a. It combines an MAL imaging module and a subsequent image restoration module. The MAL lens is re… view at source ↗

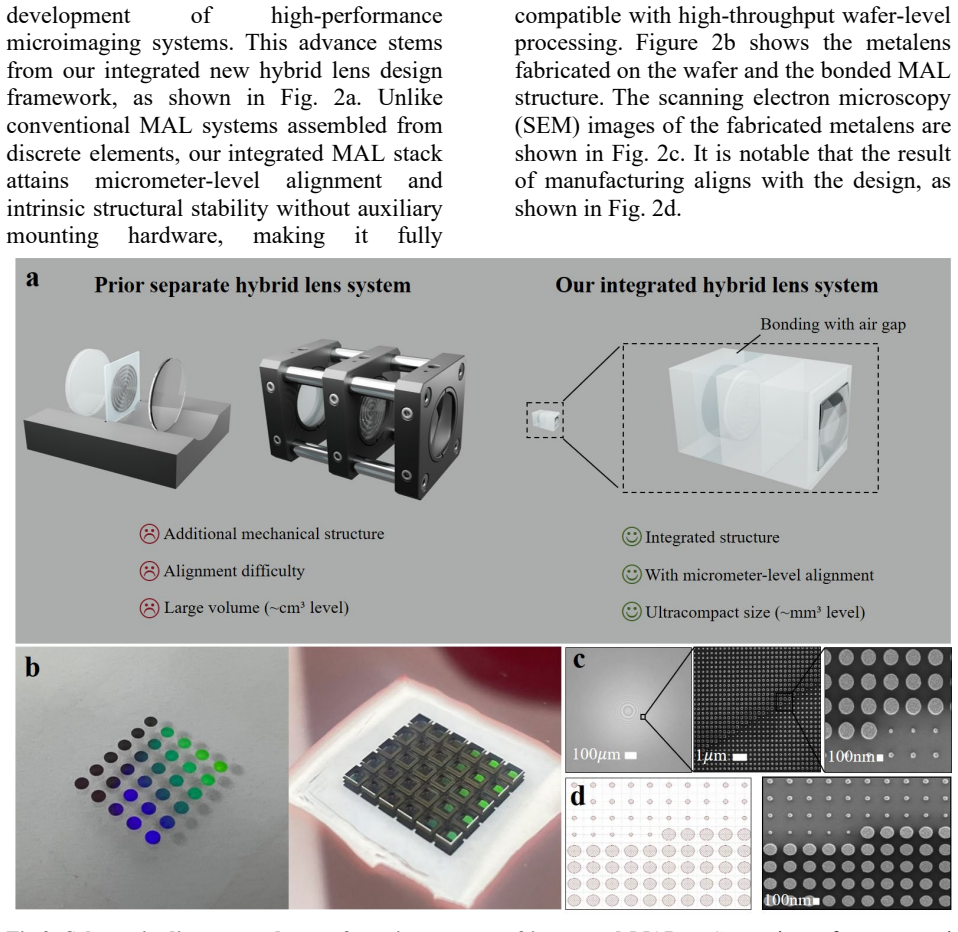

Figure 2
Figure 2. Figure 2: Fig.2 [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 5
Figure 5. Figure 5: Details of MAL fabrication. The fabrication of MAL includes four main processes: (a)-(g)wafer-level manufacturing of metalens, (I)-(VI)wafer-level manufacturing of aspheric lens, stacking of metalens and aspheric lens, and (VII)-(VIII)integration of the integrated structure with sensors. -igned from a precomputed database by minimizing a combined phase and transmission error: 𝑅𝑅(𝑥𝑥, 𝑦𝑦) = argmin 𝑅𝑅 (�𝜑𝜑𝑚𝑚𝑚… view at source ↗
read the original abstract

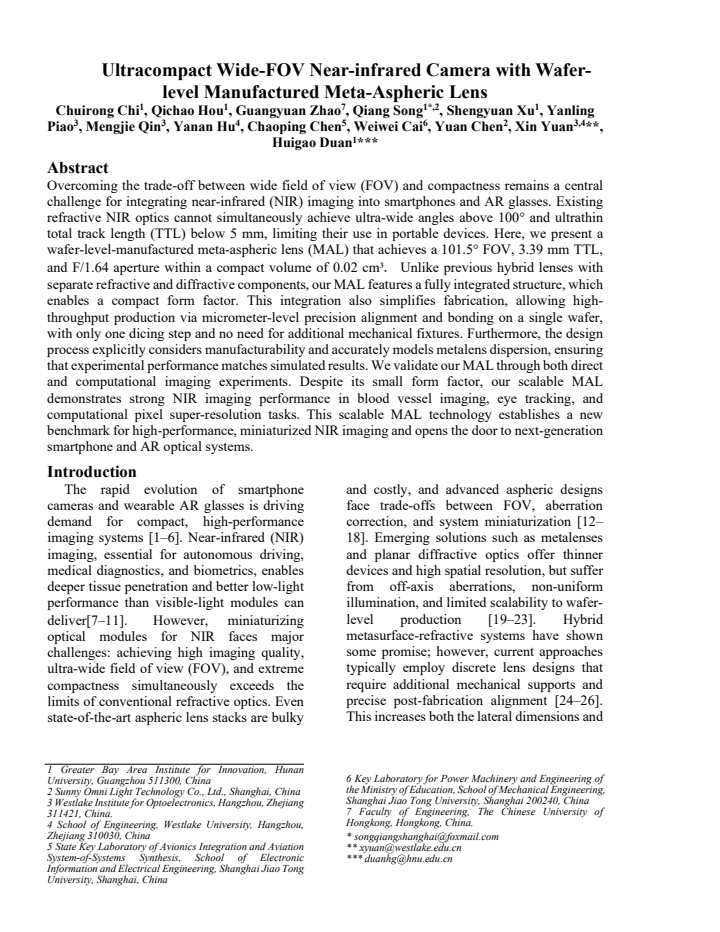

Overcoming the trade-off between wide field of view (FOV) and compactness remains a central challenge for integrating near-infrared (NIR) imaging into smartphones and AR glasses. Existing refractive NIR optics cannot simultaneously achieve ultra-wide angles above 100{\deg} and ultrathin total track length (TTL) below 5 mm, limiting their use in portable devices. Here, we present a wafer-level-manufactured meta-aspheric lens (MAL) that achieves a 101.5{\deg} FOV, 3.39 mm TTL, and F/1.64 aperture within a compact volume of 0.02 cubic centimeters. Unlike previous hybrid lenses with separate refractive and diffractive components, our MAL features a fully integrated structure, which enables a compact form factor. This integration also simplifies fabrication, allowing high-throughput production via micrometer-level precision alignment and bonding on a single wafer, with only one dicing step and no need for additional mechanical fixtures. Furthermore, the design process explicitly considers manufacturability and accurately models metalens dispersion, ensuring that experimental performance matches simulated results. We validate our MAL through both direct and computational imaging experiments. Despite its small form factor, our scalable MAL demonstrates strong NIR imaging performance in blood vessel imaging, eye tracking, and computational pixel super-resolution tasks. This scalable MAL technology establishes a new benchmark for high-performance, miniaturized NIR imaging and opens the door to next-generation smartphone and AR optical systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a wafer-level manufactured meta-aspheric lens (MAL) for near-infrared imaging that integrates refractive and diffractive functions into a single structure. It claims to achieve 101.5° FOV, 3.39 mm total track length (TTL), F/1.64 aperture, and 0.02 cm³ volume while enabling high-throughput fabrication via wafer-level alignment and bonding. The work includes design that models metalens dispersion, experimental validation through direct and computational imaging, and demonstrations in blood vessel imaging, eye tracking, and pixel super-resolution.

Significance. If the claimed experimental-simulation agreement holds with quantitative support, the result would establish a new benchmark for ultracompact wide-FOV NIR optics suitable for smartphones and AR glasses. The wafer-level integration and single-dicing fabrication process offer clear advantages for scalability over hybrid refractive-diffractive approaches.

major comments (2)
  1. [Abstract] Abstract: The central claim that 'the design process explicitly considers manufacturability and accurately models metalens dispersion, ensuring that experimental performance matches simulated results' is load-bearing for the performance numbers (101.5° FOV, 3.39 mm TTL, F/1.64). However, the abstract and available text supply no quantitative metrics (e.g., MTF, distortion, or SNR values), error bars, fabrication tolerance analysis, or direct sim-exp comparison plots to substantiate this modeling accuracy, particularly for off-axis rays near 50° incidence where meta-atom phase errors are amplified.
  2. [Validation/Results] Validation/Results section: The description of 'direct and computational imaging experiments' and applications (blood vessel imaging, eye tracking) is presented without numerical performance data, such as resolution metrics, field-dependent aberrations, or quantitative agreement with simulation. This omission prevents verification that fabrication deviations or alignment errors remain negligible, which is required to support the ultracompact wide-FOV claims.
minor comments (2)
  1. [Abstract] The volume figure of 0.02 cubic centimeters should be cross-checked against the stated TTL and aperture for internal consistency; consider adding a table of exact dimensions and tolerances.
  2. [Introduction] Clarify the distinction between the meta-aspheric lens and prior hybrid lenses in the introduction to highlight the integration novelty more explicitly.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and constructive feedback on our manuscript. We address each of the major comments below and have revised the manuscript accordingly to provide additional quantitative support for our claims regarding the meta-aspheric lens performance and validation.

read point-by-point responses
  1. Referee: [Abstract] Abstract: The central claim that 'the design process explicitly considers manufacturability and accurately models metalens dispersion, ensuring that experimental performance matches simulated results' is load-bearing for the performance numbers (101.5° FOV, 3.39 mm TTL, F/1.64). However, the abstract and available text supply no quantitative metrics (e.g., MTF, distortion, or SNR values), error bars, fabrication tolerance analysis, or direct sim-exp comparison plots to substantiate this modeling accuracy, particularly for off-axis rays near 50° incidence where meta-atom phase errors are amplified.

    Authors: We appreciate the referee's observation regarding the need for quantitative substantiation in the abstract. While the full manuscript includes detailed simulations and experimental comparisons in the Results section, including MTF curves, distortion maps, and direct sim-exp plots for both on-axis and off-axis performance, we agree that the abstract would benefit from including key metrics to make the claims more self-contained. In the revised version, we will incorporate specific values such as MTF > 0.3 at 50 lp/mm across the field, distortion < 5%, and SNR metrics, along with error bars from multiple measurements. We will also add a brief mention of the fabrication tolerance analysis and reference the figures showing agreement for off-axis rays up to 50° incidence, where our dispersion modeling accounts for meta-atom phase errors. revision: yes

  2. Referee: [Validation/Results] Validation/Results section: The description of 'direct and computational imaging experiments' and applications (blood vessel imaging, eye tracking) is presented without numerical performance data, such as resolution metrics, field-dependent aberrations, or quantitative agreement with simulation. This omission prevents verification that fabrication deviations or alignment errors remain negligible, which is required to support the ultracompact wide-FOV claims.

    Authors: We thank the referee for pointing this out. The manuscript does include experimental results with visual comparisons and qualitative assessments in the applications, but we acknowledge the value of adding explicit numerical data. In the revision, we will include quantitative metrics such as resolution (e.g., line pairs per mm), field-dependent MTF or aberration values, and quantitative measures of sim-exp agreement (e.g., RMSE between simulated and measured images). This will help demonstrate that fabrication deviations and alignment errors are indeed negligible, supporting the performance claims. We will also add error bars and statistical analysis where applicable. revision: yes

Circularity Check

0 steps flagged

No circularity; experimental claims rest on fabrication and validation

full rationale

The paper describes a wafer-level meta-aspheric lens fabrication process achieving specified FOV, TTL, and aperture values, with the design explicitly modeling metalens dispersion to ensure simulation-experiment agreement. This modeling is presented as an input assumption validated by direct and computational imaging experiments rather than a self-referential definition or fitted parameter renamed as prediction. No equations, self-citations, or uniqueness theorems are invoked in the provided text to create a load-bearing reduction. The central performance claims derive from the manufacturing sequence and empirical tests, making the derivation self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract provides insufficient detail to enumerate concrete free parameters or invented entities; design implicitly relies on optimization of lens profile and metasurface parameters plus the domain assumption that dispersion is accurately modeled.

axioms (1)
  • domain assumption Metalens dispersion can be accurately modeled during design so that fabricated performance matches simulation
    Invoked to justify that experimental results align with predictions
