Source-Free Bistable Fluidic Gripper for Size-Selective and Stiffness-Adaptive Grasping

Zhihang Qin , Yueheng Zhang , Wan Su , Linxin Hou , Shenghao Zhou , Zhijun Chen , Yu Jun Tan , Cecilia Laschi This is my paper

Pith reviewed 2026-05-18 00:59 UTC · model grok-4.3

classification 💻 cs.RO
keywords soft gripperbistable mechanismfluidic actuationsource-freestiffness adaptationsize selectivesoft robotics
0
0 comments X

The pith

A fixed-size soft gripper grasps selected object sizes using only internal liquid redistribution among bistable chambers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces a soft robotic gripper that functions without any external fluid pump or continuous energy supply. It relies on three linked bistable chambers filled with liquid. Contact with an object deforms a top chamber, forcing liquid into the side chambers and causing them to snap open and grip. The design selects objects by size and adjusts grip force to the object's stiffness through passive hydraulic feedback. Such a source-free system could support autonomous manipulation tasks in places where power or external connections are impractical.

Core claim

The central discovery is a fixed-size soft gripper that achieves stable, size-selective grasping solely through the redistribution of a fixed volume of liquid among three interconnected bistable snap-through chambers; deformation of the sensing chamber upon contact triggers snap-through expansion of the grasping chambers, and the resulting internal pressure provides passive stiffness adaptation without external actuation.

What carries the argument

Three interconnected bistable snap-through chambers linked by internal liquid channels, where the top chamber acts as a sensor and the others as actuators.

Load-bearing premise

Deformation of the top sensing chamber produces enough liquid displacement and pressure change to consistently trigger the snap-through in the grasping chambers during actual object contact, without leaks or need for external help.

What would settle it

A test in which the gripper is pressed against objects of the target size range but fails to expand the grasping chambers or maintain grip after contact is removed would disprove the mechanism's reliability.

Figures

Figures reproduced from arXiv: 2511.03691 by Cecilia Laschi, Linxin Hou, Shenghao Zhou, Wan Su, Yueheng Zhang, Yu Jun Tan, Zhihang Qin, Zhijun Chen.

Figure 1

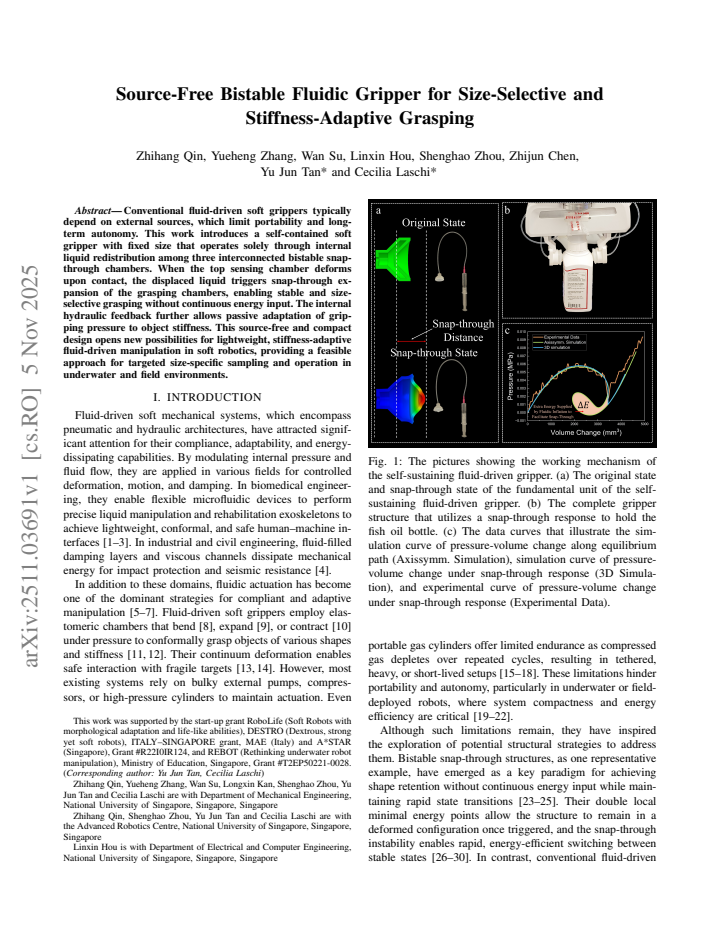

Figure 1. Figure 1: The pictures showing the working mechanism of [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

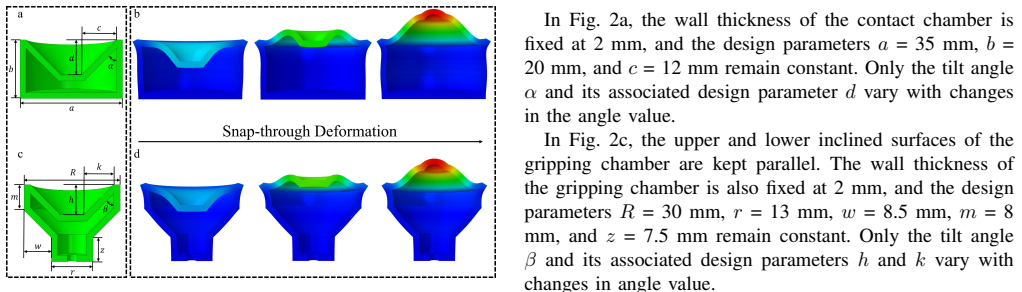

Figure 2. Figure 2: Modeling and simulations. (a, c) 3D modeling of the [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

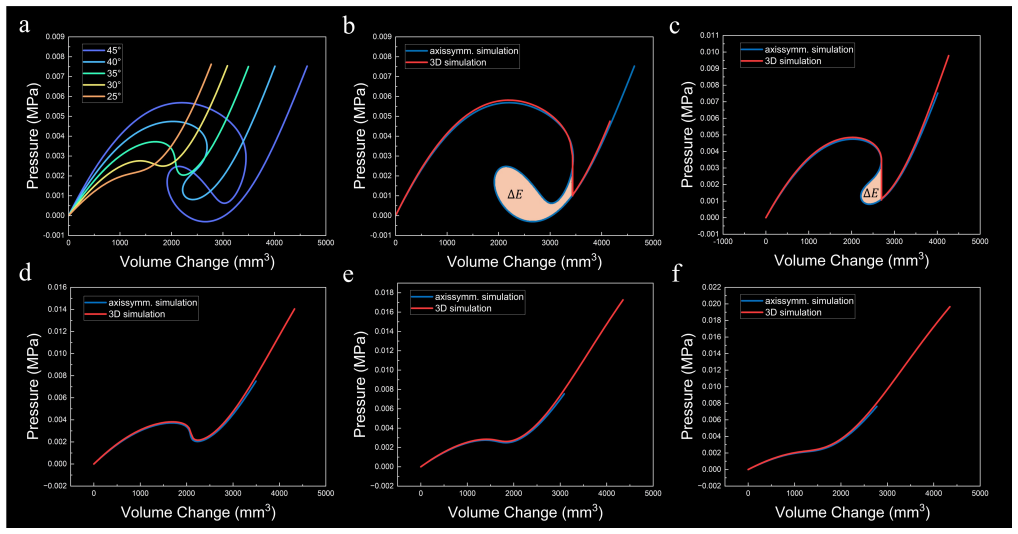

Figure 3. Figure 3: Pressure–volume response of the snap-through membranes with different tilt angles in gripping chambers along the [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

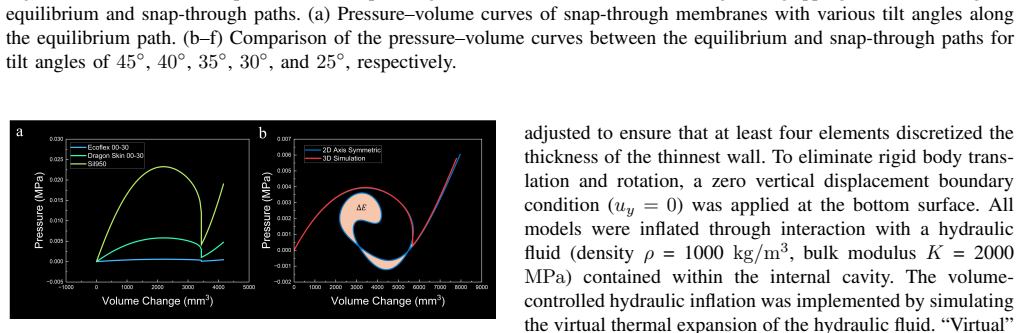

Figure 4. Figure 4: Pressure–volume response of the snap-through mem [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 5

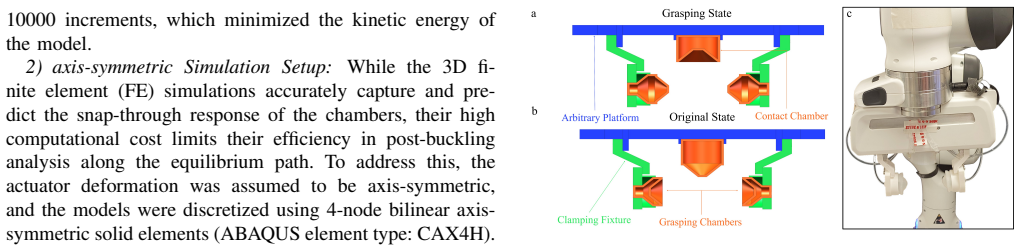

Figure 5. Figure 5: Design and experimental setup of the gripping [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6

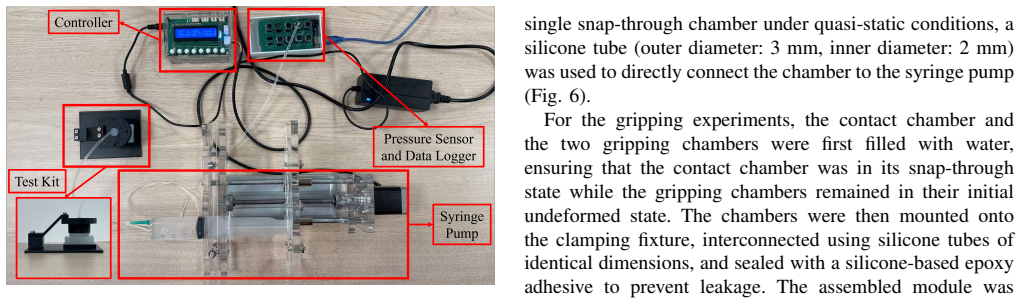

Figure 6. Figure 6: The picture shows the experimental setup used to [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Quasi-static mechanical response of the gripping [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗
Figure 8

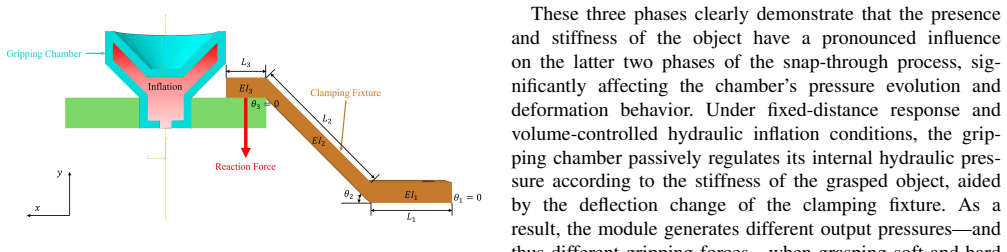

Figure 8. Figure 8: Schematic diagram of the single-sided gripper module [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
Figure 9

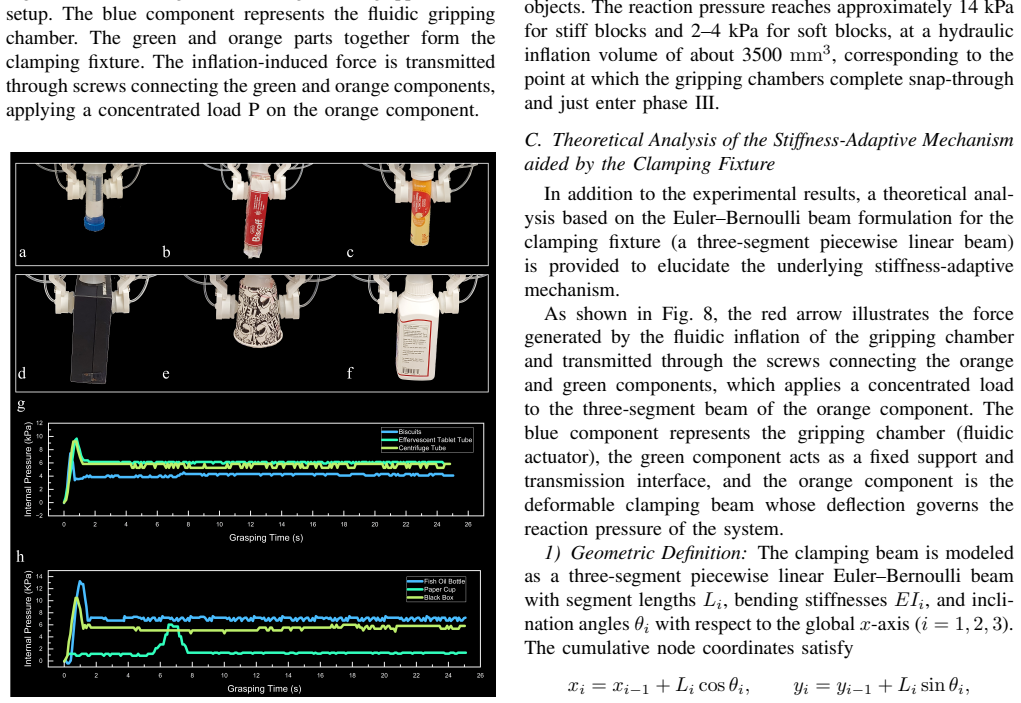

Figure 9. Figure 9: Objects grasped and corresponding reaction hydraulic [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
read the original abstract

Conventional fluid-driven soft grippers typically depend on external sources, which limit portability and long-term autonomy. This work introduces a self-contained soft gripper with fixed size that operates solely through internal liquid redistribution among three interconnected bistable snap-through chambers. When the top sensing chamber deforms upon contact, the displaced liquid triggers snap-through expansion of the grasping chambers, enabling stable and size-selective grasping without continuous energy input. The internal hydraulic feedback further allows passive adaptation of gripping pressure to object stiffness. This source-free and compact design opens new possibilities for lightweight, stiffness-adaptive fluid-driven manipulation in soft robotics, providing a feasible approach for targeted size-specific sampling and operation in underwater and field environments.
