arxiv: 2511.17107 · v3 · submitted 2025-11-21 · 🧮 math.NA · cs.NA

A Robust GPU-Accelerated Kernel Compensation Solver with Novel Discretization for Photonic Crystals in Anisotropic Media

Chenhao Jin , Hehu Xie This is my paper

Pith reviewed 2026-05-17 20:53 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords photonic crystalsMaxwell eigenproblemkernel compensationanisotropic mediaYee's schemeGPU accelerationHermitian positive definitediscretization
0
0 comments X

The pith

A novel discretization of the permittivity tensor with off-diagonal entries produces a Hermitian positive definite matrix that validates kernel compensation for Maxwell eigenproblems in anisotropic media.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a solver for the Maxwell eigenproblem in three-dimensional photonic crystals with anisotropic media. It employs the kernel compensation technique under Yee's scheme to remove the null space and enable matrix-free operations that run efficiently on GPUs through three-dimensional discrete Fourier transforms. The key advance is a new discretization method for the permittivity tensor that handles off-diagonal entries. The authors prove that the resulting matrix is Hermitian positive definite. This property guarantees that the kernel compensation technique remains correct when applied to anisotropic cases.

Core claim

We propose a novel discretization for permittivity tensor containing off-diagonal entries and prove that the resulting matrix is Hermitian positive definite, which ensures the correctness of the kernel compensation technique for the Maxwell eigenproblem under Yee's scheme in anisotropic media.

What carries the argument

Kernel compensation technique under Yee's scheme paired with a novel discretization of the anisotropic permittivity tensor that yields a Hermitian positive definite matrix.

If this is right

  • The approach removes the null space so the eigenproblem can be solved accurately.
  • Matrix-free operations via 3D discrete Fourier transform become feasible and support GPU acceleration.
  • The solver applies directly to 3D photonic crystals that have off-diagonal permittivity terms.
  • Numerical tests on benchmark problems confirm both robustness and accuracy of the full scheme.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The discretization strategy could be tested on other staggered-grid schemes that encounter similar anisotropy issues.
  • GPU speedups may make large-scale design sweeps of photonic devices with complex materials practical.
  • The positive-definiteness proof might suggest analogous matrix properties for time-domain simulations.
  • Extensions to non-periodic boundaries or higher-order discretizations remain open for verification.

Load-bearing premise

The novel discretization of the permittivity tensor with off-diagonal entries produces a Hermitian positive definite matrix that preserves the validity of the kernel compensation technique when applied to the Maxwell eigenproblem under Yee's scheme in anisotropic media.

What would settle it

A direct computation of the eigenvalues of the discretized permittivity matrix on a simple anisotropic test case that reveals any negative or zero eigenvalues, or a simulation where kernel compensation leaves residual null-space modes in the eigenproblem.

Figures

Figures reproduced from arXiv: 2511.17107 by Chenhao Jin, Hehu Xie.

Figure 1
Figure 1. Figure 1: DoFs of scalar and vector grid functions on a single cell [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Figures of material structures of four sample lattices in cubic domain [0 [PITH_FULL_IMAGE:figures/full_fig_p017_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Band structures of SC lattice with curved material interface. Left: isotropic [PITH_FULL_IMAGE:figures/full_fig_p019_3.png] view at source ↗
Figure 4

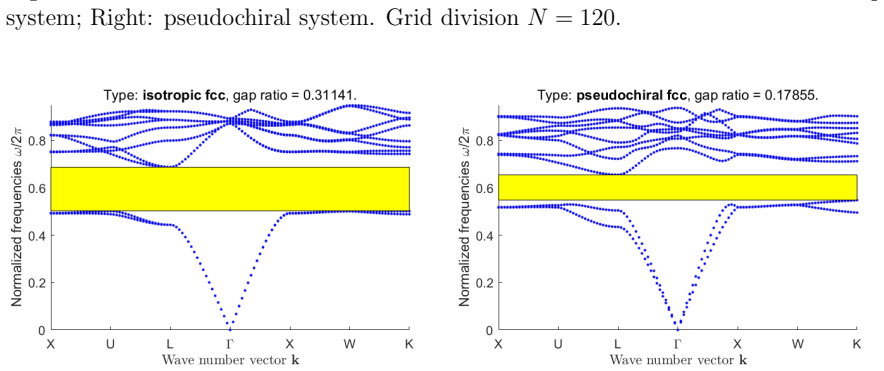

Figure 4. Figure 4: Band structures of FCC lattice. Left: isotropic system; Right: pseudochiral [PITH_FULL_IMAGE:figures/full_fig_p019_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Band structures of BCC lattice with single gyroid surfaces. Left: isotropic [PITH_FULL_IMAGE:figures/full_fig_p019_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Band structures of BCC lattice with double gyroid surfaces. Left: isotropic [PITH_FULL_IMAGE:figures/full_fig_p020_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Convergence history where ε1 is very ill-conditioned. Pseudochiral SC-CURV lattice at k = ( 1 7 , 3 5 , 4 13 )π, grid division N = 120. 21 [PITH_FULL_IMAGE:figures/full_fig_p021_7.png] view at source ↗
read the original abstract

This paper develops a robust solver for the Maxwell eigenproblem in 3D photonic crystals with anisotropic media. The solver employs the kernel compensation technique under the framework of Yee's scheme to eliminate null space and enable matrix-free, GPU-accelerated operations via 3D discrete Fourier transform. Furthermore, we propose a novel discretization for permittivity tensor containing off-diagonal entries and prove that the resulting matrix is Hermitian positive definite, which ensures the correctness of the kernel compensation technique. Numerical experiments on several benchmark examples are demonstrated to validate the robustness and accuracy of our scheme.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper develops a robust GPU-accelerated solver for the Maxwell eigenproblem in 3D photonic crystals with anisotropic media. It employs the kernel compensation technique under Yee's scheme to eliminate the null space and enable matrix-free operations via 3D discrete Fourier transform. A novel discretization is proposed for the permittivity tensor containing off-diagonal entries, with a proof that the resulting matrix is Hermitian positive definite, which is asserted to ensure the correctness of the kernel compensation technique. Numerical experiments on several benchmark examples are presented to validate robustness and accuracy.

Significance. If the novel discretization and its HPD proof extend rigorously to the full compensated discrete operator while preserving compatibility with the staggered grid and divergence-free projection, the work would advance efficient simulations of anisotropic photonic crystals. The matrix-free GPU implementation via DFT and the theoretical guarantee for anisotropy handling represent practical and conceptual strengths, particularly if the numerical results demonstrate maintained accuracy without spurious modes.

major comments (2)
  1. [Abstract and discretization section] Abstract and discretization section: The central claim that the HPD property of the novel permittivity discretization 'ensures the correctness of the kernel compensation technique' is load-bearing. The proof must be shown to extend beyond the local mass matrix to the full discrete curl-curl operator; specifically, it needs to verify that off-diagonal averaging or interpolation on the Yee grid preserves self-adjointness in the appropriate inner product and commutes with the kernel compensation projection without introducing asymmetry that could violate the null-space elimination.
  2. [Kernel compensation and operator construction] Kernel compensation and operator construction: If the off-diagonal handling breaks commutation with the discrete divergence-free constraint enforced by kernel compensation, the HPD property alone may not suffice. An explicit lemma or calculation demonstrating that the compensated eigen-operator remains free of spurious zero eigenvalues for general anisotropy is required to support the claim.
minor comments (2)
  1. [Numerical experiments section] Numerical experiments section: Provide quantitative eigenvalue error tables or convergence rates specifically for cases with strong off-diagonal anisotropy, including direct comparison to the isotropic or diagonal-permittivity baselines to quantify any impact of the new discretization.
  2. [Throughout the manuscript] Throughout the manuscript: Ensure consistent notation for the discrete operators and inner products; clarify how the 3D DFT is applied in the matrix-free setting for the anisotropic case.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive feedback on our manuscript. We address each major comment below and indicate the revisions we will make to strengthen the theoretical foundations of our discretization and solver.

read point-by-point responses

  1. Referee: The central claim that the HPD property of the novel permittivity discretization 'ensures the correctness of the kernel compensation technique' is load-bearing. The proof must be shown to extend beyond the local mass matrix to the full discrete curl-curl operator; specifically, it needs to verify that off-diagonal averaging or interpolation on the Yee grid preserves self-adjointness in the appropriate inner product and commutes with the kernel compensation projection without introducing asymmetry that could violate the null-space elimination.

    Authors: We agree that extending the HPD property to the full operator is essential for the claim. Our proof in the discretization section establishes the HPD property for the permittivity matrix under the novel averaging scheme for off-diagonal entries, which is constructed to be symmetric with respect to the Yee grid staggering. The curl operator in Yee's scheme is known to be self-adjoint, and the composition with a symmetric positive definite mass matrix preserves the overall self-adjointness. We will add a new lemma (Lemma X in the revised manuscript) that explicitly shows the commutation with the kernel compensation projection, ensuring no asymmetry is introduced and the null space is properly eliminated for anisotropic media. revision: partial

  2. Referee: If the off-diagonal handling breaks commutation with the discrete divergence-free constraint enforced by kernel compensation, the HPD property alone may not suffice. An explicit lemma or calculation demonstrating that the compensated eigen-operator remains free of spurious zero eigenvalues for general anisotropy is required to support the claim.

    Authors: The referee correctly identifies a potential gap in the current presentation. While the HPD property guarantees positive definiteness on the range of the projection, we will provide an explicit verification in the revised paper. Specifically, we will include a calculation showing that for general anisotropy, the off-diagonal discretization commutes with the discrete divergence operator in the sense required by kernel compensation, thereby ensuring the compensated operator has no spurious zeros. This will be supported by both theoretical argument and additional numerical checks in the experiments section. revision: partial

Circularity Check

0 steps flagged

Derivation self-contained via independent HPD proof for novel discretization

full rationale

The paper proposes a novel discretization of the permittivity tensor (including off-diagonal terms) under Yee's scheme and states a proof that the resulting discrete operator is Hermitian positive definite. This property is invoked to guarantee that the kernel compensation technique remains valid for the Maxwell eigenproblem. No equations or text in the abstract or description reduce the HPD claim or the compensation validity to a self-definition, a fitted parameter renamed as prediction, or a load-bearing self-citation chain. The discretization and proof constitute additional mathematical content independent of the kernel compensation inputs, so the derivation chain does not collapse by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the applicability of Yee's scheme to anisotropic media and the correctness of the new discretization in producing a Hermitian positive definite matrix; no free parameters or invented entities are mentioned.

axioms (1)
  • domain assumption Yee's scheme framework remains valid when extended to anisotropic media via the proposed discretization of the permittivity tensor.
    The solver employs the kernel compensation technique under the framework of Yee's scheme for the Maxwell eigenproblem in anisotropic media.

pith-pipeline@v0.9.0 · 5388 in / 1317 out tokens · 34990 ms · 2026-05-17T20:53:11.796525+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

19 extracted references · 19 canonical work pages

  1. [1]

    M. Chen. On the solution of circulant linear systems.SIAM J. Numer. Anal., 24:668–683, 1987

    work page 1987

  2. [2]

    Chou, T.-M

    S.-H. Chou, T.-M. Huang, T. Li, J.-W. Lin, and W.-W. Lin. A finite element based fast eigensolver for three dimensional anisotropic photonic crystals.J. Comput. Phys., 386:611–631, 2019

    work page 2019

  3. [3]

    D. C. Dobson. An efficient method for band structure calculations in 2D photonic crystals. J. Comput. Phys., 149(2):363–376, 1999. 22

    work page 1999

  4. [4]

    G. H. Golub and C. F. van Loan.Matrix Computations. JHU Press, fourth edition, 2013

    work page 2013

  5. [5]

    K. M. Ho, C. T. Chan, and C. M. Soukoulis. Existence of a photonic gap in periodic dielectric structures.Phys. Rev. Lett., 65:3152–3155, Dec 1990

    work page 1990

  6. [6]

    Huang, H.-E

    T.-M. Huang, H.-E. Hsieh, W.-W. Lin, and W. Wang. Eigendecomposition of the discrete double-curl operator with application to fast eigensolver for three-dimensional photonic crystals.SIAM J. Matrix Anal. Appl., 34(2):369–391, 2013

    work page 2013

  7. [7]

    Huang, T.-M

    Y.-L. Huang, T.-M. Huang, W.-W. Lin, and W.-C. Wang. A null space free Jacobi- Davidson iteration for Maxwell’s operator.SIAM J. Sci. Comput., 37(1):A1–A29, 2015

    work page 2015

  8. [8]

    C. Jin, Y. Xia, and Y. Xu. Kernel compensation method for Maxwell eigenproblem in photonic crystals with mimetic finite difference discretizations.Numer. Methods Partial Differ. Equations, 41(2):16, 2025. Id/No e23171

    work page 2025

  9. [9]

    J. D. Joannopoulos, S. G. Johnson, J. N. Winn, and R. D. Meade.Photonic Crystals: Molding the Flow of Light (Second Edition). Princeton University Press, 2 edition, 2008

    work page 2008

  10. [10]

    F. Kikuchi. Mixed formulations for finite element analysis of magnetostatic and electro- static problems.Japan J. Appl. Math., 6(2):209–221, 1989

    work page 1989

  11. [11]

    A. V. Knyazev. Toward the optimal preconditioned eigensolver: Locally optimal block preconditioned conjugate gradient method.SIAM J. Sci. Comput., 23(2):517–541, 2001

    work page 2001

  12. [12]

    Lipnikov, G

    K. Lipnikov, G. Manzini, and M. Shashkov. Mimetic finite difference method.J. Comput. Phys., 257:1163–1227, 2014

    work page 2014

  13. [13]

    L. Lu, L. Fu, J. D. Joannopoulos, and M. Soljaˇ ci´ c. Weyl points and line nodes in gyroid photonic crystals.Nature photonics, 7(4):294–299, 2013

    work page 2013

  14. [14]

    Z. Lu, A. Cesmelioglu, J. J. W. Van der Vegt, and Y. Xu. Discontinuous Galerkin ap- proximations for computing electromagnetic Bloch modes in photonic crystals.J. Sci. Comput., 70(2):922–964, 2017

    work page 2017

  15. [15]

    Lu and Y

    Z. Lu and Y. Xu. A parallel eigensolver for photonic crystals discretized by edge finite elements.J. Sci. Comput., 92(3):21, 2022. Id/No 79

    work page 2022

  16. [16]

    X.-L. Lyu, T. Li, T.-M. Huang, J.-W. Lin, W.-W. Lin, and S. Wang. FAME. Fast al- gorithms for Maxwell’s equations for three-dimensional photonic crystals.ACM Trans. Math. Softw., 47(3):24, 2021. Id/No 26

    work page 2021

  17. [17]

    M. J. Mehl, D. Hicks, C. Toher, O. Levy, R. M. Hanson, G. Hart, and S. Curtarolo. The aflow library of crystallographic prototypes: Part 1.Computational Materials Science, 136:S1–S828, 2017

    work page 2017

  18. [18]

    W. C. Sailor, F. M. Mueller, and P. R. Villeneuve. Augmented-plane-wave method for photonic band-gap materials.Phys. Rev. B, 57:8819–8822, Apr 1998

    work page 1998

  19. [19]

    K. S. Yee. Numerical solution of initial boundary value problems involving Maxwell’s equations in isotropic media.IEEE Trans. Antennas Propag., 14(3):302–307, 1966. 23

    work page 1966
