Simulation of Active Soft Nets for Capture of Space Debris

Leone Costi , Dario Izzo This is my paper

Pith reviewed 2026-05-17 20:46 UTC · model grok-4.3

classification 💻 cs.RO
keywords soft robotic netsspace debris captureMuJoCo simulationsliding mode controlEnvisatcompliant netsorbital mechanicsactive debris removal
0
0 comments X

The pith

Soft nets with sliding mode control capture Envisat successfully in all simulated cases.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a MuJoCo-based simulator for soft robotic nets designed to capture space debris such as the large satellite Envisat. The simulator incorporates net dynamics at different compliance levels, contacts between the net and debris plus self-contacts, orbital mechanics, and thruster control on satellites at the net corners, starting from a static rather than ballistic initial state. Results indicate that more compliant nets perform better overall, and when combined with a sliding mode controller they reach 100 percent capture success with larger effective contact area and more contact points.

Core claim

Compliant soft nets, when paired with a sliding mode controller that actuates thrusters on four corner satellites, achieve 100 percent successful capture of Envisat in the simulator while delivering higher effective contact area and a greater number of contact points than stiffer net models.

What carries the argument

MuJoCo simulator that models compliant net dynamics, multi-body contact forces including self-contact, orbital mechanics, and sliding mode control of thrusters on the four corner satellites.

If this is right

  • More compliant net models deliver higher capture performance for large debris objects.
  • Sliding mode control produces reliable capture from static initial configurations.
  • Soft nets produce larger effective contact area and more interaction points with the target.
  • The simulator supports evaluation of control strategies without assuming prior ballistic deployment of the net.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The simulation approach could be extended to test capture of other debris types or alternative net geometries.
  • Real orbital validation would be required to confirm whether the modeled contact behavior translates to actual microgravity conditions.
  • Compliance may provide advantages when operating in the presence of uncertainties such as debris rotation or sensor noise.
  • Similar soft-actuated systems might apply to other space robotics tasks involving wrapping or conforming to irregular targets.

Load-bearing premise

The MuJoCo models of net compliance, contact forces, and orbital dynamics are accurate enough to predict real-world capture behavior.

What would settle it

A physical experiment or higher-fidelity simulation of the net interacting with Envisat that yields a capture success rate below 100 percent or markedly different contact area and point counts.

Figures

Figures reproduced from arXiv: 2511.17266 by Dario Izzo, Leone Costi.

Figure 1
Figure 1. Figure 1: Overview of the simulation tool’s workflow. After an initial scene initialization, both the controller and the orbital dynamics modules update the force applied to the massive bodies in the simulation between every step [PITH_FULL_IMAGE:figures/full_fig_p011_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Schematics of the (A) finite-state machine representing the high-level control for the capture of space debris and of the three implemented states: (B) the orienting phase, (C) the approaching phase, and (D) the capture phase [PITH_FULL_IMAGE:figures/full_fig_p012_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The three phases of the capture of Envisat as a function of the net mechanical model and the controller used: (A) Inextensible edges and PID, (B) Shell and PID, (C) Saint-Venant solid and PID, (D) Inextensible edges and SMC, (E), Shell and SMC (F) Saint-Venant solid and SMC. The starting position of all cases is the same, and the starting relative velocity between the net and Envisat is 0 [PITH_FULL_IMAGE… view at source ↗
Figure 4
Figure 4. Figure 4: Trajectories of the four satellites with respect to the target: (A) isometric view, projection on the (B) xy plane and (C) xz plane, and (D) z position as a function of time. Data about the thrusters include: (E) mass of the satellites at the corners of the net and (F) thrust generated by each satellite as a function of time [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Time needed to achieve capture as a function of the starting positions of the for each control modality and the model used to characterize the net: (A) Inextensible edges and PID, (B) Shell and PID, (C) Saint-Venant solid and PID, (D) Inextensible edges and SMC, (E), Shell and SMC (F) Saint-Venant solid and SMC. The size of the marker is proportional to the effective area of the net upon contact with the t… view at source ↗
Figure 6
Figure 6. Figure 6: Fuel mass required by the manouver as a function of the starting positions of the for each control modality and the model used to characterize the net: (A) Inextensible edges and PID, (B) Shell and PID, (C) Saint-Venant solid and PID, (D) Inextensible edges and SMC, (E), Shell and SMC (F) Saint-Venant solid and SMC. The size of the marker is proportional to the number of contact points between the net and … view at source ↗
Figure 7
Figure 7. Figure 7: Quantitative data: (A) net internal forces, (B) applied thrust, (C) point-masses velocities, and (D) point-masses accelerations. Plots are in logarithmic scale above a selected threshold, indicated by the gray dashed line [PITH_FULL_IMAGE:figures/full_fig_p017_7.png] view at source ↗
read the original abstract

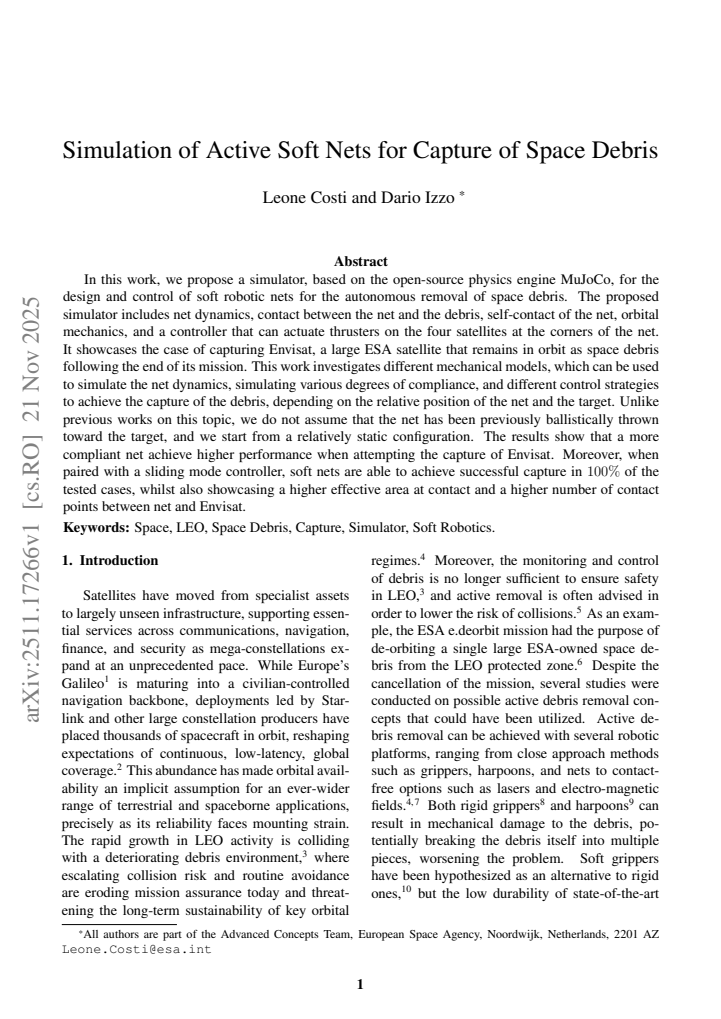

In this work, we propose a simulator, based on the open-source physics engine MuJoCo, for the design and control of soft robotic nets for the autonomous removal of space debris. The proposed simulator includes net dynamics, contact between the net and the debris, self-contact of the net, orbital mechanics, and a controller that can actuate thrusters on the four satellites at the corners of the net. It showcases the case of capturing Envisat, a large ESA satellite that remains in orbit as space debris following the end of its mission. This work investigates different mechanical models, which can be used to simulate the net dynamics, simulating various degrees of compliance, and different control strategies to achieve the capture of the debris, depending on the relative position of the net and the target. Unlike previous works on this topic, we do not assume that the net has been previously ballistically thrown toward the target, and we start from a relatively static configuration. The results show that a more compliant net achieves higher performance when attempting the capture of Envisat. Moreover, when paired with a sliding mode controller, soft nets are able to achieve successful capture in 100% of the tested cases, whilst also showcasing a higher effective area at contact and a higher number of contact points between net and Envisat.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper introduces a MuJoCo-based simulator for active soft robotic nets to capture space debris such as Envisat. It incorporates net dynamics, self-contact, debris interaction, orbital mechanics, and thruster control on corner satellites. Starting from a static configuration rather than ballistic deployment, the work compares nets of varying mechanical compliance and evaluates control strategies, reporting that more compliant nets yield higher effective contact area and contact-point counts, and that pairing them with a sliding-mode controller achieves 100% capture success across tested cases.

Significance. If the MuJoCo models prove representative of real orbital conditions, the simulator offers a practical open-source platform for exploring compliant-net designs and controllers for active debris removal, highlighting advantages of mechanical compliance without presupposing prior ballistic deployment. The forward-simulation approach and explicit comparison of compliance levels constitute a useful contribution to space-robotics modeling.

major comments (1)
  1. Abstract and results: The headline performance metrics (100% capture success with sliding-mode control, higher effective area, and higher contact-point counts for compliant nets) are generated entirely inside the MuJoCo physics engine. The manuscript provides no calibration or validation of stiffness, damping, contact-force, or orbital-dynamics parameters against laboratory net-deployment tests, vacuum tether experiments, or analytical orbital-net solutions, so the reported differences may be sensitive to simulator-specific approximations that do not hold in micro-gravity vacuum conditions.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback. The comment correctly identifies that the work is a pure simulation study without experimental calibration. We address this point directly below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: Abstract and results: The headline performance metrics (100% capture success with sliding-mode control, higher effective area, and higher contact-point counts for compliant nets) are generated entirely inside the MuJoCo physics engine. The manuscript provides no calibration or validation of stiffness, damping, contact-force, or orbital-dynamics parameters against laboratory net-deployment tests, vacuum tether experiments, or analytical orbital-net solutions, so the reported differences may be sensitive to simulator-specific approximations that do not hold in micro-gravity vacuum conditions.

    Authors: We agree that the absence of experimental validation or calibration against physical tests is a limitation of the current manuscript. Parameter values for stiffness, damping, and contact forces were drawn from typical ranges reported in the soft-robotics and space-debris literature and then varied systematically to create the compliance levels under study; orbital dynamics follow standard two-body models implemented in MuJoCo. Because the primary goal is a controlled, apples-to-apples comparison of net compliance and control strategies inside one consistent simulator, absolute numerical predictions were not claimed. We will add a new subsection on model assumptions and parameter selection, together with an explicit limitations paragraph that states the need for future micro-gravity or vacuum-chamber validation. This revision will temper the presentation of the 100 % success figure and the contact-area comparisons. revision: yes

Circularity Check

0 steps flagged

No significant circularity: results are direct simulation outputs

full rationale

The paper is a forward simulation study using MuJoCo to model net dynamics, contacts, orbital mechanics, and control for Envisat capture. Performance claims (100% success with sliding-mode control, higher effective area and contact points for compliant nets) are generated by running the physics engine under varied compliance and control parameters. No algebraic derivation chain exists that reduces a claimed prediction to its own inputs by construction, no fitted parameters are relabeled as predictions, and no load-bearing self-citations or uniqueness theorems are invoked to force the central results. The work remains self-contained as an empirical exploration inside the simulator, with no evidence of the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central results rest on the fidelity of the MuJoCo soft-body and contact models plus the chosen compliance parameters; no explicit free parameters, axioms, or invented entities are stated in the abstract.
