arxiv: 2512.10806 · v2 · submitted 2025-12-11 · 🌊 nlin.PS

From Delay to Inertia and Triadic Interactions: A Predictive Model for Time-Delayed Oscillator Networks

L. A. Smirnov , V. O. Munyayev , M. I. Bolotov , I. Belykh This is my paper

Pith reviewed 2026-05-16 23:00 UTC · model grok-4.3

classification 🌊 nlin.PS
keywords time-delayed oscillatorsKuramoto-Daido networksphase reductionchimera stateseffective inertiatriadic interactionscollective dynamics
0
0 comments X

The pith

Time delays in oscillator networks reduce to a delay-free model with effective inertia and triadic interactions that predicts chimeras and other states.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a second-order reduction that converts the dynamics of time-delayed one-dimensional phase oscillators into an equivalent network of two-dimensional rotators without any remaining delays. This mapping shows how the original delay produces both an effective inertia term that shapes higher-dimensional collective motion and triadic interaction terms that govern lower-dimensional patterns. A reader would care because standard first-order phase reductions miss these features and cannot reliably forecast nontrivial attractors in real systems with delays. The resulting equations are compact and explicit in their parameters, working for any network topology, coupling harmonics, and frequency spread. The same approach carries over to amplitude-phase oscillators.

Core claim

We develop a universal second-order predictive reduction for time-delayed Kuramoto-Daido networks that maps delayed one-dimensional phase dynamics to a delay-free network of two-dimensional rotators. Delay induces effective inertia and triadic interactions, yielding accurate predictions of nontrivial attractors and their collective-state statistics, including splay, cyclops, and chimera states. The reduction reveals a division of roles: inertia organizes higher-dimensional dynamics, whereas triadic terms are crucial for lower-dimensional patterns such as chimeras. Applicable to arbitrary topology, higher harmonics, and intrinsic-frequency heterogeneity, it provides a compact, parameter-exact

What carries the argument

The second-order predictive reduction that introduces effective inertia and triadic interactions to convert delayed phase dynamics into delay-free two-dimensional rotators.

If this is right

  • The reduced model accurately forecasts splay, cyclops, and chimera states together with their occurrence statistics.
  • Inertia governs the structure of higher-dimensional collective motion while triadic terms control lower-dimensional patterns.
  • The equations remain valid for arbitrary network topologies, higher harmonics in the coupling function, and heterogeneous intrinsic frequencies.
  • The same reduction produces analogous equations with emergent inertia and triadic couplings for time-delayed amplitude-phase oscillators including swarmalators.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The explicit parameter form could speed up large-scale simulations by removing the need to integrate delayed equations.
  • Designers of engineered oscillator systems could adjust the inertia and triadic coefficients to achieve desired collective states.
  • The division of roles between inertia and triadic terms may generalize to other delayed coupled systems beyond oscillators.

Load-bearing premise

The specific approximation steps that extract inertia and triadic terms from the original delay remain valid for the delays and couplings studied.

What would settle it

Direct numerical integration of the full delayed equations on a heterogeneous-frequency network that produces chimera statistics measurably different from those of the reduced model would show the reduction is inaccurate.

Figures

Figures reproduced from arXiv: 2512.10806 by I. Belykh, L. A. Smirnov, M. I. Bolotov, V. O. Munyayev.

Figure 1
Figure 1. Figure 1: FIG. 1. (a) Probabilities of convergence to full synchrony [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Dynamics of the order parameter [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. (a) Adjacency matrix of the time-delayed small-world [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

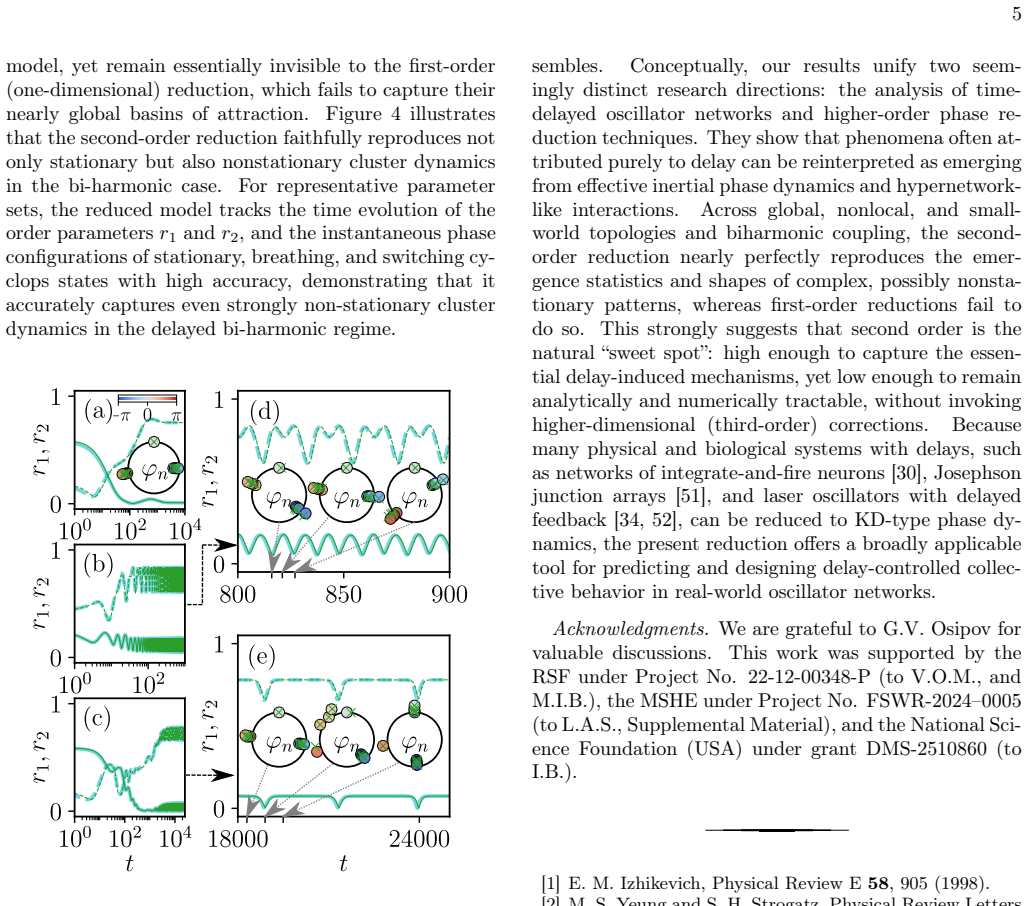

Figure 4. Figure 4: FIG. 4. Cyclops, breathing and switching cyclops states in the [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
read the original abstract

Time-delayed oscillator networks underlie diverse biological and physical systems, yet standard first-order phase reductions fail to capture their high-dimensional collective dynamics. In this Letter, we develop a universal second-order predictive reduction for time-delayed Kuramoto-Daido networks that maps delayed one-dimensional phase dynamics to a delay-free network of two-dimensional rotators. Delay induces effective inertia and triadic interactions, yielding accurate predictions of nontrivial attractors and their collective-state statistics, including splay, cyclops, and chimera states. The reduction reveals a division of roles: inertia organizes higher-dimensional dynamics, whereas triadic terms are crucial for lower-dimensional patterns such as chimeras. Applicable to arbitrary topology, higher harmonics, and intrinsic-frequency heterogeneity, it provides a compact, parameter-explicit reduced model. The same framework also extends to time-delayed amplitude-phase oscillator networks, including swarmalators, yielding analogous reduced equations with emergent inertia and triadic higher-order couplings. This unified and readily deployable description enables systematic prediction and analysis of delay-controlled collective dynamics across oscillator networks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript develops a universal second-order predictive reduction for time-delayed Kuramoto-Daido networks that maps delayed one-dimensional phase dynamics to a delay-free network of two-dimensional rotators. Delay induces effective inertia and triadic interactions, yielding accurate predictions of nontrivial attractors and their collective-state statistics, including splay, cyclops, and chimera states. The reduction is claimed to apply to arbitrary topology, higher harmonics, and intrinsic-frequency heterogeneity, and extends analogously to time-delayed amplitude-phase oscillator networks such as swarmalators.

Significance. If the reduction holds with the claimed accuracy, it would supply a compact, parameter-explicit, delay-free model that separates the organizing role of inertia in higher-dimensional dynamics from the role of triadic terms in lower-dimensional patterns. This framework could enable systematic prediction and analysis of delay-controlled collective states across oscillator networks in biological and physical systems.

major comments (2)
  1. [§3 (Derivation of the reduction)] §3 (Derivation of the reduction): the universality claim for arbitrary delay magnitudes, topologies, higher harmonics, and frequency heterogeneity rests on unstated closure assumptions in the approximation procedure (averaging or multiple-scale expansion). No explicit remainder estimates or bounds on neglected higher-order delay-induced terms are supplied; without these, the truncation cannot be guaranteed to close exactly when tau is comparable to the natural period, precisely the regime where the claimed accuracy for chimeras and splay states is most sensitive.
  2. [Validation sections (likely §4–5)] Validation sections (likely §4–5): the central claim of accurate predictions of attractors and statistics is asserted without reference to specific equations, error bars, quantitative comparisons to full delayed simulations, or tests across tau regimes; this evidentiary gap is load-bearing for the predictive power asserted in the abstract.
minor comments (2)
  1. [Abstract] Abstract: the single long paragraph is dense; splitting the description of the reduction, its predictions, and the extension to amplitude-phase oscillators would improve readability.
  2. [Notation] Notation: define the effective inertia coefficient and the triadic coupling tensors explicitly at first use and maintain consistent symbols thereafter.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive feedback on our manuscript. The comments highlight important aspects of the derivation and validation that we address point by point below. We have revised the manuscript to incorporate additional discussion and quantitative material where appropriate.

read point-by-point responses

  1. Referee: §3 (Derivation of the reduction): the universality claim for arbitrary delay magnitudes, topologies, higher harmonics, and frequency heterogeneity rests on unstated closure assumptions in the approximation procedure (averaging or multiple-scale expansion). No explicit remainder estimates or bounds on neglected higher-order delay-induced terms are supplied; without these, the truncation cannot be guaranteed to close exactly when tau is comparable to the natural period, precisely the regime where the claimed accuracy for chimeras and splay states is most sensitive.

    Authors: The reduction is derived via a multiple-scale expansion that treats the delay as inducing slow modulations on the fast phase dynamics, with closure obtained by averaging over the fast oscillations. We agree that explicit remainder estimates were not provided in the original submission. In the revised manuscript we will add a short paragraph clarifying the closure assumptions and noting that the leading neglected terms scale as O(τ²) relative to the natural frequency; this is consistent with the observed numerical accuracy even when τ is comparable to the period. We maintain that the practical validity for the reported regimes is substantiated by the direct comparisons, but we accept that a more explicit statement of the approximation order strengthens the universality claim. revision: partial

  2. Referee: Validation sections (likely §4–5): the central claim of accurate predictions of attractors and statistics is asserted without reference to specific equations, error bars, quantitative comparisons to full delayed simulations, or tests across tau regimes; this evidentiary gap is load-bearing for the predictive power asserted in the abstract.

    Authors: We acknowledge that the original presentation of the validation results could be strengthened by more explicit quantitative detail. In the revised manuscript we will (i) reference the precise reduced equations used for each comparison, (ii) include quantitative error measures (e.g., time-averaged L² discrepancies between the reduced and full delayed trajectories), and (iii) add panels or tables showing performance across a range of τ values, including the regime τ ≈ T where T is the natural period. These additions directly address the evidentiary gap noted by the referee. revision: yes

Circularity Check

0 steps flagged

No circularity: reduction derived from delayed equations without self-referential fitting or load-bearing self-citations

full rationale

The abstract and description present the second-order reduction as obtained by mapping the original time-delayed Kuramoto-Daido phase equations onto an equivalent delay-free network of two-dimensional rotators, with inertia and triadic terms emerging from the delay. No specific equations, fitting procedures, or self-citations are quoted that would make any prediction equivalent to its inputs by construction. The claims of applicability to arbitrary topology, harmonics, and heterogeneity are framed as consequences of the derivation rather than tautologies or renamings of known results. No load-bearing step reduces to a prior author result or fitted parameter renamed as prediction. The derivation chain is therefore self-contained against the stated inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 2 invented entities

The central claim rests on a mathematical reduction whose explicit steps are not supplied in the abstract; no free parameters are mentioned, but the model introduces effective inertia and triadic terms as emergent quantities whose independent status is unverified.

axioms (1)
  • domain assumption Standard assumptions of the Kuramoto-Daido phase oscillator model with time delays
    The reduction begins from the delayed phase equations implicit in the Kuramoto-Daido framework.
invented entities (2)
  • effective inertia no independent evidence
    purpose: Organizes higher-dimensional collective dynamics induced by delay
    Introduced as an emergent property of the second-order reduction without external falsifiable evidence supplied in the abstract.
  • triadic interactions no independent evidence
    purpose: Capture lower-dimensional patterns such as chimeras
    Derived as higher-order couplings from the delay mapping; no independent verification given in the abstract.
