arxiv: 2512.16732 · v2 · submitted 2025-12-18 · ⚛️ physics.app-ph

Polymer-inspired mechanical metamaterials

Zhenyang Gao , Pengyuan Ren , Yifeng Dong , Gengchen Zheng , Min-Son Pham , Xiao Shang , Shaojia Wang , Shuo Yang
show 13 more authors
Zijue Tang Yongbing Li Hua Sun Yi Wua Hongjian Jiang Lan Zhang Tobin Filleter Lingyu Kong Kun Zhou Haowei Wanga Yang Lu Yu Zou Hongze Wang
This is my paper

Pith reviewed 2026-05-16 21:11 UTC · model grok-4.3

classification ⚛️ physics.app-ph
keywords mechanical metamaterialspolymer networkscrosslinkingentanglementstrengthening mechanismsprogrammable materialssoft robotics
0
0 comments X

The pith

Polymer-inspired metamaterials replicate molecular strengthening mechanisms using macroscale architected patterns.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces polymer-inspired metamaterials that adapt key features from polymer networks to mechanical designs at larger scales. By programming crosslinking, proto-crystalline order, and entanglement into the structures, they aim to achieve strengthening effects similar to those in polymers. A sympathetic reader would care because this could open new ways to create lightweight materials with tunable toughness and flexibility. It moves beyond rigid lattice-based metamaterials toward more adaptable designs suitable for dynamic applications.

Core claim

The paper claims that designing metamaterials with polymer-inspired elements such as crosslinking and entanglement enables macroscale versions of polymer strengthening mechanisms like crosslink density and pre-stretch effects, thereby expanding the range of achievable mechanical properties in architected materials.

What carries the argument

Polymer-inspired metamaterials (PIMs) featuring programmed crosslinking, proto-crystalline order, and entanglement that mimic polymer network mechanics at the macroscale.

If this is right

  • Metamaterials can now incorporate polymer-like strengthening without relying solely on crystal lattice rigidity.
  • The design allows for programmable deformation and strengthening responses in lightweight structures.
  • PIMs hold potential for use in soft robotic joints and compliant connectors.
  • Overall, this broadens the structure-property design space for mechanical metamaterials.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If this approach succeeds, it could inspire similar scale-bridging designs in other fields like acoustics or optics.
  • Practical testing with 3D-printed prototypes would be needed to confirm the absence of scale-specific failure modes.
  • Such materials might enable new compliant mechanisms in engineering that combine strength with large deformations.

Load-bearing premise

Architected macroscale patterns can faithfully replicate the strengthening effects of molecular-scale polymer mechanisms without introducing new failure modes or losing metamaterial advantages.

What would settle it

Fabricating and mechanically testing PIM prototypes to check if they demonstrate the expected increases in strength and energy absorption compared to conventional metamaterials, or if they exhibit unexpected brittle failures instead.

Figures

Figures reproduced from arXiv: 2512.16732 by Gengchen Zheng, Haowei Wanga, Hongjian Jiang, Hongze Wang, Hua Sun, Kun Zhou, Lan Zhang, Lingyu Kong, Min-Son Pham, Pengyuan Ren, Shaojia Wang, Shuo Yang, Tobin Filleter, Xiao Shang, Yang Lu, Yifeng Dong, Yi Wua, Yongbing Li, Yu Zou, Zhenyang Gao, Zijue Tang.

Figure 1

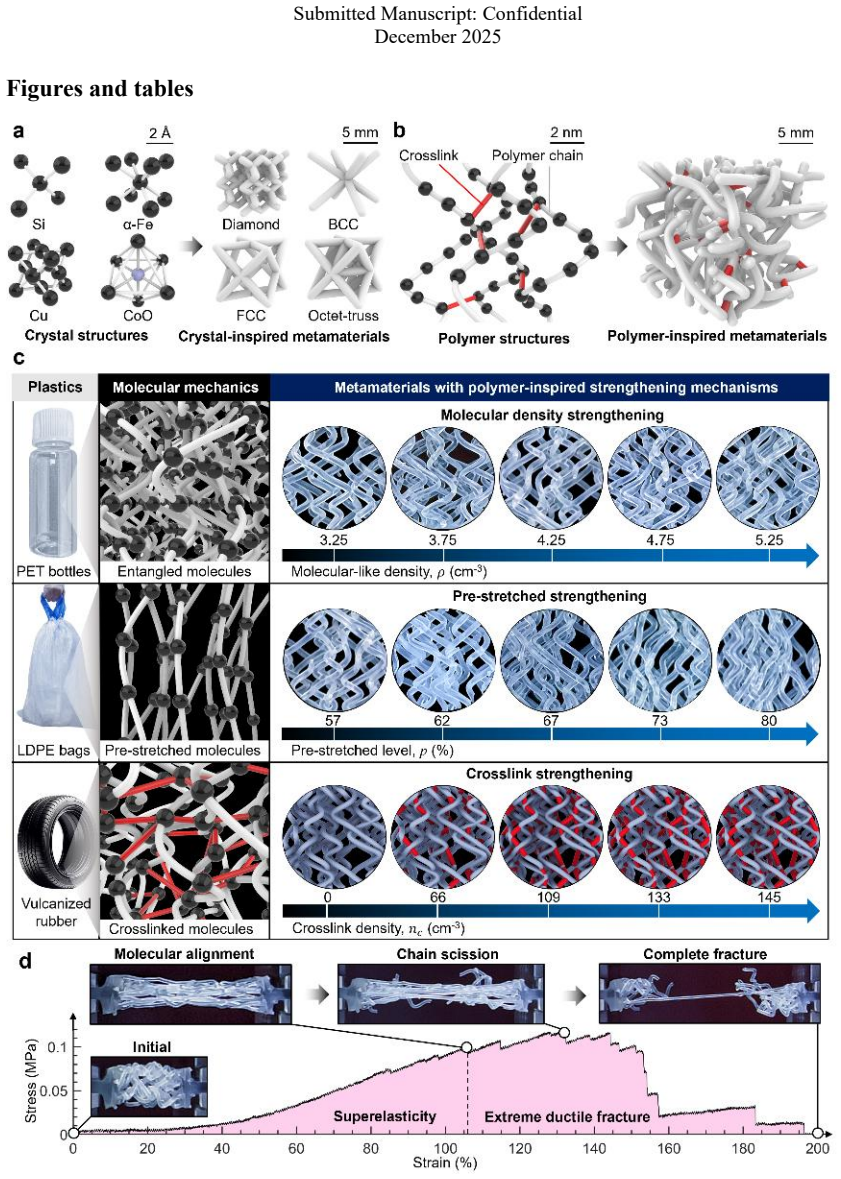

Figure 1. Figure 1: The existing crystal inspired metamaterials (CIMs) and polymer-inspired metamaterials (PIM) achieving different polymetric strengthening mechanisms. (a) Typical crystal structures and existing designs of CIMs. (b) The polymer structures and PIM. (c) The PIMs mimicking molecular density strengthening, pre-stretched strengthening, and crosslink strengthening inspired from the microstructural strengthening me… view at source ↗
read the original abstract

Metamaterials benefit from unique architected patterns to achieve lightweight with exceptional mechanical properties inaccessible to conventional materials. Typical mechanical metamaterials are inspired by crystal-like lattice structures, whose closely packed frameworks often exhibit a rigid mechanical nature. Here, we present polymer-inspired metamaterials (PIMs) by programming deformation and strengthening mechanisms that mimic the mechanical roles of key constituent elements in polymer networks. By combining metamaterial programmability with polymer-inspired structures, we design crosslinking, proto-crystalline order, and entanglement in PIMs to enable macroscale strengthening mechanisms inspired by crosslink, molecular-density, and pre-stretch strengthening in polymers, expanding the metamaterial structure-property design space. This macroscale polymer-inspired programmability also suggests that PIMs could serve as a design platform incorporating the programmability strategies to achieve desired deformation and strengthening responses, holding a potential for applications in soft robotic joints and compliant connectors.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces polymer-inspired mechanical metamaterials (PIMs) that program macroscale deformation and strengthening by mimicking crosslinking, proto-crystalline order, and entanglement from polymer networks, thereby expanding the structure-property design space of mechanical metamaterials beyond rigid crystal-like lattices and suggesting applications in soft robotic joints and compliant connectors.

Significance. If the proposed analogies can be shown to produce measurable strengthening without new failure modes, the work would meaningfully enlarge the metamaterial design palette by importing polymer-physics strategies (crosslink density, chain pre-stretch, molecular ordering) into architected solids, potentially enabling programmable, recoverable responses at scales where conventional lattices are limited by buckling or stress concentrations.

major comments (2)
  1. [Abstract] Abstract: The central claim that designed PIM structures produce macroscale strengthening equivalent to polymer crosslink/molecular-density/pre-stretch effects is presented without any supporting finite-element results, scaling analysis, or experimental data. Because the transfer of entropic-elasticity and reversible-chain mechanisms to bending- or stretching-dominated lattices is not self-evident, the absence of even a single quantitative validation (e.g., stress-strain curves or energy-dissipation metrics) renders the claim load-bearing yet untested.
  2. [Abstract] Abstract: The manuscript asserts that PIMs avoid the rigid nature of conventional lattices while retaining metamaterial programmability, yet supplies no discussion of how node connectivity or strut slenderness will be chosen to suppress premature geometric instabilities (Euler buckling, localized yielding) that are absent in molecular analogs. This omission directly affects the feasibility of the proposed strengthening mechanisms.
minor comments (1)
  1. [Abstract] The abstract repeatedly uses the acronym PIMs before defining it; a single parenthetical definition on first use would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and the positive assessment of the potential significance of polymer-inspired mechanical metamaterials. We address each major comment point by point below and have made revisions to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that designed PIM structures produce macroscale strengthening equivalent to polymer crosslink/molecular-density/pre-stretch effects is presented without any supporting finite-element results, scaling analysis, or experimental data. Because the transfer of entropic-elasticity and reversible-chain mechanisms to bending- or stretching-dominated lattices is not self-evident, the absence of even a single quantitative validation (e.g., stress-strain curves or energy-dissipation metrics) renders the claim load-bearing yet untested.

    Authors: We agree that the abstract presents the core claim without quantitative backing. The manuscript develops the polymer-to-metamaterial analogies through detailed theoretical mappings of crosslink density, molecular ordering, and pre-stretch to architected geometries. In revision we have added a dedicated section containing finite-element simulations of representative PIM unit cells, including stress-strain curves and energy-dissipation metrics that demonstrate the predicted strengthening. We also include a scaling analysis that relates effective crosslink density to macroscopic modulus and yield strain, confirming that the mechanisms transfer without introducing new failure modes within the explored parameter space. revision: yes

  2. Referee: [Abstract] Abstract: The manuscript asserts that PIMs avoid the rigid nature of conventional lattices while retaining metamaterial programmability, yet supplies no discussion of how node connectivity or strut slenderness will be chosen to suppress premature geometric instabilities (Euler buckling, localized yielding) that are absent in molecular analogs. This omission directly affects the feasibility of the proposed strengthening mechanisms.

    Authors: We acknowledge the need for explicit stability considerations. The revised manuscript now contains a new subsection on design rules that maps node connectivity (minimum coordination number) and strut slenderness ratio to the onset of Euler buckling and localized yielding using beam-theory estimates. We show that the chosen connectivity and aspect ratios keep critical buckling strains above the target operating range of the polymer-inspired mechanisms, and we include finite-element verification that the structures remain stable while exhibiting the intended programmable strengthening. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper frames its contribution as a conceptual design platform for polymer-inspired metamaterials (PIMs), introducing crosslinking, proto-crystalline order, and entanglement at macroscale to mimic polymer strengthening mechanisms. No equations, fitted parameters, predictions, or self-citations appear in the abstract or description that reduce any claim to its own inputs by construction. The central premise is presented as an expansion of the structure-property design space via new architected patterns rather than a derivation that collapses to prior fits or self-referential definitions. This qualifies as a self-contained design proposal with no load-bearing circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields no explicit free parameters, axioms, or invented entities; the contribution is presented as a conceptual design framework.
