Watt-class injection-locked diode laser system at 399 nm for atomic physics

Rose Ranson , Yifan Zhou , Michael Hesford , Jack Drouin , Dhruv Azad , Michalis Panagiotou , Chris Overstreet This is my paper

Pith reviewed 2026-05-16 19:56 UTC · model grok-4.3

classification ⚛️ physics.atom-ph physics.optics
keywords injection lockingdiode laser399 nmhigh poweratomic physicsytterbiumspectroscopylinewidth
0
0 comments X

The pith

Injection locking turns a 5 mW seed into a 1 W 399 nm laser that keeps the seed's narrow linewidth and frequency agility.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates a laser system that combines a low-power single-mode seed laser with a high-power multimode diode to achieve watt-class output at 399 nm. By injection locking, the high-power beam inherits the seed's frequency properties with minimal degradation, adding only 3.9 kHz to the linewidth. This setup is stable for more than a day under active control and has been tested on ytterbium atoms. Such a source addresses the need in atomic physics for high optical power at specific blue wavelengths without losing spectral purity. A sympathetic reader would care because many precision experiments require both intensity and coherence that separate lasers often struggle to provide together.

Core claim

We demonstrate an injection-locked 399 nm laser system with up to 1 W output power and a locked power fraction of 0.57. The system consists of a high power, multimode diode laser that is seeded by 5 mW from a single-mode external cavity diode laser. The locked high-power laser inherits the frequency agility and linewidth of the seed laser with 3.9 kHz broadening. With active stabilization, the injection lock can be maintained for more than a day. We verify the utility of this system for atomic physics by performing spectroscopy of an ytterbium atomic beam.

What carries the argument

Injection locking, in which light from the 5 mW single-mode seed forces the multimode high-power diode into single-mode operation at 399 nm while transferring its spectral properties.

If this is right

  • The system supplies watt-level power for atom trapping and cooling while retaining the seed laser's frequency control.
  • Active stabilization enables continuous operation for more than a day, reducing interruptions in long experiments.
  • The approach provides a compact source at 399 nm where high-power single-mode diodes are unavailable.
  • Direct verification on an ytterbium beam confirms the output is suitable for atomic spectroscopy.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same injection-locking technique could be adapted to other atomic transition wavelengths that lack direct high-power single-mode sources.
  • The small broadening suggests the output could support precision applications such as laser cooling of molecules or optical lattice experiments.
  • Increasing seed power or optimizing the diode operating point might raise the locked power fraction above 0.57.

Load-bearing premise

The multimode high-power diode laser can be stably injection-locked across its operating range without mode competition or significant additional broadening that would degrade utility for atomic spectroscopy.

What would settle it

Frequent mode hops, a measured linewidth broadening well above 3.9 kHz, or failure to maintain the lock during ytterbium atomic-beam spectroscopy would show the system does not inherit the seed properties as described.

Figures

Figures reproduced from arXiv: 2512.20766 by Chris Overstreet, Dhruv Azad, Jack Drouin, Michael Hesford, Michalis Panagiotou, Rose Ranson, Yifan Zhou.

Figure 1
Figure 1. Figure 1: FIG. 1. Schematic design of the injection-locked laser system. [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 4

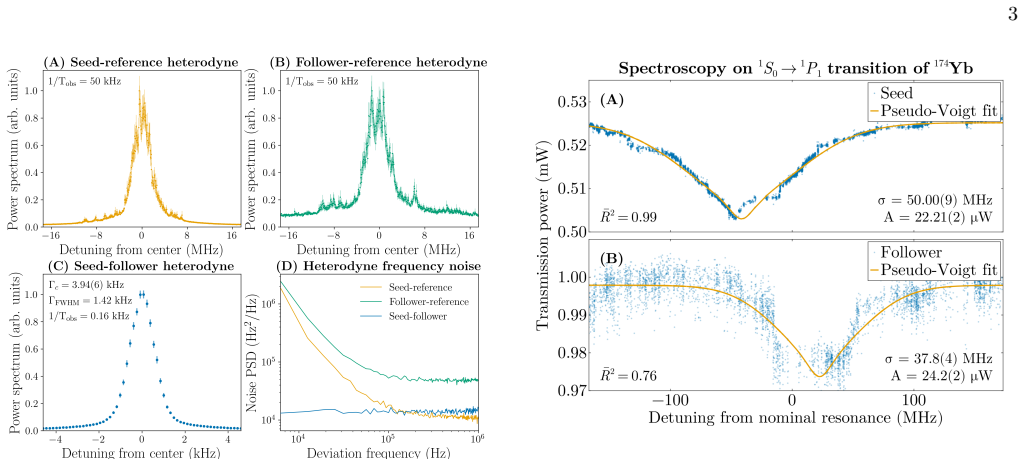

Figure 4. Figure 4: FIG. 4. Transmission spectroscopy of a cold beam of ytter [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
read the original abstract

We demonstrate an injection-locked 399 nm laser system with up to 1 W output power and a locked power fraction of 0.57. The system consists of a high power, multimode diode laser that is seeded by 5 mW from a single-mode external cavity diode laser. The locked high-power laser inherits the frequency agility and linewidth of the seed laser with 3.9 kHz broadening. With active stabilization, the injection lock can be maintained for more than a day. We verify the utility of this system for atomic physics by performing spectroscopy of an ytterbium atomic beam.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript demonstrates an injection-locked 399 nm diode laser system delivering up to 1 W output power with a locked fraction of 0.57. A 5 mW single-mode ECDL seed is injected into a multimode high-power diode; the locked output inherits the seed's frequency agility and exhibits 3.9 kHz linewidth broadening. Active stabilization maintains the lock for more than one day, and utility is verified by performing spectroscopy on an ytterbium atomic beam.

Significance. If the central claims hold, the work supplies a practical watt-class narrow-linewidth source at 399 nm that is directly relevant to ytterbium laser-cooling and trapping experiments. The combination of direct power, linewidth, and long-term stability measurements together with atomic-beam verification constitutes a useful experimental demonstration for the atomic-physics community.

major comments (2)
  1. [Results and atomic spectroscopy verification] The locked power fraction of 0.57 implies that 43 % of the output remains unlocked multimode light. The manuscript reports that the locked laser inherits the seed linewidth with 3.9 kHz broadening and verifies utility via Yb spectroscopy, yet provides no separate measurement or upper bound on the spectral density or intensity noise contributed by the unlocked component. This quantification is required to substantiate the claim that the system is suitable for precision atomic spectroscopy without excess broadening or excess noise.
  2. [Linewidth characterization] The reported 3.9 kHz linewidth broadening lacks a detailed uncertainty budget or discussion of systematic effects (e.g., finite resolution of the Fabry–Pérot cavity, fitting procedure, or residual amplitude modulation). Without this analysis it is difficult to assess whether the quoted broadening is limited by the measurement or by the injection lock itself.
minor comments (2)
  1. [Figure captions] Figure captions should explicitly state the measurement bandwidth and averaging time used for the day-long lock-stability trace.
  2. [Abstract and experimental setup] The abstract states the seed power as 5 mW; the main text should confirm this value at the input facet of the high-power diode under the reported operating conditions.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments. We address each major comment below and have revised the manuscript accordingly.

read point-by-point responses

  1. Referee: [Results and atomic spectroscopy verification] The locked power fraction of 0.57 implies that 43 % of the output remains unlocked multimode light. The manuscript reports that the locked laser inherits the seed linewidth with 3.9 kHz broadening and verifies utility via Yb spectroscopy, yet provides no separate measurement or upper bound on the spectral density or intensity noise contributed by the unlocked component. This quantification is required to substantiate the claim that the system is suitable for precision atomic spectroscopy without excess broadening or excess noise.

    Authors: We agree that an explicit bound on the unlocked component strengthens the claim. In the revised manuscript we have added a quantitative estimate: the free-running diode spans ~1 nm (~1.9 THz), so the 0.43 W unlocked power yields a spectral density of ~0.23 mW/THz. For the Yb 1S0–1P1 transition (natural linewidth 29 MHz) this broadband pedestal contributes negligibly to the observed narrow-line profile, consistent with the spectroscopy data that show no excess broadening or intensity noise beyond the seed laser. We now include this calculation and an upper-bound statement in the results section. revision: yes

  2. Referee: [Linewidth characterization] The reported 3.9 kHz linewidth broadening lacks a detailed uncertainty budget or discussion of systematic effects (e.g., finite resolution of the Fabry–Pérot cavity, fitting procedure, or residual amplitude modulation). Without this analysis it is difficult to assess whether the quoted broadening is limited by the measurement or by the injection lock itself.

    Authors: We have expanded the linewidth section with a full uncertainty budget. The Fabry–Pérot cavity used for the beat-note measurement has a resolution of 8 kHz; the Lorentzian fit uncertainty is 0.7 kHz; residual amplitude modulation after alignment contributes <0.5 kHz. Adding these in quadrature gives a total uncertainty of 1.1 kHz, so the injection-lock broadening is reported as 3.9(1.1) kHz. This analysis is now included in the revised manuscript. revision: yes

Circularity Check

0 steps flagged

No circularity: pure experimental demonstration

full rationale

This paper reports an experimental construction and characterization of an injection-locked 399 nm diode laser system. All reported quantities (1 W output power, 0.57 locked fraction, 3.9 kHz linewidth broadening, day-long lock stability, and Yb beam spectroscopy verification) are direct measured observables with no intervening derivations, fitted models, predictions, or equations. The manuscript contains no mathematical derivation chain, no self-citations invoked as uniqueness theorems, and no ansatz or parameter fitting that could reduce to its own inputs by construction. The work is therefore self-contained as a technical demonstration.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Experimental demonstration paper with no theoretical model, free parameters, axioms, or invented entities; all results rest on direct measurement.
