Broadband THz spectroscopy system beyond 25 THz using BNA crystals and a tunable single-ring-fiber compressor

(2) Max Planck Institute for the Science of Light; 3; 3); (3) Department of Physics; 4); 4) ((1) University of Ottawa; (4) National Research Council Canada; 5); (5) Integrated center for nanostructured films); Angela Gamouras (1

arxiv: 2601.11764 · v2 · submitted 2026-01-16 · ⚛️ physics.optics

Broadband THz spectroscopy system beyond 25 THz using BNA crystals and a tunable single-ring-fiber compressor

Wei Cui (1) , Aswin Vishnuradhan (1) , Markus Lippl (2 , 3) , Eeswar Kumar Yalavarthi (1) , Angela Gamouras (1 , 4) , Nicolas Joly (2

show 10 more authors

3 5) Jean-Michel M\'enard (1 4) ((1) University of Ottawa Department of Physics (2) Max Planck Institute for the Science of Light (3) Department of Physics University of Erlangen-N\"urnberg (4) National Research Council Canada (5) Integrated center for nanostructured films)

This is my paper

Pith reviewed 2026-05-16 12:56 UTC · model grok-4.3

classification ⚛️ physics.optics

keywords terahertz spectroscopyBNA crystalhollow-core fiberpulse compressionbroadband THznonlinear opticsTHz time-domain spectroscopy

0 comments

The pith

A THz time-domain spectroscopy system using BNA crystals and 31 fs compressed near-infrared pulses reaches beyond 25 THz and covers the 5-15 THz gap.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a practical method for broadband terahertz time-domain spectroscopy that fills the difficult 5-15 THz region and extends past 25 THz. It does so by driving nonlinear processes in an organic BNA crystal with pulses from a common Yb laser after spectral broadening and compression inside a gas-filled hollow-core fiber. This approach removes the need for specialized mid-infrared sources and makes high-frequency THz measurements feasible with standard ultrafast lasers. A sympathetic reader cares because many material and chemical studies require access to exactly these frequencies.

Core claim

The system exploits nonlinear interactions within the BNA crystal to generate and detect THz radiation upon excitation by a near-infrared pulse centered at 1.03 micrometers. The pulse is first spectrally broadened in a gas-filled single-ring hollow-core photonic crystal fiber and then compressed to durations as short as 31 fs, enabling efficient coverage of the new THz gap between 5 and 15 THz and extension of the spectrum beyond 25 THz.

What carries the argument

The BNA crystal acting as the nonlinear medium for THz generation and electro-optic detection, paired with the tunable single-ring hollow-core fiber compressor that shortens the driving near-infrared pulses.

If this is right

The spectrum becomes accessible with widely available Yb-based solid-state lasers instead of specialized sources.
Broadband monitoring becomes practical in the previously hard-to-reach 5-15 THz window.
The same fiber-compression stage can be tuned to optimize pulse duration for different detection bands.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The method may extend to time-resolved measurements of fast processes in materials at these high THz frequencies.
Similar compression schemes could be paired with other organic crystals to push the upper frequency limit still higher.
The approach lowers the barrier for labs to perform spectroscopy in the upper THz range without custom mid-infrared drivers.

Load-bearing premise

The BNA crystal will generate and detect THz radiation efficiently across the full claimed bandwidth without prohibitive phase-matching or absorption losses when driven by the 31 fs pulses.

What would settle it

A measured THz spectrum obtained with the 31 fs pulses on BNA that shows a hard cutoff below 25 THz or large gaps inside the 5-15 THz interval.

read the original abstract

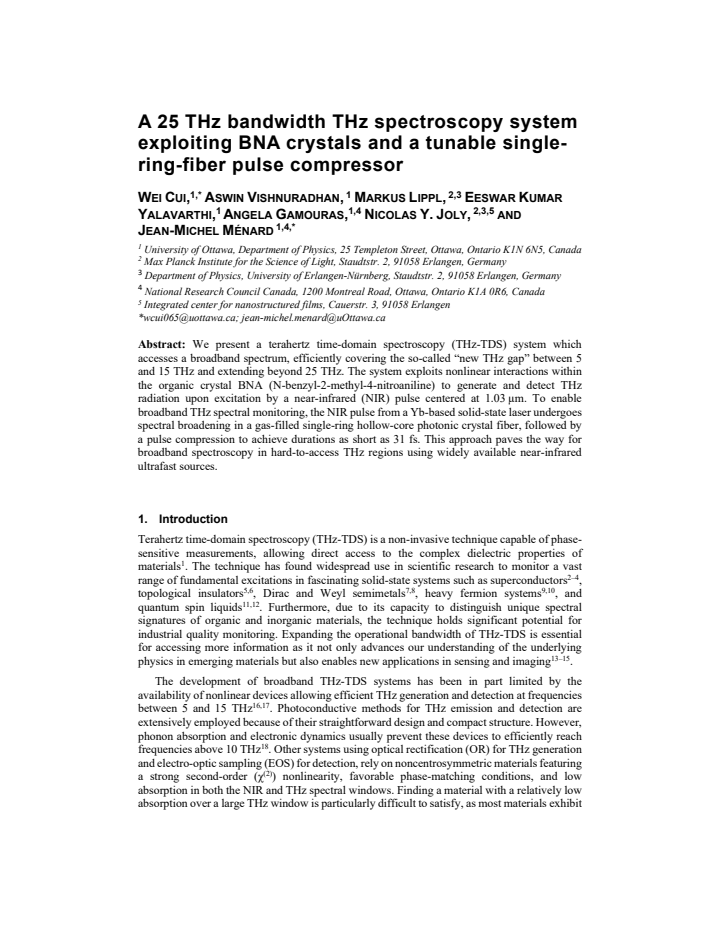

We present a terahertz time-domain spectroscopy (THz-TDS) system which accesses a broadband spectrum, efficiently covering the so-called "new THz gap" between 5 and 15 THz and extending beyond 25 THz. The system exploits nonlinear interactions within the organic crystal BNA (N-benzyl-2-methyl-4-nitroaniline) to generate and detect THz radiation upon excitation by a near-infrared (NIR) pulse centered at 1.03 $\mu$m. To enable broadband THz spectral monitoring, the NIR pulse from a Yb-based solid-state laser undergoes spectral broadening in a gas-filled single-ring hollow-core photonic crystal fiber, followed by a pulse compression to achieve durations as short as 31 fs. This approach paves the way for broadband spectroscopy in hard-to-access THz regions using widely available near-infrared ultrafast sources.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper demonstrates a practical THz-TDS system that reaches beyond 25 THz by pairing BNA crystals with a single-ring hollow-core fiber compressor on a standard Yb laser.

read the letter

The main point is that they have a working experimental setup using BNA crystals driven by 31 fs pulses at 1.03 μm to generate and detect THz radiation across 5–25+ THz. The fiber compressor handles the spectral broadening and compression step that makes the short pulse duration possible with an accessible NIR source. That combination is what lets them target the so-called new THz gap without needing mid-IR lasers. The manuscript includes the spectra and compression details that back the bandwidth claim, so the central result holds up on the data shown. What they do well is keep the approach straightforward: start with a common solid-state laser, use the gas-filled single-ring fiber for pulse control, then rely on the organic crystal for both generation and detection. No heavy theory or fitting is involved, which keeps the focus on the measured performance. The soft spots are minor and expected in this kind of work. Efficiency likely drops at the highest frequencies due to phase-matching limits or absorption in BNA, and the paper would benefit from clearer plots of spectral density versus frequency to show exactly where the roll-off occurs. Crystal thickness and alignment tolerances are also worth checking in the methods, but nothing in the reported results suggests the coverage claim is overstated. This is for experimental groups already doing THz-TDS who want to push their upper frequency limit with equipment they can actually buy or build. A reader running similar ultrafast optics setups would find the specific fiber and crystal parameters useful. It deserves a serious referee because the experimental demonstration is concrete and the measurements address the main claim directly. I would send it to peer review.

Referee Report

0 major / 3 minor

Summary. The manuscript presents a THz time-domain spectroscopy (THz-TDS) system that generates and detects broadband THz radiation using BNA (N-benzyl-2-methyl-4-nitroaniline) organic crystals pumped by compressed 31 fs near-infrared pulses centered at 1.03 μm. The NIR pulses originate from a Yb-based solid-state laser, undergo spectral broadening in a gas-filled single-ring hollow-core photonic crystal fiber, and are compressed to enable efficient nonlinear interactions in BNA that cover the 5–15 THz 'new THz gap' and extend beyond 25 THz.

Significance. If the reported spectra and efficiency data hold, the result would be significant for THz spectroscopy: it demonstrates a practical route to broadband coverage in a historically difficult range using widely available Yb lasers and fiber-based pulse compression, without requiring exotic mid-IR sources. The combination of tunable single-ring fiber compression with BNA crystals offers a compact, potentially scalable approach that could enable new measurements in the 5–25+ THz window.

minor comments (3)

§3 (Experimental Setup): The description of the single-ring fiber compressor should include the exact gas pressure, fiber length, and measured compression factor to allow reproduction; the current text leaves the tuning range of the compressor implicit.
Figure 4 (THz spectra): The plotted dynamic range and noise floor should be shown explicitly for the >25 THz region; without error bars or multiple scans, it is difficult to assess whether the claimed extension is limited by absorption or detection sensitivity.
§4.2 (BNA crystal details): The crystal thickness and orientation angle relative to the pump polarization are stated but not compared to the coherence length at 20–25 THz; a brief calculation or reference to the Sellmeier coefficients used would strengthen the phase-matching claim.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of our manuscript, including the summary of the BNA-based THz-TDS system with single-ring fiber compression and the recognition of its potential significance for filling the 5-15 THz gap. We note the recommendation for minor revision and will prepare a revised version accordingly. No specific major comments were listed in the report.

Circularity Check

0 steps flagged

No significant circularity; purely experimental demonstration

full rationale

The manuscript describes an experimental THz-TDS setup using BNA crystals driven by compressed 31 fs NIR pulses from a Yb laser broadened in a hollow-core fiber. No derivation chain, equations, fitted parameters presented as predictions, or first-principles results appear. The bandwidth claim rests on reported spectra, crystal parameters, and compression details rather than any self-referential reduction. Self-citations, if present, are not load-bearing for any claimed result. The work is self-contained against external benchmarks with no circular steps meeting the enumerated criteria.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Experimental demonstration paper; no free parameters, axioms, or invented entities are introduced in the abstract.
