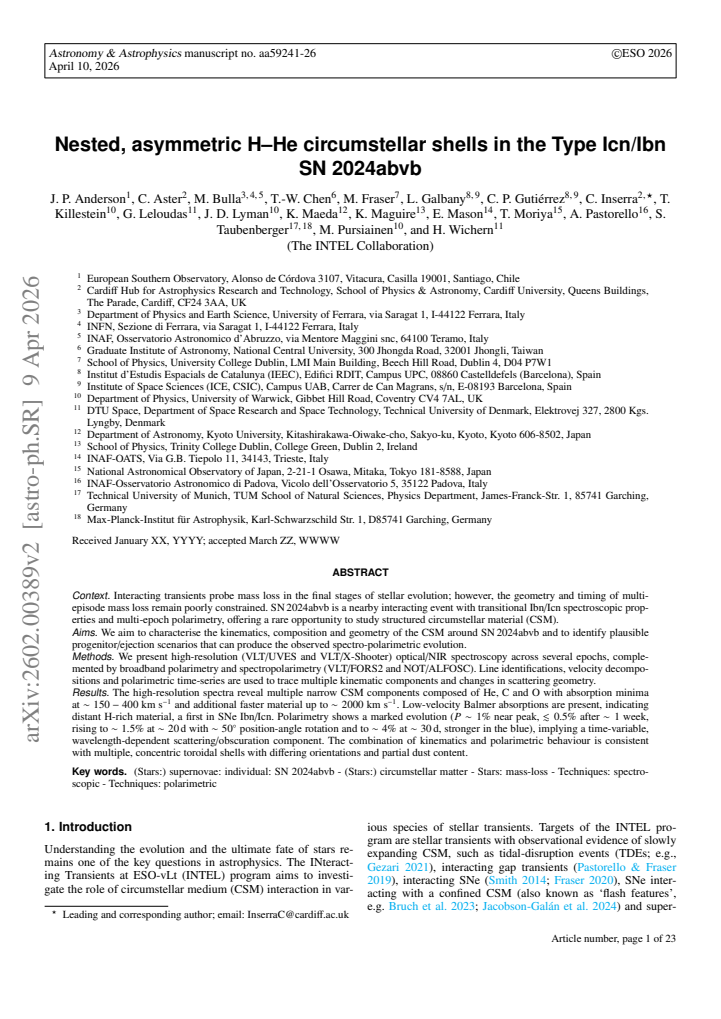

Nested, asymmetric H-He circumstellar shells in the Type Icn/Ibn SN 2024abvb

The INTEL Collaboration: J. P. Anderson , C. Aster , M. Bulla , T.-W. Chen , M. Fraser , L. Galbany , C. P. Guti\'errez , C. Inserra

show 11 more authors

T. Killestein G. Leloudas J. D. Lyman K. Maeda K. Maguire E. Mason T. Moriya A. Pastorello S. Taubenberger M. Pursiainen H. Wichern

Authors on Pith no claims yet

Pith reviewed 2026-05-16 08:46 UTC · model grok-4.3

classification 🌌 astro-ph.SR astro-ph.HE

keywords Type Icn supernovaType Ibn supernovacircumstellar materialpolarimetryspectroscopymass lossasymmetric shellstoroidal geometry

0 comments

The pith

SN 2024abvb's circumstellar material consists of multiple concentric toroidal shells with differing orientations and partial dust content.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper analyzes high-resolution spectroscopy and multi-epoch polarimetry of the interacting supernova SN 2024abvb. The spectra display several narrow absorption components from helium, carbon, oxygen, and hydrogen at velocities from 150 to 2000 km/s, revealing layered circumstellar material ejected at different times. Polarization levels change over weeks, with a notable rotation in position angle and stronger effects at shorter wavelengths, indicating time-variable scattering. Together these observations support a model of nested toroidal shells that are asymmetric and contain some dust. Such detailed mapping of pre-explosion mass loss geometry helps explain how massive stars shed material before becoming supernovae.

Core claim

The high-resolution spectra reveal multiple narrow CSM components composed of He, C and O with absorption minima at ∼150-400 km s^{-1} and faster material up to ∼2000 km s^{-1}, along with low-velocity Balmer absorptions indicating distant H-rich material. Polarimetry exhibits evolution from P∼1% near peak to lower values then rising to ∼1.5% at 20 days with 50 degree position-angle rotation and to ∼4% at 30 days stronger in the blue. The combination of kinematics and polarimetric behaviour is consistent with multiple, concentric toroidal shells with differing orientations and partial dust content.

What carries the argument

Time-series polarimetry combined with multi-component velocity decompositions from high-resolution spectra, used to map scattering geometry and identify nested asymmetric shells.

If this is right

The progenitor underwent multiple distinct episodes of mass loss that produced concentric shells at different times and radii.
The shells are toroidal in shape with misaligned orientations relative to each other.
Partial dust content within the shells contributes to the observed wavelength-dependent polarization and obscuration.
Low-velocity hydrogen absorption indicates H-rich material located at larger distances than the He/C/O components.
This structured geometry constrains possible binary or pulsational ejection channels for Ibn/Icn progenitors.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Binary star interactions are a plausible mechanism for generating misaligned toroidal shells through episodic mass transfer.
Multi-epoch polarimetry on other nearby interacting supernovae could reveal whether such nested shells are common.
Radiative transfer calculations of the inferred dust could predict observable infrared excess at late times.
If the supernova remains bright enough, high-resolution imaging might eventually resolve the shell structure directly.

Load-bearing premise

The observed polarimetric evolution and position-angle rotation arise primarily from scattering in asymmetric CSM shells rather than from evolving photospheric geometry or dust formation within the ejecta.

What would settle it

A spectropolarimetric sequence showing constant polarization position angle across epochs with no wavelength dependence would contradict the multiple toroidal shell scattering model.

read the original abstract

Interacting transients probe mass loss in the final stages of stellar evolution; however, the geometry and timing of multi-episode mass loss remain poorly constrained. SN 2024abvb is a nearby interacting event with transitional Ibn/Icn spectroscopic properties and multi-epoch polarimetry, offering a rare opportunity to study structured circumstellar material (CSM). We aim to characterise the kinematics, composition and geometry of the CSM around SN 2024abvb and to identify plausible progenitor/ejection scenarios that can produce the observed spectro-polarimetric evolution. We present high-resolution (VLT/UVES and VLT/X-Shooter) optical/NIR spectroscopy across several epochs, complemented by broadband polarimetry and spectropolarimetry (VLT/FORS2 and NOT/ALFOSC). Line identifications, velocity decompositions and polarimetric time-series are used to trace multiple kinematic components and changes in scattering geometry. The high-resolution spectra reveal multiple narrow CSM components composed of He, C and O with absorption minima at $\sim150 - 400$ km s$^{-1}$ and additional faster material up to $\sim2000$ \kms. Low-velocity Balmer absorptions are present, indicating distant H-rich material, a first in SNe Ibn/Icn. Polarimetry shows a marked evolution ($P\sim1\%$ near peak, $\lesssim0.5\%$ after $\sim1$ week, rising to $\sim1.5\%$ at $\sim20$ d with $\sim50^\circ$ position-angle rotation and to $\sim4\%$ at $\sim30$ d, stronger in the blue), implying a time-variable, wavelength-dependent scattering/obscuration component. The combination of kinematics and polarimetric behaviour is consistent with multiple, concentric toroidal shells with differing orientations and partial dust content.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Solid new spectra and polarimetry on a rare transitional Ibn/Icn event, but the toroidal-shell geometry is an untested interpretation.

read the letter

The paper's real contribution is the first reported low-velocity Balmer absorption in any Ibn/Icn supernova, plus a multi-epoch polarimetry series that shows a clear ~50° position-angle rotation and a late-time rise to ~4% polarization that strengthens toward the blue. The high-resolution spectra cleanly separate narrow He/C/O components at 150-400 km/s from faster material out to 2000 km/s, and the polarimetric time series is presented with enough epochs to see the evolution from near-peak through +30 d. That dataset is worth having for anyone who models circumstellar material around stripped-envelope progenitors. The weakness is exactly where the stress-test note flags it: the claim that the kinematics plus polarimetry point to multiple concentric toroidal shells with differing orientations and partial dust rests on qualitative consistency rather than any radiative-transfer or scattering calculation. No Monte-Carlo runs or even analytic estimates are shown to demonstrate that this geometry reproduces the observed P(t), PA swing, or wavelength dependence better than alternatives such as evolving photospheric asymmetry or dust condensation inside the ejecta. The data themselves are independent of the final picture, which is good, but the geometric model stays interpretive. This is the kind of observational paper that belongs in a specialist journal on transients. The spectra and polarimetry are new enough and the event rare enough that a serious referee should see it, even if the interpretation section needs tightening or explicit caveats. I'd send it to review.

Referee Report

2 major / 2 minor

Summary. The manuscript presents high-resolution optical/NIR spectroscopy (VLT/UVES, VLT/X-Shooter) and multi-epoch broadband/spectropolarimetry (VLT/FORS2, NOT/ALFOSC) of the nearby interacting transient SN 2024abvb. It decomposes multiple narrow CSM absorption components (He, C, O at 150–400 km s⁻¹ plus faster material to ~2000 km s⁻¹) and reports the first low-velocity Balmer absorptions in an Ibn/Icn event. Polarimetry shows P rising from ~1 % near peak to ~4 % at ~30 d with ~50° PA rotation and blue-stronger late-time polarization. The central claim is that these kinematics and polarimetric time series are consistent with multiple concentric toroidal shells of differing orientations and partial dust content.

Significance. If the geometric interpretation can be placed on a quantitative footing, the work supplies rare, multi-epoch constraints on the geometry and timing of episodic mass loss in the final stages of massive-star evolution. The direct observational products—velocity-resolved line profiles and a well-sampled polarization curve—are independently valuable even if the toroidal-shell model requires further testing.

major comments (2)

[Abstract] Abstract and concluding discussion: the assertion that the observed P(t) rise to ~4 %, ~50° PA rotation, and wavelength dependence are produced by scattering in nested toroidal CSM shells is presented without any radiative-transfer calculation (Monte-Carlo or analytic) that maps the stated shell parameters (velocity components, H/He/C/O composition, dust fraction) onto the measured Stokes time series.
[Discussion] The manuscript does not compare the toroidal-shell hypothesis against plausible alternatives (evolving photospheric asymmetry or dust condensation within the ejecta) using forward-modelled polarization curves; therefore the data remain compatible with multiple geometries and the central claim rests on an untested interpretive premise.

minor comments (2)

[§2] Provide a table listing the exact epochs, instruments, and exposure times for each polarimetric measurement to improve reproducibility.
[Figure 4] In the polarization figures, include formal uncertainties on both degree and position angle and indicate the epochs of the ~50° rotation explicitly.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and positive assessment of the observational data presented in our manuscript. We address each major comment below and outline the revisions we will make to strengthen the interpretation.

read point-by-point responses

Referee: [Abstract] Abstract and concluding discussion: the assertion that the observed P(t) rise to ~4 %, ~50° PA rotation, and wavelength dependence are produced by scattering in nested toroidal CSM shells is presented without any radiative-transfer calculation (Monte-Carlo or analytic) that maps the stated shell parameters (velocity components, H/He/C/O composition, dust fraction) onto the measured Stokes time series.

Authors: We acknowledge that the current manuscript offers a qualitative interpretation of the polarimetric data in the context of nested toroidal shells, without performing explicit radiative-transfer calculations to quantitatively reproduce the Stokes parameters. The central claim is based on the consistency between the multi-component velocity structure from high-resolution spectroscopy and the time-variable polarization behavior. In the revised manuscript, we will modify the abstract and discussion to present this as a plausible geometric scenario supported by the observations, while explicitly stating the absence of quantitative modeling and suggesting avenues for future work. This addresses the concern without overclaiming. revision: partial
Referee: [Discussion] The manuscript does not compare the toroidal-shell hypothesis against plausible alternatives (evolving photospheric asymmetry or dust condensation within the ejecta) using forward-modelled polarization curves; therefore the data remain compatible with multiple geometries and the central claim rests on an untested interpretive premise.

Authors: We agree that a direct comparison to alternative models would be beneficial. However, the manuscript is primarily observational, and full forward modeling of polarization curves for each scenario would require dedicated radiative transfer simulations that are outside the scope of this work. In revision, we will add a paragraph in the discussion section qualitatively contrasting the observed polarization evolution with expectations from photospheric asymmetry and ejecta dust condensation, drawing on existing literature for similar events. We maintain that the combination of spectroscopic evidence for multiple concentric shells and the polarimetric time series favors the toroidal CSM interpretation, but we will tone down the language to reflect that it is one consistent model among possibles. revision: partial

Circularity Check

0 steps flagged

No circularity: observational data interpreted qualitatively as consistent with toroidal shells

full rationale

The paper reports independent spectroscopic velocity components (150-2000 km/s, He/C/O/H lines) and polarimetric time series (P evolution, PA rotation, wavelength dependence) from VLT/UVES, X-Shooter, FORS2 and NOT/ALFOSC. The central statement is that these data are 'consistent with' multiple concentric toroidal shells of differing orientations and partial dust. No equations, fitted parameters, or self-citations are used to derive the geometry; the claim is an interpretive summary rather than a reduction of outputs to inputs. No Monte-Carlo scattering models or parameter fitting that feeds back into the conclusion are described. This is a standard observational-interpretation structure with no load-bearing circular step.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The interpretation rests on standard assumptions about electron scattering and dust opacity in expanding shells; no new free parameters or invented particles are introduced.

axioms (1)

domain assumption Polarization changes are dominated by scattering in the CSM rather than intrinsic ejecta asymmetry or instrumental effects.
Invoked to link observed P and PA evolution to toroidal shell geometry.
