arxiv: 2602.11294 · v2 · submitted 2026-02-11 · 🧮 math.MG · math.CO

Universal Ahlfors--David regularity of Steiner trees

Danila Cherkashin , Pavel Prozorov , Yana Teplitskaya This is my paper

Pith reviewed 2026-05-16 03:24 UTC · model grok-4.3

classification 🧮 math.MG math.CO
keywords varepsiloneverymathcalregularityfracleftproblemresult
0
0 comments X

The pith

Steiner trees St_ε are Ahlfors-David regular with H(St_ε ∩ B_ρϵ(x))/ϵ bounded by (144d/(1-ρ))^{d-2} for d>2, independent of the terminal set A.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The Steiner tree problem finds the shortest network connecting given points in space. Earlier results showed that, except near those points, the minimal tree consists of straight segments forming an acyclic graph. This work strengthens the picture by proving a uniform bound: the total length inside any small ball centered on the tree is controlled by a number that depends only on the space dimension and a scale factor, not on the particular points chosen. The bound takes the explicit form of 144d divided by one minus the relative radius, raised to the power d-2. A direct consequence is that only a limited number of segments can meet inside such a ball. In the plane the structure is even more rigidly constrained. The result supplies a dimension-only constant that applies to every possible terminal configuration, giving a uniform handle on how much length can accumulate at any scale.

Core claim

for d > 2, every ε > 0, every x ∈ St_ε, and every choice of ρ ∈ (0,1), we have H(St_ε ∩ B_ρϵ(x))/ε ≤ (144d/(1-ρ))^{d-2}.

Load-bearing premise

The natural assumption that H(St) < ∞ together with the qualitative regularity from Paolini-Stepanov that St_ε is an embedded finite forest for a.e. ε.

Figures

Figures reproduced from arXiv: 2602.11294 by Danila Cherkashin, Pavel Prozorov, Yana Teplitskaya.

Figure 1

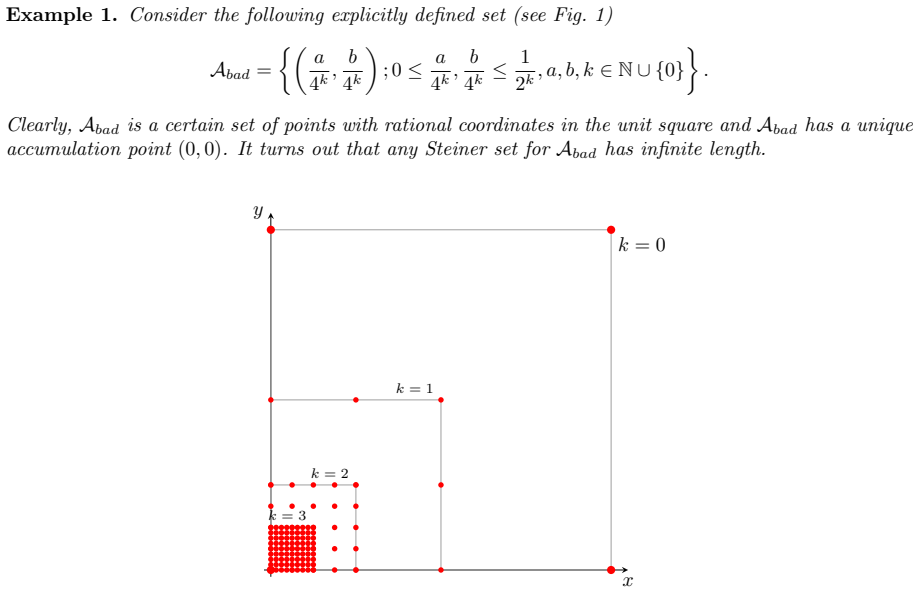

Figure 1. Figure 1: Example of a compact A that has a Steiner set of infinite length Proof. By construction, the points of Abad lying in the corner region with vertices (0, 2 −k ), (0, 2 1−k ), (21−k , 2 1−k ), (21−k , 0), (2−k , 0) and (2−k , 2 −k ) have neighborhoods of radius 10−14 −k that are pairwise disjoint (also disjoint from the corresponding neighborhoods for other values of k). Any Steiner tree for Abad must connec… view at source ↗
Figure 2

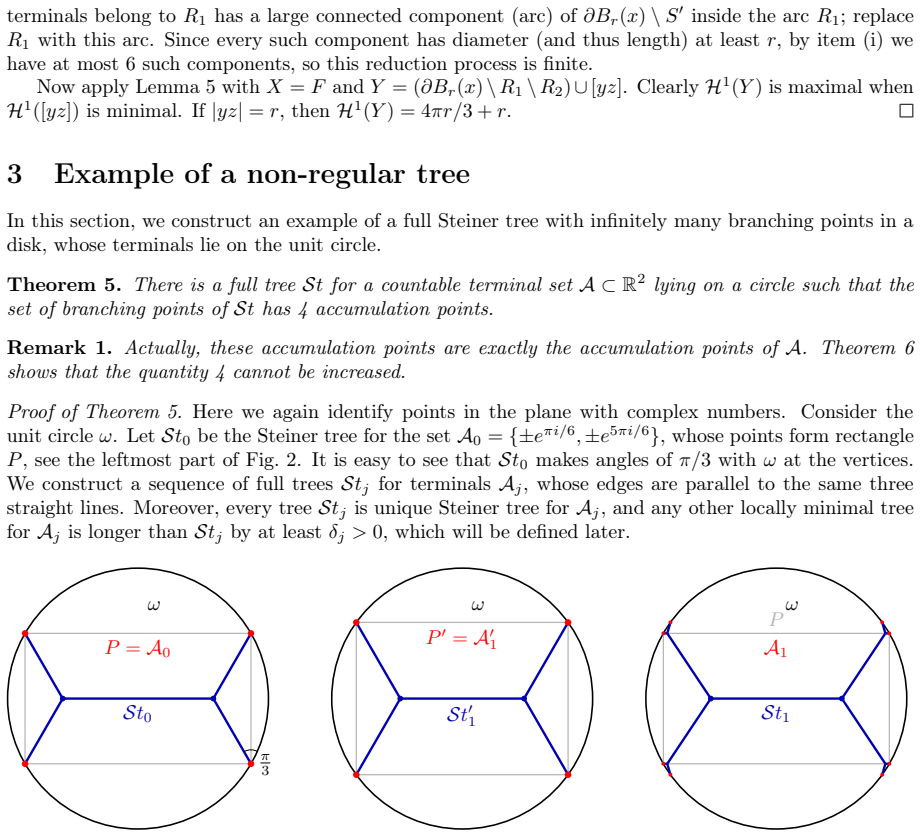

Figure 2. Figure 2: Transition from St0 to St1 At the j-th iteration, we shift the terminals from A0 in Aj−1 (by construction A0 ⊂ Aj−1 for every j) along the circle ω by an amount εj < δ2 j−1 /128j inside the angle of size 2π/3, obtaining a new rectangle with the vertex set Pj . Formally, the direction can be defined by the decreasing of (−1)j |py|, where py is the y-coordinate of the point p ∈ A0, so the directions of the s… view at source ↗
Figure 3

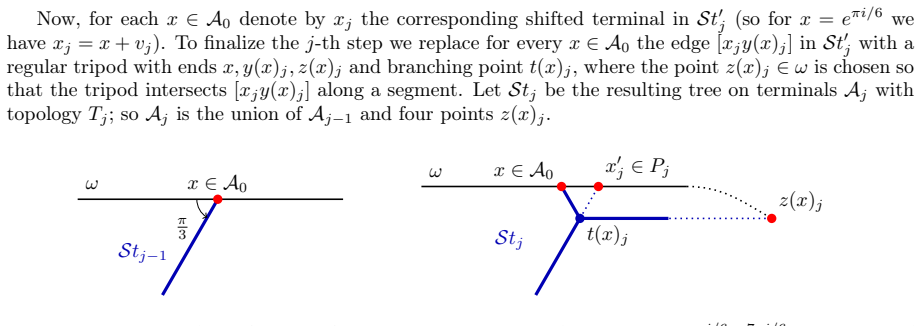

Figure 3. Figure 3: Transition from Stj−1 to Stj in the neighborhood of vertices x = e πi/6 , e7πi/6 in the case of even j and x = e 5πi/6 , e11πi/6 in the case of odd j The combinatorial structure of the tree St4 is depicted in [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figure 4

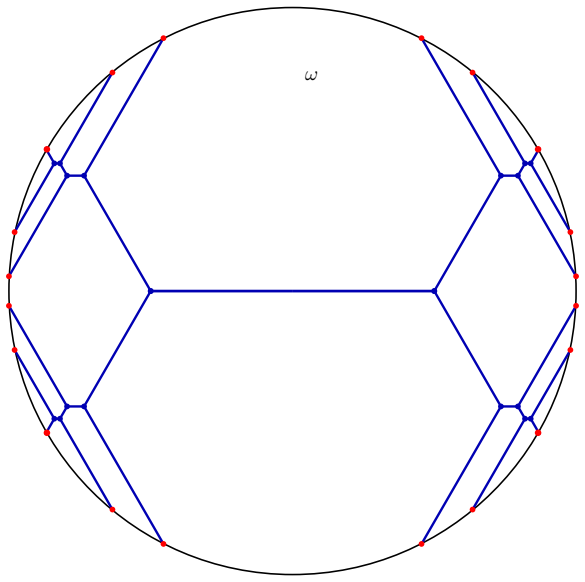

Figure 4. Figure 4: A locally minimal tree with the same topology and symmetries as [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
read the original abstract

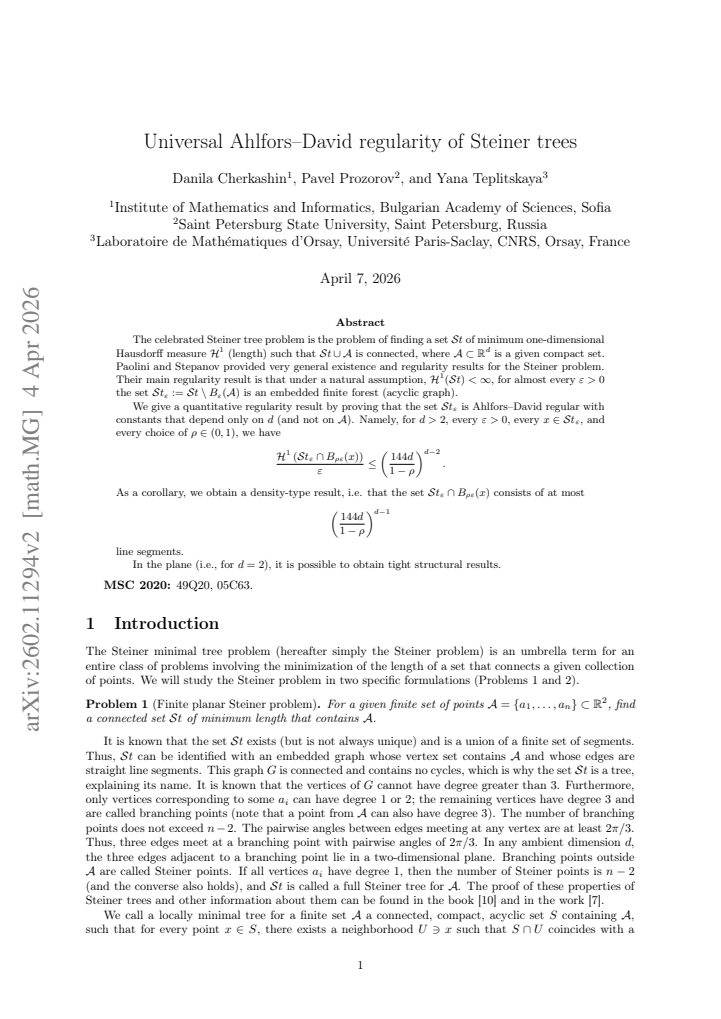

The celebrated Steiner tree problem is the problem of finding a set $St$ of minimum one-dimensional Hausdorff measure $H$ (length) such that $St \cup \mathcal{A}$ is connected, where $\mathcal{A} \subset \mathbb{R}^d$ is a given compact set. Paolini and Stepanov provided very general existence and regularity results for the Steiner problem. Their main regularity result is that under a natural assumption, $H(St) < \infty$, for almost every $\varepsilon>0$ the set $St_\varepsilon := St\setminus B_\varepsilon(\mathcal A)$ is an embedded finite forest (acyclic graph). We give a quantitative regularity result by proving that the set $St_\varepsilon$ is Ahlfors--David regular with constants that depend only on $d$ (and not on $\mathcal{A}$). Namely, for $d > 2$, every $\varepsilon > 0$, every $x \in St_\varepsilon$, and every choice of $\rho \in (0,1)$, we have \[ \frac{H \left (St_\varepsilon \cap B_{\rho \varepsilon}(x) \right) }{\varepsilon} \leq \left ( \frac{144d}{1-\rho} \right) ^{d-2}. \] As a corollary, we obtain a density-type result, i.e. that the set $St_\varepsilon \cap B_{\rho \varepsilon}(x)$ consists of at most \[ \left ( \frac{144d}{1-\rho} \right) ^{d-1} \] line segments. In the plane (i.e., for $d=2$), it is possible to obtain tight structural results.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proves a quantitative Ahlfors-David regularity result for the Steiner tree problem in R^d (d>2). Building on Paolini-Stepanov existence and regularity theorems, it shows that for the truncated set St_ε = St ∖ B_ε(A), the one-dimensional Hausdorff measure satisfies H(St_ε ∩ B_{ρ ε}(x))/ε ≤ (144d/(1-ρ))^{d-2} for every ε>0, every x in St_ε, and every ρ in (0,1), with the constant depending only on d and ρ. A corollary bounds the number of line segments in such a ball by (144d/(1-ρ))^{d-1}. The result is claimed to be universal, independent of the compact set A.

Significance. If correct, the result supplies the first universal (dimension-only) quantitative control on the local length and branching complexity of Steiner trees away from the terminals. This strengthens the qualitative regularity of Paolini-Stepanov and could be useful for numerical approximation schemes, density estimates, and further geometric-measure-theoretic analysis of minimal networks. The plane case (d=2) is noted to admit tighter structural results.

major comments (2)
  1. [Abstract / §1] Abstract and §1 (statement of main theorem): the bound is asserted for every ε>0, yet the only structural input cited is the Paolini-Stepanov theorem that St_ε is an embedded finite forest for a.e. ε. If the proof proceeds by counting branches or using acyclicity inside B_{ρ ε}(x), the estimate does not automatically extend to the exceptional null set of ε; an independent argument or a corrected quantifier (“for a.e. ε”) is required.
  2. [§3] §3 (proof of the volume bound): the covering or branch-counting argument that produces the factor (144d/(1-ρ))^{d-2} is not visible in the provided text; without an explicit estimate on the number of components or the use of the forest property, it is impossible to verify that the constant is independent of A and that the scaling by 1/ε is correctly normalized.
minor comments (2)
  1. [Abstract] Notation: the ball radius is written B_{ρ ε}(x) while the denominator is ε; clarify whether the scaling is intentional and consistent with the Ahlfors-David definition used.
  2. [Abstract] The plane case (d=2) is mentioned only in passing; either remove the sentence or supply a brief reference to the known tight results.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments. We address the major points below and agree that revisions are needed for consistency and clarity.

read point-by-point responses

  1. Referee: [Abstract / §1] the bound is asserted for every ε>0, yet the only structural input cited is the Paolini-Stepanov theorem that St_ε is an embedded finite forest for a.e. ε. If the proof proceeds by counting branches or using acyclicity inside B_{ρ ε}(x), the estimate does not automatically extend to the exceptional null set of ε; an independent argument or a corrected quantifier (“for a.e. ε”) is required.

    Authors: We agree with the observation. The Paolini-Stepanov regularity holds only for a.e. ε, and our proof relies on the embedded forest property. We will revise the abstract and §1 to state the main theorem for almost every ε>0 rather than every ε>0. This corrects the quantifier without altering the result. revision: yes

  2. Referee: [§3] the covering or branch-counting argument that produces the factor (144d/(1-ρ))^{d-2} is not visible in the provided text; without an explicit estimate on the number of components or the use of the forest property, it is impossible to verify that the constant is independent of A and that the scaling by 1/ε is correctly normalized.

    Authors: We will expand §3 to include the explicit iterative covering argument: at each scale we cover B_{ρ ε}(x) by balls of radius proportional to the current length scale, and use acyclicity of the forest to bound the number of new branches by a factor depending only on d. The resulting geometric series sums to the stated power d-2. Independence of A follows because all estimates are local inside St_ε (away from terminals) and the forest property is used only for connectivity counts. We will add these steps and verify the 1/ε normalization explicitly. revision: yes

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The result rests on the existence of a finite-length Steiner tree and the qualitative forest regularity established by Paolini and Stepanov; no free parameters or new entities are introduced in the abstract.

axioms (2)
  • domain assumption H(St) < ∞
    Stated as the natural assumption under which the regularity holds
  • domain assumption St_ε is an embedded finite forest for a.e. ε
    Invoked from Paolini-Stepanov prior result

pith-pipeline@v0.9.0 · 5635 in / 1292 out tokens · 179227 ms · 2026-05-16T03:24:47.469773+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

19 extracted references · 19 canonical work pages

  1. [1]

    Springer, 2009

    Marc Bernot, Vicent Caselles, and Jean-Michel Morel.Optimal transportation networks: models and theory. Springer, 2009

    work page 2009

  2. [2]

    Covering the sphere by equal spherical balls

    K´ aroly B¨ or¨ oczky Jr and Gergely Wintsche. Covering the sphere by equal spherical balls. InDiscrete and Computational Geometry: The Goodman–Pollack Festschrift, pages 235–251. Springer, 2003

    work page 2003

  3. [3]

    Springer Science & Business Media, 2013

    Dietmar Cieslik.The Steiner ratio, volume 10. Springer Science & Business Media, 2013

    work page 2013

  4. [4]

    Eilenberg and O

    S. Eilenberg and O. G. Harrold. Continua of finite linear measure I.American Journal of Mathe- matics, 65(1):137–146, 1943

    work page 1943

  5. [5]

    Fleischmann, G

    H. Fleischmann, G. G. Quintero, C. S. Karthik, J. Matˇ ejka, and J. Petr. On Steiner trees of the regular simplex.Journal of Computational Geometry, 16(1):1–34, 2025. 16

    work page 2025

  6. [6]

    Garey, Ronald L

    Michael R. Garey, Ronald L. Graham, and David S. Johnson. The complexity of computing Steiner minimal trees.SIAM Journal on Applied Mathematics, 32(4):835–859, 1977

    work page 1977

  7. [7]

    E. N. Gilbert and H. O. Pollak. Steiner minimal trees.SIAM Journal on Applied Mathematics, 16(1):1–29, 1968

    work page 1968

  8. [8]

    Graham and Frank K

    Ronald L. Graham and Frank K. Hwang. Remarks on Steiner minimal trees.Bull. Inst. Math. Acad. Sinica, 4(1):177–182, 1976

    work page 1976

  9. [9]

    AlineartimealgorithmforfullSteinertrees.Operations Research Letters, 4(5):235– 237, 1986

    FrankK.Hwang. AlineartimealgorithmforfullSteinertrees.Operations Research Letters, 4(5):235– 237, 1986

    work page 1986

  10. [10]

    Elsevier, 1992

    FrankK.Hwang, DanaS.Richards, andPawelWinter.The Steiner tree problem, volume53. Elsevier, 1992

    work page 1992

  11. [11]

    Theshortestnetworkunderagiventopology.Journal of Algorithms, 13(3):468–488, 1992

    FrankK.HwangandJ.F.Weng. Theshortestnetworkunderagiventopology.Journal of Algorithms, 13(3):468–488, 1992

    work page 1992

  12. [12]

    Kabatiansky and Vladimir I

    Grigorii A. Kabatiansky and Vladimir I. Levenshtein. On bounds for packings on a sphere and in space.Problems of Information Transmission, 14(1):3–25, 1978

    work page 1978

  13. [13]

    Z. A. Melzak. On the problem of Steiner.Canadian Mathematical Bulletin, 4(2):143–148, 1961

    work page 1961

  14. [14]

    Existence and regularity results for the Steiner problem

    Emanuele Paolini and Eugene Stepanov. Existence and regularity results for the Steiner problem. Calculus of Variations and Partial Differential Equations, 46(3-4):837–860, 2013

    work page 2013

  15. [15]

    Rubinstein and Doreen A

    Joachim H. Rubinstein and Doreen A. Thomas. Graham’s problem on shortest networks for points on a circle.Algorithmica, 7:193–218, 1992

    work page 1992

  16. [16]

    McGraw–Hill, 2 edition, 1991

    Walter Rudin.Functional Analysis. McGraw–Hill, 2 edition, 1991

    work page 1991

  17. [17]

    V. M. Sidel’nikov. New bounds for densest packing of spheres inn-dimensional Euclidean space. Matematicheskii Sbornik, 137(1):148–158, 1974

    work page 1974

  18. [18]

    Warren D. Smith. How to find Steiner minimal trees in Euclideand-space.Algorithmica, 7:137–177, 1992

    work page 1992

  19. [19]

    Open problems on Steiner trees and maximal distance minimizers.arXiv preprint arXiv:2511.18217, 2025

    Yana Teplitskaya. Open problems on Steiner trees and maximal distance minimizers.arXiv preprint arXiv:2511.18217, 2025. 17

    work page arXiv 2025
