arxiv: 2602.17177 · v1 · submitted 2026-02-19 · 🌌 astro-ph.GA

Recognition: no theorem link

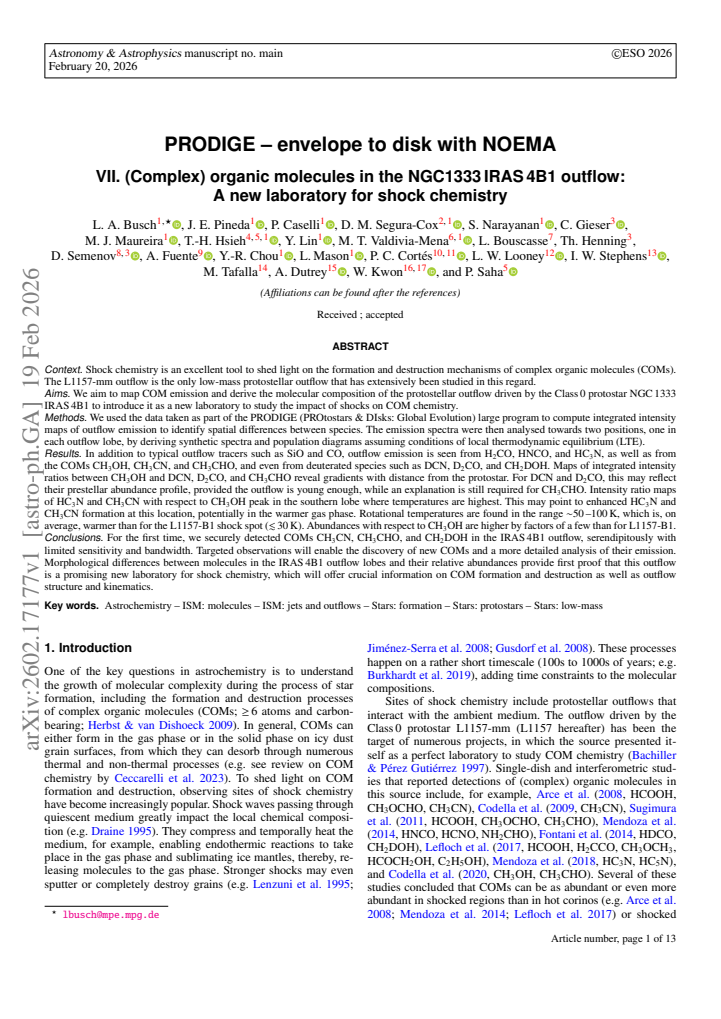

PRODIGE - envelope to disk with NOEMA: VII. (Complex) organic molecules in the NGC1333 IRAS4B1 outflow: A new laboratory for shock chemistry

Laura A. Busch , J. E. Pineda , P. Caselli , D. M. Segura-Cox , S. Narayanan , C. Gieser , M. J. Maureira , T.-H. Hsieh

show 15 more authors

Y. Lin M. T. Valdivia-Mena L. Bouscasse Th. Henning D. Semenov A. Fuente Y.-R. Chou L. Mason P. C. Cort\'es L. W. Looney I. W. Stephens M. Tafalla A. Dutrey W. Kwon P. Saha

Authors on Pith no claims yet

Pith reviewed 2026-05-15 21:29 UTC · model grok-4.3

classification 🌌 astro-ph.GA

keywords shock chemistrycomplex organic moleculesprotostellar outflowNGC1333 IRAS4B1COMsdeuterated speciesClass 0 protostarmolecular abundances

0 comments

The pith

The NGC1333 IRAS4B1 protostellar outflow contains securely detected complex organic molecules including CH3CN, CH3CHO, and CH2DOH, establishing it as a new laboratory for shock chemistry.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper uses NOEMA observations from the PRODIGE program to map emission in the outflow driven by the Class 0 protostar NGC1333 IRAS4B1. It reports detections of typical outflow tracers like SiO and CO alongside H2CO, HNCO, HC3N, and complex organic molecules such as CH3OH, CH3CN, and CH3CHO, plus deuterated species including DCN, D2CO, and CH2DOH. Intensity ratio maps reveal gradients with distance from the protostar, with HC3N and CH3CN ratios to CH3OH peaking in the hotter southern lobe, and rotational temperatures of 50-100 K are derived. Abundances relative to CH3OH exceed those in the L1157-B1 outflow by factors of a few, supporting the claim that this site enables new studies of how shocks affect COM formation and destruction.

Core claim

For the first time, the COMs CH3CN, CH3CHO, and CH2DOH are securely detected in the IRAS 4B1 outflow. Morphological differences between molecules in the outflow lobes and their relative abundances provide first proof that this outflow is a promising new laboratory for shock chemistry, which will offer crucial information on COM formation and destruction as well as outflow structure and kinematics.

What carries the argument

Integrated intensity ratio maps of COMs such as HC3N and CH3CN relative to CH3OH, combined with rotational temperature fits from emission lines in the two outflow lobes.

If this is right

Abundances of detected COMs with respect to CH3OH are higher by factors of a few than in L1157-B1, implying distinct shock conditions or chemical pathways in this outflow.
Intensity ratio maps of CH3OH with DCN, D2CO, and CH3CHO show gradients with distance from the protostar, tracing changes in chemistry along the flow.
The southern lobe, where temperatures reach the highest values, exhibits peaked ratios for HC3N and CH3CN that may mark the most energetic shock regions.
Targeted follow-up observations with improved sensitivity and bandwidth would enable discovery of additional COMs and more detailed emission analysis.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Surveying COM emission in other low-mass protostellar outflows could test whether shock processing is a widespread route to building complex molecules during star formation.
The observed deuteration levels in species like CH2DOH may constrain how shocks alter deuterium fractionation compared to the surrounding envelope.
Chemical models of shocks could be tested against the reported 50-100 K temperature range and the specific molecular abundance gradients to predict COM survival in different outflow environments.

Load-bearing premise

The observed emission lines can be unambiguously attributed to the outflow shocks rather than envelope or ambient cloud material, and the limited bandwidth data suffice for secure identification and abundance derivation without significant contamination or optical depth effects.

What would settle it

Spatially resolved spectra or maps showing that the COM line velocities and positions coincide with shock tracers like SiO but are offset from envelope or ambient cloud velocities would confirm the outflow origin; detection of the lines primarily at ambient cloud velocities would falsify the shock attribution.

read the original abstract

Shock chemistry is an excellent tool to shed light on the formation and destruction mechanisms of complex organic molecules (COMs). The L1157-mm outflow is the only low-mass protostellar outflow that has extensively been studied in this regard. Using the data taken as part of the PRODIGE (PROtostars & DIsks: Global Evolution) large program, we aim to map COM emission and derive the molecular composition of the protostellar outflow driven by the Class 0 protostar NGC1333 IRAS4B1 to introduce it as a new laboratory to study the impact of shocks on COM chemistry. In addition to typical outflow tracers such as SiO and CO, outflow emission is seen from H2CO, HNCO, and HC3N, as well as from the COMs CH3OH, CH3CN, and CH3CHO, and even from deuterated species such as DCN, D2CO, and CH2DOH. Maps of integrated intensity ratios between CH3OH and DCN, D2CO, and CH3CHO reveal gradients with distance from the protostar. Intensity ratio maps of HC3N and CH3CN with respect to CH3OH peak in the southern lobe where temperatures are highest. Rotational temperatures derived towards two positions, one in each lobe, are found in the range ~50-100 K. Abundances with respect to CH3OH are higher by factors of a few than for the L1157-B1. In conclusion, for the first time, we securely detected the COMs CH3CN, CH3CHO, and CH2DOH in the IRAS 4B1 outflow, serendipitously with limited sensitivity and bandwidth. Targeted observations will enable the discovery of new COMs and a more detailed analysis of their emission. Morphological differences between molecules in the IRAS 4B1 outflow lobes and their relative abundances provide first proof that this outflow is a promising new laboratory for shock chemistry, which will offer crucial information on COM formation and destruction as well as outflow structure and kinematics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

IRAS4B1 adds a second low-mass outflow with COM detections, useful for shock chemistry but limited by serendipitous narrow-band data.

read the letter

The main point is that this paper reports the first secure detections of CH3CN, CH3CHO, and CH2DOH in the IRAS4B1 outflow and positions the source as a new laboratory for testing shock chemistry on complex organics, next to the well-studied L1157 case. The work maps several species across the lobes, including typical tracers like SiO and CO plus the COMs and deuterated lines, and shows clear spatial gradients in intensity ratios such as CH3OH to DCN or HC3N to CH3OH. Rotational temperatures fall in the 50-100 K range at two positions, one per lobe, and the abundances relative to CH3OH come out a few times higher than in L1157-B1. These are straightforward observational extensions from the PRODIGE NOEMA data that give a concrete second data point for comparison. The soft spots sit in the data limitations. The detections were serendipitous with restricted bandwidth and sensitivity, so the line assignments for those three COMs rest on whatever transitions happened to fall in the band. The abstract supplies no error bars on the temperatures or abundances, no optical-depth checks, and no explicit tests for blending or envelope contamination. If any features overlap ambient velocities or lack multiple confirming lines, the outflow-shock attribution and the abundance differences become less secure than stated. This is the sort of paper that astrochemists focused on outflows and COM formation pathways will want to read for the maps and the direct L1157 comparison. It does not introduce new theory or methods, but the additional source helps test whether L1157 chemistry is typical. I would bring it to a reading group to walk through the ratio maps. It deserves peer review so the line identifications and any full-dataset checks can be examined in detail.

Referee Report

3 major / 1 minor

Summary. The paper reports NOEMA observations from the PRODIGE program of the NGC1333 IRAS4B1 protostellar outflow, detecting typical outflow tracers (SiO, CO) plus H2CO, HNCO, HC3N, COMs including CH3OH, CH3CN, CH3CHO, and deuterated species (DCN, D2CO, CH2DOH). It presents integrated intensity ratio maps showing gradients with distance from the protostar and peaks in the southern lobe, derives rotational temperatures of ~50-100 K at two positions (one per lobe), finds abundances relative to CH3OH higher by factors of a few than in L1157-B1, and concludes that IRAS4B1 is a promising new laboratory for shock chemistry, with the COM detections presented as secure despite serendipitous limited-bandwidth data.

Significance. If the line identifications and outflow-specific attributions are robust, the work adds a second well-resolved low-mass outflow for comparative shock-chemistry studies of COMs, with new morphological gradients and abundance contrasts relative to L1157 that could constrain formation/destruction pathways. The serendipitous nature and call for targeted follow-up are appropriately cautious.

major comments (3)

[Abstract] Abstract: The headline claim of 'secure' first-time detections of CH3CN, CH3CHO, and CH2DOH rests on serendipitous lines observed with restricted bandwidth and sensitivity. The manuscript must supply the exact transitions, integrated intensities, S/N values, velocity ranges, and explicit tests for blending, alternative carriers, optical depth, and residual envelope/ambient contamination to justify the 'secure' attribution to outflow shocks rather than other components.
[Abstract] Abstract and results sections: Rotational temperatures are stated as ~50-100 K at two positions without reported uncertainties, number of lines used per fit, or optical-depth corrections. These values are central to the temperature-gradient interpretation and abundance comparisons; the fitting procedure, line list, and error analysis must be documented.
[Abstract] Abstract: Abundance ratios relative to CH3OH are described as 'higher by factors of a few' than L1157-B1 without quantitative values, uncertainties, or beam-filling-factor assumptions. Because the central claim is that IRAS4B1 offers a new laboratory with distinct chemistry, the ratios and their derivation require explicit tabulation and error propagation.

minor comments (1)

[Abstract] The abstract and conclusion should clarify whether the reported intensity-ratio gradients are statistically significant given the limited sensitivity, or whether they are qualitative impressions.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which highlight areas where the manuscript can be strengthened with additional documentation. We agree that the claims regarding detections, temperatures, and abundances require more explicit support and will revise the paper accordingly while preserving the core scientific conclusions.

read point-by-point responses

Referee: [Abstract] Abstract: The headline claim of 'secure' first-time detections of CH3CN, CH3CHO, and CH2DOH rests on serendipitous lines observed with restricted bandwidth and sensitivity. The manuscript must supply the exact transitions, integrated intensities, S/N values, velocity ranges, and explicit tests for blending, alternative carriers, optical depth, and residual envelope/ambient contamination to justify the 'secure' attribution to outflow shocks rather than other components.

Authors: We agree that the abstract's use of 'secure' requires stronger justification given the serendipitous data. In the revised manuscript we will add a dedicated subsection (or expanded table) listing the exact transitions, integrated intensities, S/N values, and velocity ranges for CH3CN, CH3CHO, and CH2DOH. We will include extracted spectra, discuss potential blending and alternative carriers to the extent possible with the available bandwidth, and explain the outflow attribution based on spatial coincidence and velocity profiles matching SiO and CO. Optical-depth and envelope-contamination tests will be documented using the existing data; however, the limited bandwidth inherently restricts exhaustive checks for every possible carrier, so we will qualify the language appropriately rather than overstate robustness. revision: partial
Referee: [Abstract] Abstract and results sections: Rotational temperatures are stated as ~50-100 K at two positions without reported uncertainties, number of lines used per fit, or optical-depth corrections. These values are central to the temperature-gradient interpretation and abundance comparisons; the fitting procedure, line list, and error analysis must be documented.

Authors: We accept that the temperature values need full documentation. The revised results section will describe the rotational-diagram or LTE fitting procedure, list the specific lines used at each position, report temperatures with uncertainties, and address optical-depth assumptions or corrections. This will directly support the reported temperature range and gradient interpretation. revision: yes
Referee: [Abstract] Abstract: Abundance ratios relative to CH3OH are described as 'higher by factors of a few' than L1157-B1 without quantitative values, uncertainties, or beam-filling-factor assumptions. Because the central claim is that IRAS4B1 offers a new laboratory with distinct chemistry, the ratios and their derivation require explicit tabulation and error propagation.

Authors: We agree that quantitative values and error analysis are required. We will add a table of column densities and abundance ratios relative to CH3OH (with uncertainties) for the detected species, specify beam-filling-factor assumptions, and provide a direct numerical comparison to L1157-B1 literature values with propagated errors. This will substantiate the claim of higher ratios by factors of a few. revision: yes

Circularity Check

0 steps flagged

No significant circularity in this purely observational detection study

full rationale

The paper reports direct observational results from NOEMA data: line detections of COMs (CH3CN, CH3CHO, CH2DOH), integrated intensity maps, ratio maps showing spatial gradients, and rotational temperatures (~50-100 K) fitted at two positions. Abundances relative to CH3OH are derived from observed intensities using standard LTE methods. All steps are data-driven with no predictive equations or models whose outputs reduce to their own fitted inputs by construction. Comparisons to L1157-B1 reference external literature as benchmarks. No load-bearing self-citations, uniqueness theorems, or ansatzes are invoked to justify the central claims of secure detections and shock-chemistry potential. The analysis is self-contained against the observed spectra and maps.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Review based on abstract only; no explicit free parameters, invented entities, or ad-hoc axioms are stated. Relies on standard assumptions of molecular line identification and LTE excitation analysis common to radio astronomy.

axioms (2)

domain assumption LTE conditions apply for deriving rotational temperatures from observed lines
Used to obtain the reported 50-100 K range at two positions
domain assumption Line emission is optically thin and uncontaminated for abundance calculations
Implicit in the reported abundance ratios relative to CH3OH
