arxiv: 2602.17472 · v2 · submitted 2026-02-19 · 💻 cs.RO

A Cost-Effective and Climate-Resilient Air Pressure System for Rain Effect Reduction on Automated Vehicle Cameras

Mohamed Sabry , Joseba Gorospe , Cristina Olaverri-Monreal This is my paper

Pith reviewed 2026-05-15 20:58 UTC · model grok-4.3

classification 💻 cs.RO
keywords air pressure systemrain mitigationautomated vehiclescamera protectionpedestrian detectionadverse weathercost-effectivesustainability
0
0 comments X

The pith

A low-cost air pressure system clears rain from vehicle cameras and raises pedestrian detection accuracy from 8.3% to 41.6%.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a hardware solution using air pressure to remove rain from automated vehicle camera lenses. This system is designed to be compatible with multiple cameras simultaneously and is more affordable than existing industrial protection systems. It shows that the approach can increase the accuracy of deep learning models for pedestrian detection in rainy conditions from 8.3% to 41.6%. The design supports sustainability by allowing the use of existing camera platforms without high-cost replacements or additional sensors.

Core claim

The central claim is that the proposed air pressure system effectively mitigates rain effects on cameras, leading to improved perception performance for automated vehicles in adverse weather while being cost-effective and scalable.

What carries the argument

The air pressure system, a low-cost hardware device that directs air flow to clear water from camera lenses and supports simultaneous operation on multiple cameras.

If this is right

  • Enables reliable operation of camera-based sensing in rain without expensive alternatives.
  • Reduces resource consumption by extending the usability of current automated vehicle hardware.
  • Supports applications such as vehicle platooning by improving perception in challenging conditions.
  • Promotes modular and scalable deployment of automated vehicle technologies.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Long-term field tests could verify if the system remains effective without new artifacts over months of use.
  • The approach might inspire similar low-cost solutions for other environmental factors affecting sensors.
  • Integration with existing vehicle designs could accelerate adoption in commercial fleets for better safety.

Load-bearing premise

The air pressure system maintains camera functionality and image quality over time without introducing new artifacts or requiring impractical maintenance in real driving conditions.

What would settle it

A field experiment showing persistent image degradation or high maintenance needs after weeks of rainy driving would falsify the effectiveness claim.

Figures

Figures reproduced from arXiv: 2602.17472 by Cristina Olaverri-Monreal, Joseba Gorospe, Mohamed Sabry.

Figure 1

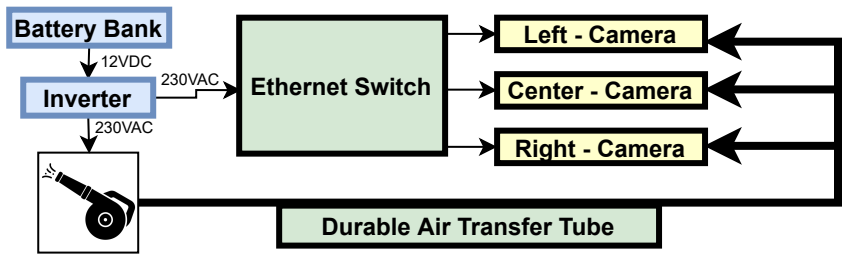

Figure 1. Figure 1: The figure illustrates the connectivity of the proposed Air Pressure System (APS) with the JKU-ITS research vehicle and the [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The figure illustrates the APS system mounted on the JKU [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The figure illustrates the results from using the proposed APS system. The figure shows there consecutive frames taken from a [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
read the original abstract

Recent advances in automated vehicles have focused on improving perception performance under adverse weather conditions; however, research on physical hardware solutions remains limited, despite their importance for perception critical applications such as vehicle platooning. Existing approaches, such as hydrophilic or hydrophobic lenses and sprays, provide only partial mitigation, while industrial protection systems imply high cost and they do not enable scalability for automotive deployment. To address these limitations, this paper presents a cost-effective hardware solution for rainy conditions, designed to be compatible with multiple cameras simultaneously. Beyond its technical contribution, the proposed solution supports sustainability goals in transportation systems. By enabling compatibility with existing camera-based sensing platforms, the system extends the operational reliability of automated vehicles without requiring additional high-cost sensors or hardware replacements. This approach reduces resource consumption, supports modular upgrades, and promotes more cost-efficient deployment of automated vehicle technologies, particularly in challenging weather conditions where system failures would otherwise lead to inefficiencies and increased emissions. The proposed system was able to increase pedestrian detection accuracy of a Deep Learning model from 8.3% to 41.6%.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper proposes a cost-effective air pressure system for clearing rain from automated vehicle cameras that is compatible with multiple cameras simultaneously. It claims this hardware solution improves pedestrian detection accuracy in a deep learning model from 8.3% to 41.6% under rainy conditions while supporting sustainability goals by enabling modular upgrades without high-cost sensor replacements.

Significance. If the empirical result is validated with proper controls, the work would address a practical gap in physical mitigation for AV perception in adverse weather, offering a scalable and lower-cost alternative to existing lens coatings or industrial systems, with potential benefits for operational reliability and reduced emissions from system failures.

major comments (1)
  1. [Abstract] Abstract: The central claim that the proposed system increases pedestrian detection accuracy from 8.3% to 41.6% is presented without any description of the experimental methodology. No details are given on rain intensity or type, camera model and mounting, baseline (no-system) condition, deep learning detector architecture or weights, evaluation dataset or frame count, metric definition (e.g., mAP or precision at specific IoU), number of trials, or statistical significance. This omission makes it impossible to verify attribution of the improvement to the hardware or to reproduce the result.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback and positive assessment of the work's significance. We agree that the abstract requires additional methodological details to support the central claim and improve reproducibility. We address this point below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that the proposed system increases pedestrian detection accuracy from 8.3% to 41.6% is presented without any description of the experimental methodology. No details are given on rain intensity or type, camera model and mounting, baseline (no-system) condition, deep learning detector architecture or weights, evaluation dataset or frame count, metric definition (e.g., mAP or precision at specific IoU), number of trials, or statistical significance. This omission makes it impossible to verify attribution of the improvement to the hardware or to reproduce the result.

    Authors: We acknowledge that the abstract as currently written does not include the requested methodological summary. The full experimental protocol (rain intensity and type, camera model and mounting, baseline condition, detector architecture and weights, dataset and frame count, metric definition, number of trials, and statistical analysis) is detailed in the Methods and Experiments sections. In the revised manuscript we will expand the abstract to concisely incorporate these elements so that the 8.3 % to 41.6 % improvement claim can be immediately contextualized and verified. This change will be limited to the abstract and will not alter any results or conclusions. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical hardware claim with no derivations or self-referential steps

full rationale

The manuscript describes a physical air-pressure hardware system for rain mitigation and asserts an empirical accuracy gain (8.3% to 41.6%) for pedestrian detection. No equations, fitted parameters, predictions, uniqueness theorems, or self-citations appear in the provided text. The central claim is presented as a direct experimental outcome rather than a derivation that reduces to its own inputs by construction. Consequently the paper contains no load-bearing circular steps of any enumerated kind.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 1 invented entities

The central claim rests on the empirical performance of a new hardware design with no free parameters, mathematical axioms, or theoretical derivations; the only added element is the physical air-pressure mechanism itself.

invented entities (1)
  • Air pressure rain-clearing system for vehicle cameras no independent evidence
    purpose: To physically remove rain droplets from camera lenses using directed airflow while remaining compatible with multiple existing cameras
    The system is introduced and tested in the paper but no independent external evidence or falsifiable prediction outside the reported experiment is provided.
