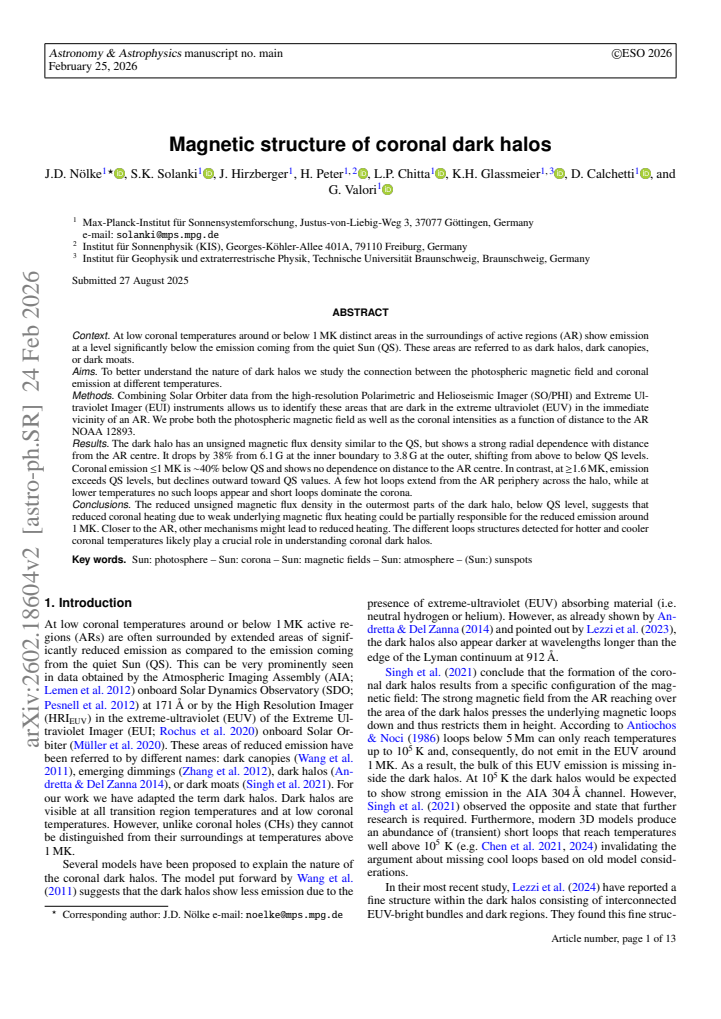

Magnetic structure of coronal dark halos
Pith reviewed 2026-05-15 20:12 UTC · model grok-4.3
The pith
Dark halos around active regions have outer magnetic flux below quiet-Sun levels that may drive their reduced emission below 1 MK.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The unsigned magnetic flux density in the dark halo drops from 6.1 G at the inner boundary to 3.8 G at the outer boundary, moving from above to below quiet-Sun levels, while coronal emission at or below 1 MK remains about 40 percent below quiet-Sun values independent of distance from the active region center; the authors conclude that reduced heating tied to this weaker flux can account for the emission deficit in the outer halo.
What carries the argument
The radial profile of unsigned photospheric magnetic flux density measured against temperature-binned coronal EUV intensities.
If this is right
- Outer halo regions with sub-quiet-Sun flux should exhibit systematically lower heating rates sufficient to sustain 1 MK plasma.
- Emission at or above 1.6 MK should continue to decline outward as the influence of extending hot loops weakens.
- Short, low-lying loops should dominate the cooler corona throughout the halo and produce the distance-independent emission deficit.
- The inner halo where flux remains above quiet-Sun levels requires separate mechanisms to suppress heating.
Where Pith is reading between the lines
- Models of coronal heating may need explicit thresholds below which magnetic flux fails to maintain 1 MK temperatures.
- High-resolution vector field maps could test whether the flux drop correlates with changes in loop footpoint separation.
- Similar dark regions in other active-region datasets should show the same outer flux threshold if the mechanism is general.
Load-bearing premise
The decline in unsigned magnetic flux is the main cause of the uniformly reduced emission at or below 1 MK rather than unquantified effects such as loop geometry or wave damping.
What would settle it
Direct comparison showing coronal emission at 1 MK remains reduced in halo regions where unsigned flux matches or exceeds quiet-Sun levels, or heating-rate measurements that do not track the observed 38 percent flux drop.
read the original abstract
At low coronal temperatures around or below 1 MK distinct areas in the surroundings of active regions (AR) show emission at a level significantly below the emission coming from the quiet Sun (QS). These areas are referred to as dark halos, dark canopies, or dark moats. To better understand the nature of dark halos we study the connection between the photospheric magnetic field and coronal emission at different temperatures. Combining Solar Orbiter data from the high-resolution Polarimetric and Helioseismic Imager (SO/PHI) and Extreme Ultraviolet Imager (EUI) instruments allows us to identify these areas that are dark in the extreme ultraviolet (EUV) in the immediate vicinity of an AR. We probe both the photospheric magnetic field as well as the coronal intensities as a function of distance to the AR NOAA 12893. The dark halo has an unsigned magnetic flux density similar to the QS, but shows a strong radial dependence with distance from the AR centre. It drops by 38 % from 6.1 G at the inner boundary to 3.8 G at the outer, shifting from above to below QS levels. Coronal emission $\leq$1 MK is $\sim$40 % below QS and shows no dependence on distance to the AR centre. In contrast, at $\geq$1.6 MK, emission exceeds QS levels, but declines outward toward QS values. A few hot loops extend from the AR periphery across the halo, while at lower temperatures no such loops appear and short loops dominate the corona. The reduced unsigned magnetic flux density in the outermost parts of the dark halo, below QS level, suggests that reduced coronal heating due to weak underlying magnetic flux heating could be partially responsible for the reduced emission around 1 MK. Closer to the AR, other mechanisms might lead to reduced heating. The different loops structures detected for hotter and cooler coronal temperatures likely play a crucial role in understanding coronal dark halos.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reports Solar Orbiter PHI and EUI observations of the coronal dark halo surrounding AR NOAA 12893. It finds that unsigned photospheric magnetic flux density within the halo declines radially from 6.1 G (above QS) at the inner boundary to 3.8 G (below QS) at the outer boundary, while EUV emission at temperatures ≤1 MK remains uniformly ~40 % below QS levels with no detectable radial dependence; emission at ≥1.6 MK is initially enhanced but declines outward toward QS values. The authors interpret the outer-halo flux falling below QS levels as evidence that reduced magnetic-flux-driven heating contributes to the suppressed ~1 MK emission.
Significance. The direct, calibrated measurements of flux density (6.1 G to 3.8 G) and emission contrasts provide quantitative constraints on the magnetic environment of dark halos. If the causal interpretation can be strengthened, the data would help discriminate between flux-threshold heating and other mechanisms such as loop geometry or wave damping.
major comments (1)
- [radial profiles of flux and emission (results and discussion)] The suggestion that reduced unsigned flux below QS levels in the outermost halo is partially responsible for the reduced ≤1 MK emission (abstract and discussion) is not supported by the reported profiles: emission remains flat at ~40 % below QS with explicitly no radial dependence, while flux declines steadily from 6.1 G to 3.8 G. A dominant flux-dependent heating mechanism should produce a corresponding emission gradient; its absence indicates that loop geometry, wave damping, or other unquantified factors dominate throughout the halo, rendering the outer-flux-threshold interpretation correlative rather than load-bearing.
minor comments (1)
- [abstract] The abstract and discussion would benefit from a clearer separation between the directly measured quantities (flux decline, uniform emission deficit) and the interpretive claim about heating mechanisms.
Simulated Author's Rebuttal
We thank the referee for the detailed and constructive review. The single major comment raises a valid point about the strength of our causal interpretation linking the radial decline in unsigned flux to the uniform suppression of ≤1 MK emission. We address this below and have revised the manuscript to reflect a more cautious and precise discussion.
read point-by-point responses
-
Referee: [radial profiles of flux and emission (results and discussion)] The suggestion that reduced unsigned flux below QS levels in the outermost halo is partially responsible for the reduced ≤1 MK emission (abstract and discussion) is not supported by the reported profiles: emission remains flat at ~40 % below QS with explicitly no radial dependence, while flux declines steadily from 6.1 G to 3.8 G. A dominant flux-dependent heating mechanism should produce a corresponding emission gradient; its absence indicates that loop geometry, wave damping, or other unquantified factors dominate throughout the halo, rendering the outer-flux-threshold interpretation correlative rather than load-bearing.
Authors: We agree that the flat radial profile of ≤1 MK emission (no detectable dependence on distance) despite the steady decline in unsigned flux density from 6.1 G to 3.8 G weakens a simple causal interpretation in which local flux reduction directly drives a corresponding emission change. The absence of an emission gradient indicates that flux-dependent heating cannot be the dominant or sole mechanism across the halo; other factors such as loop geometry, wave damping, or unquantified processes must be responsible for the uniform ~40 % suppression. In the revised manuscript we have modified the abstract and discussion to remove the phrasing that the outer sub-QS flux is “partially responsible” for the reduced emission. Instead, we now state that the transition to below-QS flux levels in the outer halo is consistent with reduced heating but does not explain the lack of radial variation, and we explicitly note that loop geometry and other mechanisms likely dominate throughout. This change makes the interpretation correlative rather than causal, as the referee correctly identifies. revision: partial
Circularity Check
No significant circularity in observational analysis
full rationale
The paper reports direct measurements of unsigned magnetic flux density (declining from 6.1 G to 3.8 G) and coronal emission intensities (uniformly ~40% below QS at ≤1 MK with no radial dependence) as functions of distance from the AR center, using SO/PHI and EUI data. No equations, fitted parameters, or models are introduced that generate predictions equivalent to the inputs by construction. The suggestion that reduced outer flux may contribute to reduced heating is an interpretive hypothesis, not a load-bearing derivation. No self-citations, ansatzes, or uniqueness theorems are invoked to close any loop. The analysis is self-contained empirical work.
Axiom & Free-Parameter Ledger
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
The reduced unsigned magnetic flux density in the outermost parts of the dark halo, below QS level, suggests that reduced coronal heating due to weak underlying magnetic flux heating could be partially responsible for the reduced emission around 1 MK.
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
Coronal emission ≤1 MK is ∼40 % below QS and shows no dependence on distance to the AR centre.
