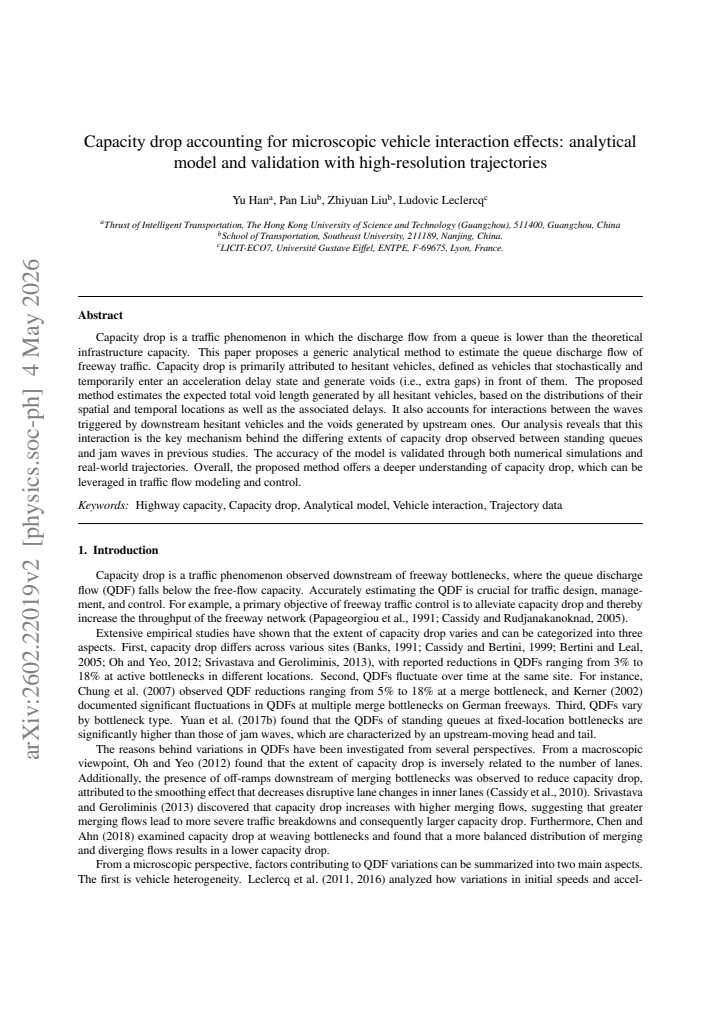

Capacity drop accounting for microscopic vehicle interaction effects: analytical model and validation with high-resolution trajectories

Ludovic Leclercq; Pan Liu; Yu Han; Zhiyuan Liu

arxiv: 2602.22019 · v2 · submitted 2026-02-25 · ⚛️ physics.soc-ph

Capacity drop accounting for microscopic vehicle interaction effects: analytical model and validation with high-resolution trajectories

Yu Han , Pan Liu , Zhiyuan Liu , Ludovic Leclercq This is my paper

Pith reviewed 2026-05-15 19:15 UTC · model grok-4.3

classification ⚛️ physics.soc-ph

keywords capacity drophesitant vehiclesqueue discharge flowmicroscopic interactionsvoid generationtraffic flow modelingfreeway bottlenecksanalytical estimation

0 comments

The pith

An analytical model shows capacity drop arises from acceleration delays in hesitant vehicles and their wave-void interactions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a method to compute the reduced discharge flow from freeway queues by summing the extra gaps, or voids, created when vehicles enter a temporary acceleration delay state. It explicitly includes how waves triggered by downstream hesitant vehicles interact with voids generated upstream, altering the overall gap accumulation. This interaction mechanism is presented as the reason capacity drop varies in size between standing queues and moving jam waves. A reader would care because reliable prediction of discharge rates supports better design of congestion management on highways.

Core claim

Capacity drop is primarily attributed to hesitant vehicles, defined as vehicles that stochastically and temporarily enter an acceleration delay state and generate voids (i.e., extra gaps) in front of them. The proposed method estimates the expected total void length generated by all hesitant vehicles, based on the distributions of their spatial and temporal locations as well as the associated delays. It also accounts for interactions between the waves triggered by downstream hesitant vehicles and the voids generated by upstream ones. Our analysis reveals that this interaction is the key mechanism behind the differing extents of capacity drop observed between standing queues and jam waves in

What carries the argument

Hesitant vehicles that enter a stochastic acceleration delay state, generating voids whose total length is estimated while accounting for interactions between downstream waves and upstream voids.

If this is right

Queue discharge flow can be estimated analytically from hesitation distributions without requiring full microscopic simulation of every vehicle.
The magnitude difference in capacity drop between standing queues and jam waves follows directly from the modeled wave-void interaction term.
Traffic flow models that incorporate this void-length calculation will produce more accurate predictions of bottleneck throughput.
Control strategies aimed at reducing acceleration delays can be evaluated for their effect on overall capacity loss using the same analytical expressions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If vehicle-to-vehicle communication or driver assistance can alter the probability or duration of hesitation events, the model implies a direct route to real-time capacity recovery.
The same void-interaction accounting could be tested at merge bottlenecks where lane-changing vehicles introduce analogous acceleration delays.
Embedding the expected-void formula into macroscopic traffic simulators would allow faster evaluation of network-level congestion patterns without full trajectory resolution.

Load-bearing premise

The spatial and temporal distributions of hesitant vehicles together with their delay durations are known or can be reliably estimated independently of the capacity drop data being modeled.

What would settle it

High-resolution trajectory measurements in which the observed total void length from measured hesitation events fails to match the model's predicted discharge flow reduction would falsify the central attribution.

read the original abstract

Capacity drop is a traffic phenomenon in which the discharge flow from a queue is lower than the theoretical infrastructure capacity. This paper proposes a generic analytical method to estimate the queue discharge flow of freeway traffic. Capacity drop is primarily attributed to hesitant vehicles, defined as vehicles that stochastically and temporarily enter an acceleration delay state and generate voids (i.e., extra gaps) in front of them. The proposed method estimates the expected total void length generated by all hesitant vehicles, based on the distributions of their spatial and temporal locations as well as the associated delays. It also accounts for interactions between the waves triggered by downstream hesitant vehicles and the voids generated by upstream ones. Our analysis reveals that this interaction is the key mechanism behind the differing extents of capacity drop observed between standing queues and jam waves in previous studies. The accuracy of the model is validated through both numerical simulations and real-world trajectories. Overall, the proposed method offers a deeper understanding of capacity drop, which can be leveraged in traffic flow modeling and control.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper gives a workable analytical expression for capacity drop by adding up voids from hesitant vehicles and then correcting for wave-void interactions, but the input distributions look like they could be tuned to the same data used for validation.

read the letter

The core advance here is the explicit inclusion of wave-void interactions in the analytical calculation of total void length. The authors argue that this term explains why standing queues show larger capacity drop than jam waves, and they back it with both simulation runs and real trajectory data. That is a concrete step beyond just listing hesitant vehicles as a source of voids. The validation numbers appear to line up reasonably, which is the main practical strength for anyone who needs a closed-form way to insert capacity drop into larger flow models. The model stays analytical rather than turning into a full simulation, which keeps it usable for control or planning work. The soft spot is the one the stress-test note flags. The expected total void length depends on the spatial and temporal distributions of hesitant vehicles plus their delay lengths. If those distributions are estimated from the same high-resolution trajectories that supply the discharge-flow measurements, then the interaction effect is no longer an independent prediction. The abstract does not describe a separate measurement protocol or external dataset for those inputs, so the central claim rests on whether the full paper shows an independent source. That needs checking before the result can be treated as mechanistic rather than descriptive. This work is aimed at traffic engineers and modelers who already work with capacity drop in freeway operations. It is narrow enough that most readers outside that niche will not need it, but within the subfield the analytical framing plus the validation data make it worth a referee's time. I would send it to peer review so the input-independence question can be settled directly.

Referee Report

2 major / 0 minor

Summary. The paper develops an analytical model for freeway capacity drop, attributing it to hesitant vehicles that stochastically enter acceleration-delay states and create voids. The model computes the expected total void length from the spatial/temporal distributions of these vehicles and their delay durations, while incorporating interactions between downstream waves and upstream voids. It claims this interaction mechanism explains the observed differences in capacity-drop magnitude between standing queues and jam waves, and validates the approach against both numerical simulations and real high-resolution trajectory data.

Significance. If the input distributions can be supplied independently of the discharge-flow observations, the framework supplies a mechanistic, distribution-based account of capacity drop that could improve microscopic traffic models and support targeted control interventions. The explicit treatment of wave-void interactions offers a potential explanation for previously reported variations across queue types.

major comments (2)

[Abstract and model description] Abstract and model description: the expected total void length is obtained from the distributions of spatial/temporal locations and delay durations of hesitant vehicles. The manuscript provides no explicit statement or protocol showing that these distributions are estimated from a dataset independent of the high-resolution trajectories used for validation; if they are instead inferred from the same discharge-flow observations, the interaction term becomes a post-hoc fit rather than an independent mechanistic prediction.
[Validation section] Validation section: the abstract states that accuracy is confirmed via simulations and real trajectories, yet no details are given on how the free parameters (distributions of locations and delays) are calibrated, what error metrics are used, or whether cross-validation or hold-out data are employed. Without these, it is impossible to determine whether the reported agreement supports the central claim or reflects calibration to the validation data itself.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major point below and will revise the manuscript to improve transparency on data sources, parameter estimation, and validation procedures.

read point-by-point responses

Referee: [Abstract and model description] Abstract and model description: the expected total void length is obtained from the distributions of spatial/temporal locations and delay durations of hesitant vehicles. The manuscript provides no explicit statement or protocol showing that these distributions are estimated from a dataset independent of the high-resolution trajectories used for validation; if they are instead inferred from the same discharge-flow observations, the interaction term becomes a post-hoc fit rather than an independent mechanistic prediction.

Authors: We agree that the manuscript does not explicitly state the provenance of the input distributions. The spatial and temporal distributions of hesitant vehicles, as well as the delay-duration distribution, are estimated directly from the same high-resolution trajectory dataset used for validation; these serve as empirical characterizations of the observed stochastic behavior. The analytical core of the model—the formulas for expected total void length and the downstream-upstream wave-void interaction—is derived from traffic-flow kinematics and is not a fitted functional form. In the revised manuscript we will add a dedicated subsection that (i) specifies the estimation procedure for each distribution (e.g., kernel density or moment matching on the trajectory sample), (ii) clarifies that the mechanistic contribution lies in the aggregation and interaction rules rather than in the input distributions themselves, and (iii) discusses the resulting scope of the model as an explanatory rather than purely predictive framework when inputs are taken from the same observations. revision: yes
Referee: [Validation section] Validation section: the abstract states that accuracy is confirmed via simulations and real trajectories, yet no details are given on how the free parameters (distributions of locations and delays) are calibrated, what error metrics are used, or whether cross-validation or hold-out data are employed. Without these, it is impossible to determine whether the reported agreement supports the central claim or reflects calibration to the validation data itself.

Authors: We acknowledge the lack of methodological detail in the current validation section. Distribution parameters are obtained by fitting the observed trajectories (maximum-likelihood or moment matching); simulation cases use the same parametric forms with parameters taken from the simulation design. Quantitative agreement is assessed via relative error in discharge flow and total void length, supplemented by visual comparison of wave propagation. Because only a single high-resolution trajectory dataset is available, no hold-out or cross-validation was performed. In the revision we will expand the validation section to report (i) the exact fitting procedure and resulting parameter values, (ii) the error metrics employed (mean absolute percentage error on discharge flow and void length), (iii) sensitivity plots for the distribution parameters, and (iv) an explicit statement of the calibration-validation overlap together with its implications for the strength of the evidence. revision: yes

Circularity Check

1 steps flagged

Distributions of hesitant vehicles and delays fitted to same trajectories used for capacity drop validation

specific steps

fitted input called prediction [Abstract]
"The proposed method estimates the expected total void length generated by all hesitant vehicles, based on the distributions of their spatial and temporal locations as well as the associated delays. It also accounts for interactions between the waves triggered by downstream hesitant vehicles and the voids generated by upstream ones. Our analysis reveals that this interaction is the key mechanism behind the differing extents of capacity drop observed between standing queues and jam waves in previous studies."

The capacity-drop prediction is obtained by feeding the model the spatial/temporal distributions and delay durations of hesitant vehicles. When these quantities are extracted from the identical trajectory data whose discharge flows are used for validation, the interaction-adjusted void length is statistically forced by the inputs rather than independently derived.

full rationale

The derivation computes expected total void length from supplied distributions of hesitant vehicle locations and delays, then adds wave-void interactions to predict discharge flow and explain standing-queue vs. jam-wave differences. Validation is performed on the same high-resolution trajectories. No independent measurement protocol or separate calibration dataset is indicated for the input distributions, so the interaction term reduces to a post-hoc adjustment of the fitted inputs rather than an independent mechanistic prediction. This produces partial circularity (score 6) but leaves room for non-circular content if distributions were obtained externally.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The model rests on assumed probability distributions for hesitant vehicle behavior and the definition of acceleration delay states; no new physical entities are introduced.

free parameters (1)

distributions of spatial/temporal locations and delays of hesitant vehicles
These distributions are inputs to the expected void length calculation and are not derived from first principles within the paper.

axioms (1)

domain assumption Hesitant vehicles stochastically enter an acceleration delay state generating voids
Core modeling premise stated in the abstract as the primary attribution for capacity drop.

pith-pipeline@v0.9.0 · 5480 in / 1124 out tokens · 34792 ms · 2026-05-15T19:15:09.264120+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

The time intervals T ... follow a negative exponential distribution f(T;λ)=λe^{-λT} ... duration of the acceleration response delay τ follows a negative exponential distribution f(τ;λ0)=λ0e^{-λ0τ} ... α ... estimated from trajectory data
