CubeSounder: Low SWaP-C 180 GHz Radiometer for Atmospheric Sensing Tested on High Altitude Balloons

Kyle D. Massingill , Tyler M. Karasinski , Sean Bryan , Michael Baricuatro , Daniel Bliss , Delondrae Carter , Walter Goodwin , Jonathan Greenfield
show 8 more authors
Christopher Groppi Philip Mauskopf Philip Rybak Scott Smas Roshni Suresh Sage Tinlin Bianca Wullen Peter Wullen
Authors on Pith no claims yet

Pith reviewed 2026-05-15 18:49 UTC · model grok-4.3

classification 📡 eess.SP physics.ins-det
keywords radiometerwater vaporballoon flightmillimeter wavefilter banksSWaP-Catmospheric sensingspectrometer
0
0 comments X

The pith

A compact 180 GHz radiometer using passive waveguide filter banks collected water-vapor data on stratospheric balloon flights.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that modern machining and off-the-shelf microwave parts now allow construction of low size, weight, power, and cost spectrometers for atmospheric water-vapor radiometry while preserving wide bandwidth. CubeSounder was built as a prototype payload and flown on commercial high-altitude balloons, with the authors reporting both the filter-bank design process and the first flight data. A reader would care because microwave sounding supplies the largest share of data to global weather forecast models, yet current instruments remain too bulky and expensive for dense deployment. If the approach succeeds, the same hardware principles could support far more frequent or distributed atmospheric measurements.

Core claim

CubeSounder is a spectrometer for water vapor radiometry at 180 GHz that uses passive waveguide filter banks. After simulation, fabrication, and integration into a high-altitude balloon payload, the instrument was flown on commercial stratospheric balloons; the paper presents the design steps and the initial flight data that demonstrate operation under actual flight conditions.

What carries the argument

Passive waveguide filter banks that perform spectral filtering for millimeter-wave radiometry inside a low-SWaP-C package.

If this is right

  • The simulation-to-fabrication workflow for the filter banks supports replication for other millimeter-wave bands.
  • Flight data confirm that the instrument returns usable radiometry under stratospheric conditions.
  • The low-SWaP-C design directly addresses the scalability barrier that has limited microwave sounding instruments.
  • The same architecture can be adapted to additional balloon or small-platform missions for atmospheric sensing.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The filter-bank approach could be extended to additional frequencies to sense other atmospheric constituents beyond water vapor.
  • If production costs drop further, networks of such radiometers might supply higher spatial and temporal resolution data to weather models.
  • The compact form factor suggests straightforward adaptation to drone or small-satellite platforms for broader coverage.

Load-bearing premise

The custom millimeter-wave filter banks perform as simulated and deliver usable water-vapor radiometry data under actual balloon flight conditions.

What would settle it

A clear mismatch between the collected balloon spectra and independent water-vapor references, or measured filter responses that deviate substantially from the electromagnetic simulations, would falsify the performance claim.

Figures

Figures reproduced from arXiv: 2602.23338 by Bianca Wullen, Christopher Groppi, Daniel Bliss, Delondrae Carter, Jonathan Greenfield, Kyle D. Massingill, Michael Baricuatro, Peter Wullen, Philip Mauskopf, Philip Rybak, Roshni Suresh, Sage Tinlin, Scott Smas, Sean Bryan, Tyler M. Karasinski, Walter Goodwin.

Figure 1
Figure 1. Figure 1: Drawing of spectrometer system. Broadband signal enters the feed [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: Results from our end-to-end filter bank design and simulation software. [PITH_FULL_IMAGE:figures/full_fig_p002_3.png] view at source ↗
Figure 2
Figure 2. Figure 2: An example of the waveguide filter-bank concept. Broadband light [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: An aluminum machined split block half from the V-band prototype [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: The CubeSounder electronics boards which handles readout, storage of sensor data, DC power conversion, as well as the running of accessories such [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Passbands of G-band spectrometer prototype determined by measuring [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗
Figure 9
Figure 9. Figure 9: The first iteration of the CubeSounder instrument payload containing [PITH_FULL_IMAGE:figures/full_fig_p005_9.png] view at source ↗
Figure 8
Figure 8. Figure 8: Flight track from April 2022 test flight. This flight carried the first [PITH_FULL_IMAGE:figures/full_fig_p005_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: Illustration of single-channel observation from a one-second excerpt [PITH_FULL_IMAGE:figures/full_fig_p006_10.png] view at source ↗
Figure 11

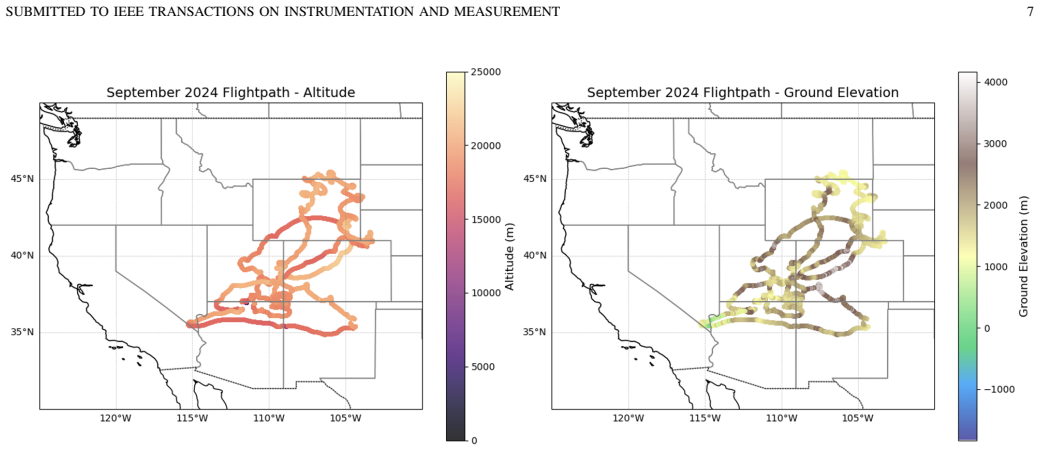

Figure 11. Figure 11: Flightpath for the September 2024 CubeSounder flight aboard the WorldView Stratollite balloon platform, colored according to altitude (left) and [PITH_FULL_IMAGE:figures/full_fig_p007_11.png] view at source ↗
read the original abstract

Microwave sounding is the leading driver of global numerical weather forecasting, but is limited by the scalability of such instruments. With modern machining and commercial microwave components, it is now possible to design low size, weight, power, and cost (SWaP-C) microwave spectrometers while maintaining wide bandwidth performance. Here we report on the status of CubeSounder, a spectrometer tailored for water vapor radiometry that utilizes passive wave guide filter banks. After developing a prototype and high altitude balloon payload, we demonstrated CubeSounder on commercial stratospheric balloon flights. We report on our design process, especially the simulation and fabrication of the custom millimeter-wave filter banks. We also report the initial results of the data collected from the balloon flights.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript describes the design, simulation, fabrication, and integration of CubeSounder, a compact 180 GHz radiometer employing passive waveguide filter banks for water-vapor sounding. It reports the payload development for high-altitude balloons and presents initial data collected during commercial stratospheric balloon flights.

Significance. If the reported flight data can be shown to match forward-model expectations, the work would demonstrate a viable low-SWaP-C path to scalable microwave atmospheric sensors, potentially lowering barriers to widespread deployment in weather forecasting networks. The use of commercial components and balloon-platform testing is a practical strength for accessibility.

major comments (1)
  1. [Initial Results from Balloon Flights] The section reporting initial balloon-flight results presents raw spectra and housekeeping data but contains no quantitative comparisons (e.g., brightness-temperature residuals versus reanalysis profiles or radiosonde data at flight altitude) or error bars. Without such validation, the central claim that the custom 180 GHz filter banks produced usable water-vapor radiometry under actual stratospheric conditions remains unverified.
minor comments (2)
  1. [Abstract] Clarify in the abstract what specific quantities (e.g., measured brightness temperatures, noise levels) constitute the 'initial results' rather than leaving the statement generic.
  2. [Payload Integration] Add a table or figure caption that explicitly lists the achieved SWaP-C values alongside target specifications for direct comparison.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thoughtful review and constructive criticism. We agree that the initial flight results section requires quantitative validation to support the claims of usable radiometry. We will revise the manuscript to address this point directly.

read point-by-point responses

  1. Referee: [Initial Results from Balloon Flights] The section reporting initial balloon-flight results presents raw spectra and housekeeping data but contains no quantitative comparisons (e.g., brightness-temperature residuals versus reanalysis profiles or radiosonde data at flight altitude) or error bars. Without such validation, the central claim that the custom 180 GHz filter banks produced usable water-vapor radiometry under actual stratospheric conditions remains unverified.

    Authors: We acknowledge that the current manuscript presents the raw spectra and housekeeping data from the balloon flights as initial results without direct quantitative comparisons to external references such as reanalysis profiles or error bars. In the revised version, we will add a new subsection that includes brightness-temperature residuals computed against forward-modeled expectations from ERA5 reanalysis data at the relevant flight altitudes. We will also derive and display error bars based on the measured instrument noise equivalent temperature and calibration uncertainties. These additions will directly verify the performance of the custom filter banks under stratospheric conditions and strengthen the central claim. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental instrumentation report with no derivations

full rationale

The paper describes hardware design, simulation, fabrication of millimeter-wave filter banks, payload integration, and reports initial flight data from commercial stratospheric balloons. No mathematical derivations, fitted models, predictions, or uniqueness theorems are claimed. All load-bearing claims rest on physical measurements and hardware performance under flight conditions, which are independently verifiable and do not reduce to prior fitted values or self-citations by construction. This is a standard non-circular experimental report.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an experimental hardware paper with no mathematical derivations. The central claim rests on the empirical success of the fabricated filter banks and the balloon flight data; no free parameters, axioms, or invented entities are introduced.
