Non-Volatile Vortex MTJs with Opto-Electrical and Spin-Diode Nonlinearities as Multifunctional Neuromorphic Platforms

Felix Oberbauer , Tristan Joachim Winkel , Clara C Wanjura , Maksim Steblii , Jakob Walowski , Tim B\"ohnert , Ricardo Ferreira , Markus M\"unzenberg
show 1 more author
Tahereh Sadat Parvini
This is my paper

Pith reviewed 2026-05-15 17:00 UTC · model grok-4.3

classification ⚛️ physics.app-ph
keywords vortex MTJneuromorphic computingspintronicsnon-volatile memorytunnel magneto-Seebeckspin diodeoptoelectronicscrossbar array
0
0 comments X

The pith

A single vortex MTJ nanopillar stores non-volatile weights while delivering opto-electrical nonlinearity for neuromorphic computation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that storage-layer-enabled vortex magnetic tunnel junctions combine non-volatile analog weight storage, thermally tunable resonance, and nonlinear computation in one device. Optoelectrical drive into the bias-enhanced tunnel magneto-Seebeck regime produces a cubic transfer function, while spin-diode rectification offers an alternative electrical channel. Crossbar simulations using measured device maps reach 95.4 percent and 94.9 percent image-classification accuracy, comparable to a digital single-layer sigmoid network, with smaller 600 nm junctions outperforming larger ones.

Core claim

Storage-layer-enabled vortex MTJs unify non-volatile weight storage, optoelectrically driven nonlinear computation, and multilevel readout within a single nanopillar. A thermally programmable FM/AFM layer retains analog synaptic weights with zero standby power and shifts the vortex gyrotropic resonance by approximately 15 MHz. Under combined laser heating and dc bias the junction enters the bTMS regime whose thermoelectric response supplies a compact cubic nonlinearity; electrical and thermoelectric channels switch at matched fields but distinct amplitudes, creating an effective four-level readout. Parameterized simulations of bTMS and spin-diode modes both exceed 94 percent classification,

What carries the argument

Vortex MTJ with FM/AFM storage layer, driven into bias-enhanced tunnel magneto-Seebeck (bTMS) regime for cubic nonlinearity or spin-diode rectification for RF nonlinearity.

If this is right

  • Analog weights remain stored with zero standby power and can be non-volatily tuned via the storage layer.
  • Cubic nonlinearity arises directly from the bTMS thermoelectric response under modest dc bias and optical heating.
  • Matched coercive fields but different amplitudes in electrical and thermoelectric channels yield four-level readout without extra circuitry.
  • Smaller 600 nm devices deliver stronger nonlinearity and higher simulated accuracy, indicating device size as a direct lever.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Coexistence of bTMS and spin-diode effects in one junction could allow hardware-native quadratic cross-terms for multi-input operations.
  • Eliminating separate memory and compute units in this architecture could lower overall energy per inference compared with conventional CMOS accelerators.
  • Thermal tuning of resonance frequency offers an additional analog degree of freedom that might be exploited for online learning or frequency-multiplexed inputs.

Load-bearing premise

Single-device response curves measured in isolation will translate to crossbar arrays without device variability, interconnect parasitics, or thermal crosstalk that would lower the reported classification accuracies.

What would settle it

Fabricate a small physical crossbar of these vortex MTJs, apply the same image dataset, and measure whether classification accuracy reaches or falls below the simulated 95 percent value.

Figures

Figures reproduced from arXiv: 2603.02734 by Clara C Wanjura, Felix Oberbauer, Jakob Walowski, Maksim Steblii, Markus M\"unzenberg, Ricardo Ferreira, Tahereh Sadat Parvini, Tim B\"ohnert, Tristan Joachim Winkel.

Figure 1

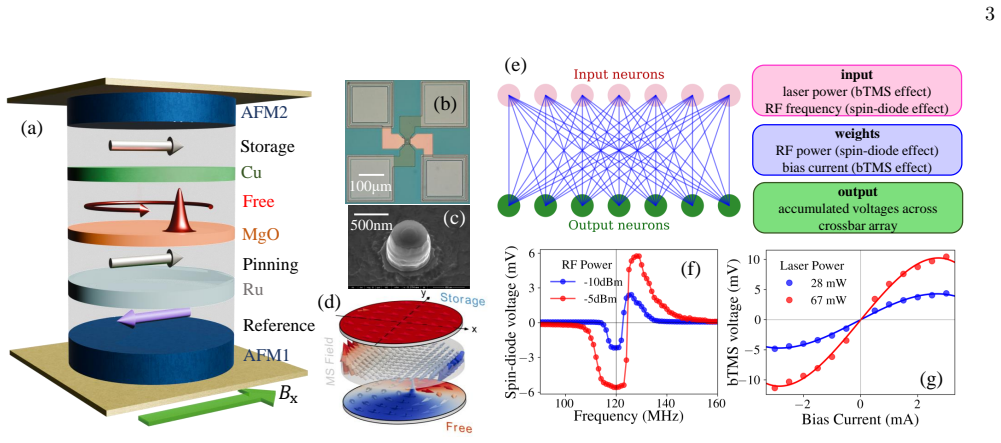

Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

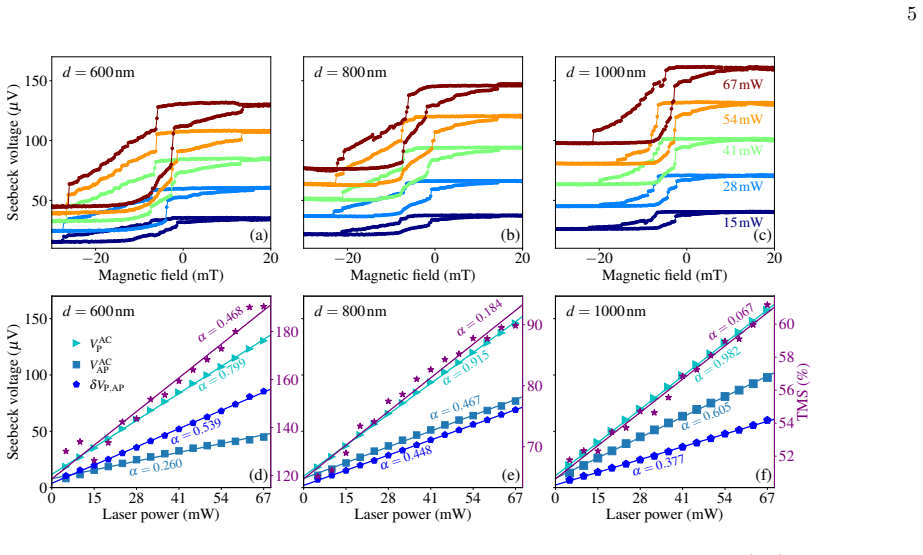

Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

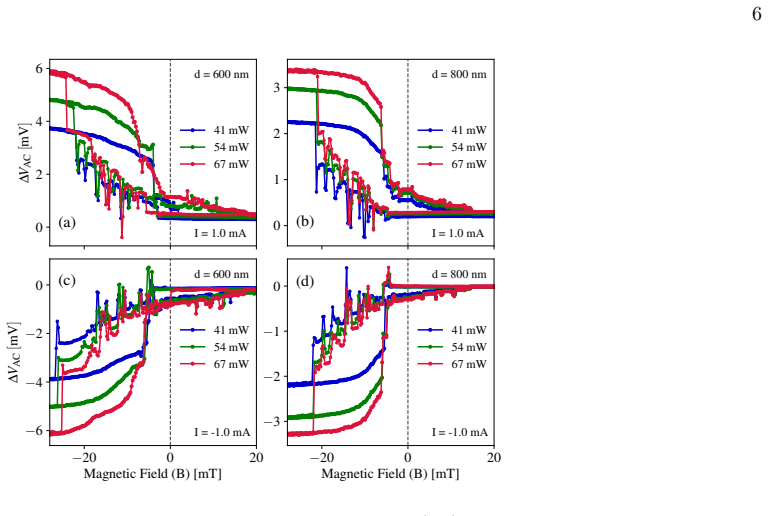

Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

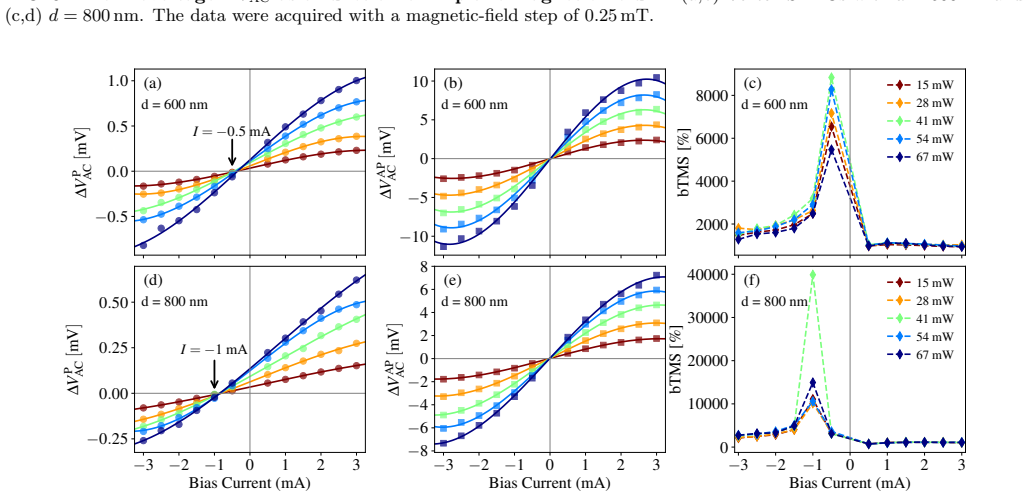

Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

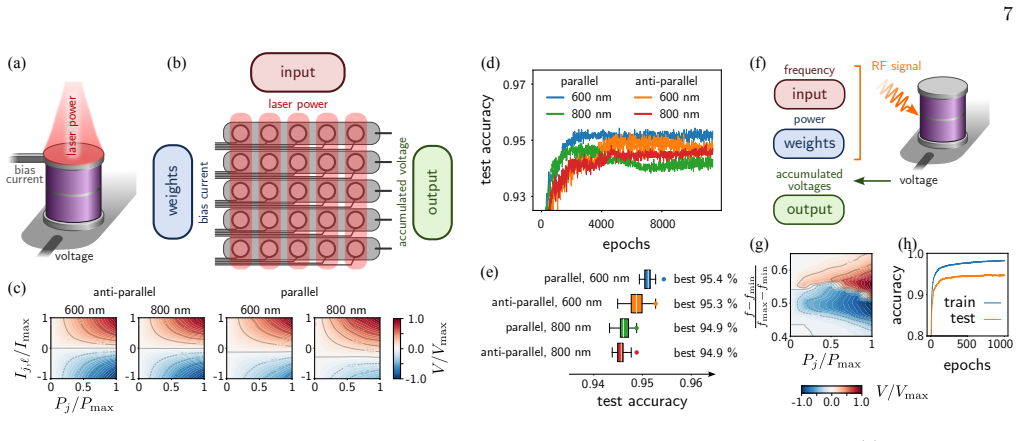

Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

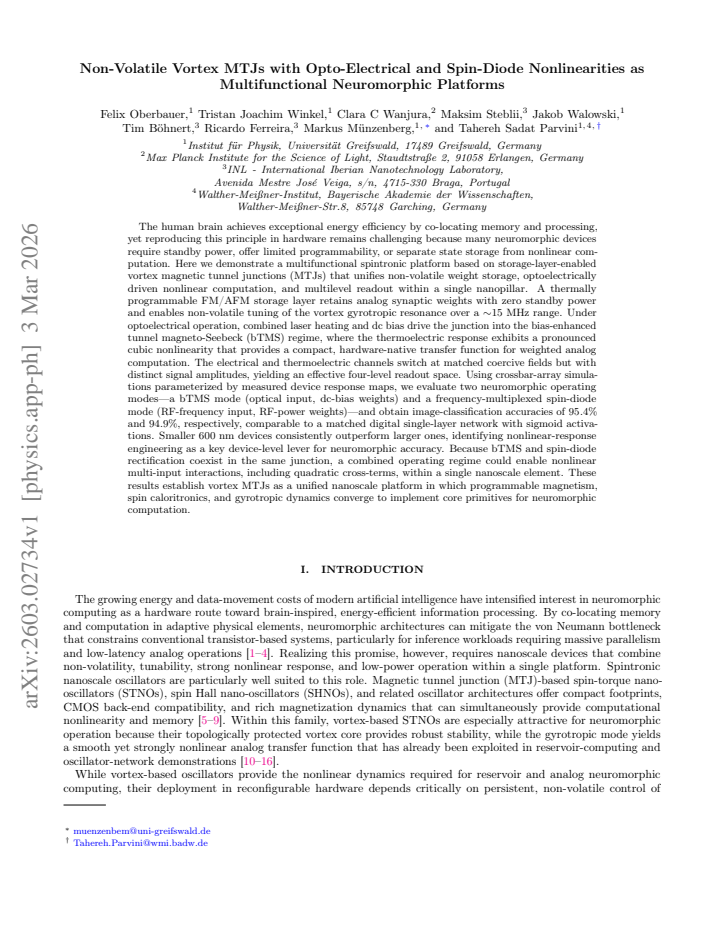

read the original abstract

The human brain achieves exceptional energy efficiency by co-locating memory and processing, yet reproducing this principle in hardware remains challenging because many neuromorphic devices require standby power, offer limited programmability, or separate state storage from nonlinear computation. Here we demonstrate a multifunctional spintronic platform based on storage-layer-enabled vortex magnetic tunnel junctions (MTJs) that unifies non-volatile weight storage, optoelectrically driven nonlinear computation, and multilevel readout within a single nanopillar. A thermally programmable FM/AFM storage layer retains analog synaptic weights with zero standby power and enables non-volatile tuning of the vortex gyrotropic resonance over ${\sim}15$~MHz. Under optoelectrical operation, combined laser heating and dc bias drive the junction into the bias-enhanced tunnel magneto-Seebeck (bTMS) regime, where the thermoelectric response exhibits a pronounced cubic nonlinearity providing a compact, hardware-native transfer function for weighted analog computation. The electrical and thermoelectric channels switch at matched coercive fields but with distinct amplitudes, yielding an effective four-level readout space. Crossbar-array simulations parameterized by measured device response maps evaluate two neuromorphic modes -- a bTMS mode (optical input, dc-bias weights) and a spin-diode mode (RF-frequency input, RF-power weights) -- achieving image-classification accuracies of $95.4\%$ and $94.9\%$, comparable to a digital single-layer network with sigmoid activations. Smaller 600~nm devices consistently outperform larger ones, identifying nonlinear-response engineering as a key device-level lever. Because bTMS and spin-diode rectification coexist in the same junction, a combined regime could enable nonlinear multi-input interactions, including quadratic cross-terms, within a single nanoscale element.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a multifunctional neuromorphic platform based on storage-layer-enabled vortex MTJs that integrates non-volatile analog weight storage (via thermally programmable FM/AFM layer), optoelectrically driven nonlinear computation (via bias-enhanced tunnel magneto-Seebeck effect with cubic nonlinearity), and multilevel readout within a single nanopillar. Measured device responses parameterize crossbar-array simulations for two modes (bTMS with optical input and spin-diode with RF input), yielding image-classification accuracies of 95.4% and 94.9%, comparable to a digital single-layer sigmoid network; smaller (600 nm) devices outperform larger ones.

Significance. If the single-device maps translate to functional arrays, the work offers a compact hardware solution for co-located memory and nonlinear processing with zero standby power, advancing spintronic neuromorphic systems. The experimental unification of bTMS and spin-diode rectification in one junction, plus tunable gyrotropic resonance over ~15 MHz, provides concrete device-level data that could inform energy-efficient analog computing architectures. The device-size dependence on nonlinearity is a useful engineering insight.

major comments (2)
  1. [Crossbar-array simulations] Crossbar-array simulations section: the headline accuracies of 95.4% (bTMS mode) and 94.9% (spin-diode mode) are obtained from simulations driven by mean single-device response maps. No indication is given that device-to-device spreads in coercive fields, resonance frequencies, or nonlinearity coefficients, interconnect RC parasitics, or thermal crosstalk were included; without these, the numbers represent an optimistic upper bound rather than a realistic array prediction, directly affecting the multifunctional-platform claim.
  2. [Experimental results and methods] Experimental results and methods: the reported device responses lack error bars, explicit data-exclusion criteria, and any array-level experimental validation. The central extrapolation from single-nanopillar maps to crossbar performance therefore rests on an untested assumption of clean scaling, which is load-bearing for the 95%+ accuracy assertions.
minor comments (2)
  1. [Abstract] Abstract: the statement that 'smaller 600 nm devices consistently outperform larger ones' should quantify the exact diameters tested and the measured improvement in cubic nonlinearity coefficient or classification accuracy.
  2. [Device characterization] Notation: the 'effective four-level readout space' arising from matched coercive fields but distinct amplitudes in electrical and thermoelectric channels needs an explicit diagram or table showing the four combinations and their separation margins.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive feedback. The comments highlight important considerations for the simulation methodology and experimental reporting. We address each point below and outline revisions that will strengthen the manuscript while preserving the core demonstration of the multifunctional vortex MTJ platform.

read point-by-point responses

  1. Referee: [Crossbar-array simulations] Crossbar-array simulations section: the headline accuracies of 95.4% (bTMS mode) and 94.9% (spin-diode mode) are obtained from simulations driven by mean single-device response maps. No indication is given that device-to-device spreads in coercive fields, resonance frequencies, or nonlinearity coefficients, interconnect RC parasitics, or thermal crosstalk were included; without these, the numbers represent an optimistic upper bound rather than a realistic array prediction, directly affecting the multifunctional-platform claim.

    Authors: We agree that the reported accuracies rely on mean single-device maps and constitute an optimistic projection. Our measured data indicate moderate spreads (approximately 8-12% in coercive fields and 5-10% in resonance frequencies across 600 nm devices), but these were not propagated into the array simulations. In revision we will add a dedicated subsection performing Monte Carlo simulations that incorporate the observed parameter spreads, together with first-order estimates of RC parasitics and thermal crosstalk drawn from the literature. This will quantify the degradation from the ideal 95% figures and provide a more realistic performance envelope for the platform claim. revision: partial

  2. Referee: [Experimental results and methods] Experimental results and methods: the reported device responses lack error bars, explicit data-exclusion criteria, and any array-level experimental validation. The central extrapolation from single-nanopillar maps to crossbar performance therefore rests on an untested assumption of clean scaling, which is load-bearing for the 95%+ accuracy assertions.

    Authors: We will add standard-deviation error bars to all experimental curves, calculated from repeated measurements on 5-10 devices per diameter. The methods section will be expanded with explicit data-inclusion criteria (e.g., devices exhibiting stable vortex nucleation and gyrotropic resonance within 15 MHz of the mean). Array-level experimental validation is not feasible within the present study, which focuses on single-nanopillar characterization and simulation-based projection; fabricating and testing functional crossbar arrays requires a separate fabrication run and measurement campaign that lies beyond current resources. We will add a concise limitations paragraph in the discussion that explicitly flags the clean-scaling assumption and its implications for the quoted accuracies. revision: partial

Circularity Check

0 steps flagged

No significant circularity; results derive from measurements and parameterized simulations

full rationale

The paper's central claims rest on experimental measurements of bTMS and spin-diode responses in vortex MTJs, followed by crossbar-array simulations driven by those measured maps. No equations or derivations reduce the reported classification accuracies (95.4% and 94.9%) to quantities defined by the same fitted parameters used to generate the input maps. No self-definitional steps, fitted inputs renamed as predictions, or load-bearing self-citations appear in the provided derivation chain. Minor self-citation is possible in the full manuscript but is not load-bearing for the accuracy results.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The platform rests on standard spintronic physics plus device-specific assumptions about the cubic character of the bTMS response and the clean extrapolation from single devices to arrays.

free parameters (1)
  • device diameter scaling factor
    Smaller 600 nm devices outperform larger ones; the scaling relation is extracted from measured data rather than derived from first principles.
axioms (1)
  • domain assumption The bias-enhanced tunnel magneto-Seebeck response exhibits a pronounced cubic nonlinearity usable as a hardware activation function.
    Invoked to justify the bTMS mode for weighted analog computation.

pith-pipeline@v0.9.0 · 5657 in / 1348 out tokens · 51318 ms · 2026-05-15T17:00:40.755154+00:00 · methodology
