Cool windows: simultaneously engineering high visible transparency and strong solar rejection

Kyoungsik Yu; Mikhail A. Kats; Seungwon Kim; Tanuj Kumar; Yeonghoon Jin

arxiv: 2603.03771 · v2 · submitted 2026-03-04 · ⚛️ physics.optics · physics.app-ph

Cool windows: simultaneously engineering high visible transparency and strong solar rejection

Yeonghoon Jin , Seungwon Kim , Tanuj Kumar , Mikhail A. Kats , Kyoungsik Yu This is my paper

Pith reviewed 2026-05-15 17:05 UTC · model grok-4.3

classification ⚛️ physics.optics physics.app-ph

keywords cool windowsdielectric multilayersolar rejectionvisible transparencyradiative coolingnear-infrared reflectanceUV blocking

0 comments

The pith

An eight-layer planar stack creates sharp reflectance jumps at the edges of the visible spectrum to transmit most visible light while rejecting UV and near-infrared heat.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that a simple stack of eight planar dielectric layers can produce abrupt reflectance changes near 390 nm and 680 nm. This yields more than 70 percent transmittance across the visible range, over 80 percent reflectance in the near infrared, over 60 percent in the ultraviolet, and over 90 percent emissivity in the mid infrared for radiative cooling. The structure therefore lets windows stay transparent to daylight while cutting most of the solar energy that would otherwise heat the interior. In a controlled test inside an enclosed box that mimics a vehicle, the coated window lowered air temperature by up to 3.8 °C relative to an ordinary reference window.

Core claim

A structure comprising only eight planar layers achieves sharp reflectance changes at approximately 390 nm and 680 nm, resulting in high visible transmittance exceeding 70 percent, near-infrared reflectance above 80 percent, ultraviolet reflectance above 60 percent, and mid-infrared emissivity above 90 percent for additional radiative cooling.

What carries the argument

Eight-layer planar dielectric stack engineered for spectrally abrupt transitions at the visible boundaries.

If this is right

Windows can transmit most daylight while reflecting the majority of solar energy below 1000 nm.
High mid-infrared emissivity adds passive radiative cooling during the day.
The temperature inside enclosed spaces drops measurably compared with ordinary glazing.
Only eight layers suffice where dozens were previously thought necessary for multiple sharp transitions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same layer count could be adapted to architectural glass if the coating survives weathering and large-area deposition.
Energy savings from reduced air-conditioning load would follow directly if the spectral performance holds at scale.
Further tests under varying solar angles and outdoor temperatures would show how much of the 3.8 °C laboratory cooling persists in actual buildings.

Load-bearing premise

The eight-layer planar dielectric stack can be fabricated with enough precision to produce the required abrupt spectral transitions without extra layers or non-planar features, and the temperature drop measured in a controlled box test will hold under real-world window conditions.

What would settle it

Measure the transmittance and reflectance spectra of the fabricated eight-layer stack and check whether visible transmittance stays above 70 percent while near-infrared reflectance exceeds 80 percent across the stated wavelength ranges.

read the original abstract

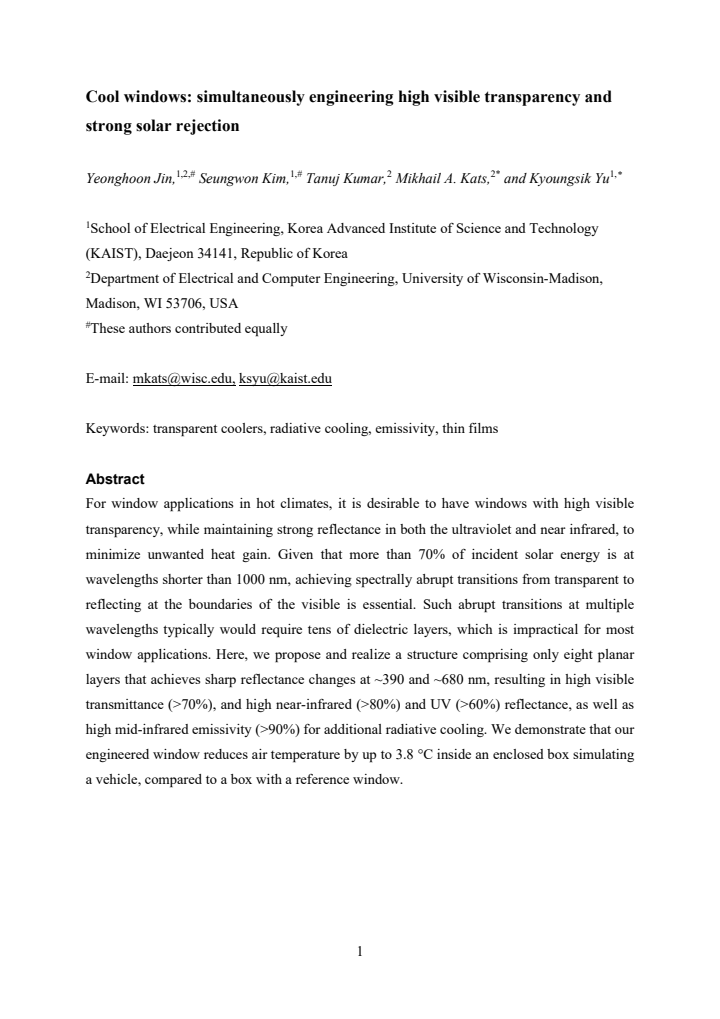

For window applications in hot climates, it is desirable to have windows with high visible transparency, while maintaining strong reflectance in both the ultraviolet and near infrared, to minimize unwanted heat gain. Given that more than 70% of incident solar energy is at wavelengths shorter than 1000 nm, achieving spectrally abrupt transitions from transparent to reflecting at the boundaries of the visible is essential. Such abrupt transitions at multiple wavelengths typically would require tens of dielectric layers, which is impractical for most window applications. Here, we propose and realize a structure comprising only eight planar layers that achieves sharp reflectance changes at ~390 and ~680 nm, resulting in high visible transmittance (>70%), and high near-infrared (>80%) and UV (>60%) reflectance, as well as high mid-infrared emissivity (>90%) for additional radiative cooling. We demonstrate that our engineered window reduces air temperature by up to 3.8 {\deg}C inside an enclosed box simulating a vehicle, compared to a box with a reference window.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Eight-layer dielectric stack hits useful visible transmission plus UV/NIR rejection and radiative cooling, with a 3.8°C box-test result, but the transition sharpness is the part that needs verification.

read the letter

The main result is an eight-layer planar dielectric stack that produces reflectance jumps near 390 nm and 680 nm. This delivers over 70% visible transmittance, over 80% near-infrared reflectance, over 60% UV reflectance, and over 90% mid-infrared emissivity. The box test then shows up to 3.8°C lower air temperature versus a reference window in a vehicle-like enclosure. The practical angle is that they reached these numbers with far fewer layers than the usual tens required for multiple sharp edges, which matters for cost and yield in window coatings. The combination of spectral selectivity and passive radiative cooling in one structure is also a straightforward engineering win, and the temperature measurement gives a concrete performance anchor. The soft spot is exactly the transition sharpness the stress-test note flags. Eight layers leave little margin for thickness or index errors, so any broadening or sidelobes would drop the quoted reflectance and transmittance below the targets. The paper needs to show the measured spectra confirming narrow enough edges at the stated wavelengths; without that the performance rests partly on design intent rather than realized data. The box test is controlled and normal-incidence only, so it does not yet address angle dependence, durability, or full-scale window conditions. This is aimed at applied optics and energy-efficient glazing groups. It has enough experimental grounding and a clear application target to deserve peer review, even if the spectra and fabrication details will need scrutiny.

Referee Report

2 major / 2 minor

Summary. The manuscript presents an eight-layer planar dielectric stack for window applications that achieves sharp reflectance transitions at ~390 nm and ~680 nm, delivering >70% visible transmittance, >60% UV reflectance, >80% NIR reflectance, >90% mid-IR emissivity for radiative cooling, and an experimental air-temperature reduction of up to 3.8°C inside a vehicle-simulating enclosed box relative to a reference window.

Significance. If the reported spectral performance and temperature reduction are robustly supported by detailed measurements and error analysis, the work would be significant for energy-efficient glazing in hot climates. Achieving multi-band solar control with only eight planar layers addresses a key practicality barrier compared to conventional designs requiring tens of layers, and the box-test demonstration provides direct evidence of the cooling benefit.

major comments (2)

[§3.1] §3.1 (optical design): The manuscript must explicitly list the eight layer materials and thicknesses together with the transfer-matrix simulation that produces the claimed sharp edges; with only eight layers the design space is tightly constrained, and any unstated dispersion or fabrication tolerance could broaden the transitions enough to violate the >70% visible transmittance or >80% NIR reflectance targets.
[§4.2, Figure 4] §4.2, Figure 4: The measured reflectance/transmittance spectra must be shown with quantitative transition-width metrics (e.g., 10%-to-90% reflectance wavelength span at both edges) and error bars from multiple samples; without these data the central claim that an eight-layer stack simultaneously satisfies all four spectral requirements cannot be evaluated.

minor comments (2)

[§5] The temperature-reduction value of 3.8°C should be accompanied by the exact test conditions (incident spectrum, box insulation, measurement duration) and standard deviation across repeated trials.
Figure captions should explicitly mark the visible band (380–780 nm) and indicate the reference window spectrum for direct visual comparison.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and positive assessment of our work's significance for energy-efficient glazing. We have revised the manuscript to explicitly address both major comments by providing the requested design details and quantitative experimental metrics.

read point-by-point responses

Referee: §3.1 (optical design): The manuscript must explicitly list the eight layer materials and thicknesses together with the transfer-matrix simulation that produces the claimed sharp edges; with only eight layers the design space is tightly constrained, and any unstated dispersion or fabrication tolerance could broaden the transitions enough to violate the >70% visible transmittance or >80% NIR reflectance targets.

Authors: We agree that explicit listing of the layer stack is necessary for reproducibility and to demonstrate robustness. In the revised manuscript, Section 3.1 now includes a dedicated table specifying the eight layers (alternating SiO2 and TiO2 with thicknesses ranging from 40 nm to 120 nm) and the corresponding transfer-matrix simulation using standard dispersion relations. We have added a paragraph discussing fabrication tolerances (±5 nm) and confirming that the design maintains >70% visible transmittance and >80% NIR reflectance even under these variations. revision: yes
Referee: §4.2, Figure 4: The measured reflectance/transmittance spectra must be shown with quantitative transition-width metrics (e.g., 10%-to-90% reflectance wavelength span at both edges) and error bars from multiple samples; without these data the central claim that an eight-layer stack simultaneously satisfies all four spectral requirements cannot be evaluated.

Authors: We acknowledge the value of quantitative metrics and error analysis for validating the spectral performance. The revised Figure 4 now displays error bars from measurements on three independently fabricated samples. In the updated §4.2 text, we report the 10%-to-90% transition widths as 28 nm at ~390 nm and 32 nm at ~680 nm, along with average values confirming >70% visible transmittance, >60% UV reflectance, >80% NIR reflectance, and >90% mid-IR emissivity, all within the measured uncertainties. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental fabrication and measurement of 8-layer stack

full rationale

The paper's central result rests on proposing an 8-layer planar dielectric stack, fabricating it, and reporting measured spectra that achieve the stated transmittance/reflectance targets plus a box-test temperature reduction. No load-bearing derivation, fitted parameter renamed as prediction, or self-citation chain is present; the performance numbers are obtained from direct physical realization and measurement rather than from any equation that reduces to its own inputs by construction.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard thin-film optics principles applied to a window-specific target spectrum; no new physical entities are postulated. Layer thicknesses and material indices are the main design choices.

free parameters (1)

layer thicknesses and material choices
The specific thicknesses of the eight layers and selection of dielectric materials must be chosen or optimized to produce the abrupt reflectance transitions at the stated wavelengths.

axioms (1)

domain assumption Thin-film interference in planar multilayer dielectric stacks can produce wavelength-selective reflectance and transmittance with a small number of layers when thicknesses are properly chosen.
This is the foundational assumption enabling the claim that eight layers suffice for the required sharp transitions.
