arxiv: 2603.05126 · v2 · submitted 2026-03-05 · ❄️ cond-mat.str-el

Crystal growth and magnetic properties of spin-1/2 distorted triangular lattice antiferromagnet CuLa₂Ge₂O₈

S. Thamban , C. Aguilar-Maldonado , S. Chillal , R. Feyerherm , K. Proke\v{s} , A. J. Studer , D. Abou-Ras , K. Karmakar
show 2 more authors
A. T. M. N. Islam B. Lake
This is my paper

Pith reviewed 2026-05-15 15:45 UTC · model grok-4.3

classification ❄️ cond-mat.str-el
keywords distorted triangular latticespin-1/2 antiferromagnetneutron powder diffractioncrystal growthmagnetic structureCuLa2Ge2O8long-range ordernoncollinear antiferromagnetism
0
0 comments X

The pith

CuLa₂Ge₂O₈ develops a commensurate noncollinear antiferromagnetic order below 1.14 K with moments of 0.50 and 0.73 μ_B along b and c.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes the synthesis of large single crystals of CuLa₂Ge₂O₈ by the traveling-solvent floating zone technique and their use to map the low-temperature magnetism of this distorted triangular lattice of Cu²⁺ ions. Measurements of susceptibility, magnetization, and heat capacity locate a transition to long-range order at 1.14 K, while neutron powder diffraction determines that the spins adopt a noncollinear arrangement in the bc-plane rather than the 120-degree pattern of an ideal triangle. A reader would care because the distortion lifts the usual degeneracy and stabilizes a specific ordered state whose moment size can be compared directly with theory for weakly frustrated spin-1/2 systems.

Core claim

CuLa₂Ge₂O₈ realizes a commensurate noncollinear antiferromagnetic structure below T_N = 1.14 K. Neutron powder diffraction at 20 mK refines ordered moments lying in the bc-plane with m_b = 0.50(3) μ_B and m_c = 0.73(5) μ_B, giving a total moment of 0.89(6) μ_B per Cu²⁺ ion.

What carries the argument

Neutron powder diffraction refinement of the magnetic structure that selects a single commensurate propagation vector and moment direction within the distorted bc-plane lattice.

If this is right

  • The lattice distortion selects a noncollinear order distinct from the 120-degree state of equilateral triangular antiferromagnets.
  • Long-range order sets in at 1.14 K despite the S = 1/2 character and residual frustration, with an ordered moment close to the classical value.
  • The bc-plane anisotropy is strong enough to fix the spin plane and commensurate periodicity.
  • The traveling-solvent floating zone method yields crystals large enough for future anisotropic measurements.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Further single-crystal work could map field-induced transitions or spin-wave dispersions that are inaccessible in powder.
  • Comparison with other distorted triangular compounds may reveal how small changes in bond angles control the choice between commensurate and incommensurate order.
  • The reduced moment leaves room for quantum fluctuations that could be quantified by specific-heat or muon-spin-rotation studies.

Load-bearing premise

The powder diffraction pattern is produced by a single magnetic phase whose intensity uniquely fixes the moment sizes without significant impurity or domain averaging contributions.

What would settle it

Single-crystal neutron diffraction at base temperature that measures a different propagation vector or moment components outside the reported error bars.

Figures

Figures reproduced from arXiv: 2603.05126 by A. J. Studer, A. T. M. N. Islam, B. Lake, C. Aguilar-Maldonado, D. Abou-Ras, K. Karmakar, K. Proke\v{s}, R. Feyerherm, S. Chillal, S. Thamban.

Figure 1
Figure 1. Figure 1: FIG. 1: The crystal structure of CuLa [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3

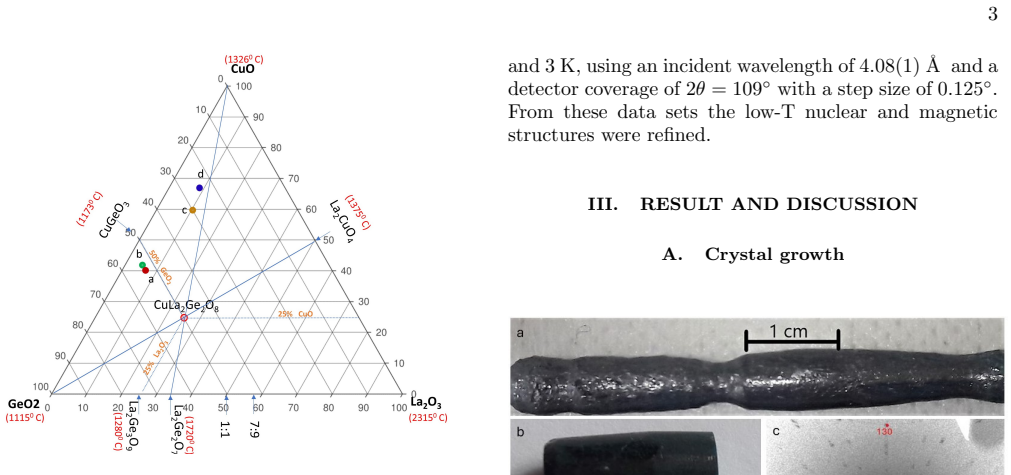

Figure 3. Figure 3: FIG. 3: Phase diagram for the GeO [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

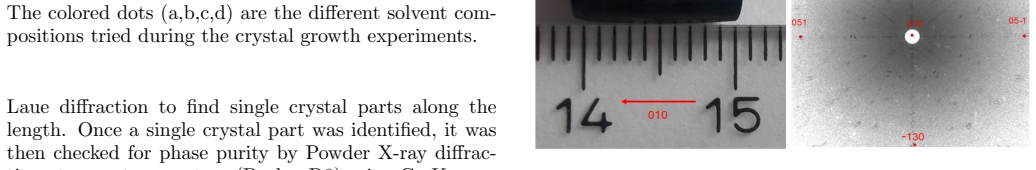

Figure 4. Figure 4: FIG. 4: (a) Photograph of the as-grown crystal from the [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 5

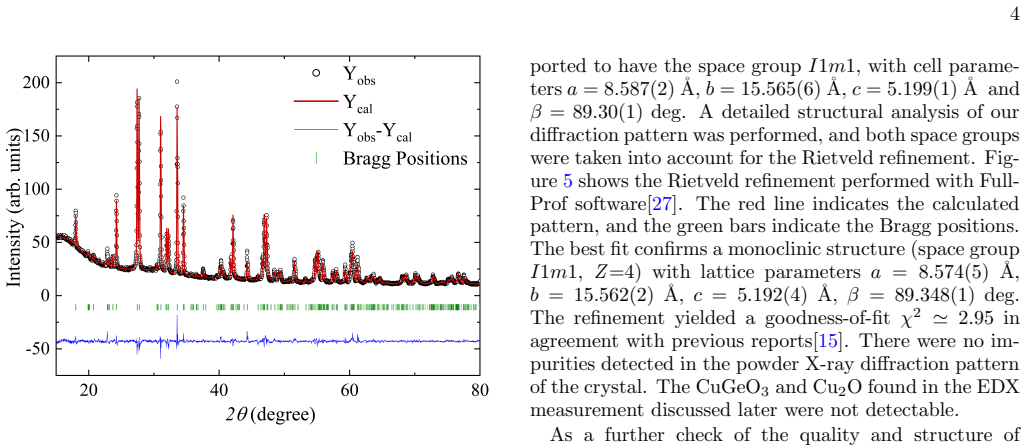

Figure 5. Figure 5: FIG. 5: Powder XRD pattern (open circles) measured [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6

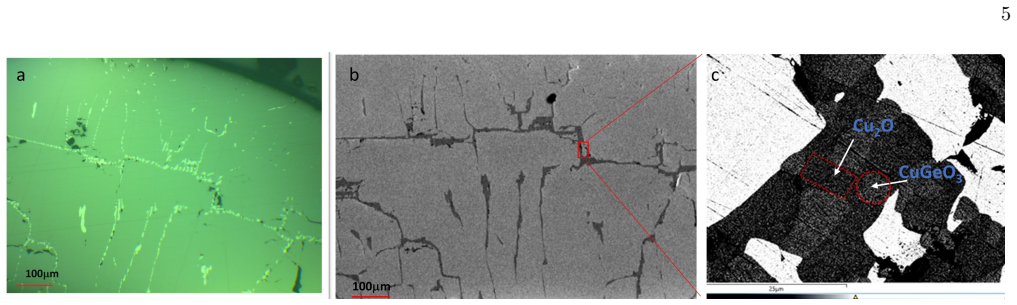

Figure 6. Figure 6: FIG. 6: (a) Polarized optical microscope image of a small part of the crystal, indicating inclusions or impurities. (b) [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7

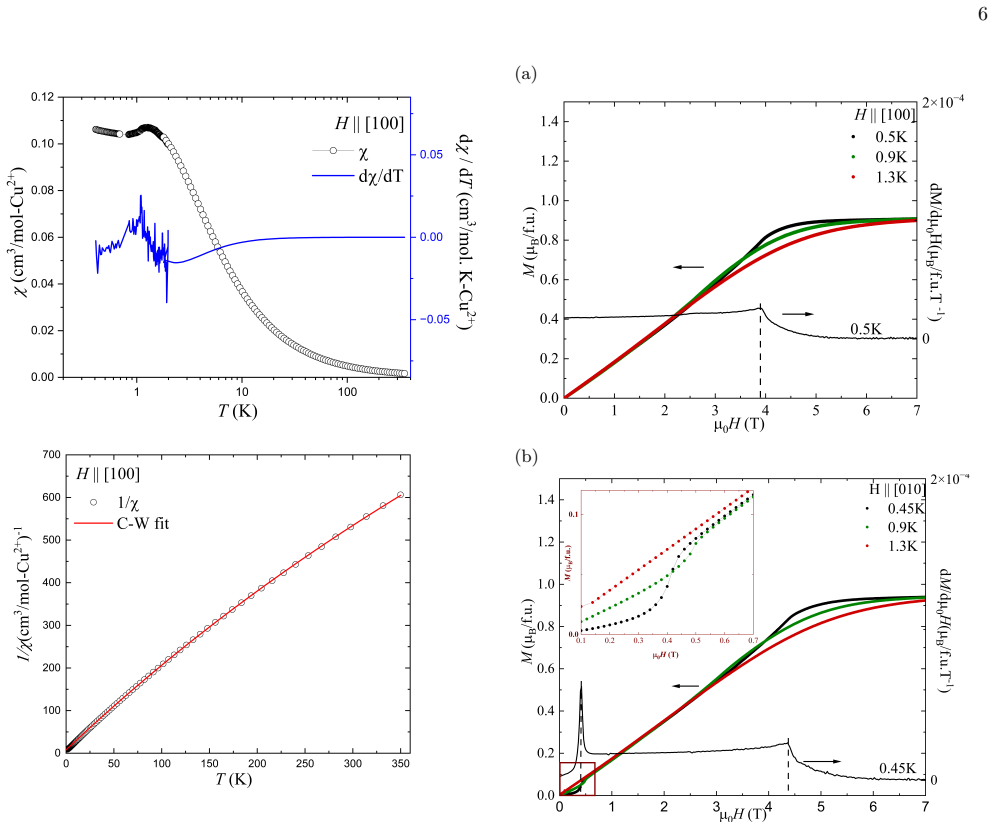

Figure 7. Figure 7: FIG. 7: Upper panel shows the [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8: Magnetic isotherms ( [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9: Heat capacity data collected as a function of [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11: The magnetic phase diagram as a function of [PITH_FULL_IMAGE:figures/full_fig_p008_11.png] view at source ↗
Figure 12

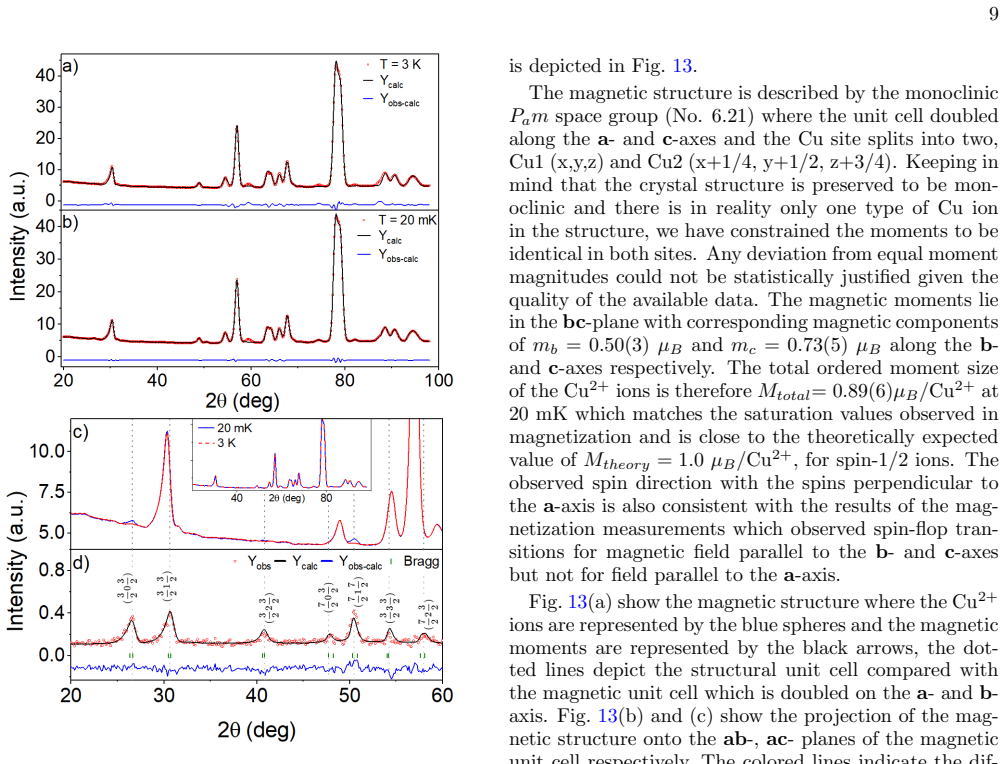

Figure 12. Figure 12: FIG. 12: a) The neutron powder diffraction at 3 K is [PITH_FULL_IMAGE:figures/full_fig_p009_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: FIG. 13: Magnetic structure of CuLa [PITH_FULL_IMAGE:figures/full_fig_p010_13.png] view at source ↗
read the original abstract

CuLa$_2$Ge$_2$O$_8$ forms a distorted triangular lattice of quantum spin-1/2 Cu$^{2+}$ ions. A crystal growth method was developed using the traveling-solvent floating zone technique resulting in the synthesis of a large single crystal (4 mm$\times$4 mm$\times$10 mm). The crystal was characterized with regard to phase purity and crystallinity using powder X-ray diffraction, energy dispersive X-ray analysis and Laue diffraction, and found to be of excellent quality. The magnetic properties were characterized using dc-susceptibility, magnetization, and heat capacity measurements which revealed weak magnetic frustration with long-range magnetic order occurring below $T_N=1.14(1)$~K. The magnetic structure determined using neutron powder diffraction is a commensurate, noncollinear antiferromagnetic, different from the 120$^{\circ}$ order of an equilateral triangular antiferromagnet. The ordered moments lie in the {\bf bc}-plane, with components $m_b=0.50(3)$~$\mu_{B}$ and $m_c= 0.73(5)$~$\mu_{B}$ along the {\bf b}- and {\bf c}-axes respectively, giving a total ordered moment of $M_{total}$= 0.89(6)$\mu_{B}/$Cu$^{2+}$ at 20~mK.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript reports the growth of large single crystals of CuLa₂Ge₂O₈ via the traveling-solvent floating-zone technique, followed by structural characterization using powder XRD, EDX, and Laue diffraction confirming high quality. Magnetic measurements (dc susceptibility, magnetization, heat capacity) establish weak frustration and long-range order below TN=1.14(1) K. Neutron powder diffraction determines a commensurate noncollinear antiferromagnetic structure with moments lying in the bc-plane: mb=0.50(3) μB and mc=0.73(5) μB, for a total ordered moment of 0.89(6) μB/Cu²⁺ at 20 mK, distinct from ideal 120° triangular order.

Significance. If the magnetic structure determination holds, the work supplies a concrete experimental example of how distortion lifts the degeneracy of the triangular lattice, yielding a noncollinear commensurate state rather than the canonical 120° order. The availability of sizable single crystals further enables future directional probes of anisotropy and excitations in this spin-1/2 system.

major comments (1)
  1. [neutron powder diffraction results] In the neutron powder diffraction analysis, the Rietveld refinement of the noncollinear structure reports mb=0.50(3) μB and mc=0.73(5) μB with total moment 0.89(6) μB. Powder data for a low-symmetry distorted lattice are susceptible to under-constraint; the manuscript provides no explicit comparison of alternative models (different canting angles or domain populations) or quantification of possible impurity-phase contributions that could alter the refined components at the 5–10 % level.
minor comments (2)
  1. [magnetic properties] The description of susceptibility and heat-capacity fitting procedures lacks details on background subtraction, temperature-range selection, and uncertainty propagation; inclusion of representative raw data tables or supplementary fits would strengthen reproducibility.
  2. [crystal growth] The crystal-growth section would benefit from a brief comparison of growth parameters with those used for related germanates to contextualize the achieved crystal size and quality.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and constructive feedback on the neutron powder diffraction analysis. We address the major comment below and will revise the manuscript to include the requested validations.

read point-by-point responses

  1. Referee: [neutron powder diffraction results] In the neutron powder diffraction analysis, the Rietveld refinement of the noncollinear structure reports mb=0.50(3) μB and mc=0.73(5) μB with total moment 0.89(6) μB. Powder data for a low-symmetry distorted lattice are susceptible to under-constraint; the manuscript provides no explicit comparison of alternative models (different canting angles or domain populations) or quantification of possible impurity-phase contributions that could alter the refined components at the 5–10 % level.

    Authors: We agree that explicit checks against alternative models and impurity contributions would strengthen the presentation. In the revised manuscript we will add: (i) a direct comparison of goodness-of-fit metrics (χ², Rwp, Rp) for the reported noncollinear structure versus collinear models along the principal crystallographic axes and versus other symmetry-allowed canting angles; (ii) an assessment of domain populations by testing all equivalent magnetic domains permitted by the magnetic space group; and (iii) a quantitative upper limit on impurity-phase scattering obtained by refining the scale factors of known secondary phases (e.g., CuO or La2GeO5) and showing that any residual intensity in the magnetic Bragg peaks is below 5 %. These additions will be placed in a new subsection of the neutron-diffraction results and will be supported by supplementary figures. The existing refinement already incorporates the full nuclear structure and the magnetic form factor, and the observed peak positions are incompatible with the alternative models, but the requested documentation will be supplied. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental determination from measured data

full rationale

The paper reports crystal growth via traveling-solvent floating zone, phase characterization by XRD/EDX/Laue, magnetic measurements (susceptibility, magnetization, heat capacity), and magnetic structure refinement from neutron powder diffraction. The central result (commensurate noncollinear AFM order with mb=0.50(3) μB, mc=0.73(5) μB) is obtained by direct Rietveld fit to observed diffraction intensities at 20 mK; no theoretical derivation, ansatz, or prediction is claimed that reduces to the input data by construction. No self-citations are invoked to justify uniqueness theorems or load-bearing premises. The study is self-contained against external benchmarks (measured TN, moment sizes) with no reduction of outputs to fitted inputs renamed as predictions.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The central claims rest on the assumption that the grown crystal is phase-pure and that the neutron diffraction data can be indexed to a unique commensurate magnetic structure; no free parameters are introduced beyond standard refinement of moment magnitudes and no new entities are postulated.

free parameters (2)
  • TN = 1.14(1) K
    Néel temperature extracted from susceptibility and heat-capacity data.
  • magnetic moments mb and mc = 0.50(3) and 0.73(5) μ_B
    Refined amplitudes from neutron powder diffraction at 20 mK.
axioms (1)
  • domain assumption The sample is a single-phase, high-quality single crystal as verified by powder XRD, EDX, and Laue diffraction.
    Invoked to justify that observed magnetic signals originate from the target compound rather than impurities.
