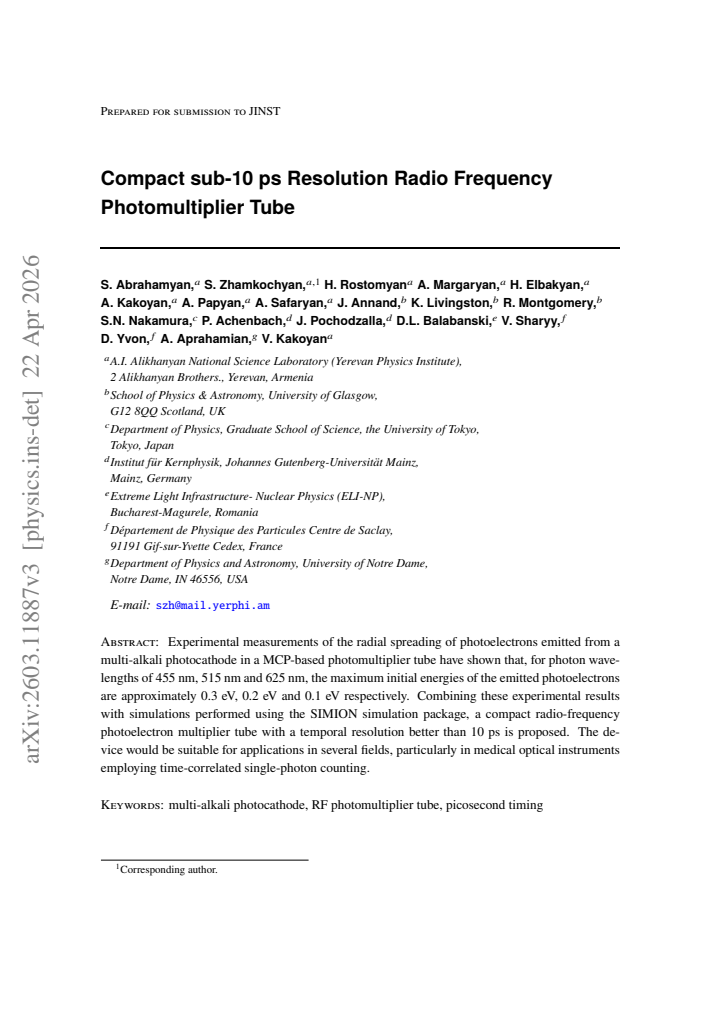

Compact sub-10 ps Resolution Radio Frequency Photomultiplier Tube

Amur Margaryan; Ani Aprahamian; Anna Safaryan; Aram Kakoyan; Artashes Papyan; Dimiter Balabanski; Dominique Yvon; Hasmik Rostomyan; Hayk Elbakyan; John Annand

arxiv: 2603.11887 · v3 · submitted 2026-03-12 · ⚛️ physics.ins-det

Compact sub-10 ps Resolution Radio Frequency Photomultiplier Tube

Sergey Abrahamyan , Simon Zhamkochyan , Hasmik Rostomyan , Amur Margaryan , Hayk Elbakyan , Aram Kakoyan , Artashes Papyan , Anna Safaryan

show 11 more authors

John Annand Kenneth Livingston Rachel Montgomery Patrick Achenbach Josef Pochodzalla Dimiter Balabanski Satoshi Nakamura Viatcheslav Sharyy Dominique Yvon Ani Aprahamian Vanik Kakoyan

This is my paper

Pith reviewed 2026-05-15 11:48 UTC · model grok-4.3

classification ⚛️ physics.ins-det

keywords radio-frequency photomultipliertemporal resolutionphotoelectron energymulti-alkali photocathodeSIMION simulationtime-correlated single-photon countingcompact detector

0 comments

The pith

Measured photoelectron energies from a multi-alkali cathode enable a compact radio-frequency photomultiplier tube with better than 10 picosecond timing.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper first measures how far photoelectrons spread radially after leaving a multi-alkali photocathode under 455 nm, 515 nm and 625 nm light. These spreads translate into maximum initial energies of roughly 0.3 eV, 0.2 eV and 0.1 eV. The authors then feed those energies into SIMION simulations of electron motion inside radio-frequency fields and show that a small tube can be arranged so the electrons reach the anode with a time spread below 10 ps. The resulting device is proposed for time-correlated single-photon counting, especially in medical optical instruments where size and timing precision both matter.

Core claim

Experimental radial-spreading data fix the initial energies of photoelectrons emitted from a multi-alkali photocathode. When these energies are inserted into SIMION trajectory calculations, a compact radio-frequency photomultiplier tube can be configured to deliver temporal resolution better than 10 ps while remaining small enough for practical use in time-correlated single-photon counting.

What carries the argument

Radio-frequency fields applied to a compact photomultiplier geometry, tuned with measured initial photoelectron energies inside the SIMION simulation package to compress transit-time spread.

If this is right

The device becomes usable for time-correlated single-photon counting in compact medical optical instruments.
Higher timing precision improves separation of prompt and delayed optical signals in fluorescence or scattering measurements.
The small size allows integration into portable or array-based detectors without cryogenic or large vacuum systems.
Wavelength-dependent energy data already supplied can be reused to adapt the same geometry for other photocathode materials.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the simulated resolution holds in hardware, the same design approach could be scaled to multi-channel arrays for imaging applications.
Direct comparison of the built tube against conventional MCP-PMTs would quantify how much the RF focusing actually reduces timing jitter.
The measured energy values provide a ready starting point for redesigning similar tubes around different photocathode types or accelerating voltages.

Load-bearing premise

The SIMION simulations correctly predict the time spread that real photoelectrons will experience once the proposed radio-frequency fields and geometry are built.

What would settle it

Construct the proposed compact RF photomultiplier tube and measure its single-photon timing resolution directly; a result above 10 ps would falsify the performance claim.

read the original abstract

Experimental measurements of the radial spreading of photoelectrons emitted from a multi-alkali photocathode in a MCP-based photomultiplier tube have shown that, for photon wavelengths of 455 nm, 515 nm and 625 nm, the maximum initial energies of the emitted photoelectrons are approximately 0.3 eV, 0.2 eV and 0.1 eV respectively. Combining these experimental results with simulations performed using the SIMION simulation package, a compact radio-frequency photoelectron multiplier tube with a temporal resolution better than 10 ps is proposed. The device would be suitable for applications in several fields, particularly in medical optical instruments employing time-correlated single-photon counting.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper measures wavelength-specific initial photoelectron energies from a multi-alkali cathode and simulates a compact RF-PMT for sub-10 ps resolution, but the timing claim rests only on unvalidated SIMION runs.

read the letter

The paper measures the maximum initial energies of photoelectrons emitted from a multi-alkali photocathode at 455 nm, 515 nm, and 625 nm by tracking radial spreading in an MCP-based tube, then feeds those values into SIMION to propose a compact RF photomultiplier tube with claimed timing better than 10 ps. The experimental numbers (roughly 0.3 eV, 0.2 eV, and 0.1 eV) are the concrete new result and directly useful for modeling photocathode emission in time-resolved single-photon work. The design proposal itself is a straightforward next step that combines the measured starting conditions with RF bunching fields in simulation, and that specific combination does not appear in the cited prior work. The experimental part on radial spreading looks like solid, reproducible data collection that others can build on for medical or physics instrumentation. The main limitation is that the sub-10 ps resolution is obtained entirely from the simulation after the photocathode step. No comparison to a fabricated RF-PMT or even a partial hardware benchmark is described, so effects such as field non-uniformity, electrode charging, or space-charge broadening remain untested and could move the real performance above the target. The abstract also gives no error bars or details on how the energy values were extracted from the spreading data. This is aimed at detector builders who need fast single-photon timing in optical medical instruments or nuclear experiments. A reader working on similar instrumentation would get value from the measured energies and the explicit design parameters, even if they would want more validation before committing to hardware. It deserves peer review because the measurements are new and the proposal is specific enough for referees to check the simulation assumptions directly.

Referee Report

1 major / 2 minor

Summary. The manuscript reports experimental measurements of the radial spreading of photoelectrons emitted from a multi-alkali photocathode in an MCP-based PMT, yielding maximum initial energies of approximately 0.3 eV at 455 nm, 0.2 eV at 515 nm, and 0.1 eV at 625 nm. These measured energies are combined with SIMION trajectory simulations to propose the design of a compact radio-frequency photomultiplier tube achieving temporal resolution better than 10 ps, intended for time-correlated single-photon counting applications in medical optical instruments.

Significance. If the simulated performance holds, the proposed compact RF PMT would represent a meaningful advance in sub-10 ps timing for photon-counting applications, building on measured initial-energy inputs rather than purely theoretical assumptions. The experimental constraint on photocathode emission is a positive element, but the absence of any validation of the simulated electron dynamics against physical hardware limits the strength of the central claim.

major comments (1)

The sub-10 ps temporal resolution claim (abstract) rests entirely on SIMION simulations of electron trajectories under chosen RF fields after the measured initial energies are injected; no benchmark comparison to a fabricated RF PMT or equivalent device is described, leaving unmodeled effects such as field non-uniformity or space-charge broadening untested and potentially able to push the resolution above the stated threshold.

minor comments (2)

The experimental radial-spreading results are summarized without error bars, raw data, or uncertainty estimates on the derived initial energies, which would help readers assess the robustness of the simulation inputs.
Additional details on the specific RF field amplitudes, frequencies, and electrode geometry employed in the SIMION runs would improve reproducibility of the proposed design.

Simulated Author's Rebuttal

1 responses · 1 unresolved

We thank the referee for their review and for acknowledging the value of the measured initial energies. We address the single major comment below and will make a partial revision to the manuscript.

read point-by-point responses

Referee: The sub-10 ps temporal resolution claim (abstract) rests entirely on SIMION simulations of electron trajectories under chosen RF fields after the measured initial energies are injected; no benchmark comparison to a fabricated RF PMT or equivalent device is described, leaving unmodeled effects such as field non-uniformity or space-charge broadening untested and potentially able to push the resolution above the stated threshold.

Authors: We agree that the sub-10 ps resolution is obtained from SIMION trajectory simulations and that no physical RF PMT prototype has been fabricated or tested. The manuscript presents a design proposal that combines our experimental photocathode data with detailed simulations; it does not claim experimental validation of the complete device. In the revised manuscript we will add an explicit section on simulation assumptions and limitations, including quantitative estimates of the possible impact of field non-uniformities and space-charge effects on the timing resolution. This will make the proposal more balanced while retaining the utility of the simulated performance figures as a target for future hardware development. revision: partial

standing simulated objections not resolved

No experimental validation of the proposed RF PMT exists because the work is a simulation-based design study; a physical prototype would be required for direct benchmarking.

Circularity Check

0 steps flagged

No circularity: proposal combines independent measurements with external simulation

full rationale

The paper reports experimental measurements of initial photoelectron energies (0.3 eV at 455 nm, 0.2 eV at 515 nm, 0.1 eV at 625 nm) from a multi-alkali photocathode. These values are used as fixed inputs to the commercial SIMION trajectory simulation package to estimate arrival-time spread under chosen RF fields, yielding the proposed <10 ps resolution for a compact RF PMT. No equation defines the output resolution in terms of itself or a fitted parameter derived from the same data; the simulation is an external, non-self-referential tool whose internal dynamics are independent of the target claim. No self-citations are invoked as uniqueness theorems or load-bearing premises. The derivation chain therefore remains open to external validation and does not reduce to its inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the accuracy of the SIMION electron-tracking model under the reported initial-energy conditions and on standard assumptions about vacuum electron dynamics; no free parameters or new entities are introduced in the abstract.

axioms (1)

domain assumption Electron trajectories in vacuum tubes are governed by classical electrostatics and can be accurately modeled by the SIMION package when initial energies are known.
Invoked when translating measured radial spreading into initial energies and when predicting device performance.
