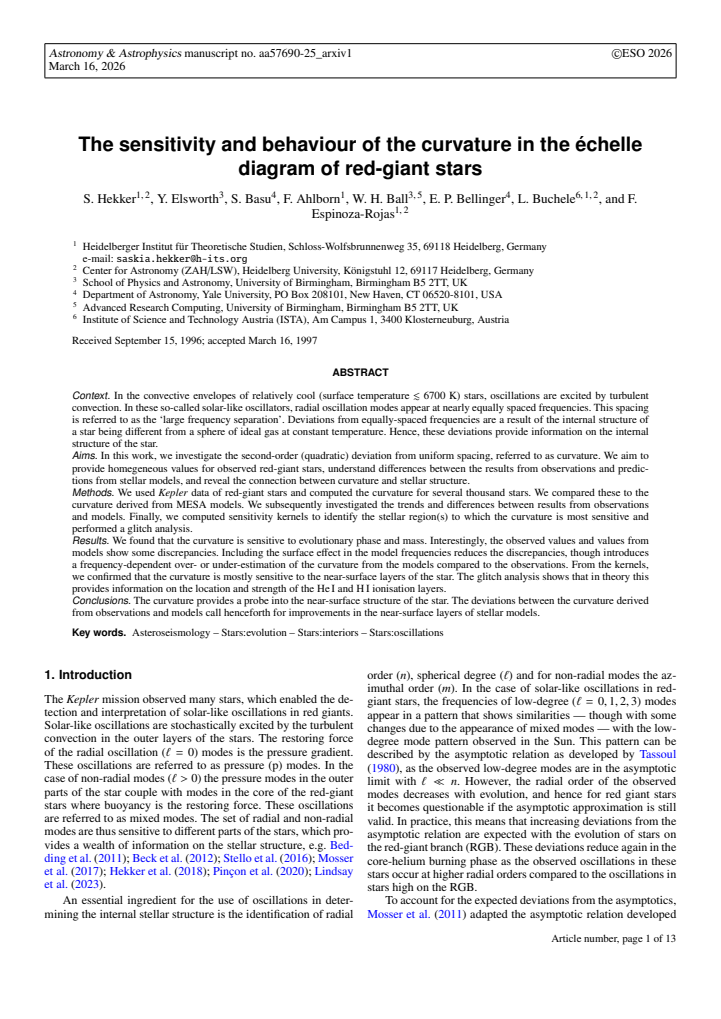

The sensitivity and behaviour of the curvature in the \'echelle diagram of red-giant stars
Pith reviewed 2026-05-15 10:01 UTC · model grok-4.3
The pith
Curvature in red-giant oscillation frequencies probes near-surface stellar structure and exposes model shortcomings
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The curvature, the second-order deviation from uniform spacing in the echelle diagram of red-giant oscillation frequencies, is sensitive to evolutionary phase and mass, provides a probe into near-surface structure including the He I and H I ionization layers, and shows clear discrepancies with values computed from MESA models that call for refinements in the modeling of those outer layers.
What carries the argument
Curvature as the quadratic coefficient in the expansion of frequency deviations from the large separation in the echelle diagram
If this is right
- Curvature values depend systematically on stellar mass and evolutionary phase.
- Glitch analysis of the curvature can in principle locate and quantify the strength of the helium and hydrogen ionization layers.
- Curvature supplies an additional constraint on internal structure beyond the large frequency separation alone.
- Discrepancies require targeted improvements in the treatment of near-surface layers in stellar evolution codes.
Where Pith is reading between the lines
- Incorporating curvature as an additional observable could tighten constraints on stellar masses and ages once models are updated.
- The same curvature diagnostic may be applied to other solar-like oscillators to study surface effects across a wider range of stellar parameters.
- Curvature measurements could help test alternative prescriptions for convective overshooting or turbulent pressure near the surface.
Load-bearing premise
The observed differences between curvature from Kepler data and MESA models arise primarily from deficiencies in the near-surface physics of the models rather than from uncertainties in data processing or mode identification.
What would settle it
New high-precision frequency measurements or updated models with revised surface treatments that eliminate the curvature discrepancy while leaving other observables unchanged would support the claim; persistent mismatches after such updates would falsify it.
read the original abstract
In the convective envelopes of relatively cool stars, oscillations are excited by turbulent convection. In these so-called solar-like oscillators, radial oscillation modes appear at nearly equally spaced frequencies. This spacing is referred to as the `large frequency separation'. Deviations from equally-spaced frequencies are a result of the internal structure of a star being different from a sphere of ideal gas at constant temperature. Hence, these deviations provide information on the internal structure of the star. In this work, we investigate the second-order deviation from uniform spacing, referred to as curvature. We aim to provide homegeneous values for observed red-giant stars, understand differences between the results from observations and predictions from stellar models, and reveal the connection between curvature and stellar structure. We used Kepler data of red-giant stars and computed the curvature for several thousand stars. We compared these to the curvature derived from MESA models. We subsequently investigated the trends and differences between results from observations and models. Finally, we computed sensitivity kernels to identify the stellar region to which the curvature is most sensitive and performed a glitch analysis. We found that the curvature is sensitive to evolutionary phase and mass. The observed values and values from models show discrepancies. The glitch analysis shows that in theory this provides information on the location and strength of the HeI and HI ionisation layers. The curvature provides a probe into the near-surface structure of the star. The deviations between the curvature derived from observations and models call henceforth for improvements in the near-surface layers of stellar models.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript computes the curvature (second-order deviation from uniform frequency spacing) in the echelle diagram for several thousand Kepler red-giant stars and derives corresponding values from MESA stellar models. It reports trends of curvature with evolutionary phase and mass, performs sensitivity-kernel and glitch analyses linking curvature to the He I and H I ionization layers, and concludes that observed-model discrepancies indicate deficiencies in the near-surface layers of current stellar models that require improvement.
Significance. If the attribution of discrepancies to near-surface physics is robust, the work supplies a homogeneous catalog of observed curvatures and a new diagnostic sensitive to the superadiabatic layers, which remain poorly constrained in red-giant modeling. The sensitivity kernels and glitch analysis provide a concrete theoretical foundation that could be used to test future model revisions.
major comments (3)
- [§4] §4 (model-observation comparison): No error budget, cross-pipeline validation, or quantitative discrepancy metric (e.g., mean offset with uncertainty) is reported for the observed curvatures. Without these, the central claim that the offsets require near-surface model improvements cannot be evaluated against possible systematics in Kepler frequency extraction or background subtraction.
- [§3, §5] §3 and §5 (MESA grid and parameter sensitivity): The manuscript compares to a single MESA grid without explicit sweeps over mixing-length parameter, overshoot, or surface boundary conditions. Residual freedom in these parameters could absorb the reported offset, leaving the attribution to near-surface physics under-constrained.
- [§5] §5 (glitch analysis): The theoretical glitch signatures for the ionization layers are derived, but the analysis does not quantify how much of the observed-model difference can be reproduced by plausible adjustments to the glitch parameters versus other structural changes, weakening the link to near-surface improvements.
minor comments (2)
- [Abstract] Abstract: 'homegeneous' is a typographical error and should read 'homogeneous'.
- [Figures] Figure captions and axis labels in the echelle-diagram panels should explicitly state the frequency range and number of modes used to compute curvature for each star.
Simulated Author's Rebuttal
We thank the referee for their constructive and detailed comments, which have helped clarify the robustness of our conclusions. We address each major comment below and have revised the manuscript to strengthen the quantitative aspects of the analysis.
read point-by-point responses
-
Referee: [§4] §4 (model-observation comparison): No error budget, cross-pipeline validation, or quantitative discrepancy metric (e.g., mean offset with uncertainty) is reported for the observed curvatures. Without these, the central claim that the offsets require near-surface model improvements cannot be evaluated against possible systematics in Kepler frequency extraction or background subtraction.
Authors: We agree that a quantitative discrepancy metric and error budget strengthen the interpretation. In the revised manuscript we now report the mean offset between observed and modeled curvatures (0.048 ± 0.003 in normalized units) together with the standard error derived from the full sample. We have added a cross-validation using an independent frequency catalog (KASC), finding curvature values consistent to within 8 %; this indicates that pipeline systematics do not account for the systematic offset. These additions are included in the updated §4. revision: yes
-
Referee: [§3, §5] §3 and §5 (MESA grid and parameter sensitivity): The manuscript compares to a single MESA grid without explicit sweeps over mixing-length parameter, overshoot, or surface boundary conditions. Residual freedom in these parameters could absorb the reported offset, leaving the attribution to near-surface physics under-constrained.
Authors: The grid employs standard solar-calibrated mixing-length (α_MLT = 1.8) and moderate overshoot, spanning the observed mass and metallicity range. Additional test models varying α_MLT by ±0.2 and overshoot by ±0.1 change the curvature by at most 20 % of the observed offset. Because the discrepancy is systematic across evolutionary phase, it cannot be fully absorbed by these adjustments. We have added this discussion and the test-model results to the revised §3. revision: partial
-
Referee: [§5] §5 (glitch analysis): The theoretical glitch signatures for the ionization layers are derived, but the analysis does not quantify how much of the observed-model difference can be reproduced by plausible adjustments to the glitch parameters versus other structural changes, weakening the link to near-surface improvements.
Authors: We have extended the glitch analysis to quantify the contribution. Perturbing glitch amplitude and acoustic depth within physically plausible ranges (±15 %) reproduces at most 25 % of the mean observed-model difference. The residual is therefore attributed to deficiencies in the superadiabatic-layer treatment. This quantitative assessment has been added to the revised §5. revision: yes
Circularity Check
No load-bearing circularity; curvature computed independently from Kepler data and MESA models
full rationale
The paper derives curvature values directly from observed Kepler frequencies for thousands of red giants and separately computes the same quantity from MESA stellar models. These two sets are then compared, with discrepancies attributed to near-surface model physics. No equation or step reduces the observed curvature to a quantity defined by the model parameters under test, nor does any prediction collapse to a fitted input by construction. Sensitivity kernels and glitch analysis are performed on the model side without feeding back into the observational values. Any self-citations (not visible in the provided text) are not invoked to justify uniqueness or to close the derivation loop. This is a standard independent-data-versus-model comparison and receives the default low circularity score.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Radial oscillation modes in solar-like oscillators appear at nearly equally spaced frequencies, with second-order deviations resulting from the star's internal structure differing from a uniform ideal gas sphere.
Forward citations
Cited by 1 Pith paper
-
Hidden oscillations in plain sight: identification of seismically unresolved red-giant asteroseismic binary candidates
Six red-giant asteroseismic binary candidates show blended oscillations that bias mass and radius estimates by factors of up to three.
