Market Power and Distributed Solar Integration in Microgrids under Limited Regulation
Pith reviewed 2026-05-15 18:16 UTC · model grok-4.3
The pith
Regulator-set price and feed-in-tariff caps in diesel microgrids can raise household economic surplus while enabling up to 100 percent renewable energy through household solar integration.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The central discovery is that price and feed-in-tariff caps substantially increase household economic surplus and induce household PV feed-in to the microgrid, with the renewable energy share reaching 60% under base conditions and approaching 100% at high DGC budgets or PV-owner penetration levels, in contrast to the status quo of 0% renewables.
What carries the argument

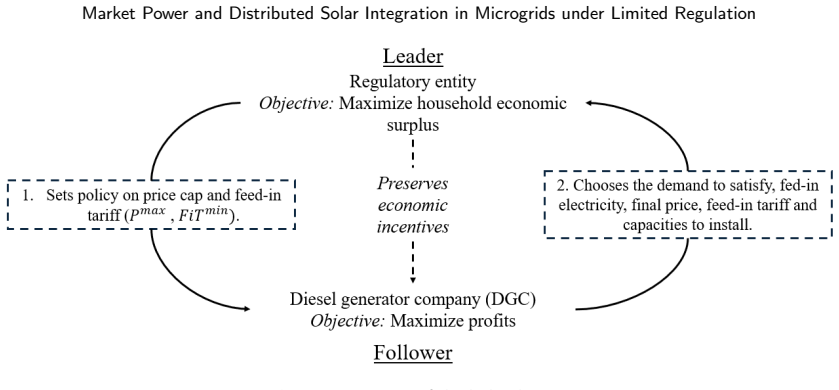

A bi-level game-theoretic model where the upper level is the regulator maximizing household economic surplus via price and feed-in-tariff caps, and the lower level is the profit-maximizing diesel generator company controlling access and supply.
Load-bearing premise
The diesel generator company acts purely as a profit-maximizing monopolist with full control over access and supply, and the regulator can perfectly set and enforce caps without strategic responses or costs.
What would settle it
Empirical data from a microgrid where price and feed-in-tariff caps are implemented showing no significant increase in household PV feed-in or renewable energy share would falsify the central claim.
Figures
read the original abstract
Decentralized electricity systems increasingly emerge where centralized grids fail to provide reliable supply. In such settings, privately operated neighborhood microgrids, often based on diesel generators, exhibit significant market power, limited regulatory oversight, and high environmental externalities. In parallel, households increasingly deploy off-grid solar photovoltaic (PV) systems to gain control over electricity supply. However, these systems suffer from curtailed excess generation during peak solar hours and unreliable access at other times. While prior studies have optimized microgrids in low-reliability grid contexts from a techno-economic perspective, they largely neglect the market power exerted by monopolistic private generators. This paper addresses this gap by developing a bi-level game-theoretic model that enables household-generated electricity to be fed into the microgrid while explicitly accounting for the market power of a neighborhood diesel generator company (DGC). The regulator sets price and feed-in-tariff caps to maximize household economic surplus (HES), while the DGC acts as a profit-maximizing agent controlling access and supply. The model is illustrated using high-resolution empirical data from Lebanon. Results show that: (i) price and feed-in-tariff caps substantially increase HES and consistently induce significant household PV feed-in to the microgrid; (ii) higher DGC budgets or greater PV-owner penetration lead to pronounced gains in HES; and (iii) the renewable energy share reaches 60% under base conditions and approaches 100% at sufficiently high budgets or PV-owner penetration levels, compared to 0% under the status quo.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper develops a bi-level game-theoretic optimization model in which a regulator chooses price and feed-in-tariff caps to maximize household economic surplus (HES) while a profit-maximizing diesel generator company (DGC) controls access and supply in a neighborhood microgrid. Household PV owners can feed excess generation into the microgrid. The model is calibrated on high-resolution empirical data from Lebanon. Numerical results indicate that binding caps raise HES, induce substantial PV feed-in, and increase the renewable share from 0 % (status quo) to 60 % under base parameters and near 100 % at higher DGC budgets or PV-owner penetration rates.
Significance. If the quantitative results are robust, the work supplies concrete policy guidance on using limited regulatory instruments to integrate distributed solar into monopolistic microgrids. The bi-level formulation, empirical Lebanon calibration, and explicit comparison against the unregulated benchmark constitute the main strengths; the paper thereby fills a gap between purely techno-economic microgrid studies and analyses that ignore generator market power.
major comments (2)
- [Model Formulation and Assumptions] The central quantitative claims (60 % base renewable share, near-100 % at high budgets/PV penetration, and large HES gains) rest on the maintained assumption that the regulator can costlessly and perfectly enforce price/FIT caps with no DGC strategic responses (quality degradation, side payments, or reduced reliability). This assumption is load-bearing for the equilibrium feed-in quantities and renewable-share predictions reported from the Lebanon data; the manuscript provides no sensitivity analysis or enforcement-cost parameterization to test its necessity.
- [Results] The abstract and results sections state that the renewable share reaches 60 % under base conditions, yet the manuscript supplies insufficient detail on the functional form of household demand, the existence proof for the lower-level Nash equilibrium, or systematic robustness checks (e.g., alternative demand elasticities or data subsamples). These omissions leave the headline numerical magnitudes only moderately supported.
minor comments (2)
- [Notation] A consolidated notation table listing all decision variables, parameters, and duals used in the bi-level program would improve readability.
- [Figures] Figure captions should explicitly state the base-case parameter values (DGC budget, PV penetration) used to generate the reported 60 % renewable-share result.
Simulated Author's Rebuttal
We thank the referee for the constructive comments, which highlight important aspects of robustness and transparency. We address each major comment below and indicate the revisions planned for the next version of the manuscript.
read point-by-point responses
-
Referee: [Model Formulation and Assumptions] The central quantitative claims (60 % base renewable share, near-100 % at high budgets/PV penetration, and large HES gains) rest on the maintained assumption that the regulator can costlessly and perfectly enforce price/FIT caps with no DGC strategic responses (quality degradation, side payments, or reduced reliability). This assumption is load-bearing for the equilibrium feed-in quantities and renewable-share predictions reported from the Lebanon data; the manuscript provides no sensitivity analysis or enforcement-cost parameterization to test its necessity.
Authors: We agree that the perfect-enforcement assumption is central to the baseline equilibria. This is a deliberate modeling choice to isolate the impact of the regulatory caps under limited oversight, consistent with standard bi-level regulatory models. In the revised manuscript we will add a dedicated sensitivity subsection that introduces an enforcement-cost parameter (as a fraction of DGC profit) that effectively relaxes cap stringency. We will report how the renewable share and HES change across a range of enforcement costs and discuss qualitatively the implications of possible DGC responses such as quality degradation. revision: yes
-
Referee: [Results] The abstract and results sections state that the renewable share reaches 60 % under base conditions, yet the manuscript supplies insufficient detail on the functional form of household demand, the existence proof for the lower-level Nash equilibrium, or systematic robustness checks (e.g., alternative demand elasticities or data subsamples). These omissions leave the headline numerical magnitudes only moderately supported.
Authors: We accept that additional detail is warranted. Household demand is specified as a linear inverse-demand function Q_h = a_h - b_h P calibrated directly to the high-resolution Lebanon load data; parameters a_h and b_h are estimated per household type to match observed average consumption and price sensitivity. Existence of the lower-level Nash equilibrium follows from the strict concavity of the DGC profit function in its quantity and access decisions together with the compactness of the feasible strategy set. In the revision we will state these elements explicitly in Section 3, add a short proof sketch, and include a new appendix containing robustness tables for demand elasticities between -0.3 and -2.0 as well as results on regional subsamples of the Lebanon dataset. These additions will better substantiate the reported 60 % base-case renewable share. revision: yes
Circularity Check
No circularity; bi-level model derived from first principles with external data
full rationale
The paper formulates a bi-level optimization model from first principles: the upper level maximizes household economic surplus by choosing price and feed-in-tariff caps, while the lower level has the diesel generator company maximizing profit subject to those caps and access control. All equations are defined mathematically without reducing reported outcomes (HES gains, renewable shares) to fitted parameters or self-citations by construction. Results are generated by solving the model on independent high-resolution empirical data from Lebanon, making the derivation chain self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
free parameters (2)
- DGC budget
- PV-owner penetration level
axioms (2)
- domain assumption DGC acts as a profit-maximizing monopolist controlling access and supply
- domain assumption Regulator can set and enforce price and feed-in-tariff caps to maximize household economic surplus
