Measurement of the Orbital Parameters, Spin and Spectral Evolution During the Main High State of Her X-1 with Insight-HXMT

Wen Yang , Wei Wang , Qianhan Zhou This is my paper

Pith reviewed 2026-05-15 07:25 UTC · model grok-4.3

classification 🌌 astro-ph.HE astro-ph.SR
keywords Her X-1X-ray binaryorbital decayneutron star spincyclotron lineaccretion disk precessiontiming analysis
0
0 comments X

The pith

Her X-1 exhibits orbital period decay at (1.957 ± 0.335)×10^{-11} d d^{-1} with spin period 1.23765212 s and derivative -(1.18±0.04)×10^{-13} s s^{-1}.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper measures precise eclipse timings during the 2020 Main High state of Her X-1 to establish a local ephemeris. Combining these with prior data refines the long-term orbital period and reveals steady shrinkage. Spin parameters are extracted from pulse timing, and spectral fits track rising absorption column density with a stable cyclotron line near 38 keV. The results are interpreted through the lens of a precessing accretion disk.

Core claim

Five eclipses yield a local ephemeris that, when merged with literature values, gives T_ecl = 46359.871956 ± 0.000010 MJD and P_orb = 1.7001674990 ± 0.0000000105 day, establishing continuous orbital decay at dot{P}_orb = -(1.957 ± 0.335)×10^{-11} d d^{-1}. The neutron star spin is P_spin = 1.23765212 ± 0.00000026 s with dot{P}_spin = -(1.18 ± 0.04)×10^{-13} s s^{-1}. During the high state, N_H rises steadily while the photon index stays constant and the cyclotron absorption feature remains near 38 keV with no clear luminosity dependence.

What carries the argument

Rømer delay measured from eclipse mid-times to determine orbital ephemeris, combined with pulse timing for spin and phase-resolved spectral fitting for absorption and cyclotron resonance features.

If this is right

  • The refined ephemeris allows tighter predictions of future eclipse times and superorbital cycle phases.
  • The measured orbital decay rate constrains the angular momentum loss and mass-transfer history in the binary.
  • Constant cyclotron line energy indicates the magnetic field strength sampled by the accretion column does not vary strongly with luminosity during the main high state.
  • Monotonic rise in N_H is consistent with increasing line-of-sight absorption as the warped disk precesses.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Longer baseline monitoring could test whether the orbital decay rate remains constant or exhibits fluctuations tied to superorbital cycles.
  • The spectral stability may indicate that disk precession dominates the observed changes rather than intrinsic variations in accretion rate.
  • If the decay continues at this rate, the binary separation would shrink measurably on decade timescales, potentially altering eclipse duration or accretion geometry.

Load-bearing premise

The five observed eclipses supply an unbiased local ephemeris without significant timing residuals from disk warping or variable absorption that could affect the derived orbital decay rate.

What would settle it

New eclipse observations over a comparable baseline that produce a T_ecl inconsistent with the reported ephemeris or that show no measurable orbital period change would falsify the continuous decay claim.

Figures

Figures reproduced from arXiv: 2603.20768 by Qianhan Zhou, Wei Wang, Wen Yang.

Figure 1
Figure 1. Figure 1: The top panel shows the background-subtracted X-ray light curves of Hercules X-1 observed by Insight-HXMT between 19 and 29 February 2020, with a time resolution of 10,000 s. Orange points represent the LE (1–10 keV) countrate, and blue points represent the ME (10–20 keV) countrate. The middle panel shows the softness ratio (SR), defined as the LE countrate divided by the ME countrate, with its mean value … view at source ↗
Figure 2
Figure 2. Figure 2: Corner plot of the MCMC posterior distributions of the orbital parameters of Her X-1 assuming an eccentric orbital model. The diagonal panels show the one-dimensional distributions with the median and 1σ intervals, while the off-diagonal panels show the joint distributions. The small value of e indicates that the orbit is nearly circular. the quadratic ephemeris are listed in [PITH_FULL_IMAGE:figures/full… view at source ↗
Figure 3
Figure 3. Figure 3: The spin period of Her X-1 observed by In￾sight-HXMT. The red solid curve represents the best-fitting model. The residuals are shown in the lower panel [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: Spectral fitting results of Her X-1 in the 2–60 keV energy range, obtained by combining five spectra at the Main-On peak phase. The middle panel shows the corre￾sponding fitting residuals, and the bottom panel shows the fit without the cyclotron absorption line component. Her X-1 and has been widely applied in previous studies (D. A. Leahy & M. H. Abdallah 2022). Based on these results, we adopt the partia… view at source ↗
Figure 4
Figure 4. Figure 4: Residuals of Tecl after subtracting the linear component of the best-fitting quadratic ephemeris. The blue pentagrams indicate the results from this work, while the black dashed line represents the best-fitting quadratic ephemeris. Xiao et al. 2024; D. A. Leahy & M. H. Abdallah 2022; D. Vasco et al. 2013). Based on the continuum model, we further include a Gaussian emission component to account for the Fe … view at source ↗
Figure 6
Figure 6. Figure 6: Evolution of Her X-1’s spectral parameters over the Main-High phase. The panels show the spectral parameters Ecut (a), NH (b), covering fraction (c), power-law index (d), and Fe Kα centroid energy (e). Panel (f) shows the cyclotron line centroid energy. The combined time intervals used in Panel (f) are indicated in the figure by gray and red shaded regions, where the red shaded region corresponds to the sp… view at source ↗
read the original abstract

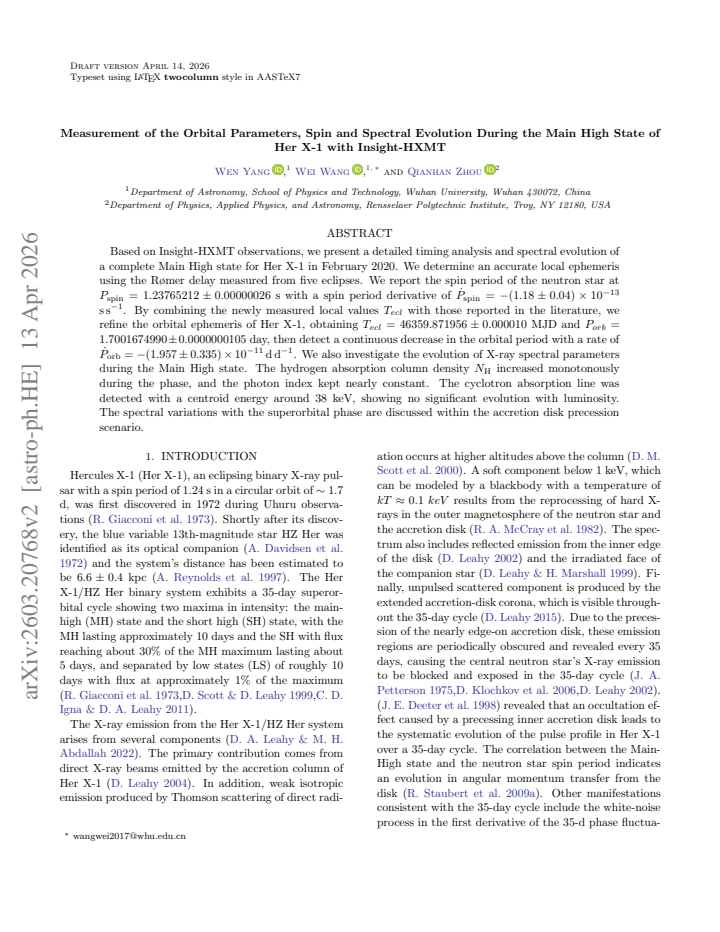

Based on Insight-HXMT observations, we present a detailed timing analysis and spectral evolution of a complete Main High state for Her X-1 in February 2020. We determine an accurate local ephemeris using the R{\o}mer delay measured from five eclipses. We report the spin period of the neutron star at $P_{\rm spin}=1.23765212 \pm 0.00000026$ s with a spin period derivative of $\dot P_{\rm spin}=-(1.18\pm 0.04)\times 10^{-13}$ s\,s$^{-1}$. By combining the newly measured local values $T_{ecl}$ with those reported in the literature, we refine the orbital ephemeris of Her X-1, obtaining $T_{ecl} = 46359.871956 \pm 0.000010$ MJD and $P_{orb}=1.7001674990 \pm 0.0000000105$ day, then detect a continuous decrease in the orbital period with a rate of $\dot{P}_{\rm orb} = -(1.957 \pm 0.335)\times10^{-11}\,\mathrm{d\,d^{-1}}$. We also investigate the evolution of X-ray spectral parameters during the Main High state. The hydrogen absorption column density $N_{\rm H}$ increased monotonously during the phase, and the photon index kept nearly constant. The cyclotron absorption line was detected with a centroid energy around 38 keV, showing no significant evolution with luminosity. The spectral variations with the superorbital phase are discussed within the accretion disk precession scenario.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a timing and spectral analysis of Insight-HXMT observations of Her X-1 during the February 2020 Main High state. From five eclipses the authors derive a local ephemeris via Rømer delay, measure the neutron-star spin period P_spin = 1.23765212 ± 0.00000026 s and spin derivative P_spin dot = -(1.18 ± 0.04) × 10^{-13} s s^{-1}, combine the new T_ecl with literature values to refine the global orbital ephemeris (T_ecl = 46359.871956 ± 0.000010 MJD, P_orb = 1.7001674990 ± 0.0000000105 d), and report an orbital-period derivative P_orb dot = -(1.957 ± 0.335) × 10^{-11} d d^{-1}. They also track the evolution of N_H, photon index, and the ~38 keV cyclotron line across the high state and discuss the results in the context of disk precession.

Significance. A robust measurement of orbital-period decay in Her X-1 would furnish a direct constraint on mass-transfer and angular-momentum loss in this benchmark accreting pulsar, while the spin-down rate and phase-resolved spectroscopy add to the long-term torque and accretion-geometry record. The new HXMT data set, with its broad energy coverage, is a useful addition to the multi-decade monitoring of the source.

major comments (2)
  1. [timing analysis / orbital ephemeris] Orbital ephemeris and decay fit (timing analysis section and abstract): the reported P_orb dot is obtained by a linear fit to the new local T_ecl (from five eclipses in a single Main High state) plus historical values. Because the 2020 observation samples one specific superorbital phase, any unmodeled timing residual arising from disk warping or variable absorption (explicitly discussed in the superorbital-phase paragraph) could be absorbed into the secular derivative; the manuscript does not quantify or correct for such phase-dependent shifts.
  2. [pulse timing] Spin-period derivative (pulse-timing subsection): the quoted P_spin dot = -(1.18 ± 0.04) × 10^{-13} s s^{-1} is derived from the 2020 data span; the text should explicitly state whether the same barycentric and orbital-delay corrections applied to the eclipse times were also used for the pulse-arrival-time analysis, and whether any residual orbital-phase coverage gaps affect the derivative at the reported precision.
minor comments (2)
  1. [spectral analysis] The abstract states that the cyclotron line 'shows no significant evolution with luminosity'; the corresponding figure or table should report the luminosity range sampled and the formal uncertainties on the line centroid to allow the reader to judge the strength of that statement.
  2. Notation for time units (MJD vs. day) and for the orbital-decay rate (d d^{-1}) should be made uniform between the abstract, tables, and text.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major point below and have revised the manuscript to improve clarity and discuss limitations where appropriate.

read point-by-point responses

  1. Referee: [timing analysis / orbital ephemeris] Orbital ephemeris and decay fit (timing analysis section and abstract): the reported P_orb dot is obtained by a linear fit to the new local T_ecl (from five eclipses in a single Main High state) plus historical values. Because the 2020 observation samples one specific superorbital phase, any unmodeled timing residual arising from disk warping or variable absorption (explicitly discussed in the superorbital-phase paragraph) could be absorbed into the secular derivative; the manuscript does not quantify or correct for such phase-dependent shifts.

    Authors: We agree that sampling a single superorbital phase introduces the possibility of unmodeled residuals from disk warping affecting the derived orbital decay rate. The local T_ecl is robustly determined from five sharp eclipses, but we cannot fully separate secular decay from superorbital effects with one epoch. In the revision we add an explicit discussion of this limitation, including an estimate of possible systematic uncertainty drawn from the observed intra-observation timing scatter and historical residuals. revision: partial

  2. Referee: Spin-period derivative (pulse-timing subsection): the quoted P_spin dot = -(1.18 ± 0.04) × 10^{-13} s s^{-1} is derived from the 2020 data span; the text should explicitly state whether the same barycentric and orbital-delay corrections applied to the eclipse times were also used for the pulse-arrival-time analysis, and whether any residual orbital-phase coverage gaps affect the derivative at the reported precision.

    Authors: The identical barycentric and orbital-delay corrections derived from the eclipse timing were applied to the pulse-arrival-time analysis; we will state this explicitly in the revised text. The 2020 observations provide dense orbital-phase coverage throughout the Main High state with no significant gaps that impact the spin-derivative measurement at the quoted precision, as verified by the timing-fit residuals and covariance matrix. revision: yes

Circularity Check

0 steps flagged

No significant circularity; all results are direct fits to new data

full rationale

The paper's central results (local T_ecl from Rømer delay on five eclipses, P_spin and dot{P}_spin from pulse timing, global ephemeris and dot{P}_orb from linear fit to new T_ecl plus literature values) are obtained by standard least-squares fitting to the Insight-HXMT observations. No equation or claim reduces by construction to a prior fitted constant, self-citation, or ansatz; the orbital decay rate is an independent parameter in the combined ephemeris fit rather than a renamed input. Spectral parameters are likewise direct model fits. The derivation chain is self-contained against external timing data.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The measurements rest on standard X-ray timing and spectral modeling assumptions rather than new postulates; no free parameters are introduced beyond the fitted quantities themselves.

free parameters (2)
  • local spin period
    Fitted directly from pulse arrival times in the 2020 data
  • orbital decay rate
    Derived from linear fit to combined eclipse times including new measurements
axioms (2)
  • domain assumption Eclipses occur at a fixed orbital phase and provide precise timing markers
    Standard assumption for high-inclination X-ray binaries invoked when combining new T_ecl with literature values
  • domain assumption Spectral model (absorption + power law + cyclotron line) adequately describes the data
    Used to extract N_H, photon index, and cyclotron energy without reported alternative models

pith-pipeline@v0.9.0 · 5616 in / 1364 out tokens · 64817 ms · 2026-05-15T07:25:22.560580+00:00 · methodology
