Surrogate-Guided Adaptive Importance Sampling for Failure Probability Estimation
Pith reviewed 2026-05-15 06:41 UTC · model grok-4.3
The pith
KDE-AIS converges asymptotically to the optimal zero-variance importance sampling density while estimating failure probabilities efficiently from shared surrogate evaluations.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
KDE-AIS trains a Gaussian process surrogate for the limit state function and uses kernel density estimation on the same evaluations to adaptively build the importance sampling proposal. This leads to the proposal density converging asymptotically to the optimal zero-variance importance sampling density in total variation. The approach enables accurate estimation of small failure probabilities with a limited budget of expensive oracle evaluations, outperforming state-of-the-art Gaussian process based adaptive importance sampling techniques.
What carries the argument
KDE-AIS, which integrates Gaussian process surrogates with kernel density estimation to adaptively construct the IS proposal density from shared oracle evaluations of the limit state.
If this is right
- The single-stage approach uses a shared budget more efficiently than conventional two-stage methods.
- KDE-AIS density converges to the optimal zero-variance IS density in total variation.
- Small failure probabilities can be estimated accurately with relatively few oracle evaluations.
- Empirical performance exceeds previous Gaussian process based adaptive importance sampling methods.
Where Pith is reading between the lines
- If the convergence holds in practice, it could enable reliable analysis of rare events in high-stakes systems like aerospace or nuclear engineering with reduced simulation budgets.
- Future work might test the method on problems where the limit state is less smooth or in very high dimensions.
- The approach could be combined with other surrogate types beyond Gaussian processes for broader applicability.
Load-bearing premise
The limit state function must be sufficiently smooth for the Gaussian process surrogate to reliably guide the construction of the adaptive proposal density.
What would settle it
If the estimated proposal density fails to approach the true optimal importance sampling density in total variation distance for a smooth but high-dimensional limit state function, or if the failure probability estimates remain inaccurate despite increasing the number of evaluations.

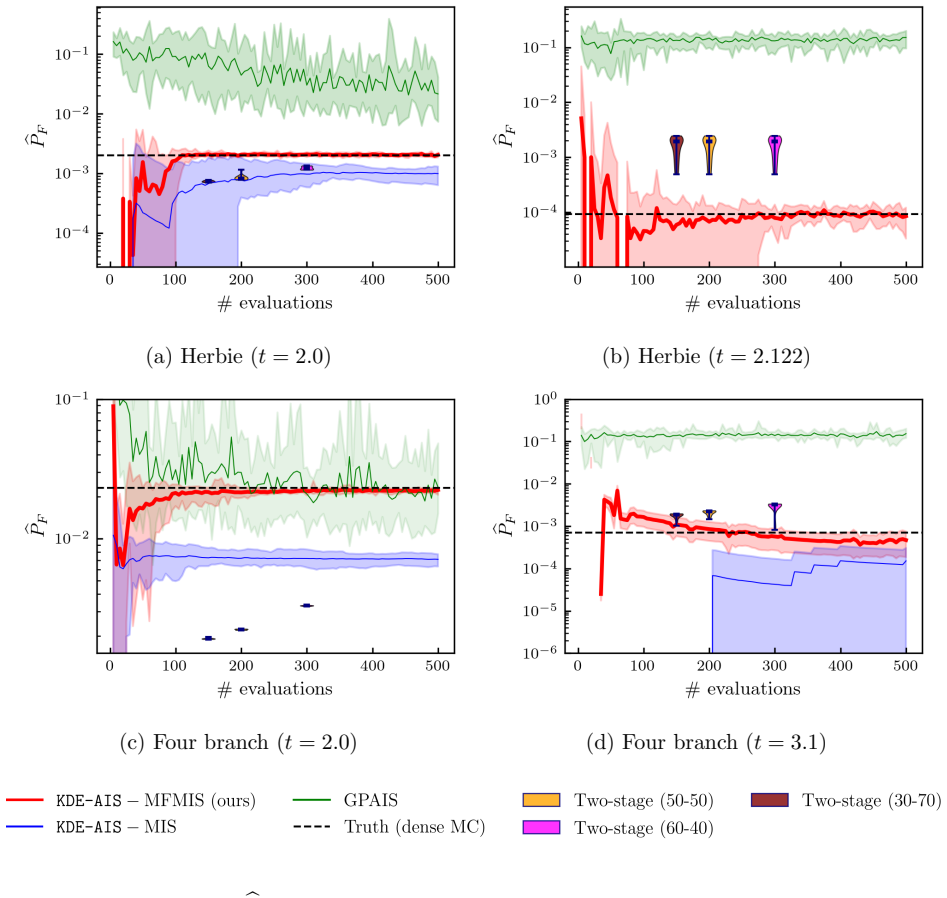

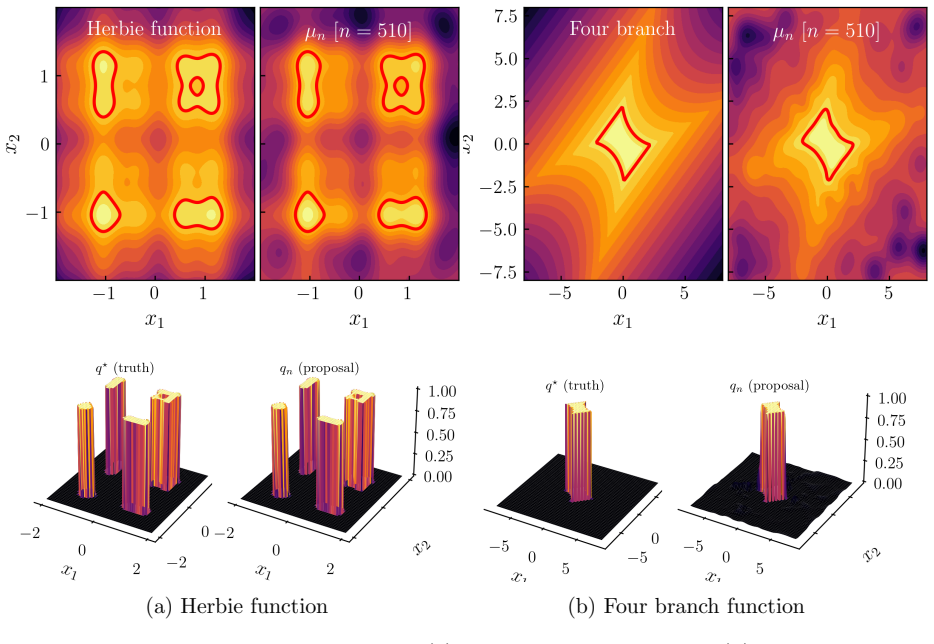

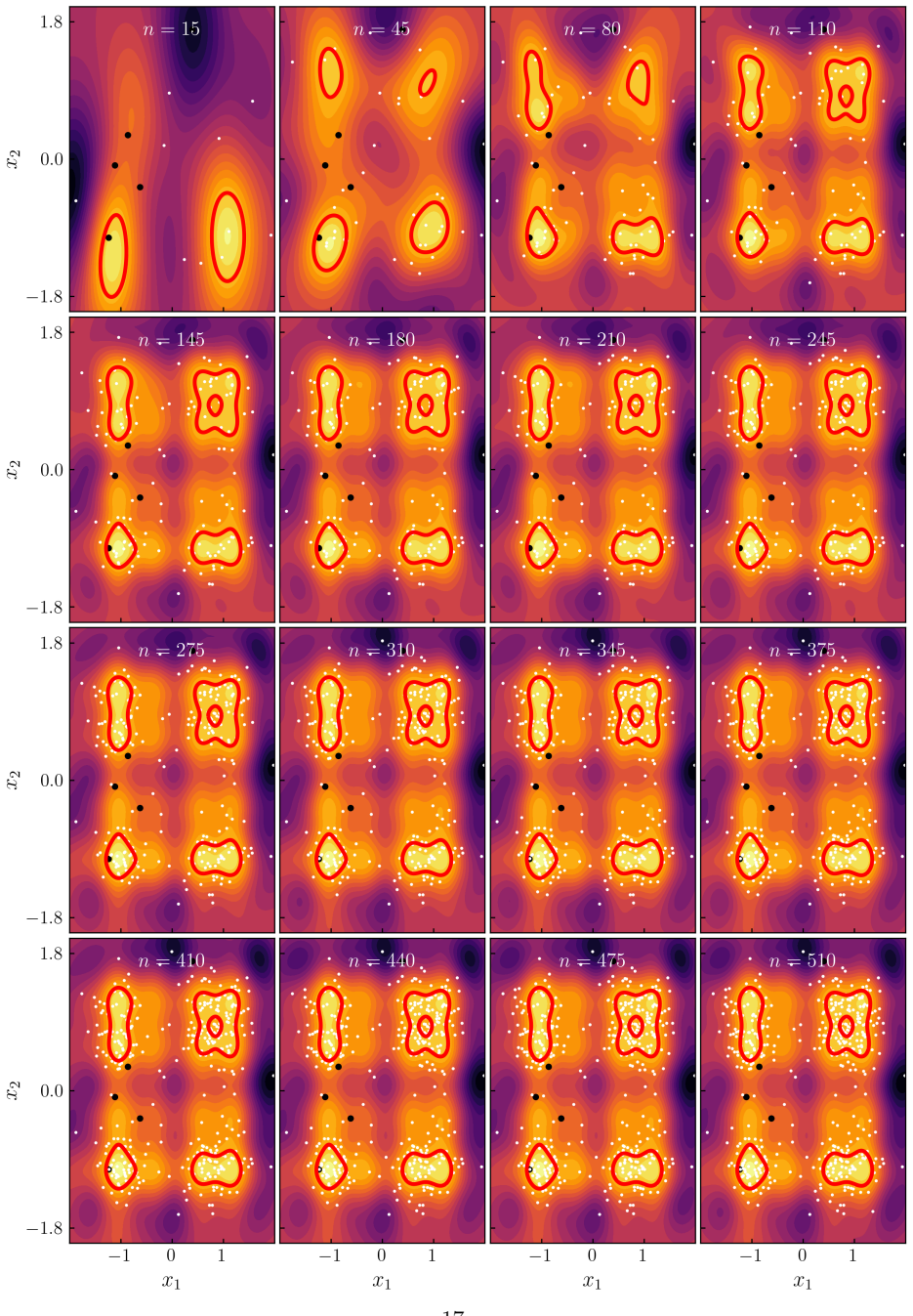

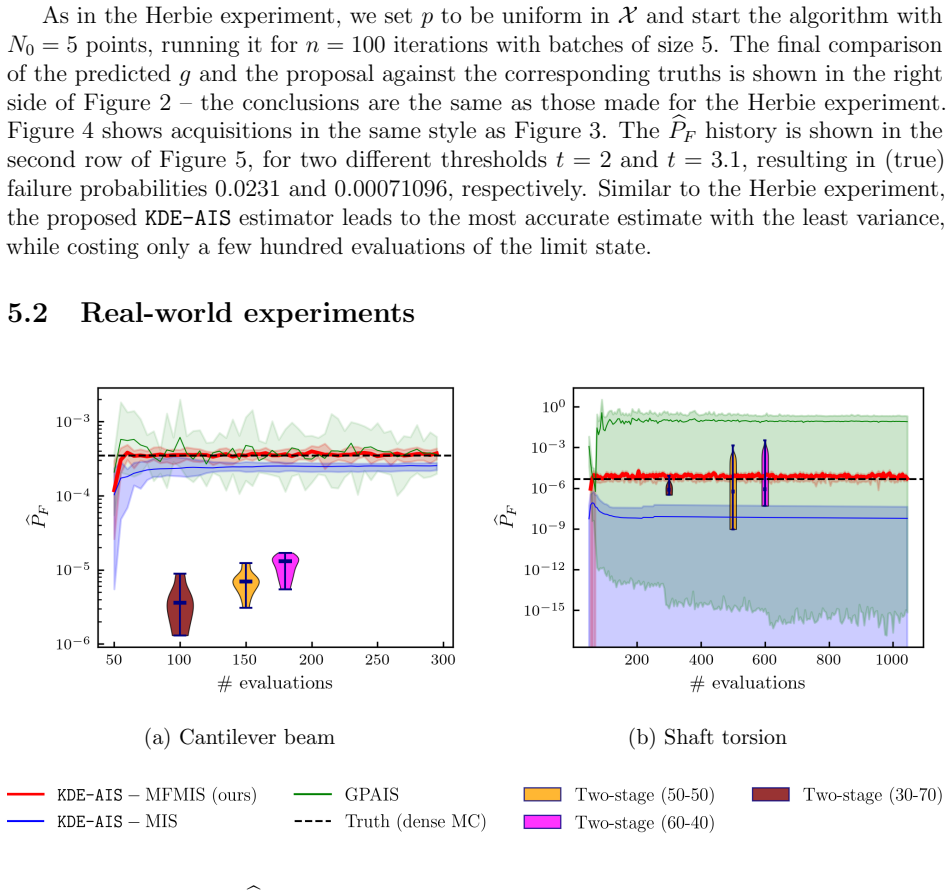

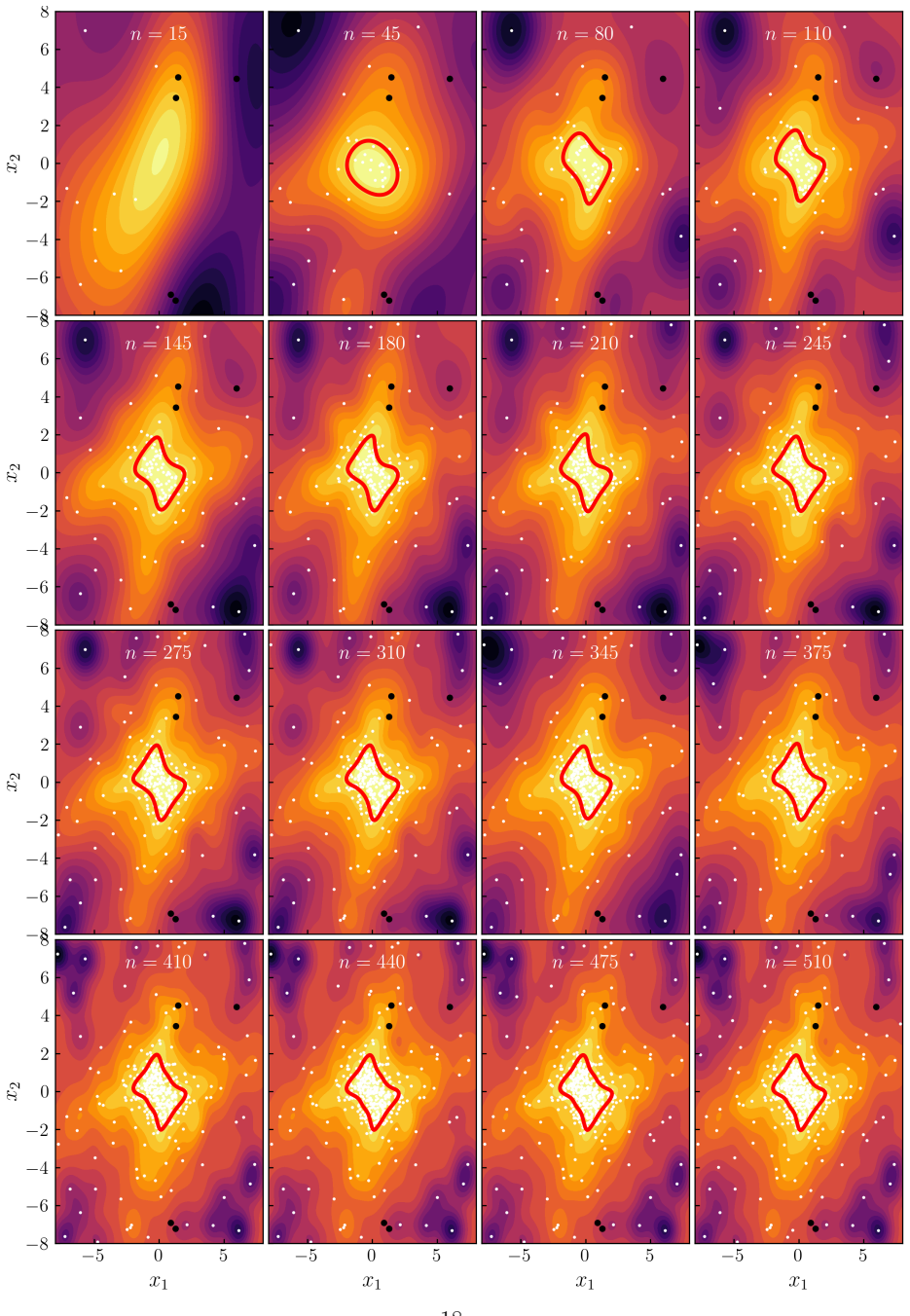

Figures

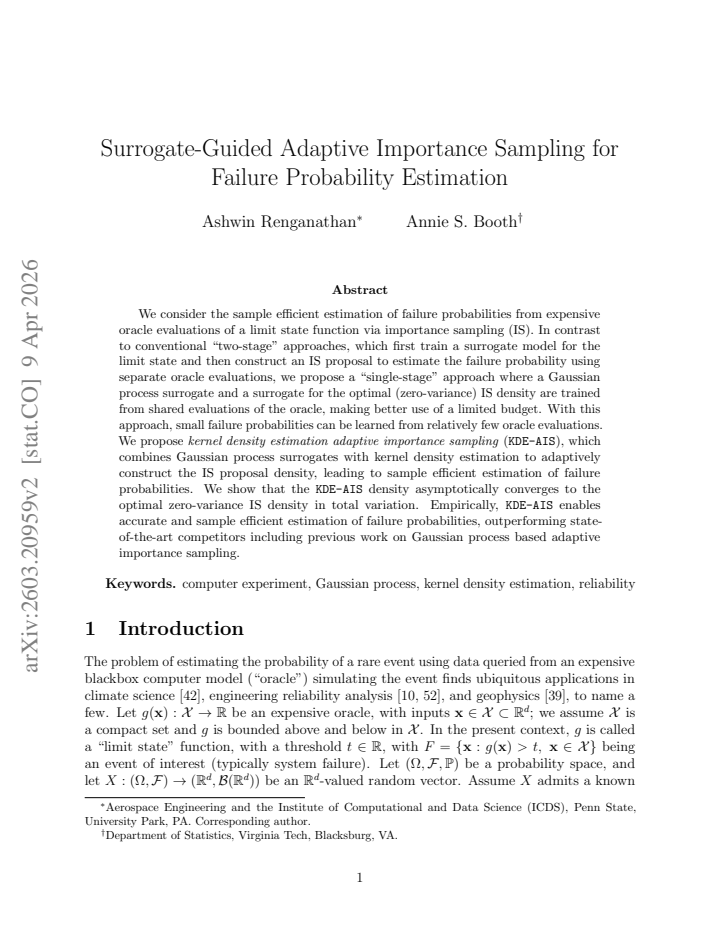

read the original abstract
We consider the sample efficient estimation of failure probabilities from expensive oracle evaluations of a limit state function via importance sampling (IS). In contrast to conventional ``two stage'' approaches, which first train a surrogate model for the limit state and then construct an IS proposal to estimate failure probability using separate oracle evaluations, we propose a \emph{single stage} approach where a Gaussian process surrogate and a surrogate for the optimal (zero-variance) IS density are trained from shared evaluations of the oracle, making better use of a limited budget. With such an approach, small failure probabilities can be learned with relatively few oracle evaluations. We propose \emph{kernel density estimation adaptive importance sampling} (\texttt{KDE-AIS}), which combines Gaussian process surrogates with kernel density estimation to adaptively construct the IS proposal density, leading to sample efficient estimation of failure probabilities. We show that \texttt{KDE-AIS} density asymptotically converges to the optimal zero-variance IS density in total variation. Empirically, \texttt{KDE-AIS} enables accurate and sample efficient estimation of failure probabilities compared to the state of the art, including previous work on Gaussian process based adaptive importance sampling.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes KDE-AIS, a single-stage method that jointly trains a Gaussian process surrogate for the limit state function and uses kernel density estimation on the same oracle evaluations to adaptively construct an importance sampling proposal density. It claims that this KDE-AIS proposal converges in total variation to the optimal zero-variance IS density and demonstrates empirical gains in sample efficiency and accuracy for estimating small failure probabilities relative to two-stage surrogate-IS baselines and prior GP-based adaptive IS methods.
Significance. If the total-variation convergence result can be rigorously established despite the adaptive dependence, the work would offer a principled way to integrate surrogate modeling with adaptive importance sampling, potentially reducing the number of expensive limit-state evaluations needed for rare-event estimation in reliability analysis. The empirical results, if robust, indicate practical improvements over existing approaches.
major comments (3)
- [Abstract and theoretical analysis] The asymptotic total-variation convergence of the KDE-AIS density to the optimal zero-variance IS density (abstract and theoretical section): standard KDE consistency results require i.i.d. samples, yet the adaptive construction draws successive samples from an evolving proposal that depends on the sequentially updated GP surrogate. Without an explicit ergodicity, martingale, or mixing argument to control the induced dependence, the claimed convergence does not necessarily follow from existing KDE theory.
- [Method description] The weakest assumption that the limit state function is sufficiently smooth for the GP surrogate to reliably guide the adaptive proposal (implicit in the method definition): the paper should state explicit conditions on the kernel and the function class (e.g., Hölder or Sobolev regularity) under which the GP posterior concentrates sufficiently to ensure the KDE step targets the correct region, and discuss failure modes when these are violated.
- [Experiments] Empirical comparisons (experimental section): the reported accuracy and efficiency gains versus prior GP-AIS methods should be accompanied by sensitivity checks on the free parameters (GP kernel hyperparameters and KDE bandwidth) to confirm that the advantages are not artifacts of post-hoc tuning or favorable data selection.
minor comments (2)
- Notation for the adaptive proposal density could be made more explicit to distinguish the surrogate-guided KDE estimate from the target optimal density throughout the derivations.
- Figure captions and axis labels in the numerical results should include the specific failure probability values and sample budgets used to facilitate direct comparison with the claimed efficiency gains.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed comments. We address each major point below and describe the revisions that will be incorporated into the next version of the manuscript.
read point-by-point responses
-
Referee: [Abstract and theoretical analysis] The asymptotic total-variation convergence of the KDE-AIS density to the optimal zero-variance IS density (abstract and theoretical section): standard KDE consistency results require i.i.d. samples, yet the adaptive construction draws successive samples from an evolving proposal that depends on the sequentially updated GP surrogate. Without an explicit ergodicity, martingale, or mixing argument to control the induced dependence, the claimed convergence does not necessarily follow from existing KDE theory.
Authors: We agree that the adaptive dependence requires explicit justification. In the revision we will expand the theoretical analysis to include a proof that first establishes almost-sure convergence of the adaptive proposal to the zero-variance optimum (via GP posterior consistency) and then invokes ergodic theorems for the resulting Markov chain to obtain total-variation convergence of the KDE estimator. The argument will be stated under the same regularity conditions already used for the GP. revision: yes
-
Referee: [Method description] The weakest assumption that the limit state function is sufficiently smooth for the GP surrogate to reliably guide the adaptive proposal (implicit in the method definition): the paper should state explicit conditions on the kernel and the function class (e.g., Hölder or Sobolev regularity) under which the GP posterior concentrates sufficiently to ensure the KDE step targets the correct region, and discuss failure modes when these are violated.
Authors: We will add an explicit assumptions subsection stating that the limit-state function lies in a Sobolev space of order s > d/2 and that the GP uses a Matérn kernel with smoothness parameter ν ≥ s. Under these conditions the posterior concentrates at the rate needed for the KDE to target the failure region. We will also include a short discussion of failure modes (e.g., discontinuous or lower-regularity functions) that can produce surrogate bias and degrade the IS estimator. revision: yes
-
Referee: [Experiments] Empirical comparisons (experimental section): the reported accuracy and efficiency gains versus prior GP-AIS methods should be accompanied by sensitivity checks on the free parameters (GP kernel hyperparameters and KDE bandwidth) to confirm that the advantages are not artifacts of post-hoc tuning or favorable data selection.
Authors: We will augment the experimental section with sensitivity studies that vary the GP length-scale and variance (around MLE values) and the KDE bandwidth (Silverman’s rule versus cross-validation). The additional tables and figures will demonstrate that the reported gains in accuracy and sample efficiency remain stable across these choices. revision: yes
Circularity Check
No circularity: derivation relies on external KDE consistency applied to adaptive process
full rationale
The paper constructs KDE-AIS by training a GP surrogate on oracle evaluations and using KDE on the resulting adaptive samples to build the IS proposal. The central claim is an asymptotic total-variation convergence result to the zero-variance optimum. This is presented as a theorem whose proof invokes standard KDE consistency arguments rather than re-deriving the optimum from the fitted GP or KDE parameters themselves. No equation reduces the claimed convergence to a fitted parameter by construction, no self-citation supplies a uniqueness theorem that forces the result, and the adaptive dependence is addressed (or assumed away) via external ergodicity conditions rather than being smuggled in as a definition. The method is therefore self-contained against external benchmarks and receives the default non-circularity finding.
Axiom & Free-Parameter Ledger
free parameters (2)
- GP kernel hyperparameters
- KDE bandwidth
axioms (1)
- domain assumption The limit state function is continuous and the input domain permits a well-defined optimal importance density.
Reference graph
Works this paper leans on
-
[1]
A. H-S. Ang and W. H. (see also Ang et al.) Tang. Optimal importance-sampling density estimator.Journal of Engineering Mechanics, 118(6):1146–1164, 1992. doi: 10.1061/(ASCE)0733-9399(1992)118:6(1146)
-
[2]
Siu-Kui Au and James L. Beck. A new adaptive importance sampling scheme for reliability evaluation.Structural Safety, 21(2):135–158, 1999. doi: 10.1016/S0167-4730(99)00014-4
-
[3]
Siu-Kui Au and James L. Beck. Estimation of small failure probabilities in high dimensions by subset simulation.Probabilistic Engineering Mechanics, 16(4):263–277,
-
[4]
doi: 10.1016/S0266-8920(01)00019-4
-
[5]
Dario Azzimonti, David Ginsbourger, Cl´ ement Chevalier, Julien Bect, and Yann Richet. Adaptive design of experiments for conservative estimation of excursion sets.Techno- metrics, 63(1):13–26, 2021
work page 2021
-
[6]
Mathieu Balesdent, J´ erˆ ome Morio, and Julien Marzat. Kriging-based adaptive importance sampling algorithms for rare event estimation.Structural Safety, 44:1–10, 2013. doi: 10.1016/j.strusafe.2013.05.002
-
[7]
Sequential design of computer experiments for the estimation of a probability of failure
Julien Bect, David Ginsbourger, Ling Li, Victor Picheny, and Emmanuel Vazquez. Sequential design of computer experiments for the estimation of a probability of failure. Statistics and Computing, 22(3):773–793, 2012
work page 2012
-
[8]
Bayesian subset simulation.SIAM/ASA Journal on Uncertainty Quantification, 5(1):762–786, 2017
Julien Bect, Ling Li, and Emmanuel Vazquez. Bayesian subset simulation.SIAM/ASA Journal on Uncertainty Quantification, 5(1):762–786, 2017. doi: 10.1137/16M1078276
-
[9]
Barron J Bichon, Michael S Eldred, Laura Painton Swiler, Sandaran Mahadevan, and John M McFarland. Efficient global reliability analysis for nonlinear implicit performance functions.AIAA journal, 46(10):2459–2468, 2008
work page 2008
-
[10]
Annie S Booth and S Ashwin Renganathan. Two-stage design for failure probability estimation with gaussian process surrogates.Journal of Quality Technology, pages 1–17, 2025
work page 2025
-
[11]
Actively learning deep gaus- sian process models for failure contour and probability estimation
Annie S Booth, Robert Gramacy, and Ashwin Renganathan. Actively learning deep gaus- sian process models for failure contour and probability estimation. InAIAA SCITECH 2024 Forum, page 0577, 2024
work page 2024
-
[12]
Annie S Booth, S Ashwin Renganathan, and Robert B Gramacy. Contour location for reliability in airfoil simulation experiments using deep gaussian processes.The Annals of Applied Statistics, 19(1):191–211, 2025
work page 2025
-
[13]
Z. I. Botev, J. F. Grotowski, and D. P. Kroese. Kernel density estimation via diffusion. Ann. Statist., 38(5):2916–2957, 2010
work page 2010
-
[14]
Robert Breunig. Nonparametric density estimation for stratified samples.Statistics & Probability Letters, 78(14):2194–2200, 2008. doi: 10.1016/j.spl.2008.01.099. 30
-
[15]
Adaptive importance sampling: The past, the present, and the future
Monica F Bugallo, Victor Elvira, Luca Martino, David Luengo, Joaquin Miguez, and Petar M Djuric. Adaptive importance sampling: The past, the present, and the future. IEEE Signal Processing Magazine, 34(4):60–79, 2017
work page 2017
-
[16]
Trent D. Buskirk and Sharon L. Lohr. Asymptotic properties of kernel density estimation with complex survey data.Journal of Statistical Planning and Inference, 128(1):165–190,
-
[17]
doi: 10.1016/j.jspi.2003.09.036
-
[18]
Francesco Cadini, Agnese Santos, and Enrico Zio. An improved adaptive kriging-based importance technique for sampling multiple failure regions of low probability.Reliability Engineering & System Safety, 131:109–117, 2014. doi: 10.1016/j.ress.2014.06.023
-
[19]
Cl´ ement Chevalier, Julien Bect, David Ginsbourger, Emmanuel Vazquez, Victor Picheny, and Yann Richet. Fast parallel kriging-based stepwise uncertainty reduction with application to the identification of an excursion set.Technometrics, 56(4):455–465, 2014
work page 2014
-
[20]
D Austin Cole, Robert B Gramacy, James E Warner, Geoffrey F Bomarito, Patrick E Leser, and William P Leser. Entropy-based adaptive design for contour finding and estimating reliability.arXiv preprint arXiv:2105.11357, 2021
-
[21]
Keith R. Dalbey and Laura P. Swiler. Gaussian process adaptive importance sampling. International Journal for Uncertainty Quantification, 4(2), 2014. doi: 10.1615/Int.J. UncertaintyQuantification.2013006330
-
[22]
Agnimitra Dasgupta and Erik Johnson. REIN: Reliability estimation via importance sampling with normalizing flows.Reliability Engineering & System Safety, 242:109729,
-
[23]
doi: 10.1016/j.ress.2023.109729
-
[24]
The geometry of random vibrations and solutions by form and sorm
A Der Kiureghian. The geometry of random vibrations and solutions by form and sorm. Probabilistic Engineering Mechanics, 15(1):81–90, 2000
work page 2000
-
[25]
Vincent Dubourg, Franck Deheeger, and Bruno Sudret. Metamodel-based importance sampling for structural reliability analysis.Probabilistic Engineering Mechanics, 33: 47–57, 2013. doi: 10.1016/j.probengmech.2013.02.002
-
[26]
A sur version of the bichon criterion for excursion set estimation
Cl´ ement Duhamel, C´ eline Helbert, Miguel Munoz Zuniga, Cl´ ementine Prieur, and Delphine Sinoquet. A sur version of the bichon criterion for excursion set estimation. Statistics and Computing, 33(2):41, 2023
work page 2023
-
[27]
Benjamin Echard, Nicolas Gayton, and Michel Lemaire. AK-MCS: An active learning reliability method combining kriging and monte carlo simulation.Structural Safety, 33 (2):145–154, 2011. doi: 10.1016/j.strusafe.2011.01.002
- [28]
-
[29]
Non-parametric estimation of a multivariate probability density
Vassiliy A Epanechnikov. Non-parametric estimation of a multivariate probability density. Theory of Probability & Its Applications, 14(1):153–158, 1969. 31
work page 1969
-
[30]
Evarist Gine, Vladimir Koltchinskii, and Joel Zinn. Weighted uniform consistency of kernel density estimators.The Annals of Probability, 32(3B):2570–2605, 2004. doi: 10.1214/009117904000000063
-
[31]
Active learning for level set estimation
Alkis Gotovos, Nathalie Casati, Gregory Hitz, and Andreas Krause. Active learning for level set estimation. InTwenty-Third International Joint Conference on Artificial Intelligence, 2013
work page 2013
-
[32]
Gramacy.Surrogates: Gaussian Process Modeling, Design and Optimization for the Applied Sciences
Robert B. Gramacy.Surrogates: Gaussian Process Modeling, Design and Optimization for the Applied Sciences. Chapman Hall/CRC, Boca Raton, Florida, 2020. URL http://bobby.gramacy.com/surrogates
work page 2020
-
[33]
Zhangli Hu, Rami Mansour, M˚ arten Olsson, and Xiaoping Du. Second-order reliability methods: a review and comparative study.Structural and multidisciplinary optimization, 64(6):3233–3263, 2021
work page 2021
-
[34]
Changwu Huang, Abdelkhalak El Hami, and Boucha¨ ıb Radi. Overview of structural reliability analysis methods—part i: Local reliability methods.Incertitudes et fiabilit´ e des syst` emes multiphysiques, 17(1):1–10, 2017
work page 2017
-
[35]
HW Huang, SC Wen, J Zhang, FY Chen, JR Martin, and H Wang. Reliability analysis of slope stability under seismic condition during a given exposure time.Landslides, 15 (11):2303–2313, 2018
work page 2018
-
[36]
Xianfeng Huang, Jie Chen, and Su Li. Assessing small failure probabilities by ak–ss: An active learning method combining kriging and subset simulation.Structural Safety, 59: 86–95, 2016. doi: 10.1016/j.strusafe.2015.12.003
-
[37]
Efficient Global Optimization of Expensive Black-Box Functions
Donald R. Jones, Matthias Schonlau, and William J. Welch. Efficient global optimization of expensive black-box functions.Journal of Global Optimization, 13(4):455–492, 1998. doi: 10.1023/A:1008306431147
-
[38]
H. K. H. Lee, R. B. Gramacy, C. Linkletter, and G. A. Gray. Optimization subject to hidden constraints via statistical emulation.Pacific Journal of Optimization, 7(3): 467–478, 2011
work page 2011
-
[39]
Soon Man Lee, Jae-Hun Song, and Nam-Ho Kim. An adaptive importance sampling method with a kriging model and kernel sampling density for structural reliability analysis.Journal of Mechanical Science and Technology, 31:5873–5882, 2017. doi: 10.1007/s12206-017-1119-8
-
[40]
Jing Li, Jinglai Li, and Dongbin Xiu. An efficient surrogate-based method for computing rare failure probability.Journal of Computational Physics, 230(24):8683–8697, 2011
work page 2011
-
[41]
Shiyu Li, Yi Peng, and Eui-Young Byon. Nonparametric importance sampling for wind turbine reliability analysis.Annals of Applied Statistics, 15(4):1850–1873, 2021. doi: 10.1214/20-AOAS1438. 32
-
[42]
Jeffrey J Love. Credible occurrence probabilities for extreme geophysical events: Earth- quakes, volcanic eruptions, magnetic storms.Geophysical Research Letters, 39(10), 2012
work page 2012
-
[43]
Henrik O Madsen, Steen Krenk, and Niels Christian Lind.Methods of structural safety. Courier Corporation, 2006
work page 2006
-
[44]
Contour location via entropy reduction leveraging multiple information sources
Alexandre N Marques, Remi R Lam, and Karen E Willcox. Contour location via entropy reduction leveraging multiple information sources.arXiv preprint arXiv:1805.07489, 2018
work page internal anchor Pith review Pith/arXiv arXiv 2018
-
[45]
Philippe Naveau, Alexis Hannart, and Aur´ elien Ribes. Statistical methods for extreme event attribution in climate science.Annual Review of Statistics and Its Application, 7 (1):89–110, 2020
work page 2020
-
[46]
Sadananda Nayek, Babulal Seal, and Dilip Roy. Reliability approximation for solid shaft under gamma setup.Journal of Reliability and Statistical Studies, pages 11–17, 2014
work page 2014
-
[47]
Man-Suk Oh and James O Berger. Adaptive importance sampling in monte carlo integration.Journal of statistical computation and simulation, 41(3-4):143–168, 1992
work page 1992
-
[48]
A. B. Owen.Monte Carlo Theory, Methods and Examples. Stanford University, 2013
work page 2013
-
[49]
E. Parzen. On estimation of a probability density function and mode.Ann. Math. Statist., 33(3):1065–1076, 1962
work page 1962
-
[50]
Benjamin Peherstorfer, Tiangang Cui, Youssef Marzouk, and Karen Willcox. Multifidelity importance sampling.Computer Methods in Applied Mechanics and Engineering, 300: 490–509, 2016
work page 2016
-
[51]
Augustin Persoons, Matteo Broggi, and Michael Beer. Variance reduction using multiple importance sampling with adaptive kriging (ak-amis).PhD Thesis / preprint, University of Liverpool, 2023. Available as: https://livrepository.liverpool.ac.uk/3171699/ 1/APersoons.pdf
-
[52]
Adaptive designs of experiments for accurate approximation of a target region
Victor Picheny, David Ginsbourger, Olivier Roustant, Raphael T Haftka, and Nam-Ho Kim. Adaptive designs of experiments for accurate approximation of a target region. 2010
work page 2010
-
[53]
Pritam Ranjan, Derek Bingham, and George Michailidis. Sequential experiment design for contour estimation from complex computer codes.Technometrics, 50(4):527–541, 2008
work page 2008
-
[54]
C. E. Rasmussen and C. K. I. Williams.Gaussian Processes for Machine Learning. MIT Press, 2006. doi: 10.7551/mitpress/3206.001.0001
-
[55]
S Ashwin Renganathan, Vishwas Rao, and Ionel M Navon. Camera: A method for cost-aware, adaptive, multifidelity, efficient reliability analysis.Journal of Computational Physics, 472:111698, 2023. 33
work page 2023
-
[56]
Douglas Reynolds. Gaussian mixture models. InEncyclopedia of biometrics, pages 827–832. Springer, 2015
work page 2015
-
[57]
Vicente J. Romero, Laura P. Swiler, Mohamed S. Ebeida, and Scott A. Mitchell. A set of test problems and results in assessing method performance for calculating low probabilities of failure. In18th AIAA Non-Deterministic Approaches Conference, San Diego, CA, 2016. AIAA. doi: 10.2514/6.2016-0429. AIAA Paper 2016-0429
-
[58]
M. Rosenblatt. Remarks on some nonparametric estimates of a density function.Ann. Math. Statist., 27(3):832–837, 1956
work page 1956
-
[59]
Thomas J. Santner, Brian J. Williams, and William I. Notz.The Design and Analysis of Computer Experiments. Springer, 2003. doi: 10.1007/978-1-4757-3799-8
-
[60]
R. Sch¨ obi, B. Sudret, and S. Marelli. Rare event estimation using polynomial-chaos kriging.ASCE-ASME Journal of Risk and Uncertainty in Engineering Systems, Part A: Civil Engineering, 3(2), 2017. doi: 10.1061/AJRUA6.0000870
-
[61]
D. W. Scott.Multivariate Density Estimation. Wiley, 2 edition, 2015
work page 2015
-
[62]
B. W. Silverman.Density Estimation for Statistics and Data Analysis. Chapman & Hall, 1986
work page 1986
-
[63]
The kernel method for univariate data
Bernard W Silverman. The kernel method for univariate data. InDensity estimation for statistics and data analysis, pages 34–74. Springer, 1986
work page 1986
-
[64]
Springer Science & Business Media, 2002
Rajan Srinivasan.Importance sampling: Applications in communications and detection. Springer Science & Business Media, 2002
work page 2002
-
[65]
G. R. Terrell and D. W. Scott. Variable kernel density estimation.Ann. Statist., 20(3): 1236–1265, 1992
work page 1992
-
[66]
A. B. Tsybakov.Introduction to Nonparametric Estimation. Springer, 2009
work page 2009
-
[67]
E. Veach and L. J. Guibas. Optimally combining sampling techniques for monte carlo rendering. InProc. SIGGRAPH, pages 419–428, 1995
work page 1995
-
[68]
M. P. Wand and M. C. Jones.Kernel Smoothing. Chapman & Hall, 1995
work page 1995
-
[69]
Hongqiao Wang, Guang Lin, and Jinglai Li. Gaussian process surrogates for failure detection: A Bayesian experimental design approach.Journal of Computational Physics, 313:247–259, 2016. doi: 10.1016/j.jcp.2016.02.053
-
[70]
Sinan Xiao, Sergey Oladyshkin, and Wolfgang Nowak. Reliability analysis with stratified importance sampling based on adaptive kriging.Reliability Engineering & System Safety, 197:106852, 2020. doi: 10.1016/j.ress.2019.106852
-
[71]
Jing Zhang, Zhen Tong, Yiqun Li, and Jun Zhang. An active learning reliability method combining kriging and subset simulation.Reliability Engineering & System Safety, 188: 90–102, 2019. doi: 10.1016/j.ress.2019.03.001. 34
-
[72]
YG Zhao, T Ono, and H Idota. Response uncertainty and time-variant reliability analysis for hysteretic mdf structures.Earthquake engineering & structural dynamics, 28(10): 1187–1213, 1999. 35
work page 1999
