arxiv: 2603.21124 · v4 · submitted 2026-03-22 · 🧮 math.AP

Removing small wavenumber constraints in Side B of the Probe Method

Masaru Ikehata This is my paper

Pith reviewed 2026-05-15 07:28 UTC · model grok-4.3

classification 🧮 math.AP
keywords probe methodinverse obstacle problemhelmholtz equationdirichlet-to-neumann mapneedle-like solutionindicator sequenceside bwavenumber
0
0 comments X

The pith

Side B of the Probe Method for the Helmholtz equation now holds without any small wavenumber restriction.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The Probe Method reconstructs obstacles from the Dirichlet-to-Neumann map by tracking an indicator sequence built from needle-like solutions whose energy concentrates along a chosen needle. Side A marks the obstacle boundary at the first blow-up of this sequence before needle contact. Side B instead uses the blow-up that occurs after the needle touches the obstacle. For the Helmholtz equation, Side B had required a small wavenumber to prove that blow-up. This paper removes the restriction by showing the blow-up property holds for arbitrary wavenumbers using the same needle-like solutions and map.

Core claim

The paper establishes that the indicator sequence blows up after the needle-like solution contacts the obstacle for the Helmholtz equation at any wavenumber. This removes the long-standing small-wavenumber constraint that previously limited Side B, extending the Probe Method's validity through properties of the Dirichlet-to-Neumann map and the needle-like solutions.

What carries the argument

The indicator sequence computed from the Dirichlet-to-Neumann map applied to needle-like solutions with energy concentrated along an arbitrary needle inside the domain.

If this is right

  • Side B of the Probe Method applies to the Helmholtz equation without wavenumber size limits.
  • Obstacle reconstruction via the indicator sequence works for a wider class of frequencies.
  • The blow-up behavior after contact no longer depends on a small-wavenumber regime.
  • The method can be used in inverse obstacle problems previously excluded by the constraint.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Numerical tests of the method at higher wavenumbers can now be performed without theoretical restriction.
  • The removal may allow direct comparison of Side A and Side B performance across frequency ranges.
  • Similar arguments could be examined for other equations that previously carried small-parameter limits.

Load-bearing premise

The blow-up of the indicator sequence after needle contact with the obstacle holds for arbitrary wavenumbers using properties of the needle-like solutions and the Dirichlet-to-Neumann map.

What would settle it

A calculation or experiment in which the indicator sequence remains bounded after needle contact for some large wavenumber in a known obstacle geometry would show the claim does not hold.

read the original abstract

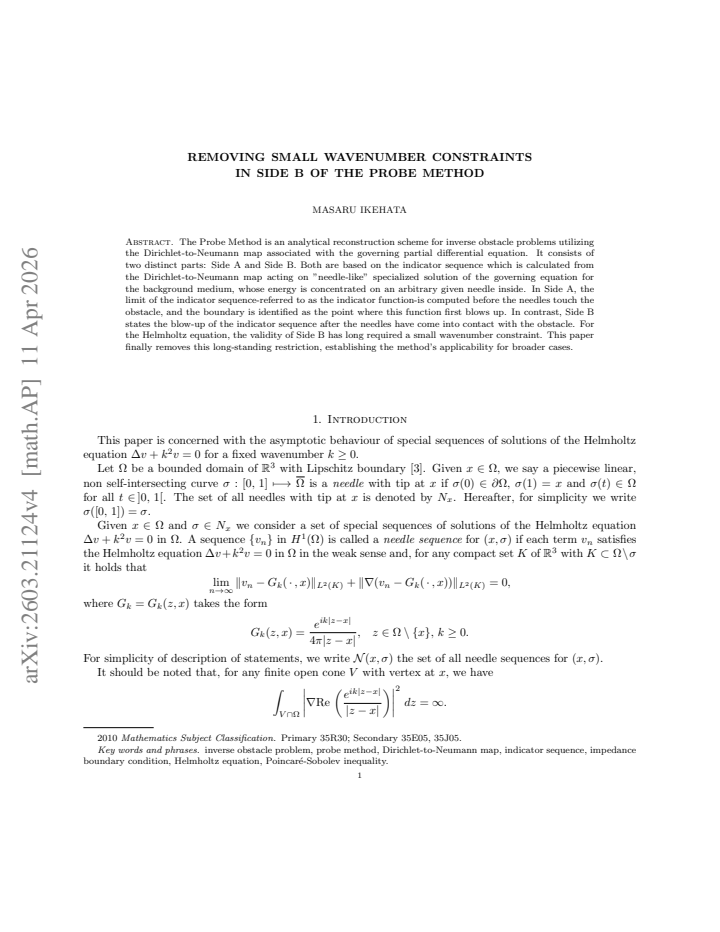

The Probe Method is an analytical reconstruction scheme for inverse obstacle problems utilizing the Dirichlet-to-Neumann map associated with the governing partial differential equation. It consists of two distinct parts: Side A and Side B. Both are based on the indicator sequence which is calculated from the Dirichlet-to-Neumann map acting on "needle-like" specialized solution of the governing equation for the background medium, whose energy is concentrated on an arbitrary given needle inside. In Side A, the limit of the indicator sequence-referred to as the indicator function-is computed before the needles touch the obstacle, and the boundary is identified as the point where this function first blows up. In contrast, Side B states the blow-up of the indicator sequence after the needles have come into contact with the obstacle. For the Helmholtz equation, the validity of Side B has long required a small wavenumber constraint. This paper finally removes this long-standing restriction, establishing the method's applicability for broader cases.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper claims that Side B of the Probe Method for the Helmholtz equation—specifically the blow-up of the indicator sequence after needle-obstacle contact—holds for arbitrary wavenumbers. This is achieved by a revised analysis of energy concentration in the needle-like solutions and control of remainder terms in the Dirichlet-to-Neumann map estimates, removing the prior small-wavenumber restriction.

Significance. If the result holds, it removes a long-standing technical limitation on the Probe Method, extending its applicability to broader frequency regimes in inverse obstacle problems. The approach relies on a new decomposition that avoids the frequency cutoff, providing uniform estimates on the singularity of the indicator function.

minor comments (2)
  1. [§2.3] §2.3: the definition of the needle-like solution could explicitly state the dependence on the wavenumber k to make the uniform estimates clearer.
  2. [Figure 1] Figure 1: the caption should indicate the specific wavenumber values used in the numerical illustration to connect directly to the arbitrary-k claim.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment and recommendation to accept the manuscript. The summary accurately captures our main contribution: a revised analysis that removes the small-wavenumber restriction from Side B of the Probe Method for the Helmholtz equation.

Circularity Check

0 steps flagged

No significant circularity in the derivation chain

full rationale

The paper extends the Probe Method for the Helmholtz equation by deriving uniform estimates for the indicator sequence blow-up in Side B that hold for arbitrary wavenumbers. This is achieved through a revised decomposition controlling remainder terms in the energy concentration and singularity analysis of the needle-like solutions and DtN map, without reducing to any fitted parameter, self-definition, or load-bearing self-citation chain. The central step (post-contact blow-up) is established directly from PDE properties and does not invoke prior small-k restrictions as an assumption; all cited prior results on the Probe Method serve as independent background rather than forcing the new conclusion. The derivation remains self-contained against external mathematical benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The result rests on standard domain assumptions for the Helmholtz equation and the Probe Method indicator sequence; no free parameters or invented entities are mentioned in the abstract.

axioms (2)
  • domain assumption Existence and concentration properties of needle-like solutions for the background Helmholtz equation
    Invoked to define the indicator sequence from the Dirichlet-to-Neumann map.
  • domain assumption Blow-up behavior of the indicator sequence after obstacle contact
    Central to Side B; previously controlled only under small-wavenumber assumption.

pith-pipeline@v0.9.0 · 5450 in / 1194 out tokens · 21943 ms · 2026-05-15T07:28:27.566648+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

19 extracted references · 19 canonical work pages

  1. [1]

    and Kress, R.,Inverse Acoustic and Electromagnetic Scattering Theory4th edn, Springer, New York, 2019

    Colton, D. and Kress, R.,Inverse Acoustic and Electromagnetic Scattering Theory4th edn, Springer, New York, 2019

    work page 2019

  2. [2]

    and Nakamura, G., Recovery of the shape of an obstacle and the boundary impedance from the far-field pattern, J

    Cheng, J., Liu, J. and Nakamura, G., Recovery of the shape of an obstacle and the boundary impedance from the far-field pattern, J. Math. Kyoto Univ.,43(2003), No. 1, 165-186

    work page 2003

  3. [3]

    Grisvard, P.,Elliptic problems in nonsmooth domains, Pitman, Boston, 1985

    work page 1985

  4. [4]

    Ikehata, M., Reconstruction of an obstacle from the scattering amplitude at a fixed frequency, Inverse Problems,14(1998), No.4, 949-954

    work page 1998

  5. [5]

    in Partial Differential Equations,23(1998), No.7-8, 1459-1474

    Ikehata, M., Reconstruction of the shape of the inclusion by boundary measurements, Commun. in Partial Differential Equations,23(1998), No.7-8, 1459-1474

    work page 1998

  6. [6]

    3, 205-223

    Ikehata, M., Reconstruction of obstacle from boundary measurements, Wave Motion,30(1999), No. 3, 205-223

    work page 1999

  7. [7]

    Ikehata, M., Reconstruction of the support function for inclusion from boundary measurements, J. Inv. Ill-Posed Probl., 8(2000), No. 4, 367-378

    work page 2000

  8. [8]

    1, 413-426

    Ikehata, M., A new formulation of the probe method and related problems, Inverse Problems,21(2005), No. 1, 413-426

    work page 2005

  9. [9]

    Ikehata, M., The probe method and its applications II,Seminar notes of mathematical sciences(Soga, H. et. al. eds.), Vol. 8., 9-18, 2005, Ibaraki University, Mito

    work page 2005

  10. [10]

    Ikehata, M., Inverse crack problem and probe method, Cubo A Mathematical Journal,8(2006), No.1, 29-40

    work page 2006

  11. [11]

    J.,35(2006), No

    Ikehata, M., Two sides of probe method and obstacle with impedance boundary condition, Hokkaido Math. J.,35(2006), No. 3, 659-681

    work page 2006

  12. [12]

    The past and present, New Developments of Functional Equations in Mathematical Analysis, RIMS Kˆ okyˆ uroku, No

    Ikehata, M., The probe and enclosure methods for inverse obstacle scattering problems. The past and present, New Developments of Functional Equations in Mathematical Analysis, RIMS Kˆ okyˆ uroku, No. 1702, 2010, pp. 1-22. http://hdl.handle.net/2433/170012

    work page 2010

  13. [13]

    Ikehata, M., Revisiting the probe and enclosure methods, Inverse Problems,38(2022), No.7, 075009 (33pp)

    work page 2022

  14. [14]

    Ikehata, M., Extracting discontinuity using the probe and enclosure methods, J. Inv. Ill-Posed Probl.,31(2023), No. 4, 487-575

    work page 2023

  15. [15]

    Ikehata, M., Integrating the probe and singular sources methods, J. Inv. Ill-Posed Probl.,32(2024), No. 6, 1249-1275

    work page 2024

  16. [16]

    IPS function for the Schr¨ odinger equation,preprint

    Ikehata, M., Integrating the probe and singular sources methods: IV. IPS function for the Schr¨ odinger equation,preprint. arXiv:2601.14779

    work page arXiv

  17. [17]

    and Grinberg, N., The factorization method for inverse problems, Oxford University Press: New York, 2008

    Kirsch, A. and Grinberg, N., The factorization method for inverse problems, Oxford University Press: New York, 2008

    work page 2008

  18. [18]

    and Loss, M.,Analysis, second edition, AMS, Providence, RI(2001)

    Lieb, L.H. and Loss, M.,Analysis, second edition, AMS, Providence, RI(2001)

    work page 2001

  19. [19]

    and Stegenga, D

    Stanoyevitch, A. and Stegenga, D. A., Equivalence of analytic and Sobolev Poincar´ e inequalities for planar domains, Pacfic J. Math.178(1997), No.2, 363-375. Professor Emeritus at Gunma University; Professor Emeritus at Hiroshima University, Graduate School of Advanced Science and Engineering, Hiroshima University, Higashihiroshima, Japan Email address:i...
