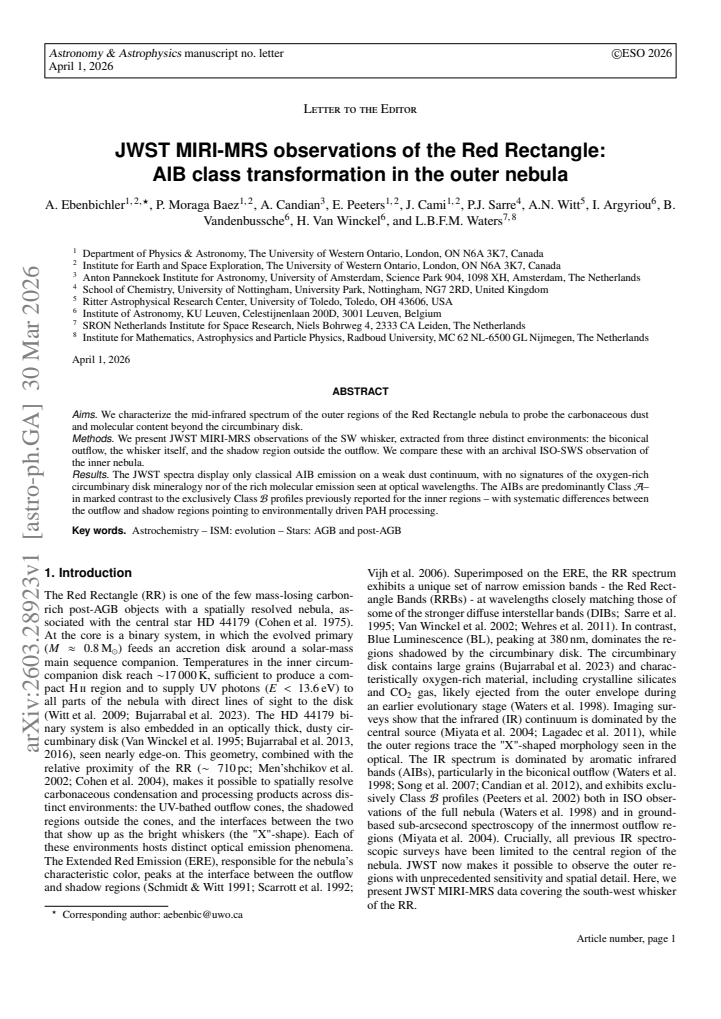

JWST MIRI-MRS observations of the Red Rectangle: AIB class transformation in the outer nebula
Pith reviewed 2026-05-14 01:24 UTC · model grok-4.3
The pith
Outer Red Rectangle nebula shows predominantly Class A aromatic bands, unlike inner Class B profiles
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The JWST spectra of the outer Red Rectangle display only classical AIB emission on a weak dust continuum, with the AIBs predominantly Class A in marked contrast to the exclusively Class B profiles previously reported for the inner regions, and with systematic differences between the outflow and shadow regions pointing to environmentally driven PAH processing.
What carries the argument
The Class A versus Class B classification scheme for aromatic infrared band profiles, applied to compare new JWST MIRI-MRS outer-nebula spectra against archival ISO-SWS inner-nebula spectra.
If this is right
- PAH populations in the outer nebula undergo processing that shifts their emission to Class A profiles.
- The outer regions lack both the oxygen-rich mineralogy and the rich molecular emission seen in the inner circumbinary disk.
- Systematic profile variations between outflow and shadow regions indicate that local conditions control the observed PAH spectral class.
- The carbonaceous dust component is spatially separated from the oxygen-rich dust in the outer nebula.
Where Pith is reading between the lines
- Comparable class shifts may appear in other bipolar nebulae with strong outflows, offering a way to test processing models across multiple targets.
- High-spatial-resolution maps could separate radiation-field effects from density or shock-driven changes in the carriers.
- The result supplies an observational anchor for chemical evolution models that track PAH size, ionization, and edge structure as functions of nebular position.
Load-bearing premise
The AIB class differences between outer and inner regions arise from genuine environmental processing of the carriers rather than from differences in excitation conditions, line-of-sight effects, or data reduction choices.
What would settle it
A new mid-infrared spectrum of the same outer positions that recovers exclusively Class B profiles under identical reduction and excitation modeling would falsify the claim of environmentally driven class transformation.
read the original abstract
Aims: We characterize the mid-infrared spectrum of the outer regions of the Red Rectangle nebula to probe the carbonaceous dust and molecular content beyond the circumbinary disk. Methods: We present JWST MIRI-MRS observations of the SW whisker, extracted from three distinct environments: the biconical outflow, the whisker itself, and the shadow region outside the outflow. We compare these with an archival ISO-SWS observation of the inner nebula. Results: The JWST spectra display only classical AIB emission on a weak dust continuum, with no signatures of the oxygen-rich circumbinary disk mineralogy nor of the rich molecular emission seen at optical wavelengths. The AIBs are predominantly Class A - in marked contrast to the exclusively Class B profiles previously reported for the inner regions - with systematic differences between the outflow and shadow regions pointing to environmentally driven PAH processing.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reports JWST MIRI-MRS spectroscopy of the outer Red Rectangle nebula, extracting spectra from the SW whisker in three environments (biconical outflow, whisker, and shadow region) and comparing them to an archival ISO-SWS spectrum of the inner nebula. The JWST data show classical AIB emission on a weak continuum with no oxygen-rich mineralogy or rich molecular features; the AIB profiles are predominantly Class A, in contrast to the exclusively Class B profiles in the inner regions, with systematic differences between outflow and shadow regions interpreted as evidence for environmentally driven PAH processing.
Significance. If the reported AIB class transformation is shown to be robust against resolution and reduction differences, the result would provide direct observational evidence linking local nebular conditions to PAH class evolution in the outer regions of a post-AGB object. This would be a useful addition to the literature on carbonaceous dust processing, particularly for understanding the transition between Class B and Class A AIB carriers.
major comments (2)
- [Results / Comparison with ISO data] The central claim of a Class A vs. Class B transformation rests on precise 7.6–7.8 μm peak positions and band shapes. The manuscript must include an explicit test in which the JWST MIRI-MRS spectra are convolved to ISO-SWS resolution (R ≈ 100–1000) and re-classified; without this, the apparent shift could arise from the higher resolving power of MIRI-MRS (R ≈ 1500–3500) revealing substructure or from differences in continuum subtraction and flux calibration between the two instruments.
- [Methods / Spectral extraction] The systematic differences reported between the outflow and shadow regions need quantitative support (e.g., measured peak wavelengths, FWHM values, or band ratios with uncertainties) extracted under identical pipelines. The current description leaves open whether region selection, aperture size, or background subtraction choices contribute to the observed contrast.
minor comments (2)
- [Abstract] The abstract should specify the exact MIRI-MRS wavelength coverage to contextualize the absence of oxygen-rich features and molecular lines.
- [Figures] Figure captions for the extracted spectra should include noise estimates or error bars and clearly identify which trace corresponds to each environment (outflow, whisker, shadow).
Simulated Author's Rebuttal
We thank the referee for their insightful comments, which have helped us improve the clarity and robustness of our analysis. We address each major comment below and have made revisions to the manuscript accordingly.
read point-by-point responses
-
Referee: [Results / Comparison with ISO data] The central claim of a Class A vs. Class B transformation rests on precise 7.6–7.8 μm peak positions and band shapes. The manuscript must include an explicit test in which the JWST MIRI-MRS spectra are convolved to ISO-SWS resolution (R ≈ 100–1000) and re-classified; without this, the apparent shift could arise from the higher resolving power of MIRI-MRS (R ≈ 1500–3500) revealing substructure or from differences in continuum subtraction and flux calibration between the two instruments.
Authors: We agree that an explicit convolution test is essential to rule out resolution effects. We have performed this test by convolving the JWST MIRI-MRS spectra to match the ISO-SWS resolution range. The re-classified profiles retain their Class A characteristics, indicating that the observed transformation is not due to resolution differences or calibration variations. We will include the convolved spectra and the corresponding classification in the revised manuscript. revision: yes
-
Referee: [Methods / Spectral extraction] The systematic differences reported between the outflow and shadow regions need quantitative support (e.g., measured peak wavelengths, FWHM values, or band ratios with uncertainties) extracted under identical pipelines. The current description leaves open whether region selection, aperture size, or background subtraction choices contribute to the observed contrast.
Authors: We will enhance the methods section with quantitative support. A new table will be added presenting the measured peak wavelengths, FWHM, and band ratios with 1σ uncertainties for the key AIB bands in the outflow, whisker, and shadow regions. These measurements were obtained using a uniform spectral extraction pipeline, with consistent aperture sizes and background subtraction methods applied across all regions to minimize any potential biases from region selection. revision: yes
Circularity Check
Pure observational comparison with no derivations or self-referential claims
full rationale
The paper reports new JWST MIRI-MRS spectra extracted from distinct outer nebula regions (outflow, whisker, shadow) and directly compares the observed AIB profiles to a single archival ISO-SWS spectrum of the inner nebula. No equations, fitted parameters, model derivations, or predictions appear in the provided text. AIB class assignments (predominantly Class A vs. prior Class B) follow standard literature definitions based on peak positions and shapes, without any self-definition or renaming of known results. The claim of environmentally driven processing is an interpretive conclusion drawn from the spectral differences, not a mathematical result that reduces to the paper's own inputs by construction. No self-citation chains, uniqueness theorems, or ansatzes are invoked as load-bearing steps. This is a standard observational study whose central content is independent of any internal circular reduction.
