Dispersion Engineered Metastructures Enabling Broadband Angular Selectivity

Phillippe Pearson , Zhaowei Dai , Yiran Gu , Owen D. Miller , Andrei Faraon This is my paper

Pith reviewed 2026-05-13 19:12 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords angular selectivitymetastructuresguided-mode resonancestopology optimizationdispersion engineeringbroadband opticsangular filtersoptical scattering
0
0 comments X

The pith

Dispersion-engineered metastructures achieve isotropic angular selectivity over 20% spectral bandwidths.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a topology-optimization method to design thin 2D metastructures that use guided-mode resonances for light scattering or transmission that depends on incidence angle and works across wide wavelength ranges. It establishes that careful dispersion control allows these structures to operate over relative bandwidths of about 20 percent, wider than the natural linewidths of the resonances alone would permit. A sympathetic reader cares because angle-selective behavior in subwavelength devices could improve light management in solar cells, sensors, and displays without requiring thick or bulky optics. The designs produce complementary responses, either scattering near normal incidence while transmitting at larger angles or the reverse. The enabling mechanism is the engineered interplay between resonant scattering and the Fabry-Perot background reflection.

Core claim

Dispersion engineering combined with topology optimization produces 2D metastructures that exhibit isotropic angular selectivity over relative bandwidths of approximately 20 percent. These designs operate over spectral bandwidths greater than the GMR linewidths would suggest because of carefully tailored interactions between the Fabry-Perot background and resonantly scattered light. Experimentally realized structures demonstrate both strong scattering near normal incidence with efficient transmission at higher angles and the complementary behavior.

What carries the argument

Topology-optimized 2D metastructures that leverage guided-mode resonances with engineered dispersion to couple with Fabry-Perot backgrounds.

If this is right

  • Broadband angular selectivity becomes achievable in optically thin, readily fabricated structures.
  • Complementary devices can be realized that either scatter near-normal light or transmit it, each over wide spectral ranges.
  • Applications in photovoltaics, high-sensitivity photodetectors, and displays gain practical thin-film implementations.
  • The bandwidth extension arises directly from background-resonance coupling rather than resonance engineering alone.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same dispersion-coupling principle could be applied to other resonant platforms such as plasmonic or photonic-crystal structures to extend their bandwidths.
  • Integration with standard semiconductor fabrication flows would allow on-chip angular filters for imaging or sensing arrays.
  • Polarization dependence of the engineered structures remains unexplored and could yield additional selectivity dimensions.
  • Performance under incoherent broadband illumination should be tested to confirm utility in real-world lighting conditions.

Load-bearing premise

The idealized dispersion and resonance interactions computed by topology optimization can be realized in fabricated devices without significant deviation from manufacturing imperfections or measurement error.

What would settle it

Fabricate the reported metastructures and measure their angle-dependent transmission and scattering spectra across the full claimed bandwidth; the selectivity should remain high over the entire 20 percent range rather than collapsing to the width of individual guided-mode resonances.

Figures

Figures reproduced from arXiv: 2604.02602 by Andrei Faraon, Owen D. Miller, Phillippe Pearson, Yiran Gu, Zhaowei Dai.

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

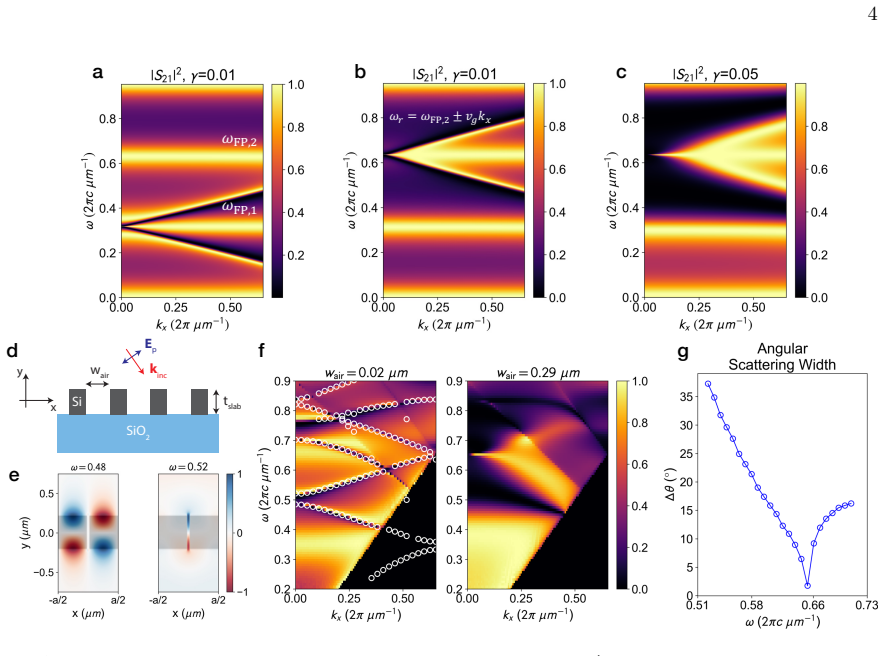

Figure 2
Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

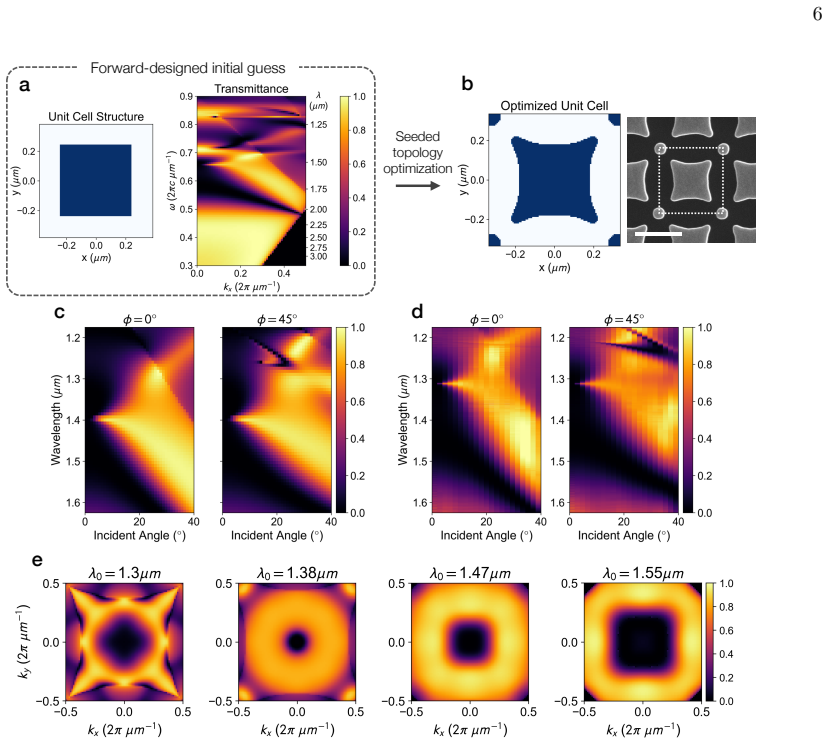

Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

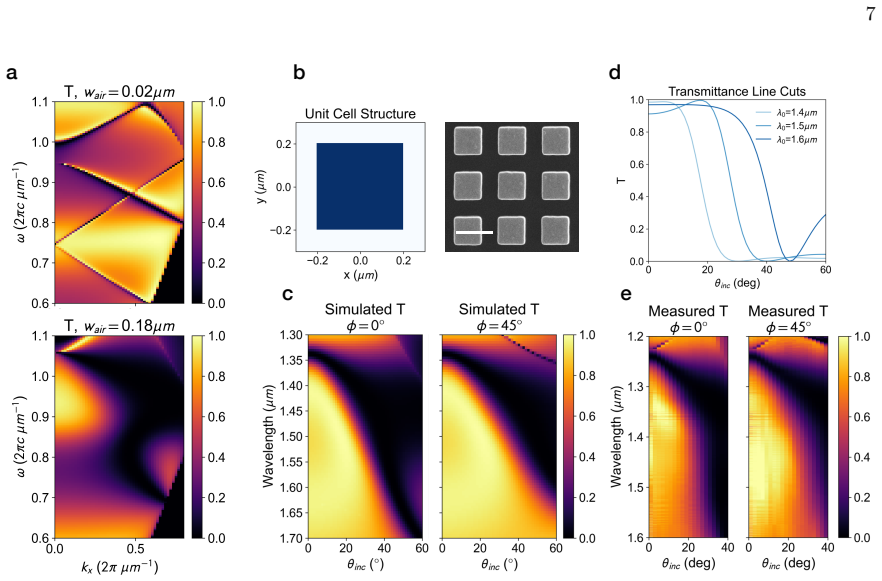

Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
read the original abstract

Angle-selective optical devices are of importance to several applications such as photovoltaics, high-sensitivity photodetectors and displays. There are several approaches to realizing angular selectivity, but it remains challenging to obtain isotropic responses over large spectral bandwidths in optically thin structures. We introduce a dispersion engineering approach coupled with topology optimization to design 2D metastructures, leveraging guided-mode resonances (GMRs), that exhibit isotropic angular selectivity over relative bandwidths of approximately 20%. We experimentally demonstrate metastructures with complementary angular selectivities, either scattering light strongly near normal incidence and transmitting efficiently at higher incident angles, or vice versa. A key finding is that these designs enable operation over spectral bandwidths greater than the GMR linewidths would suggest, a result of carefully tailored interactions between the Fabry-Perot background and resonantly scattered light. This work marks a significant step forward for the realization of broadband, angle-selective scattering in readily fabricated structures of subwavelength thickness, and enables new possibilities in sensing, analog information processing, high-efficiency photovoltaics, and displays.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces a dispersion-engineering approach combined with topology optimization to design 2D metastructures that use guided-mode resonances (GMRs) to achieve isotropic angular selectivity over relative bandwidths of ~20% in subwavelength-thickness structures. Complementary designs are experimentally demonstrated: one that scatters strongly near normal incidence and transmits at oblique angles, and the inverse. The central claim is that the observed bandwidths exceed what isolated GMR linewidths would allow because of engineered interactions between the Fabry-Perot background and resonantly scattered light.

Significance. If the mechanism is confirmed, the work would be significant for enabling broadband angular selectivity in readily fabricated, optically thin devices, with direct relevance to photovoltaics, photodetectors, displays, and analog processing. The experimental demonstration of complementary responses and the use of topology optimization to realize the designs constitute clear strengths.

major comments (2)
  1. [Results] Results section (and abstract): The claim that the ~20% relative bandwidth exceeds what isolated GMR linewidths would permit, owing to FP-GMR interference, is load-bearing for the central finding, yet no control simulation or measurement is reported in which the FP background is suppressed (e.g., by index-matching the substrate or detuning slab thickness) while retaining the GMR scatterers. Without this comparison the attribution remains under-supported.
  2. [Methods] Methods/Optimization section: The abstract and text provide limited detail on the precise optimization constraints, objective function, or error analysis used to achieve the reported bandwidths relative to GMR linewidths; quantitative comparison of measured bandwidths to simulated isolated-GMR linewidths is also absent.
minor comments (2)
  1. [Figures] Figure captions and experimental methods: Measurement details such as beam divergence, exact angular sampling, and uncertainty in transmission/reflection spectra are not fully specified, which affects reproducibility of the reported angular selectivity curves.
  2. [Theory] Notation: The distinction between the Fabry-Perot background and the resonant scattering contribution could be clarified with an explicit decomposition (e.g., an additional panel or equation) to aid reader understanding.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed feedback. The comments have prompted us to strengthen the manuscript by adding supporting simulations and expanded methodological details. We respond to each major comment below.

read point-by-point responses

  1. Referee: Results section (and abstract): The claim that the ~20% relative bandwidth exceeds what isolated GMR linewidths would permit, owing to FP-GMR interference, is load-bearing for the central finding, yet no control simulation or measurement is reported in which the FP background is suppressed (e.g., by index-matching the substrate or detuning slab thickness) while retaining the GMR scatterers. Without this comparison the attribution remains under-supported.

    Authors: We agree that a direct control comparison is needed to substantiate the role of FP-GMR interference. In the revised manuscript we have added new simulations (now Fig. 4) in which the substrate index is matched to the slab to suppress the Fabry-Perot background while retaining the GMR scatterers. These controls show that the angular-selectivity bandwidth collapses to ~5% relative bandwidth, consistent with isolated GMR linewidths. The original ~20% bandwidth is recovered only when the FP background is present, confirming the interference mechanism. The abstract and Results text have been updated to reference these controls. revision: yes

  2. Referee: Methods/Optimization section: The abstract and text provide limited detail on the precise optimization constraints, objective function, or error analysis used to achieve the reported bandwidths relative to GMR linewidths; quantitative comparison of measured bandwidths to simulated isolated-GMR linewidths is also absent.

    Authors: We have expanded the Methods section with a new subsection detailing the topology-optimization formulation. The objective function maximizes the integrated angular contrast (transmission at 0° minus transmission at 30°) over the target 20% bandwidth subject to minimum feature-size and permittivity bounds. Fabrication-error analysis based on ±5 nm etch-depth variation is now included. We also added a quantitative comparison: isolated-GMR simulations yield relative linewidths of 4–6%, while both measured and full-structure simulated bandwidths reach ~20%, with the difference directly attributable to the FP background as demonstrated in the new control simulations. revision: yes

Circularity Check

0 steps flagged

No significant circularity; design via topology optimization and experimental validation are independent of inputs

full rationale

The manuscript presents a numerical topology-optimization workflow to engineer dispersion in metastructures that combine guided-mode resonances with a Fabry-Perot background, followed by fabrication and spectral measurements. No equations are shown that define a target quantity in terms of itself, no fitted parameters are relabeled as predictions, and no load-bearing uniqueness theorems or ansatzes are imported via self-citation. The central claim—that engineered FP-GMR interference yields bandwidths exceeding isolated GMR linewidths—is supported by direct simulation of the optimized structures and by measured transmission spectra, not by reduction to the optimization objective or to prior self-referential results. The derivation chain therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The approach rests on standard electromagnetic simulation assumptions and the validity of topology optimization for finding structures that realize the desired dispersion; no new free parameters or invented entities are introduced in the abstract description.

axioms (1)
  • domain assumption Guided-mode resonances and Fabry-Perot interference can be independently engineered in 2D metastructures via material dispersion and geometry.
    Invoked to explain bandwidth extension beyond single-resonance limits.
