arxiv: 2604.02704 · v1 · submitted 2026-04-03 · ⚛️ physics.plasm-ph

Collimation of diamagnetic laser-driven plasma outflows by an ambient magnetic-pressure gradient

Yigeng Tian , Chung Hei Leung , Arijit Bose , Riddhi Bandyopadhyay , Michael A. Shay , William H. Matthaeus This is my paper

Pith reviewed 2026-05-13 18:33 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph
keywords diamagnetic cavityplasma collimationlaser-driven plasmamagnetic pressure gradientJ×B forceMHD simulationscoronal jets
0
0 comments X

The pith

Laser-driven plasma plumes form diamagnetic cavities that collimate their flow via magnetic pressure gradients.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper uses magnetohydrodynamic simulations to show that laser-driven plasma outflows in an external magnetic field develop a central low-density region where the magnetic field is reduced, surrounded by a shell of amplified field. This structure produces a radial gradient in magnetic pressure that pushes inward on the plasma, confining it radially and making the outflow more collimated. The effect becomes stronger as the applied background field increases because the plasma beta drops and the confining force grows. A reader would care because this offers a mechanism for shaping plasma jets in both laboratory experiments and natural astrophysical environments like the solar corona.

Core claim

In magnetohydrodynamic simulations of a laser-driven CH plasma plume propagating along a uniform poloidal field of 0-50 T, the expanding plasma forms a diamagnetic cavity with reduced field inside and amplified field outside due to flux advection and diamagnetic currents. The resulting radial magnetic-pressure gradient exerts an inward J×B force that confines the outflow radially, with the degree of collimation increasing as the background field strength rises and plasma beta falls.

What carries the argument

the diamagnetic cavity bounded by a high-magnetic-pressure shell that generates a radial gradient driving an inward J×B force to confine the plasma flow

Load-bearing premise

The FLASH MHD simulations including resistivity, Biermann battery, and Nernst advection fully capture the laser-plasma interaction and magnetic advection without major numerical artifacts or overlooked three-dimensional effects.

What would settle it

Observing no increase in radial confinement of the plasma plume when the applied magnetic field is strengthened from 0 to 50 T in a comparable experiment would contradict the central claim.

Figures

Figures reproduced from arXiv: 2604.02704 by Arijit Bose, Chung Hei Leung, Michael A. Shay, Riddhi Bandyopadhyay, William H. Matthaeus, Yigeng Tian.

Figure 1

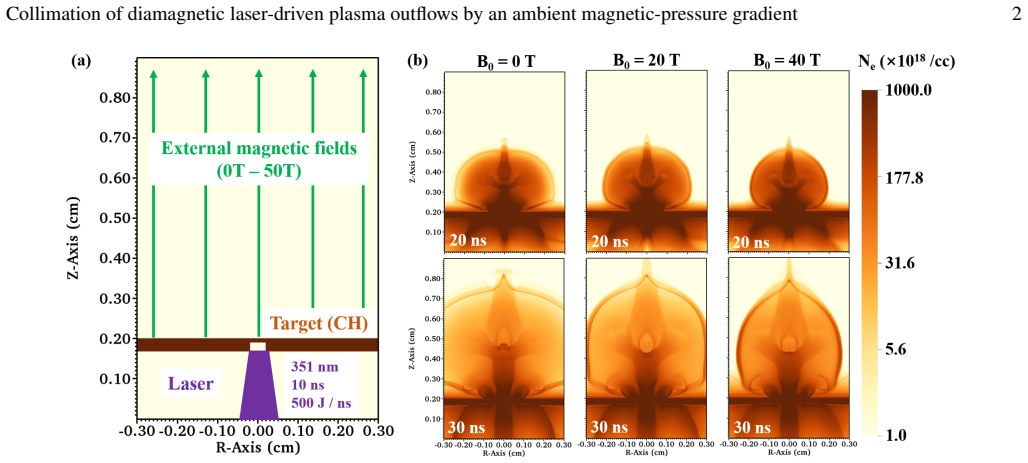

Figure 1. Figure 1: FIG. 1. (a) Initial simulation setup. A polystyrene (CH) target, comprising a 100 [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Time evolution of the plasma jet aspect ratio (10–30 ns) [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. For the B [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Profiles of plasma beta ( [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6 [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8 [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
read the original abstract

We present magnetohydrodynamic simulations of laser driven plasma outflows propagating along an externally applied poloidal magnetic field, designed to mimic coronal open-field plasma jets. Using the FLASH code with non-ideal terms (resistivity, Biermann battery, and Nernst advection) included, we model a CH target driven by a 3$\omega$ (351 nm) beam delivering 5 kJ over 10 ns and a uniform background field $\text{B}_0$ = 0 to 50 T. Under these conditions, the expanding plume develops a central low-density diamagnetic cavity bounded by a high-magnetic-pressure shell. Magnetic flux is advected from the plume center to its edge, and azimuthal diamagnetic currents form that decrease fields inside the cavity and amplify fields outside, producing a radial magnetic-pressure gradient that exerts an inward $\text{J}\times \text{B}$ force and radially confines the flow. We show that the collimation strengthens with increasing applied magnetic field, as stronger fields reduce the plasma $\beta$ and correspondingly enhance the confining $\text{J}\times \text{B}$ force.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents magnetohydrodynamic simulations using the FLASH code of laser-driven plasma outflows from a CH target in an externally applied uniform poloidal magnetic field ranging from 0 to 50 T. The simulations include non-ideal effects such as resistivity, Biermann battery, and Nernst advection. The key finding is that the expanding plume forms a central low-density diamagnetic cavity surrounded by a high-magnetic-pressure shell due to advection of magnetic flux to the edges, generating azimuthal diamagnetic currents that produce an inward J×B force, thereby collimating the flow. The collimation is shown to strengthen with increasing applied magnetic field strength.

Significance. If the numerical results hold without significant artifacts, this work provides a clear mechanism for the collimation of diamagnetic laser-driven plasma outflows by ambient magnetic pressure gradients. This has potential implications for understanding astrophysical plasma jets, such as those in coronal open-field regions, and for designing laboratory experiments mimicking such phenomena. The inclusion of non-ideal MHD terms is a positive aspect that enhances the physical fidelity of the model.

major comments (2)
  1. [Simulation methods and results sections] The central claim that the collimation arises from physical non-ideal terms (resistivity, Biermann battery, Nernst advection) and strengthens with B0 requires verification that it is not an artifact of numerical resistivity in the FLASH Godunov MHD solver. The manuscript does not appear to include ideal-MHD control runs or explicit resolution/convergence studies to demonstrate that the low-density cavity and field amplification persist under refinement or in the ideal limit. This is load-bearing because steep gradients in the laser ablation front can lead to numerical diffusion dominating physical resistivity.
  2. [Abstract and results presentation] Quantitative validation is absent: no direct comparison to experimental data on cavity size, field amplification factors, or collimation angle versus B0 is provided, nor are error bars or sensitivity tests to boundary conditions reported. This weakens the assertion that the effect is robustly physical.
minor comments (2)
  1. [Abstract] The abstract could more precisely state the laser energy deposition profile and target thickness to allow reproducibility assessment.
  2. [Introduction] Notation for plasma beta and J×B force should be defined at first use with explicit reference to the included non-ideal terms.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive review and for highlighting the potential significance of the work for laboratory astrophysics. We address the major comments point by point below, agreeing that additional numerical controls and quantitative measures will strengthen the manuscript.

read point-by-point responses

  1. Referee: The central claim that the collimation arises from physical non-ideal terms (resistivity, Biermann battery, Nernst advection) and strengthens with B0 requires verification that it is not an artifact of numerical resistivity in the FLASH Godunov MHD solver. The manuscript does not appear to include ideal-MHD control runs or explicit resolution/convergence studies to demonstrate that the low-density cavity and field amplification persist under refinement or in the ideal limit. This is load-bearing because steep gradients in the laser ablation front can lead to numerical diffusion dominating physical resistivity.

    Authors: We agree that distinguishing physical non-ideal effects from numerical diffusion is essential. Although the simulations include explicit resistivity, Biermann battery, and Nernst advection, we will add ideal-MHD control runs (with all non-ideal terms disabled) to demonstrate that the diamagnetic cavity, field amplification, and resulting J×B collimation are absent or substantially reduced in the ideal limit. We will also perform and report explicit resolution studies at successively refined grids, showing convergence of cavity size, peak field amplification, and collimation angle with B0. These additions will confirm that the reported trends are driven by the physical terms. revision: yes

  2. Referee: Quantitative validation is absent: no direct comparison to experimental data on cavity size, field amplification factors, or collimation angle versus B0 is provided, nor are error bars or sensitivity tests to boundary conditions reported. This weakens the assertion that the effect is robustly physical.

    Authors: As a numerical study focused on mechanism identification, direct experimental benchmarks at the full parameter range (B0 up to 50 T) are not available in the literature. In revision we will add quantitative diagnostics: cavity radius, field amplification factor, and collimation angle versus B0, each with error bars derived from multiple simulation realizations; sensitivity tests to boundary-condition variations (e.g., domain size and outflow conditions); and explicit comparisons to existing lower-field laser-plasma experiments that report diamagnetic cavities. These changes will provide the requested quantitative support for robustness. revision: partial

Circularity Check

0 steps flagged

No circularity: results emerge from direct numerical integration of MHD equations

full rationale

The paper reports outcomes from time-dependent MHD simulations in FLASH that evolve the governing equations (including resistivity, Biermann battery, and Nernst terms) from specified initial conditions. The diamagnetic cavity, edge-field amplification, and resulting inward J×B collimation are outputs of that integration; they are not obtained by fitting a parameter to a subset of data and then relabeling the fit as a prediction, nor by any self-referential definition or self-citation chain that reduces the central claim to its own inputs. No analytical derivation is presented whose equations collapse by construction to the reported trend with B0. The simulation results are therefore self-contained against external benchmarks and receive the default non-circularity finding.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard MHD assumptions plus the numerical implementation of three non-ideal terms. No new particles or forces are introduced. The laser energy, pulse length, and background field values are input parameters rather than fitted constants.

axioms (2)
  • standard math Ideal and non-ideal MHD equations govern the plasma evolution
    Invoked throughout the simulation description; standard for the FLASH code framework.
  • domain assumption The chosen resistivity, Biermann battery, and Nernst advection terms adequately represent the dominant non-ideal effects at the simulated scales
    Explicitly included in the model; no justification or sensitivity test is provided in the abstract.

pith-pipeline@v0.9.0 · 5516 in / 1468 out tokens · 33803 ms · 2026-05-13T18:33:32.271428+00:00 · methodology
