Spatial mapping of quantum-dot dynamics across multiple timescales at low temperature using remote asynchronous optical sampling

Gen Asambo , Riku Shibata , Yushiro Takahashi , Kouichi Akahane , Shinichi Watanabe , Junko Ishi-Hayase This is my paper

Pith reviewed 2026-05-13 17:54 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords quantum dotsasynchronous optical samplingfrequency combspatial mappingquantum beatsrelaxation lifetimeslow temperatureoptoelectronics
0
0 comments X

The pith

Asynchronous optical sampling with a fiber-delivered frequency comb enables simultaneous multi-timescale observation of quantum dot dynamics together with spatial mapping over a millimeter area.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that conventional time-resolved spectroscopy faces an inherent trade-off between temporal resolution and total acquisition time, which prevents simultaneous extraction of long-lived relaxation dynamics and short-lived quantum beats from quantum dot ensembles. Asynchronous optical sampling based on a fiber-delivered frequency comb overcomes this limitation by allowing observation of dynamics across multiple timescales at once. Integrating a galvanometric scanner turns the method into a rapid spatial mapping tool that covers a 1 by 1 millimeter area at 441 discrete points in 30 minutes instead of more than 12 days. This yields resolved quantum beats and relaxation lifetimes at every location, delivering physical insights into QD ensembles that were previously inaccessible.

Core claim

Asynchronous optical sampling based on a fiber-delivered frequency comb enables simultaneous observation of QD dynamics across multiple timescales. By integrating a galvanometric scanner, we achieve spatial mapping over a 1 × 1 mm² area at 441 discrete points in 30.1 min. At each location, both quantum beats and relaxation lifetimes are resolved, giving physical insights into QD ensembles that were previously inaccessible and paving the way for rapid feedback in device fabrication.

What carries the argument

Asynchronous optical sampling using a fiber-delivered frequency comb integrated with galvanometric scanning, which resolves multi-timescale QD dynamics without the usual resolution-versus-speed trade-off.

Load-bearing premise

Fiber delivery of the frequency comb together with galvanometric scanning preserves temporal resolution and signal fidelity uniformly across the scanned area at low temperature without introducing position-dependent artifacts or distortions.

What would settle it

Systematic position-dependent variations in measured quantum beat frequencies or relaxation lifetimes that track the galvanometer coordinates rather than the underlying sample structure would show that scanning introduces artifacts and falsify the claim of preserved fidelity.

Figures

Figures reproduced from arXiv: 2604.03041 by Gen Asambo, Junko Ishi-Hayase, Kouichi Akahane, Riku Shibata, Shinichi Watanabe, Yushiro Takahashi.

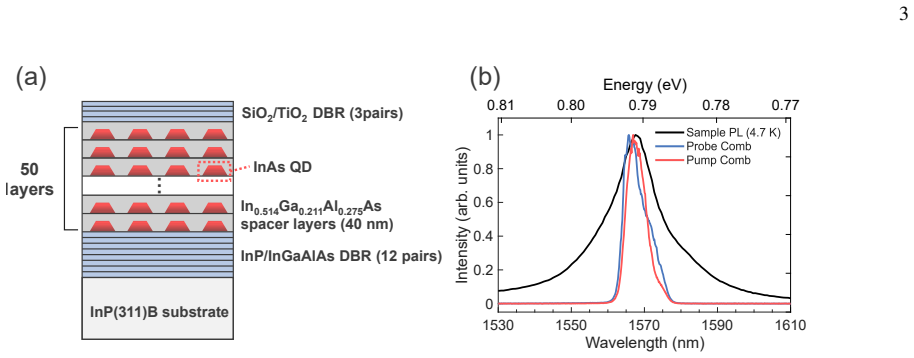

Figure 1
Figure 1. Figure 1: FIG. 1. (a) Cross-sectional schematic of the sample: a 50-period InAs QD stack embedded between upper and lower distributed Bragg [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

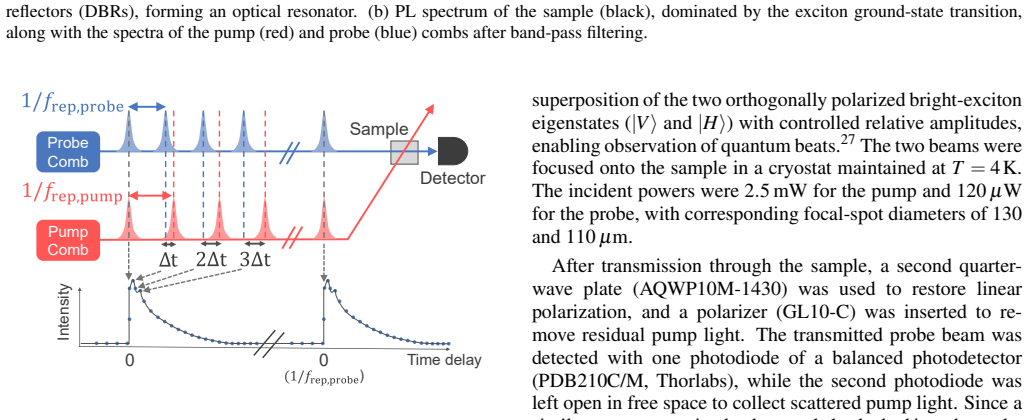

Figure 2
Figure 2. Figure 2: FIG. 2. Schematic of asynchronous optical sampling. Definitions: [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

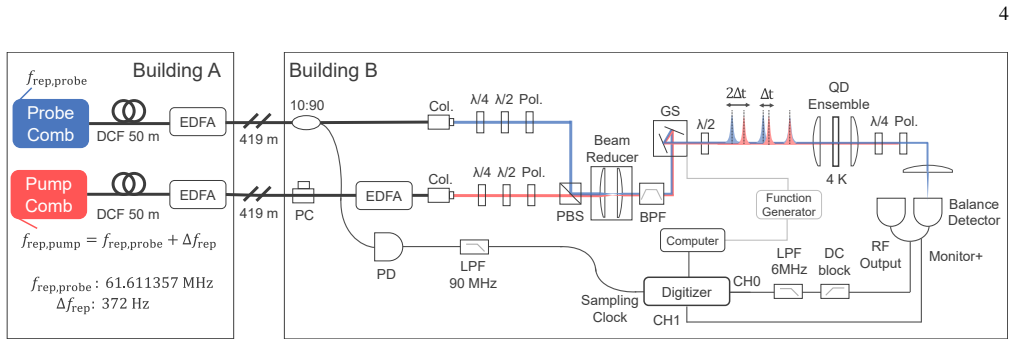

Figure 3
Figure 3. Figure 3: FIG. 3. Experimental setup for spatial mapping of quantum-dot dynamics using OPOP-ASOPS. Definitions: DCF, dispersion-compensating [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

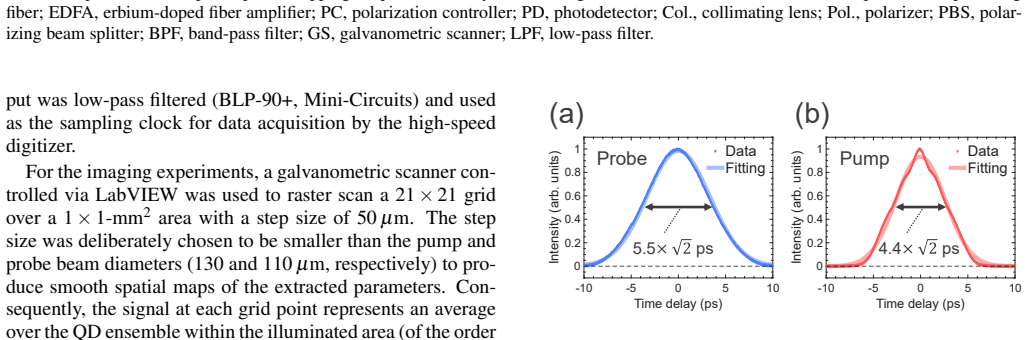

Figure 4
Figure 4. Figure 4: FIG. 4. Temporal pulse widths measured by intensity autocorrelation [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 6

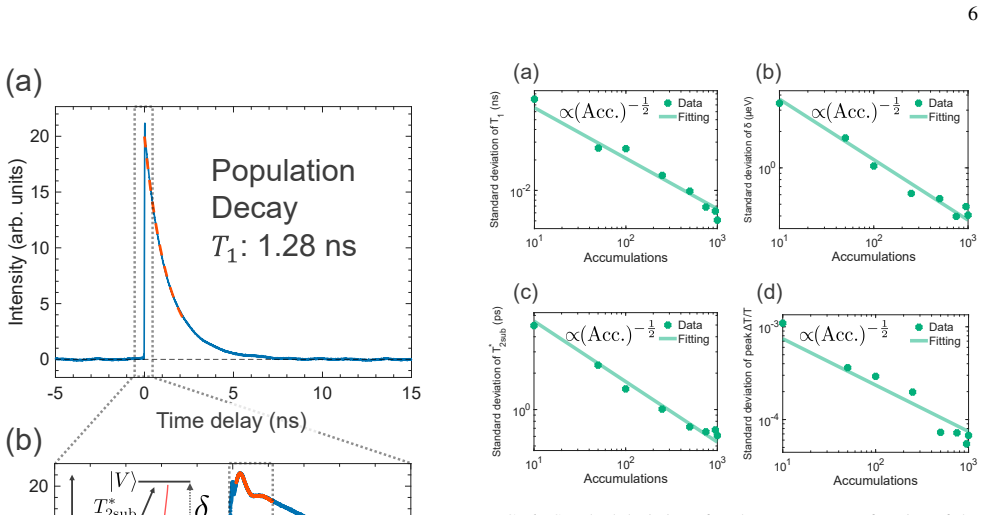

Figure 6. Figure 6: FIG. 6. Standard deviation of each parameter as a function of the [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗

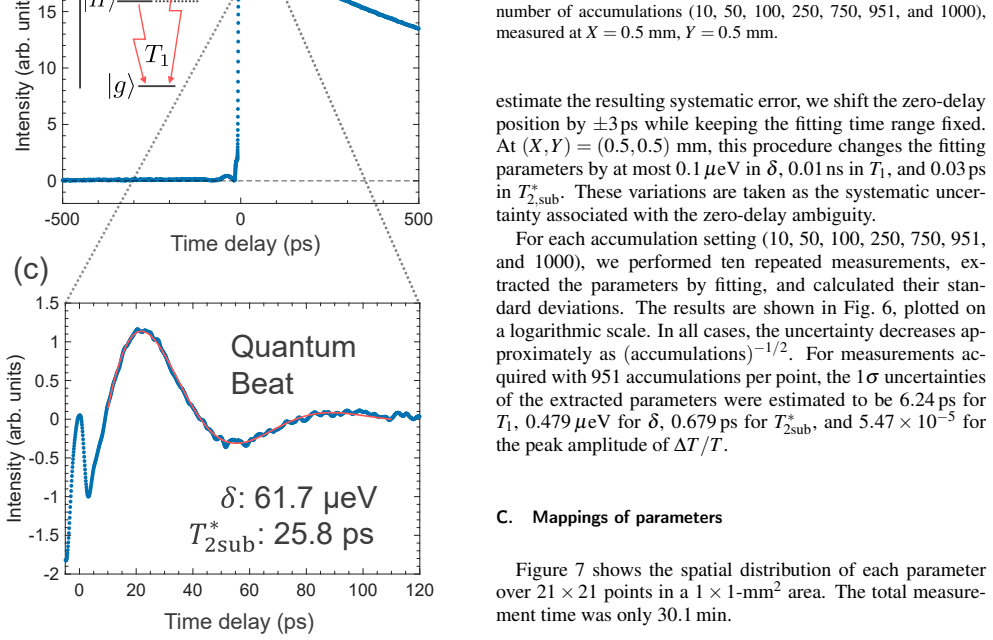

Figure 5
Figure 5. Figure 5: FIG. 5. Waveform measured at [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

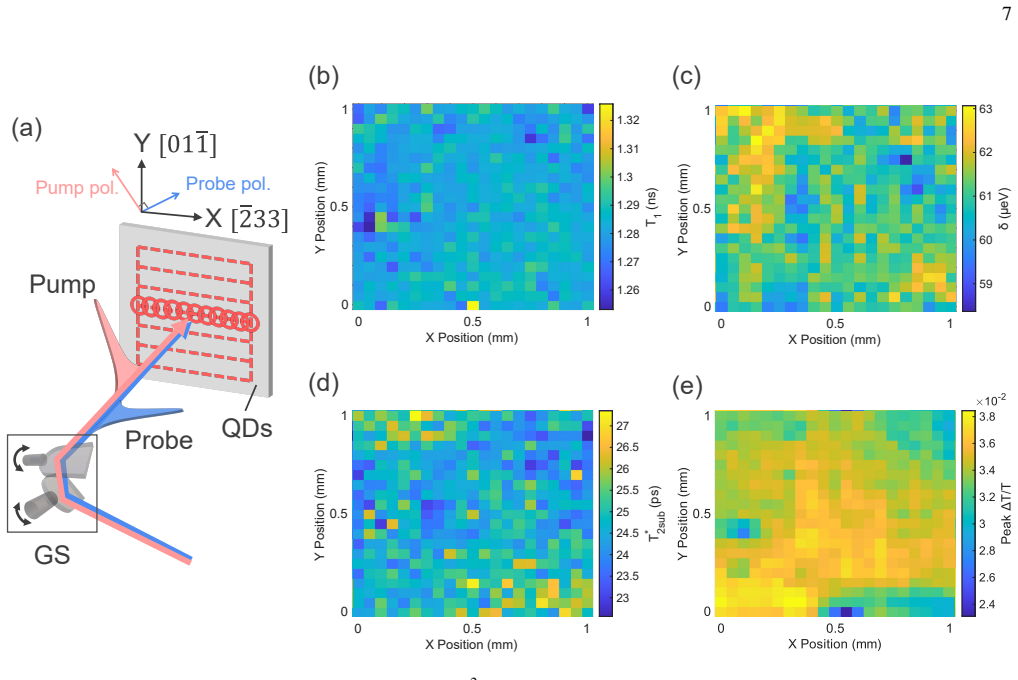

Figure 7
Figure 7. Figure 7: FIG. 7. Spatial maps of quantum-dot parameters over a 1 [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗

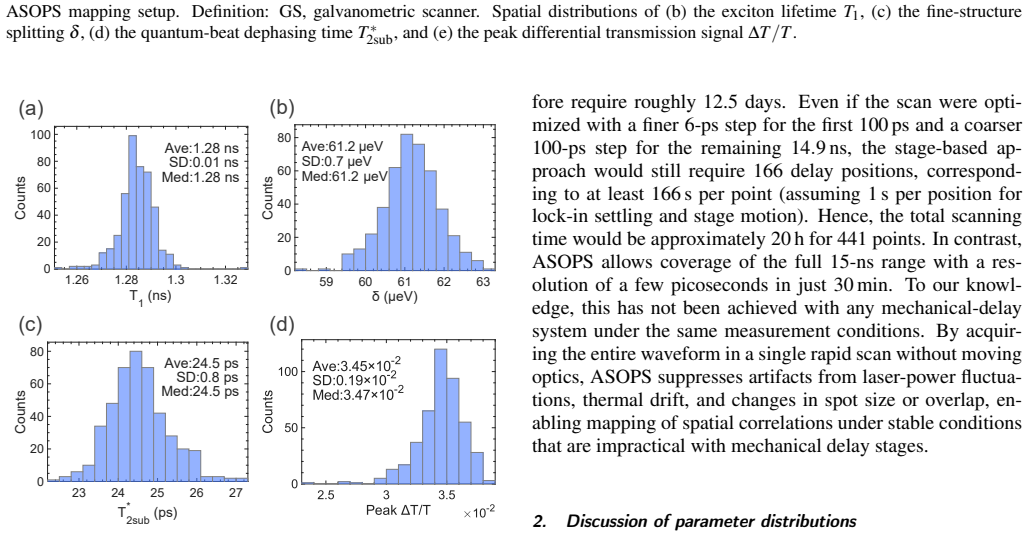

Figure 8
Figure 8. Figure 8: FIG. 8. Histograms of quantum-dot parameters measured at 441 lo [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
read the original abstract

Quantum dots (QDs) offer significant potential for applications in quantum information and optoelectronic devices; however, conventional time-resolved spectroscopy cannot generally simultaneously extract both long-lived relaxation dynamics and short-lived quantum beats from ensemble measurements. This limitation arises from the inherent trade-off between temporal resolution and total acquisition time. Here, we demonstrate that asynchronous optical sampling based on a fiber-delivered frequency comb enables simultaneous observation of QD dynamics across multiple timescales. By integrating a galvanometric scanner, we achieve spatial mapping over a $1 \times 1$-\si{\milli\meter}$^2$ area at 441 discrete points in 30.1~min, a measurement that would otherwise require more than 12~days. At each location, both quantum beats and relaxation lifetimes are resolved, giving physical insights into QD ensembles that were previously inaccessible and paving the way for rapid feedback in device fabrication.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript demonstrates an experimental technique combining asynchronous optical sampling (ASOPS) with a fiber-delivered frequency comb and a galvanometric scanner to spatially map quantum-dot dynamics over a 1 × 1 mm² area at 441 discrete points in 30.1 minutes at low temperature. It claims this resolves both short-lived quantum beats and long-lived relaxation lifetimes simultaneously at each location, providing insights previously inaccessible due to the conventional trade-off between temporal resolution and total acquisition time (estimated at >12 days).

Significance. If the temporal fidelity is preserved uniformly across the scanned area, the result would enable rapid multi-timescale spectroscopy of QD ensembles, offering substantial time savings and new spatial information on dynamics relevant to quantum information and optoelectronic devices. The approach could support practical feedback loops in device fabrication.

major comments (2)
  1. [Abstract and spatial mapping results] Abstract and spatial mapping results: The claim that both quantum beats and relaxation lifetimes are resolved at every one of the 441 points depends on the galvanometric scanner and fiber delivery preserving the fixed repetition-rate offset and signal fidelity without position-dependent group-delay shifts, dispersion, or jitter through the cryostat window. No calibration data (e.g., position-dependent beat-frequency maps, path-length measurements, or contrast uniformity plots) are supplied to confirm this assumption, which is load-bearing for the central spatial-mapping claim.
  2. [Methods section on scanner integration] Methods section on scanner integration: The time-saving comparison (30.1 min versus >12 days) requires explicit justification of the conventional acquisition parameters, including per-point dwell times, averaging, and duty cycle, to ensure the factor-of-~500 reduction is not overstated by differing experimental conditions.
minor comments (2)
  1. [Abstract] The abstract states 'low temperature' without giving the numerical value (e.g., 4 K or 10 K); adding this detail would improve reproducibility.
  2. [Figure captions] Figure captions and axis labels should explicitly indicate the effective sampling interval achieved by ASOPS and the spatial step size used for the 441-point grid.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their positive assessment of the work's significance and for the constructive comments on the central claims. We address each major point below with specific revisions to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Abstract and spatial mapping results] Abstract and spatial mapping results: The claim that both quantum beats and relaxation lifetimes are resolved at every one of the 441 points depends on the galvanometric scanner and fiber delivery preserving the fixed repetition-rate offset and signal fidelity without position-dependent group-delay shifts, dispersion, or jitter through the cryostat window. No calibration data (e.g., position-dependent beat-frequency maps, path-length measurements, or contrast uniformity plots) are supplied to confirm this assumption, which is load-bearing for the central spatial-mapping claim.

    Authors: We agree that explicit verification of position-independent temporal fidelity is required to substantiate the spatial-mapping results. The original manuscript did not include such calibration data. In the revised version we will add a dedicated Methods subsection and supplementary figure presenting position-dependent beat-frequency maps, measured path-length variations, and signal-contrast uniformity across the 1 × 1 mm² area. These measurements confirm that any position-dependent shifts remain below the experimental resolution and do not compromise extraction of either quantum beats or relaxation lifetimes at any of the 441 points. revision: yes

  2. Referee: [Methods section on scanner integration] Methods section on scanner integration: The time-saving comparison (30.1 min versus >12 days) requires explicit justification of the conventional acquisition parameters, including per-point dwell times, averaging, and duty cycle, to ensure the factor-of-~500 reduction is not overstated by differing experimental conditions.

    Authors: The factor-of-~500 time reduction is calculated from our standard single-point ASOPS protocol (approximately 4 s acquisition plus 1 s overhead per point with 10 averages to resolve both short- and long-timescale features). Scaling to 441 points produces the >12-day estimate. We will expand the Methods section with a table that explicitly lists the per-point dwell time, number of averages, duty cycle, and data-transfer overhead used in the conventional case, together with the arithmetic that yields the 30.1 min versus >12 day comparison. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental demonstration with no derivation chain

full rationale

The paper is a pure experimental methods demonstration of asynchronous optical sampling (ASOPS) combined with fiber delivery and galvanometric scanning for spatial mapping of QD dynamics. It reports measured performance (441 points in 30.1 min, resolution of beats and lifetimes) without any mathematical derivation, first-principles prediction, fitted parameter renamed as prediction, or load-bearing self-citation. All claims rest on direct experimental observation rather than reduction to inputs by construction. No equations or uniqueness theorems are invoked that could create circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Experimental demonstration paper. No free parameters, axioms, or invented entities are introduced beyond standard assumptions of optical sampling and low-temperature cryogenics.
