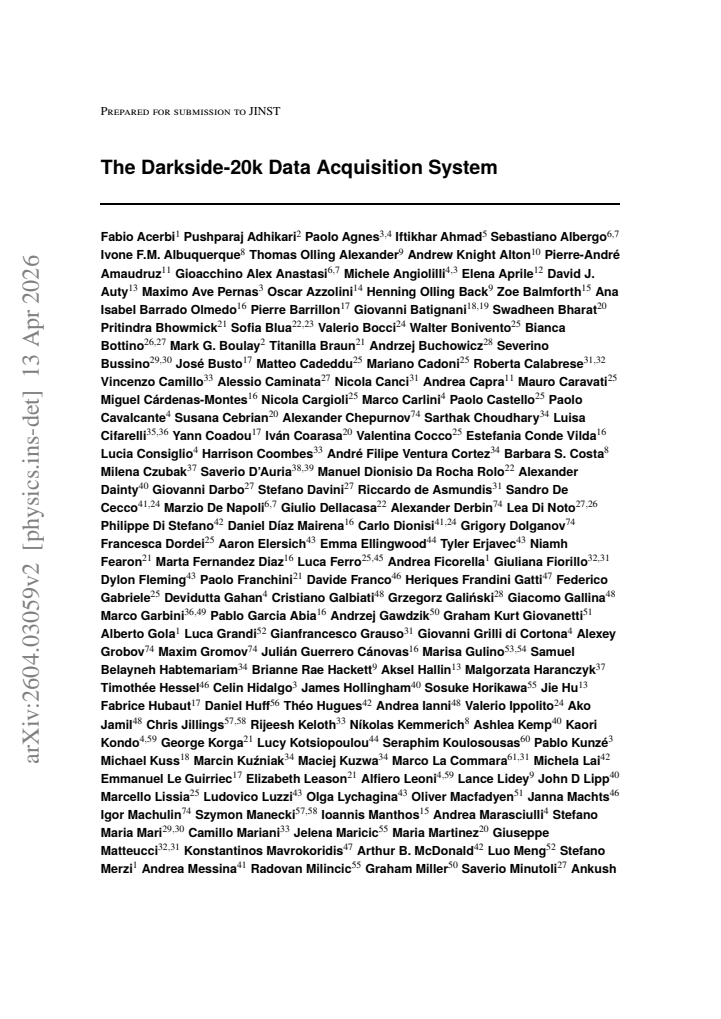

The Darkside-20k Data Acquisition System

Fabio Acerbi , Pushparaj Adhikari , Paolo Agnes , Iftikhar Ahmad , Sebastiano Albergo , Ivone F.M. Albuquerque , Thomas Olling Alexander , Andrew Knight Alton

show 284 more authors

Pierre-Andre Amaudruz Gioacchino Alex Anastasi Michele Angiolilli Elena Aprile David J. Auty Maximo Ave Pernas Oscar Azzolini Henning Olling Back Zoe Balmforth Ana Isabel Barrado Olmedo Pierre Barrillon Giovanni Batignani Swadheen Bharat Pritindra Bhowmick Sofia Blua Valerio Bocci Walter Bonivento Bianca Bottino Mark G. Boulay Titanilla Braun Andrzej Buchowicz Severino Bussino Jose Busto Matteo Cadeddu Mariano Cadoni Roberta Calabrese Vincenzo Camillo Alessio Caminata Nicola Canci Andrea Capra Mauro Caravati Miguel Cardenas-Montes Nicola Cargioli Marco Carlini Paolo Castello Paolo Cavalcante Susana Cebrian Alexander Chepurnov Sarthak Choudhary Luisa Cifarelli Yann Coadou Ivan Coarasa Valentina Cocco Estefania Conde Vilda Lucia Consiglio Harrison Coombes Andre Filipe Ventura Cortez Barbara S. Costa Milena Czubak Saverio D'Auria Manuel Dionisio Da Rocha Rolo Alexander Dainty Giovanni Darbo Stefano Davini Riccardo de Asmundis Sandro De Cecco Marzio De Napoli Giulio Dellacasa Alexander Derbin Lea Di Noto Philippe Di Stefano Daniel Diaz Mairena Carlo Dionisi Grigory Dolganov Francesca Dordei Aaron Elersich Emma Ellingwood Tyler Erjavec Niamh Fearon Marta Fernandez Diaz Luca Ferro Andrea Ficorella Giuliana Fiorillo Dylon Fleming Paolo Franchini Davide Franco Heriques Frandini Gatti Federico Gabriele Devidutta Gahan Cristiano Galbiati Grzegorz Galinski Giacomo Gallina Marco Garbini Pablo Garcia Abia Andrzej Gawdzik Graham Kurt Giovanetti Alberto Gola Luca Grandi Gianfrancesco Grauso Giovanni Grilli di Cortona Alexey Grobov Maxim Gromov Julian Guerrero Canovas Marisa Gulino Samuel Belayneh Habtemariam Brianne Rae Hackett Aksel Hallin Malgorzata Haranczyk Timothee Hessel Celin Hidalgo James Hollingham Sosuke Horikawa Jie Hu Fabrice Hubaut Daniel Huff Theo Hugues Andrea Ianni Valerio Ippolito Ako Jamil Chris Jillings Rijeesh Keloth Nikolas Kemmerich Ashlea Kemp Kaori Kondo George Korga Lucy Kotsiopoulou Seraphim Koulosousas Pablo Kunze Michael Kuss Marcin Kuzniak Maciej Kuzwa Marco La Commara Michela Lai Emmanuel Le Guirriec Elizabeth Leason Alfiero Leoni Lance Lidey John D Lipp Marcello Lissia Ludovico Luzzi Olga Lychagina Oliver Macfadyen Janna Machts Igor Machulin Szymon Manecki Ioannis Manthos Andrea Marasciulli Stefano Maria Mari Camillo Mariani Jelena Maricic Maria Martinez Giuseppe Matteucci Konstantinos Mavrokoridis Arthur B. McDonald Luo Meng Stefano Merzi Andrea Messina Radovan Milincic Graham Miller Saverio Minutoli Ankush Mitra Jocelyn Monroe Matteo Morrocchi Abdulrahman Morsy Valentina Muratova Michael Murra Carlo Muscas Paolo Musico Rosario Nania Marzio Nessi Grzegorz Nieradka Konstantinos Nikolopoulos Evangelia Nikoloudaki Jaroslaw Nowak Konstantin Olchanski Andrey Oleinik Paolo Organtini Alfonso Ortiz de Solorzano Anantha Padmanabhan Marco Pallavicini Luciano Pandola Emilija Pantic Eugenio Paoloni Danial Papi Byungju Park Grzegorz Pastuszak Giovanni Paternoster Riccardo Pavarani Alec Peck Paolo Attilio Pegoraro Krzysztof Pelczar Ramon Perez Vicente Pesudo Stefano Piacentini Noemi Pino Guillaume Plante Andrea Pietro Pocar Stephen Pordes Pascal Pralavorio Elettra Preosti Darren Price George Prior Manuel Pronesti Sebastiana Puglia Maria Cecilia Queiroga Bazetto Fabrizio Raffaelli Francesco Ragusa Yorck Ramachers Alejandro Ramirez Sudikshan Ravinthiran Marco Razeti Andrew Lee Renshaw Aras Repond Marco Rescigno Silvia Resconi Fabrice Retiere Ash Ritchie-Yates Angelo Rivetti Adam Roberts Conner Roberts Diego Rodriguez Rodas Giovanni Rogers Luciano Romero Matteo Rossi Dmitry Rudik James Runge Maria Adriana Sabia Camilla Salerno Paolo Salomone Simone Sanfilippo Daria Santone Roberto Santorelli Edivaldo M. Santos Isobel Sargeant Maria Luisa Sarsa Claudio Savarese Eugenio Scapparone Fred Schuckman Dmitriy Semenov Carmen Seoane Michela Sestu Veronika Shalamova Sanjay Sharma Poudel Marino Simeone Peter Skensved Mikhail Skorokhvatov Taisiia Smirnova Ben Smith Robert Smith Franco Spadoni Martin Spangenberg Arianna Steri Vincenzo Stornelli Simone Stracka Allan Sung Clea Sunny Yury Suvorov Andrzej M Szelc Oscar Taborda Benjamin Tam Roberto Tartaglia Alan Taylor Jonathan Taylor Gemma Testera Kevin Thieme Angus Thompson Sebastian Torres-Lara Alessia Tricomi Sara Tullio Evgeniy Unzhakov Marie Van Uffelen Pedro Ventura Guillermo Vera Diaz Simon Viel Alina Vishneva Bruce Vogelaar Joost Vossebeld Bansari Vyas Masayuki Wada Marek Bohdan Walczak Yi Wang Shawn Westerdale Laurie Williams Marcin Marian Wojcik Mariusz Wojcik Changgen Yang Jilong Yin Azam Zabihi Paul Zakhary Andrea Zani Haoxiang Zhan Yongpeng Zhang Antonino Zichichi Grzegorz Zuzel

Authors on Pith no claims yet

Pith reviewed 2026-05-13 19:09 UTC · model grok-4.3

classification ⚛️ physics.ins-det

keywords DarkSide-20kDAQSiPMliquid argonWIMP searchdigitizerstriggerlessdata reduction

0 comments

The pith

DarkSide-20k's DAQ digitizes all 2720 SiPM channels continuously and reduces data online after quadrant-scale validation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents the data acquisition architecture for DarkSide-20k, a liquid-argon time projection chamber built for a background-free WIMP search. The system performs triggerless, continuous waveform capture at high single-photoelectron efficiency while applying real-time processing to shrink the data volume for storage. Timing across 48 commercial digitisers is maintained by custom boards locked to a rubidium reference, and waveforms are segmented and assembled by a farm of processors into detector-wide collections. A full quarter of the hardware, called the Quadrant, was assembled and run at TRIUMF with simultaneous pulses, confirming sustained readout above expected physics rates and stable long-term operation.

Core claim

The DAQ uses CAEN VX2745 digitisers running custom FPGA firmware for continuous digitisation, with Global and Crate Data Manager boards distributing a phase-aligned clock from a disciplined rubidium standard. Waveform segments are processed in real time by Front End Processor machines and then distributed across Time Slice Processors that reconstruct events, classify them, and apply further reduction before storage.

What carries the argument

The Quadrant prototype, one quarter of the final system, that integrates 48 digitisers, custom synchronisation boards, and a processor farm to achieve continuous, synchronised readout and online data reduction.

If this is right

Continuous triggerless digitisation with high single-photoelectron efficiency becomes feasible for the full 2720-channel detector.
Real-time waveform processing organises data into complete-detector collections suitable for event reconstruction and classification.
Online reduction brings the data volume down to levels manageable for long-term storage and offline analysis.
The synchronisation scheme using rubidium-derived clocks keeps timing stable across the entire array for extended periods.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same continuous-readout and real-time reduction approach could be adapted for other noble-liquid experiments that must record rare events without dead time.
If the artificial-pulse results hold for genuine low-energy signals, the architecture would support background rejection at the level required for a background-free search.
The quarter-scale test implies that the design can be scaled without introducing new rate or synchronisation bottlenecks.

Load-bearing premise

Performance measured with artificial simultaneous pulses on the quadrant prototype will translate directly to full-scale operation with real physics events, backgrounds, and all 2720 channels active.

What would settle it

A run of the complete detector in which data loss or rate shortfalls appear once all channels record actual scintillation signals rather than test pulses.

read the original abstract

DarkSide-20k is a WIMP search experiment using liquid argon as a target, designed to perform a background-free search for dark matter with unprecedented sensitivity, and is currently under construction at INFN Laboratori Nazionali del Gran Sasso, Italy. The detector comprises a dual-phase Time Projection Chamber complemented with external veto systems and is equipped with a total of 2720 SiPM-based readout channels. This work presents the DAQ system designed for DarkSide-20k. The system is capable of continuous, triggerless digitisation of the waveforms with high single-photoelectron detection efficiency and online processing, ensuring data reduction for long-term storage. The DarkSide-20k DAQ system employs commercial CAEN VX2745 digitisers with custom FPGA firmware implementation. Timing and synchronisation across all 48 digitisers are provided by custom Global and Crate Data Manager boards distributing a phase-aligned clock derived from a disciplined rubidium standard. Waveform segments are processed in real time by Front End Processor machines. Data are organised into collections containing whole detector information and distributed across a farm of Time Slice Processors for event reconstruction, classification, and further reduction before storage and offline analysis. A full "Quadrant" of the system, corresponding to one quarter of the final DAQ, has been assembled and validated at TRIUMF laboratory in Canada. The Quadrant has been stress-tested with simultaneous pulses and demonstrated sustained digitizer readout exceeding expected physics rates and stable long-term performance.
