arxiv: 2604.03487 · v1 · submitted 2026-04-03 · ⚛️ physics.optics · physics.app-ph

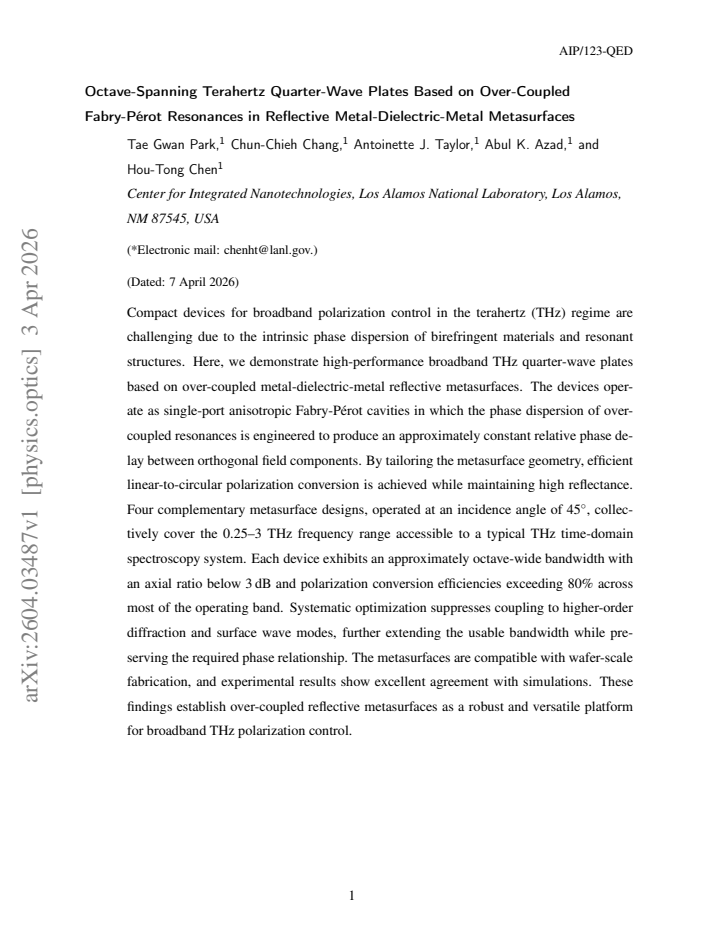

Octave-Spanning Terahertz Quarter-Wave Plates Based on Over-Coupled Fabry-P\'erot Resonances in Reflective Metal-Dielectric-Metal Metasurfaces

Tae Gwan Park , Chun-Chieh Chang , Antoinette J. Taylor , Abul K. Azad , Hou-Tong Chen This is my paper

Pith reviewed 2026-05-13 17:43 UTC · model grok-4.3

classification ⚛️ physics.optics physics.app-ph
keywords terahertzmetasurfacesquarter-wave platespolarization conversionFabry-Perot resonancesbroadband devicesreflective metasurfaces
0
0 comments X

The pith

Over-coupled reflective metasurfaces produce octave-spanning THz quarter-wave plates with high efficiency.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that metal-dielectric-metal metasurfaces can be structured as over-coupled anisotropic Fabry-Perot cavities whose resonance phase dispersion is tuned to deliver an approximately constant relative phase shift between orthogonal field components. This yields efficient linear-to-circular polarization conversion while preserving high reflectance across broad bands. Four complementary designs operated at 45-degree incidence together span the 0.25-3 THz range typical of THz time-domain spectroscopy systems. Each device maintains an axial ratio below 3 dB and conversion efficiency above 80 percent over roughly one octave. Geometry optimization suppresses unwanted diffraction and surface-wave coupling, extending the usable bandwidth.

Core claim

Tailoring the metasurface geometry in over-coupled reflective metal-dielectric-metal structures produces an approximately constant relative phase delay between orthogonal field components, enabling high-efficiency linear-to-circular polarization conversion across octave-wide THz bands with high reflectance.

What carries the argument

Over-coupled anisotropic Fabry-Perot cavities in reflective metal-dielectric-metal metasurfaces that engineer resonance phase dispersion for the required phase relationship.

If this is right

  • Compact broadband polarization-control devices become feasible for standard THz spectroscopy systems.
  • Wafer-scale fabrication is compatible with the required performance, as shown by experimental agreement with simulations.
  • Systematic suppression of higher-order modes extends the usable bandwidth while preserving the phase relationship.
  • The approach covers the full 0.25-3 THz window accessible to typical THz time-domain spectroscopy using only four designs.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same resonance-engineering principle could be scaled to other spectral regions if material dispersion and fabrication tolerances are matched.
  • The devices could be integrated into THz imaging or sensing systems that require stable circular polarization over wide bands.
  • The method might extend to related polarization elements such as half-wave plates or polarization rotators by analogous geometry adjustments.

Load-bearing premise

The metasurface geometry can be adjusted to keep a constant relative phase delay without significant coupling to higher-order diffraction or surface-wave modes that would degrade performance.

What would settle it

Measure the axial ratio and polarization conversion efficiency of each of the four fabricated designs across their claimed octave bands and check whether the axial ratio remains below 3 dB and efficiency above 80 percent over most of each band.

Figures

Figures reproduced from arXiv: 2604.03487 by Abul K. Azad, Antoinette J. Taylor, Chun-Chieh Chang, Hou-Tong Chen, Tae Gwan Park.

Figure 1
Figure 1. Figure 1: FIG. 1. Schematic illustration of anisotropic metal-diele [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Simulated reflection amplitude (a) and phase (b) spec [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Simulated reflection amplitude (a) and phase (b) spec [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Simulated reflection phase spectra (a–d) and relativ [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Simulated reflection amplitude (a) and phase (b) spec [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. (a) Conversion efficiencies to left- and right-hande [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. Schematic of the THz time-domain spectroscopy syste [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. Experimentally measured (solid curves) and numeric [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. Performance assessment of linear-to-circular pola [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10. Simulated reflection amplitude spectra for lattice [PITH_FULL_IMAGE:figures/full_fig_p017_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11. (a) Simulated linear-to-circular polarization co [PITH_FULL_IMAGE:figures/full_fig_p018_11.png] view at source ↗
read the original abstract

Compact devices for broadband polarization control in the terahertz (THz) regime are challenging due to the intrinsic phase dispersion of birefringent materials and resonant structures. Here, we demonstrate high-performance broadband THz quarter-wave plates based on over-coupled metal-dielectric-metal reflective metasurfaces. The devices operate as single-port anisotropic Fabry-P\'erot cavities in which the phase dispersion of over-coupled resonances is engineered to produce an approximately constant relative phase delay between orthogonal field components. By tailoring the metasurface geometry, efficient linear-to-circular polarization conversion is achieved while maintaining high reflectance. Four complementary metasurface designs, operated at an incidence angle of $45^\circ$, collectively cover the 0.25--3 THz frequency range accessible to a typical THz time-domain spectroscopy system. Each device exhibits an approximately octave-wide bandwidth with an axial ratio below 3\,dB and polarization conversion efficiencies exceeding 80\% across most of the operating band. Systematic optimization suppresses coupling to higher-order diffraction and surface wave modes, further extending the usable bandwidth while preserving the required phase relationship. The metasurfaces are compatible with wafer-scale fabrication, and experimental results show excellent agreement with simulations. These findings establish over-coupled reflective metasurfaces as a robust and versatile platform for broadband THz polarization control.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript demonstrates four complementary metal-dielectric-metal reflective metasurface designs that operate as over-coupled anisotropic Fabry-Pérot cavities to realize broadband THz quarter-wave plates. Operated at 45° incidence, the devices collectively span 0.25–3 THz with approximately octave-wide bands, axial ratio below 3 dB, and linear-to-circular conversion efficiencies exceeding 80% over most of each band. Systematic geometry tailoring is used to engineer an approximately constant 90° relative phase shift while suppressing higher-order diffraction and surface-wave modes, with experimental results reported to agree closely with simulations.

Significance. If the performance metrics hold, the work provides a compact, wafer-scale-fabrication-compatible platform for broadband THz polarization control that circumvents the intrinsic dispersion limits of birefringent materials. The combination of over-coupled resonance engineering, explicit experimental–simulation validation, and coverage of a full octave per device across the typical TDS range represents a practical advance for THz spectroscopy and imaging systems.

major comments (1)
  1. [Optimization and Results sections] The central claim that geometry tailoring produces an approximately constant relative phase delay without significant higher-order mode coupling (abstract and optimization discussion) rests on the weakest assumption identified; quantitative evidence such as simulated diffraction efficiencies or surface-wave dispersion diagrams across each octave band would be needed to confirm that these modes remain negligible and do not limit the reported bandwidth or efficiency.
minor comments (2)
  1. [Abstract and Figure captions] Clarify the exact definition of 'octave-wide bandwidth' (e.g., whether it is the 3 dB axial-ratio contour or the >80% efficiency contour) and provide explicit frequency ranges for each of the four designs in a table.
  2. [Experimental Results] The statement of 'excellent agreement' between experiment and simulation would benefit from quantitative metrics (e.g., RMS deviation in axial ratio or efficiency) rather than qualitative description.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their positive evaluation and recommendation for minor revision. The single major comment correctly identifies an area where additional quantitative support would strengthen the manuscript. We will incorporate the requested evidence in the revised version.

read point-by-point responses

  1. Referee: [Optimization and Results sections] The central claim that geometry tailoring produces an approximately constant relative phase delay without significant higher-order mode coupling (abstract and optimization discussion) rests on the weakest assumption identified; quantitative evidence such as simulated diffraction efficiencies or surface-wave dispersion diagrams across each octave band would be needed to confirm that these modes remain negligible and do not limit the reported bandwidth or efficiency.

    Authors: We agree that explicit quantitative confirmation of higher-order mode suppression would strengthen the paper. Although our geometry optimization was performed to minimize coupling to these modes (as described in the Optimization section), the manuscript does not currently include the requested diffraction-efficiency spectra or surface-wave dispersion analysis. In the revised manuscript we will add simulated diffraction efficiencies for the propagating orders across each octave band for all four designs. We will also include a short discussion supported by dispersion diagrams confirming that surface-wave modes remain outside the operating windows and do not degrade the reported axial ratio or conversion efficiency. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected in derivation chain

full rationale

The manuscript presents a design approach for metasurface quarter-wave plates that engineers the phase response of over-coupled Fabry-Pérot resonances via geometry tailoring, validated through electromagnetic simulations and experimental measurements. No load-bearing step reduces by construction to a fitted parameter renamed as a prediction, a self-definitional loop, or an unverified self-citation chain. The central performance claims (octave bandwidth, axial ratio <3 dB, >80% efficiency) are outputs of systematic optimization grounded in Maxwell's equations and external checks (simulation-experiment agreement), not internal re-labeling of inputs. This is the expected non-finding for a simulation-driven engineering paper whose assumptions are externally falsifiable.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The work rests on standard electromagnetic modeling of Fabry-Pérot cavities and metasurface scattering with geometry parameters optimized to achieve the desired phase relationship.

free parameters (1)
  • metasurface unit cell dimensions and layer thicknesses
    Tailored to set resonance frequencies and coupling rates for constant phase delay.
axioms (1)
  • standard math Standard Maxwell equations and boundary conditions for reflective metasurfaces
    Used to predict phase dispersion of over-coupled resonances.
